KT382A
View detailed images (4)

KT382A

SKU: KT382A

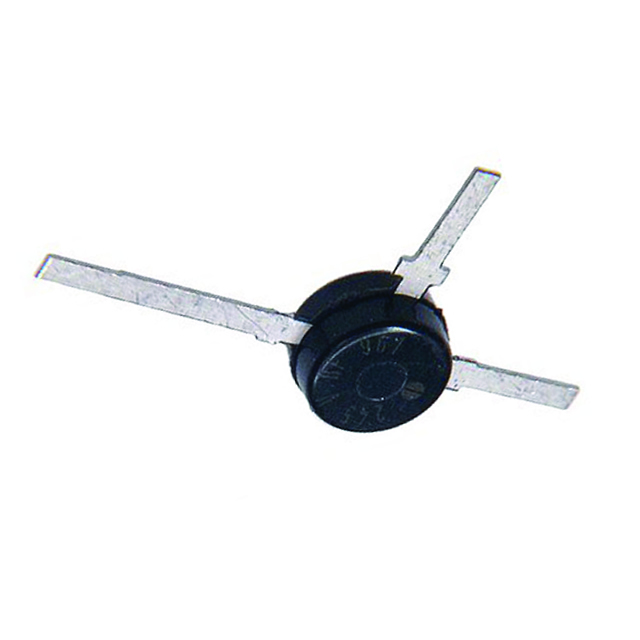

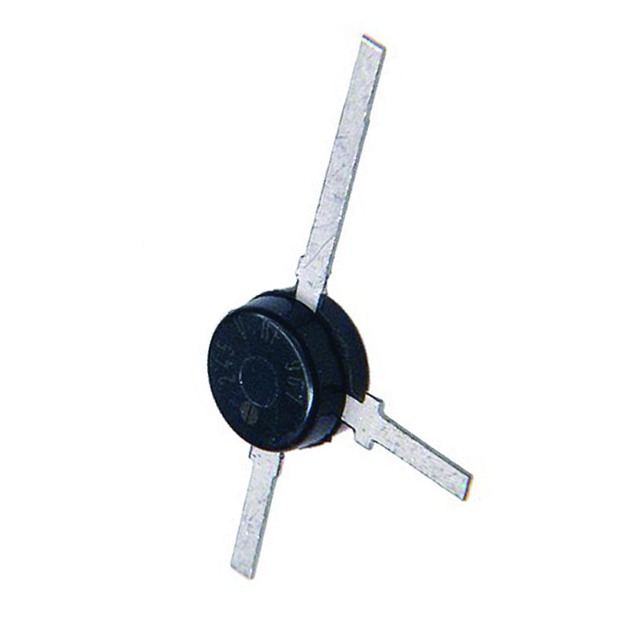

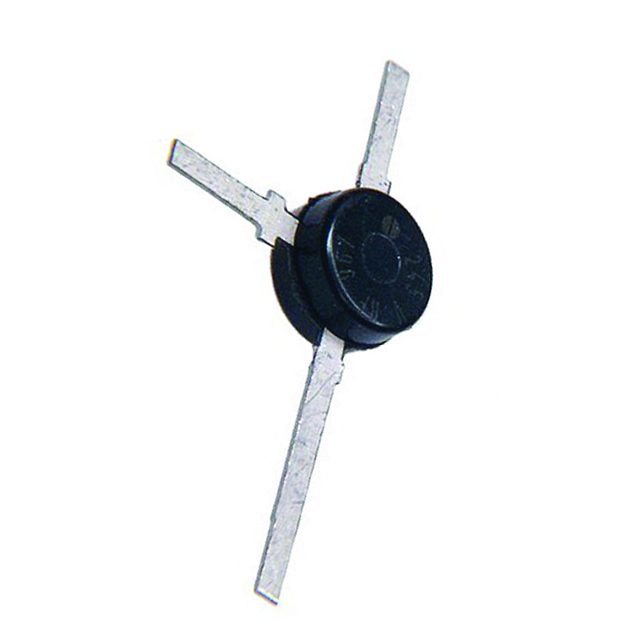

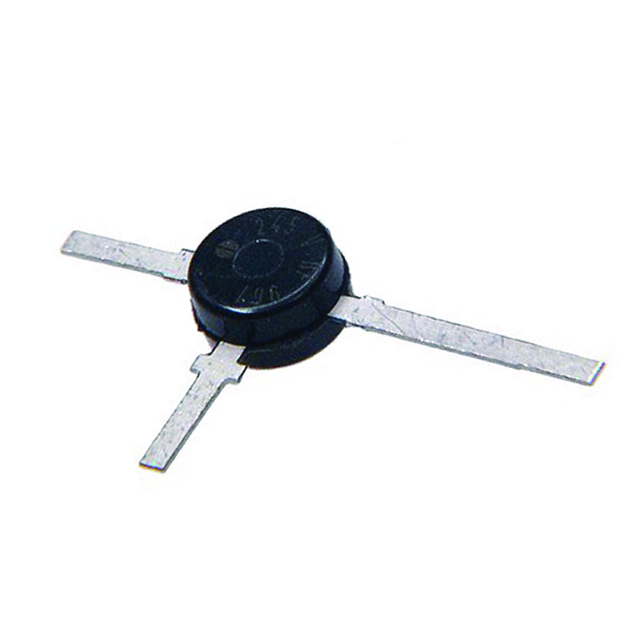

KT382A Transistor Silicon NPN CASE: SOT37 MAKE: Generic
Product specifications
Type Transistor Silicon NPN
Case SOT37
Manufacturer Generic
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.1 W
Maximum Collector-Base Voltage |Vcb| 15 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.02 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 2 pF
Transition Frequency (ft): 1800 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 424224
