KTC1027
View detailed images (12)

KTC1027

SKU: KTC1027

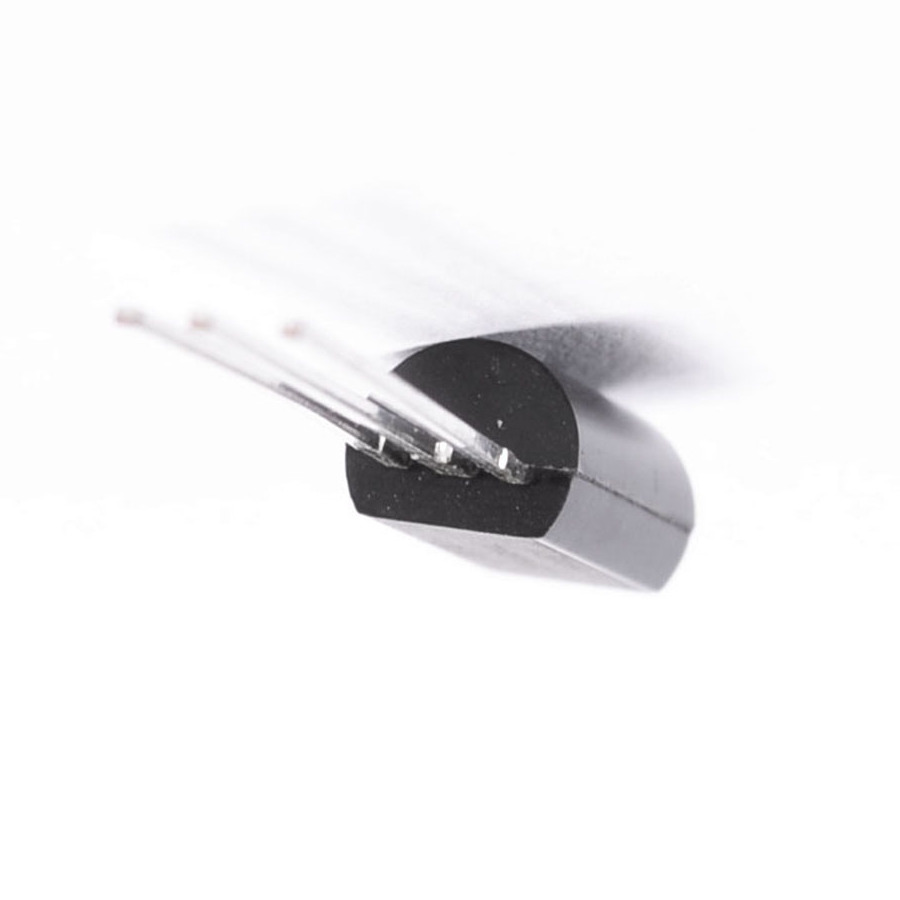

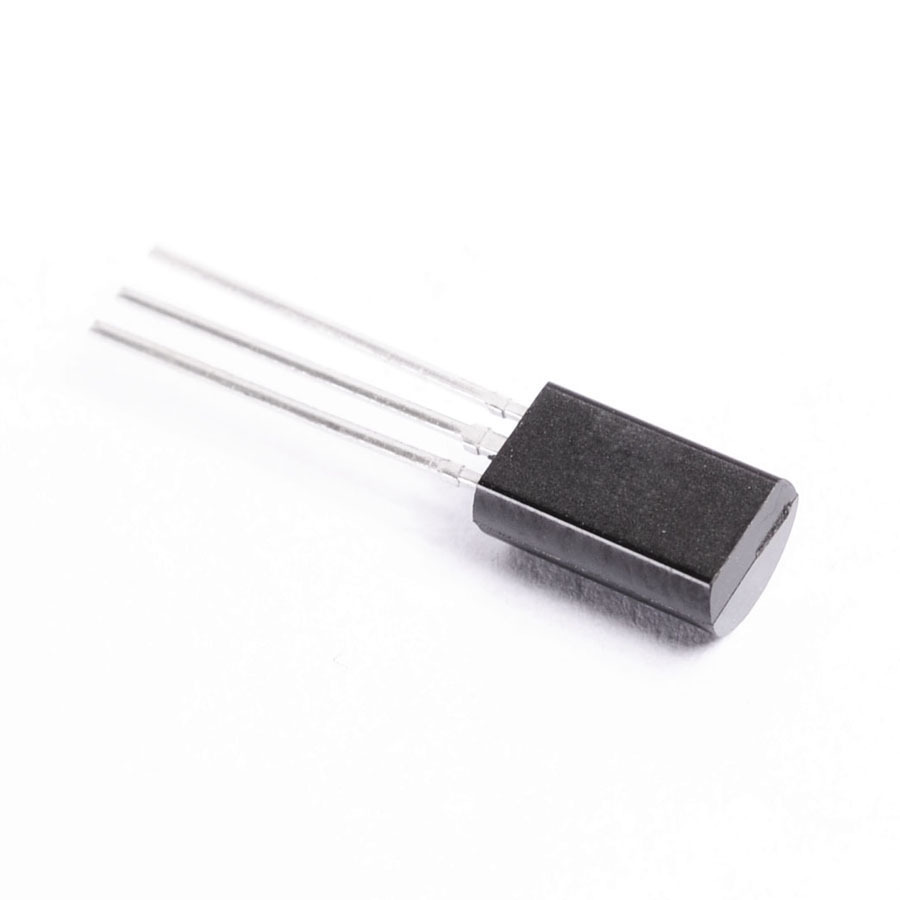

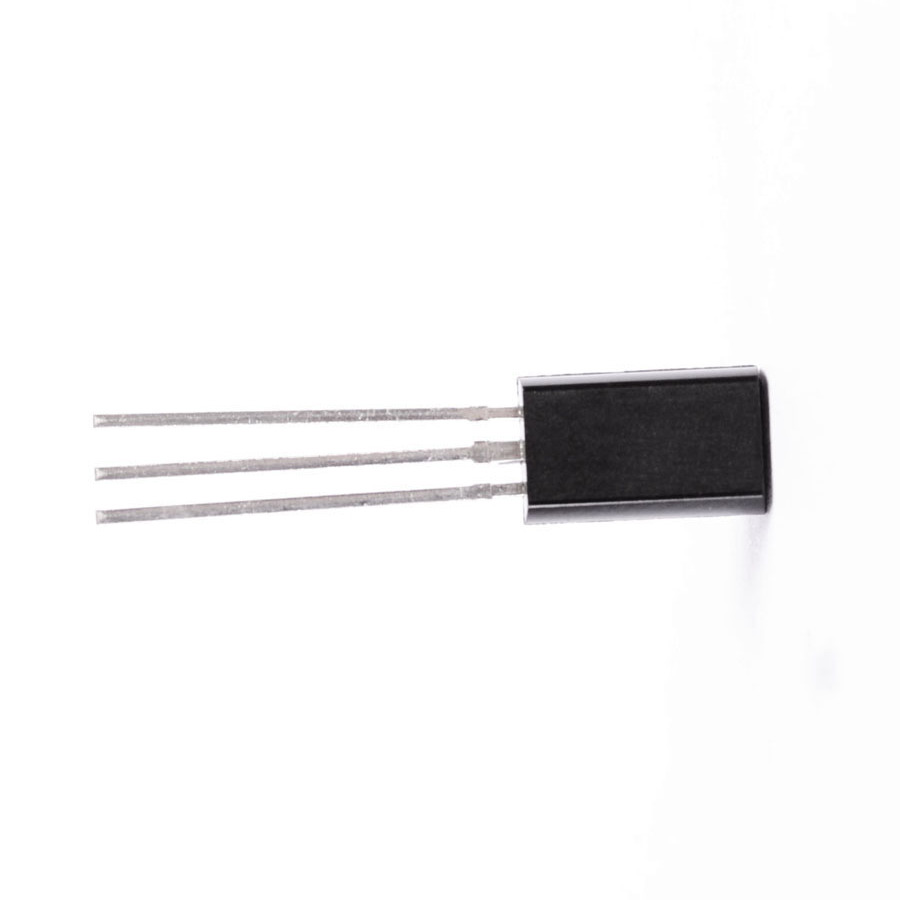

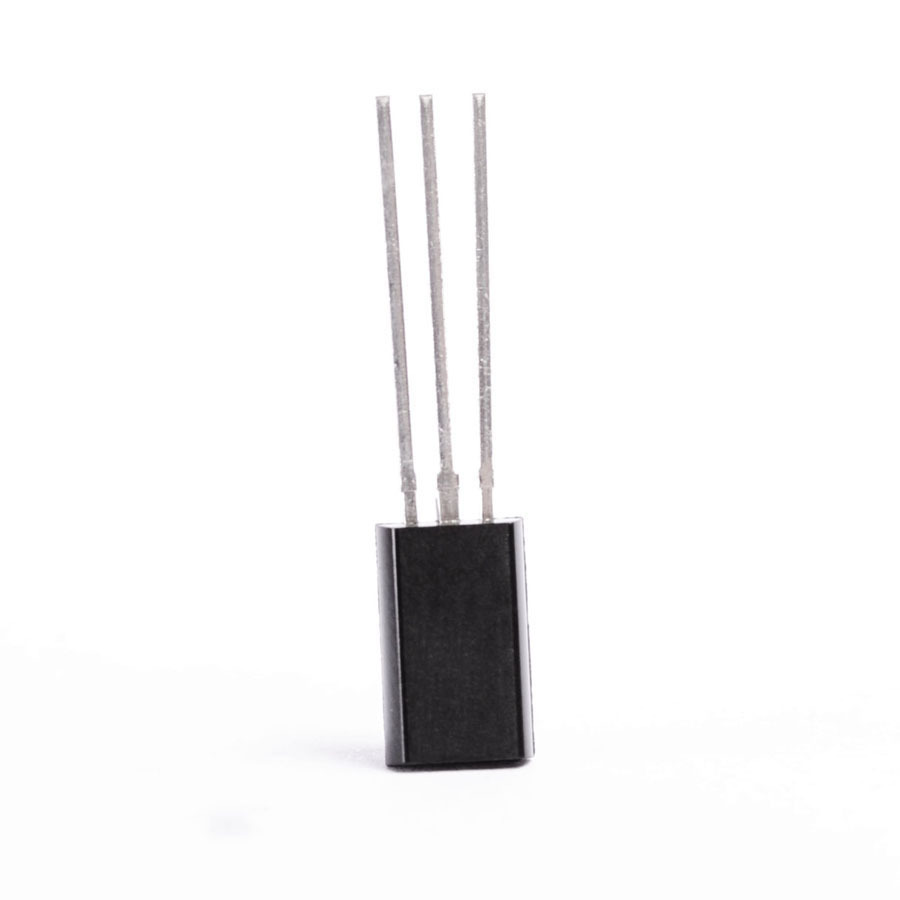

KTC1027 Transistor Silicon NPN CASE: TO92L MAKE: Korea Electronics - KEC
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 46 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
KTC1027 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO92L
Manufacturer Korea Electronics - KEC
Polarity NPN
Maximum Collector Power Dissipation (Pc) 1 W
Maximum Collector-Emitter Voltage |Vce| 120 V
Maximum Collector Current |Ic max| 0.8 A
Max. Operating Junction Temperature (Tj) 175 °C
Forward Current Transfer Ratio (hFE), MIN 80
SKU 355566
