Home / Actives / Transistor / KTD600K
KTD600K
View detailed images (4)

KTD600K

SKU: KTD600K

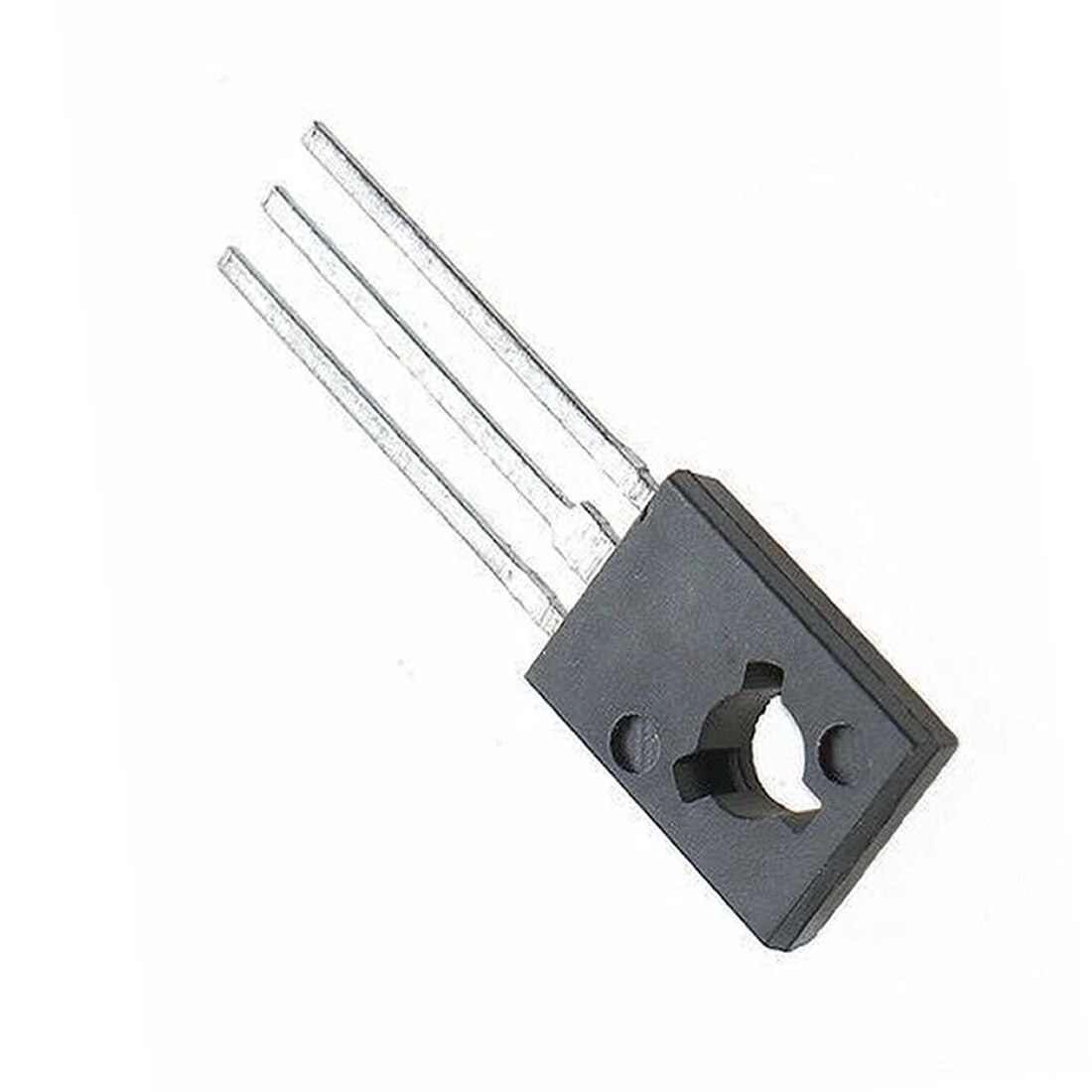

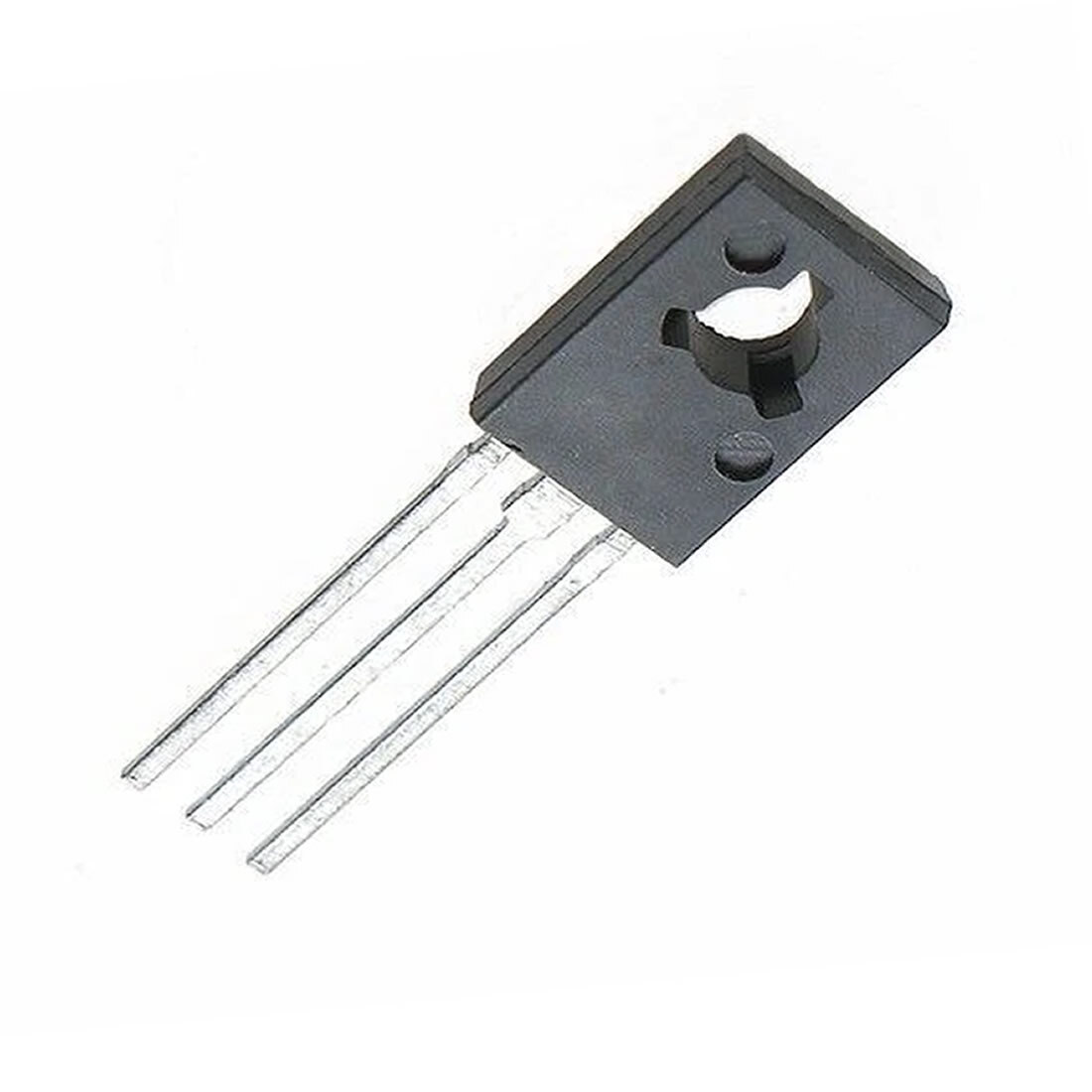

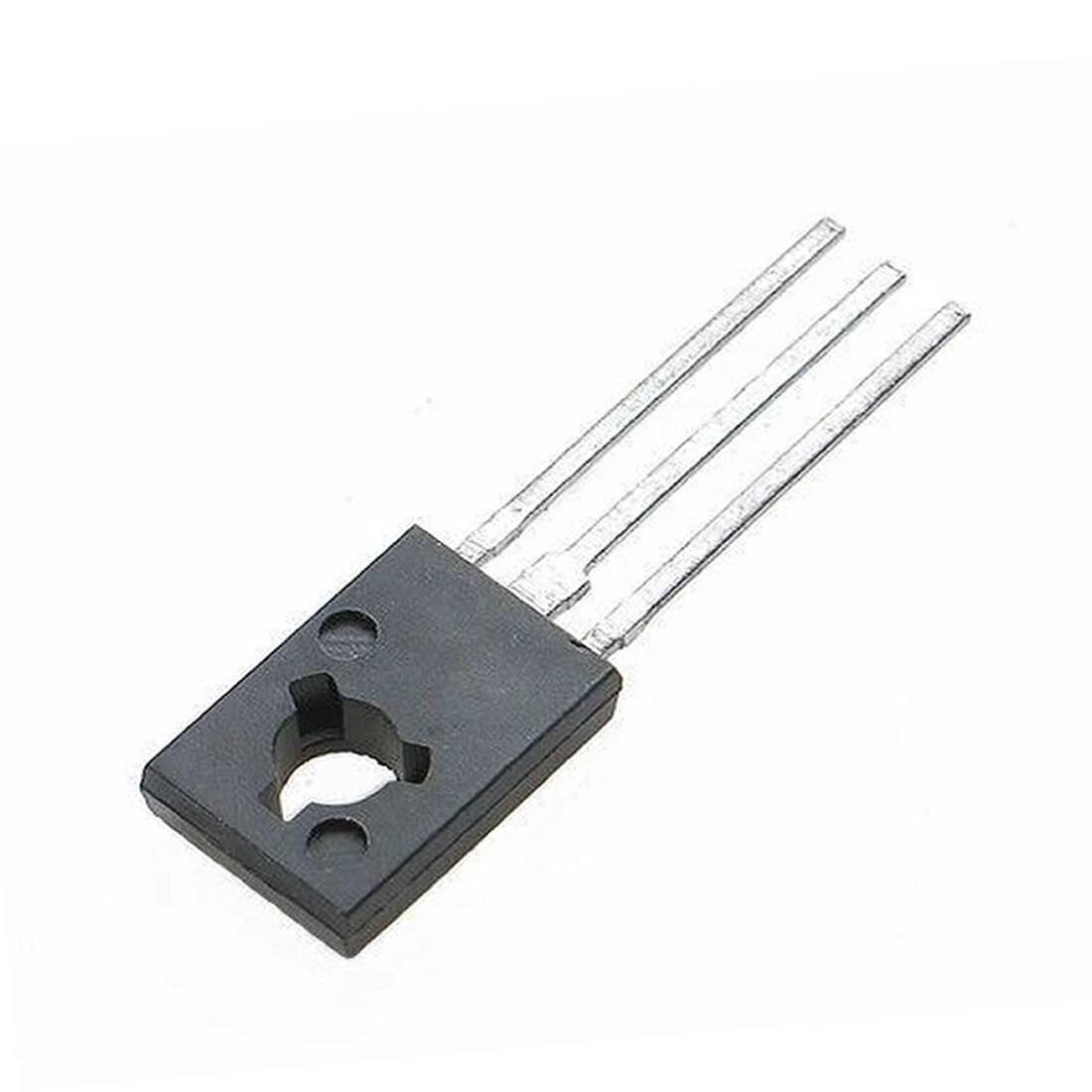

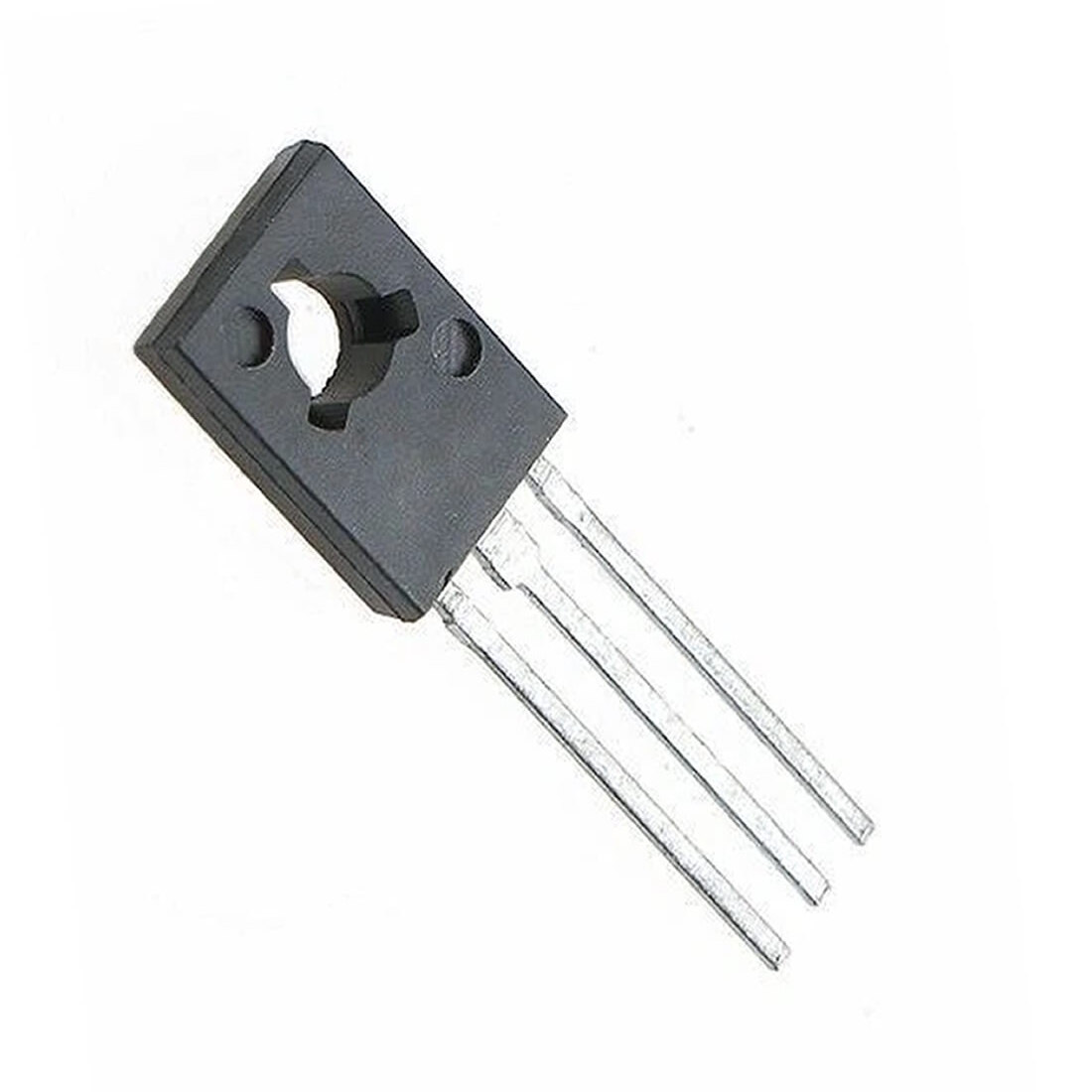

KTD600K Semiconductor CASE: TO126F MAKE: Korea Electronics - KEC
Price:
£4.79 Inc. VAT (£3.99 Ex. VAT)
£4.79 Inc. VAT (£3.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
KTD600K Datasheet
Product specifications
Type Semiconductor
Case TO126F
Manufacturer Korea Electronics - KEC
Polarity NPN
Maximum Collector Power Dissipation (Pc) 8 W
Maximum Collector-Base Voltage |Vcb| 120 V
Maximum Collector-Emitter Voltage |Vce| 120 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 20 pF
Transition Frequency (ft): 130 MHz
Forward Current Transfer Ratio (hFE), MIN 100
SKU 355600
