KU611

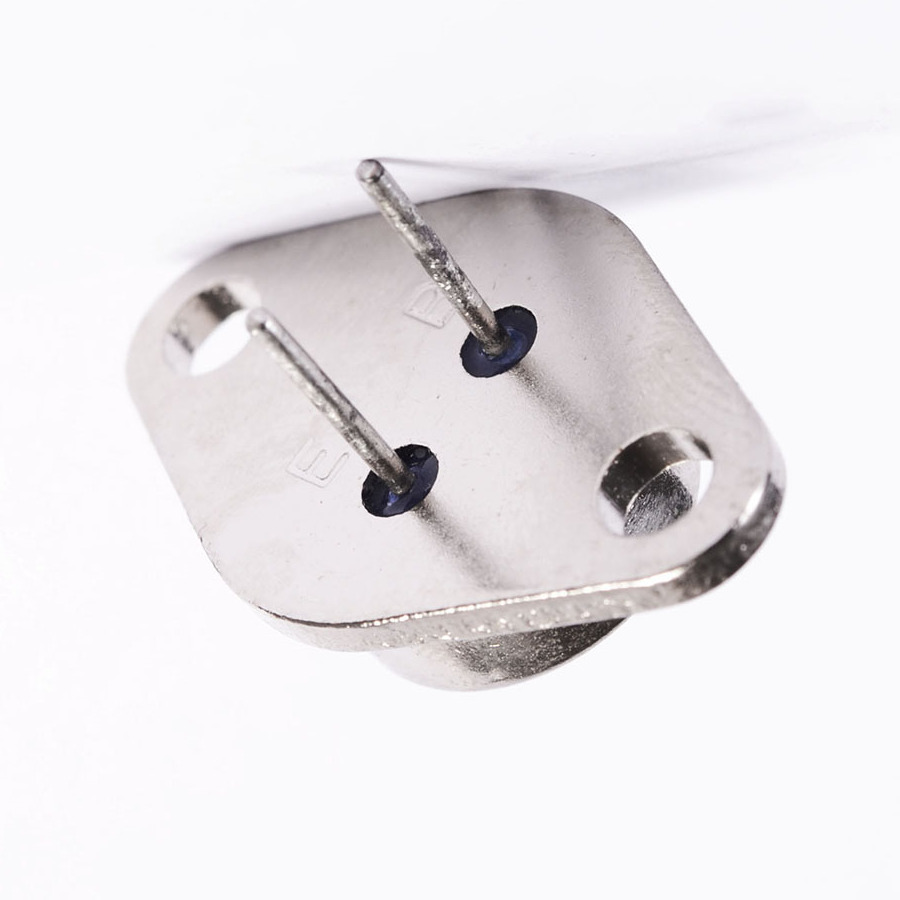

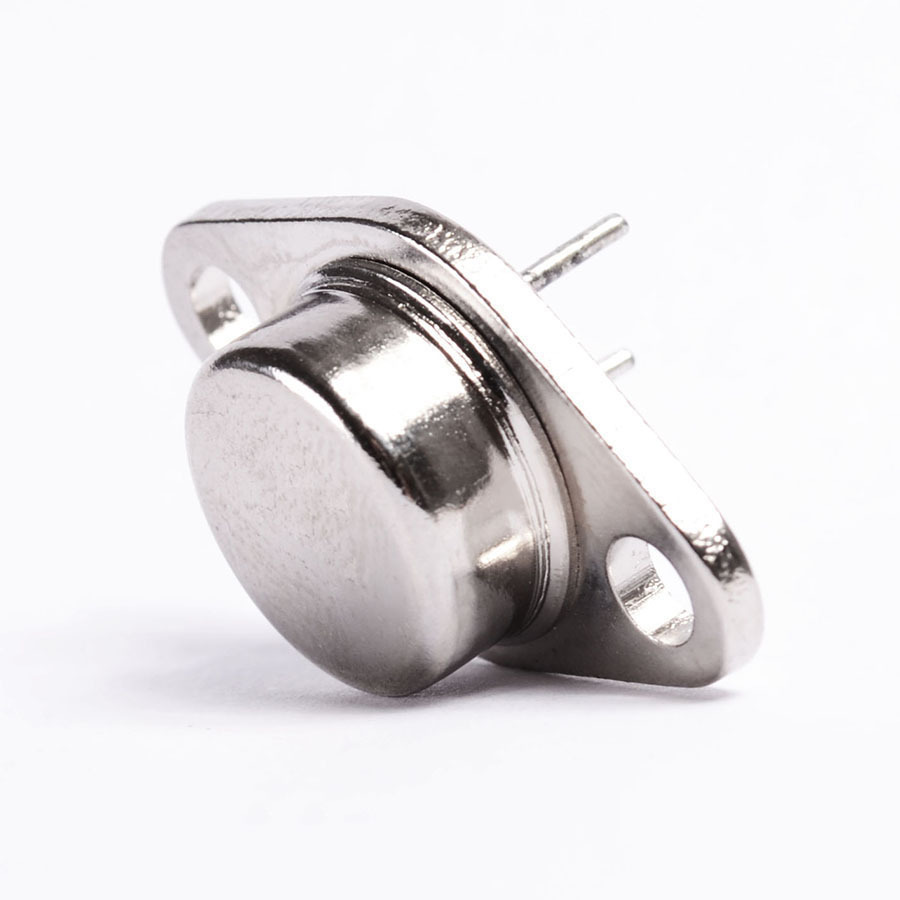

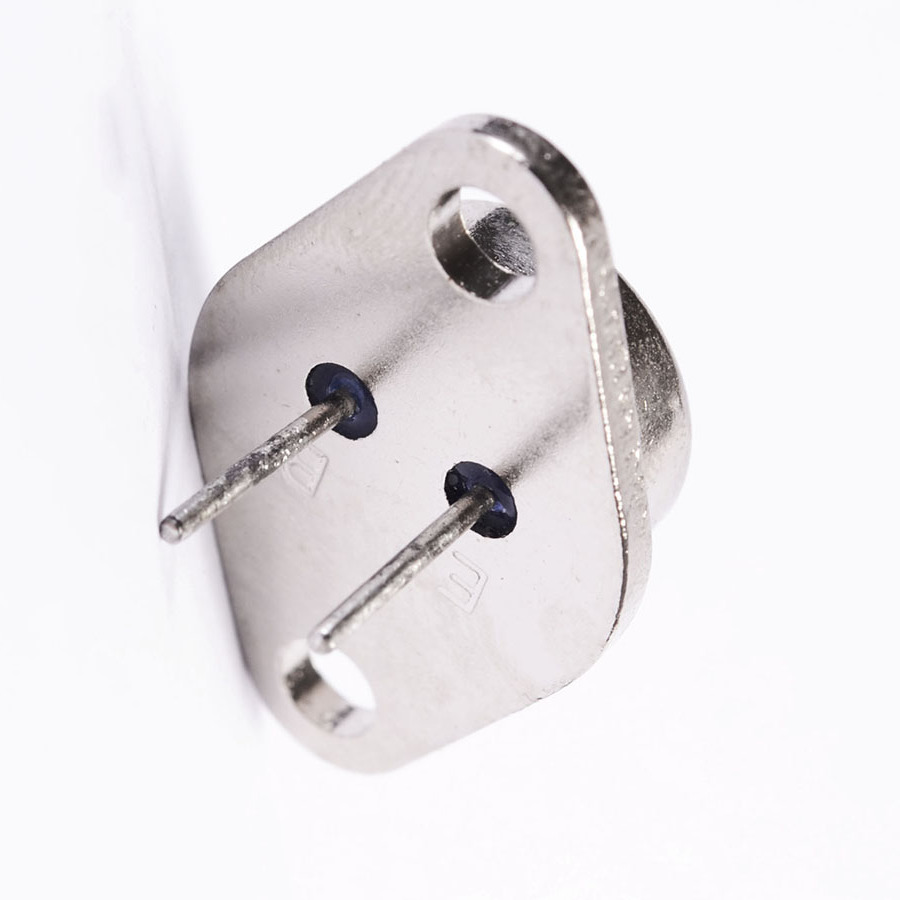

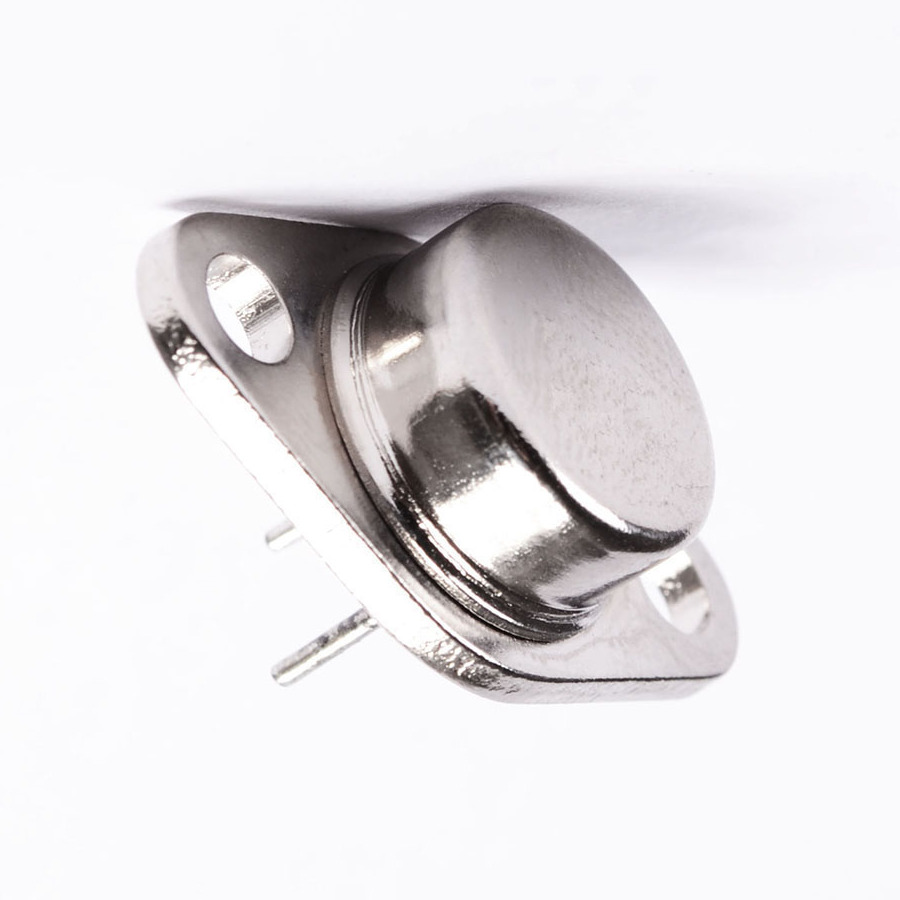

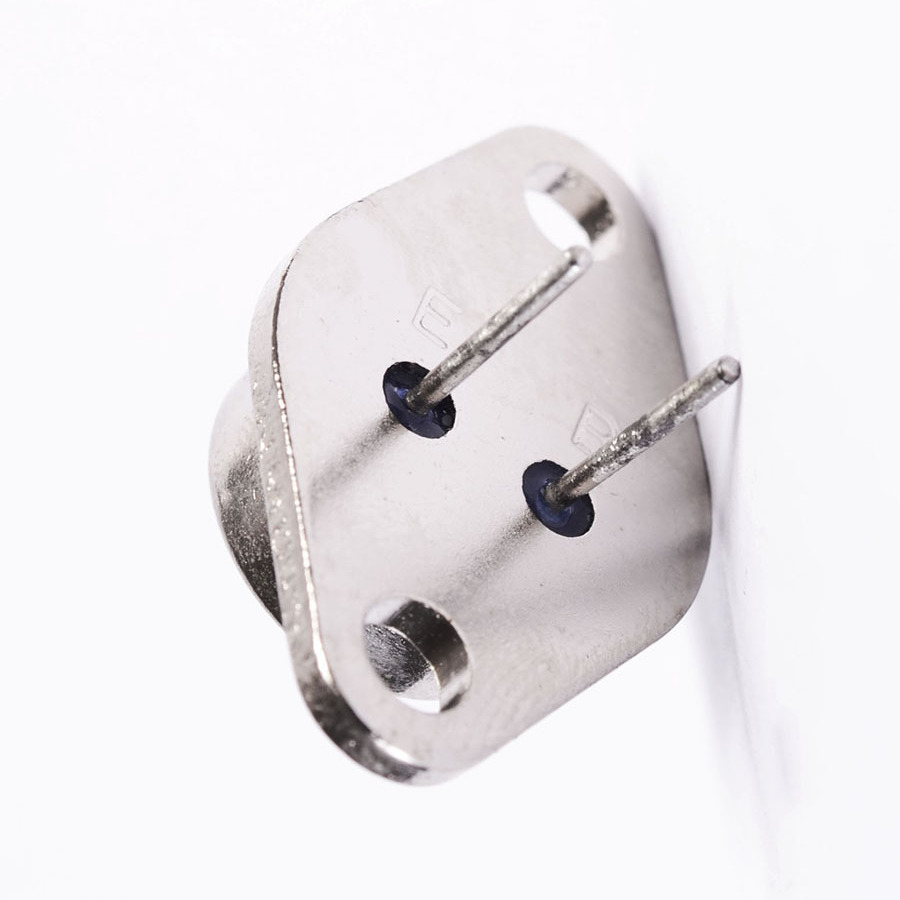

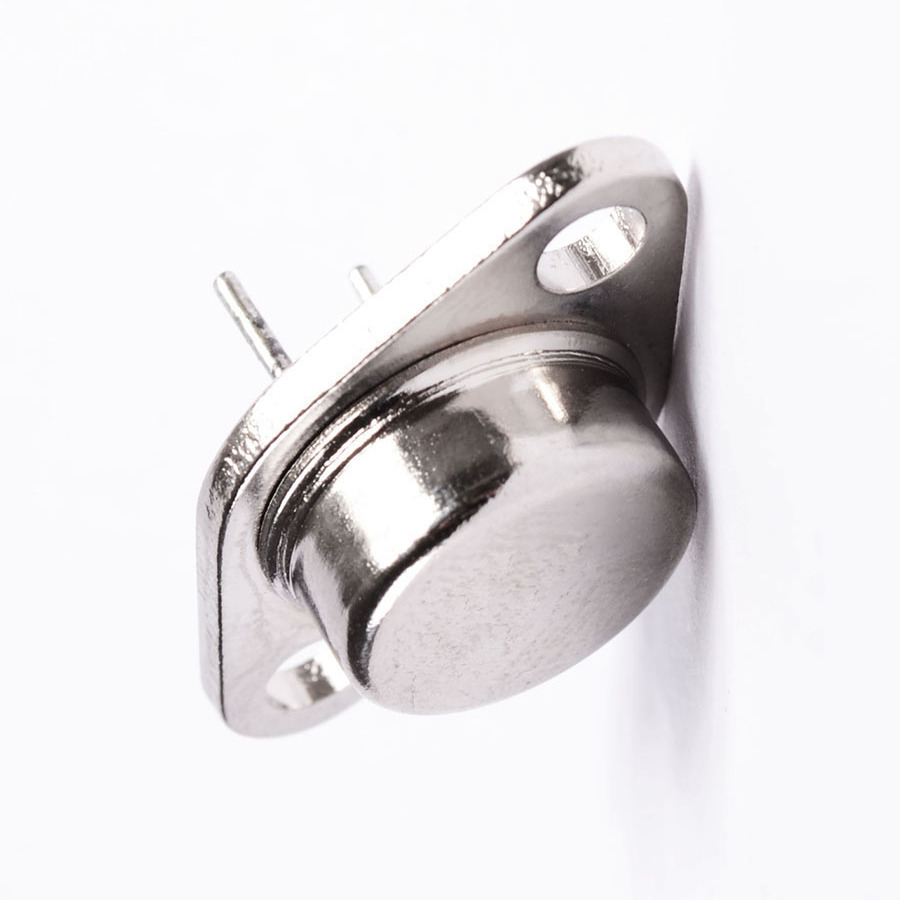

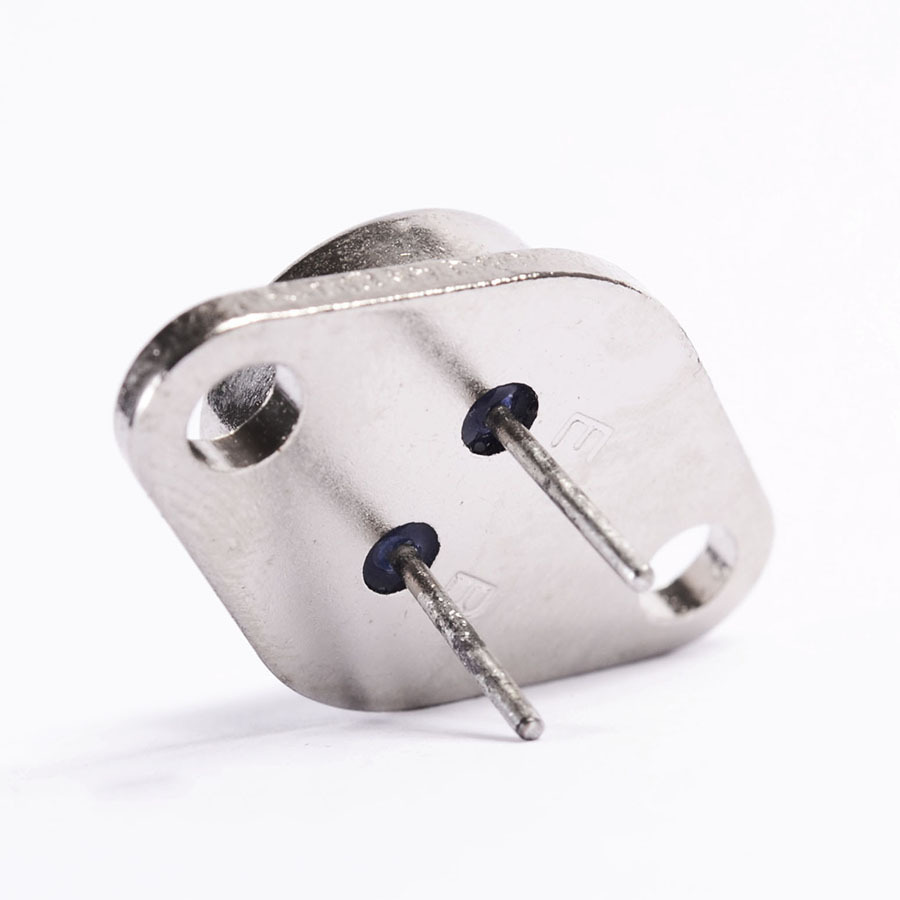

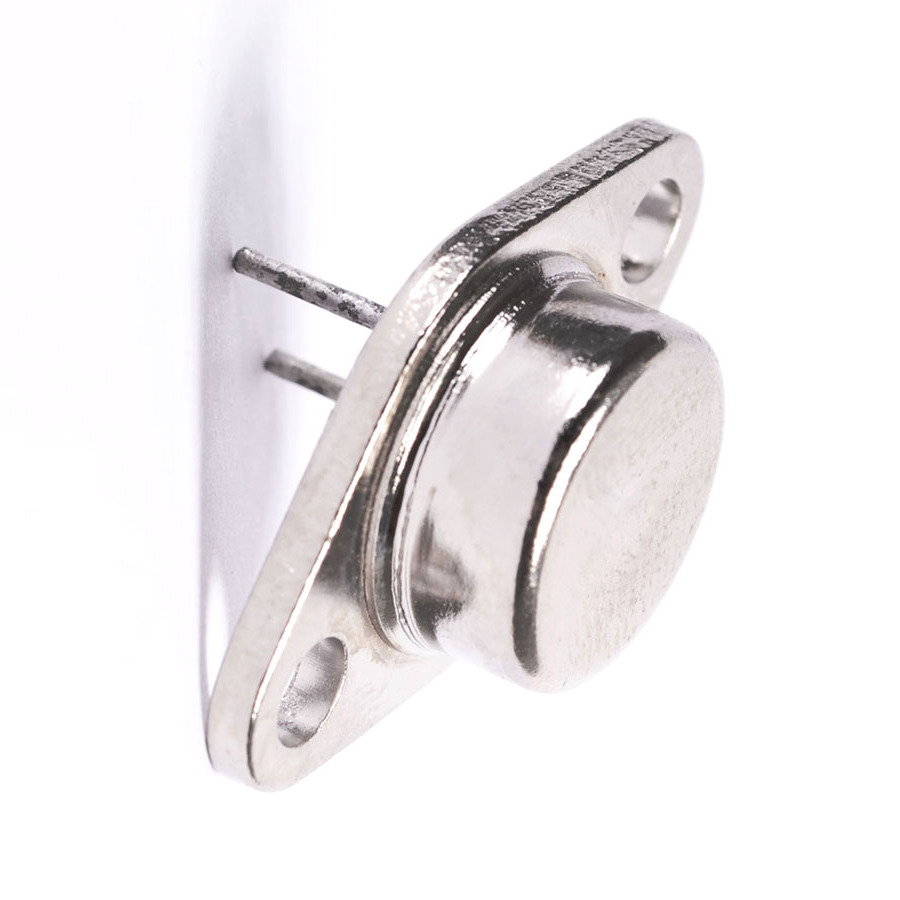

View detailed images (12)

KU611

SKU: KU611

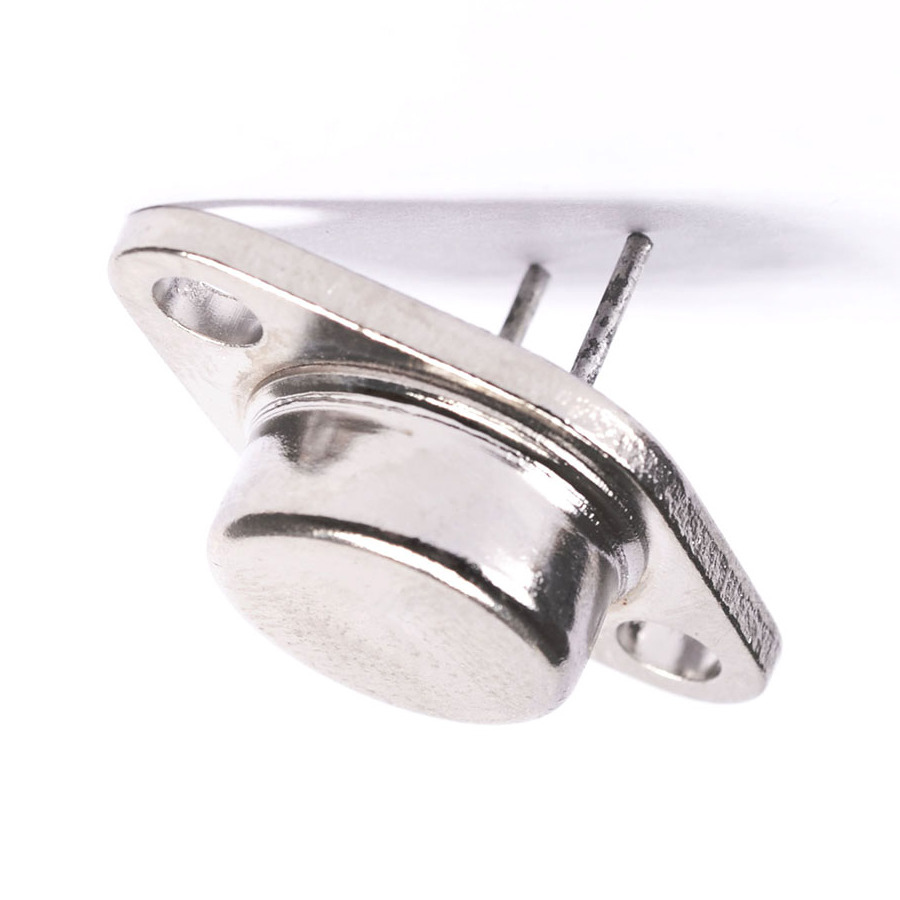

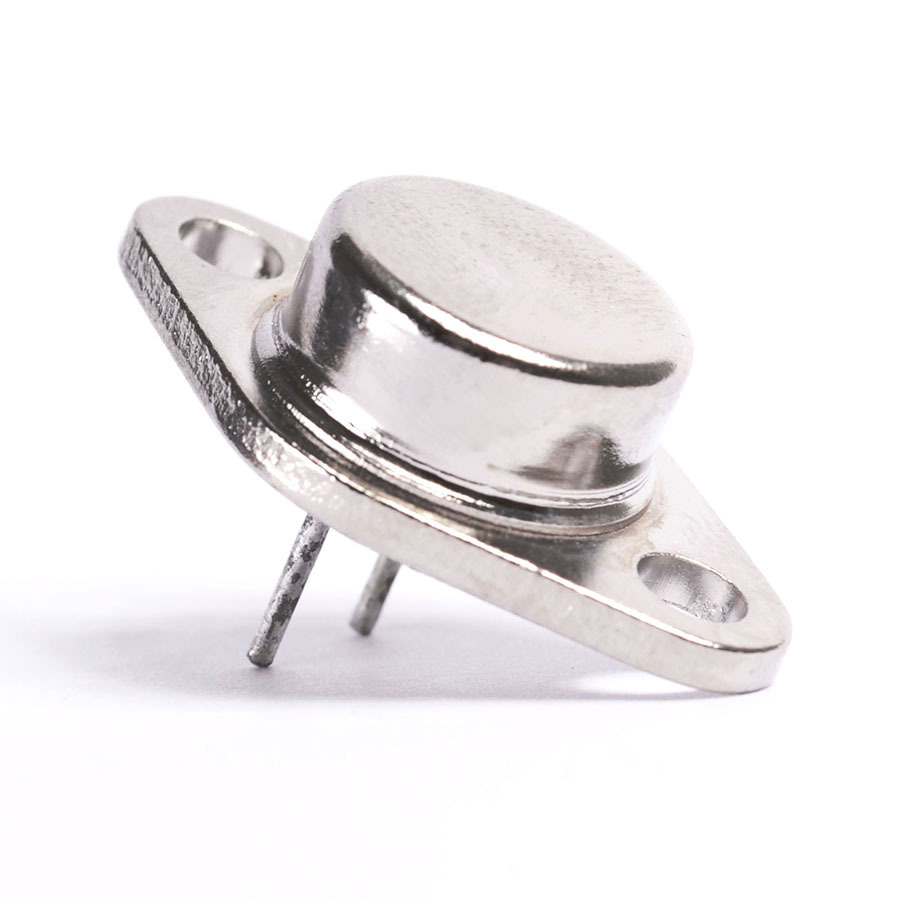

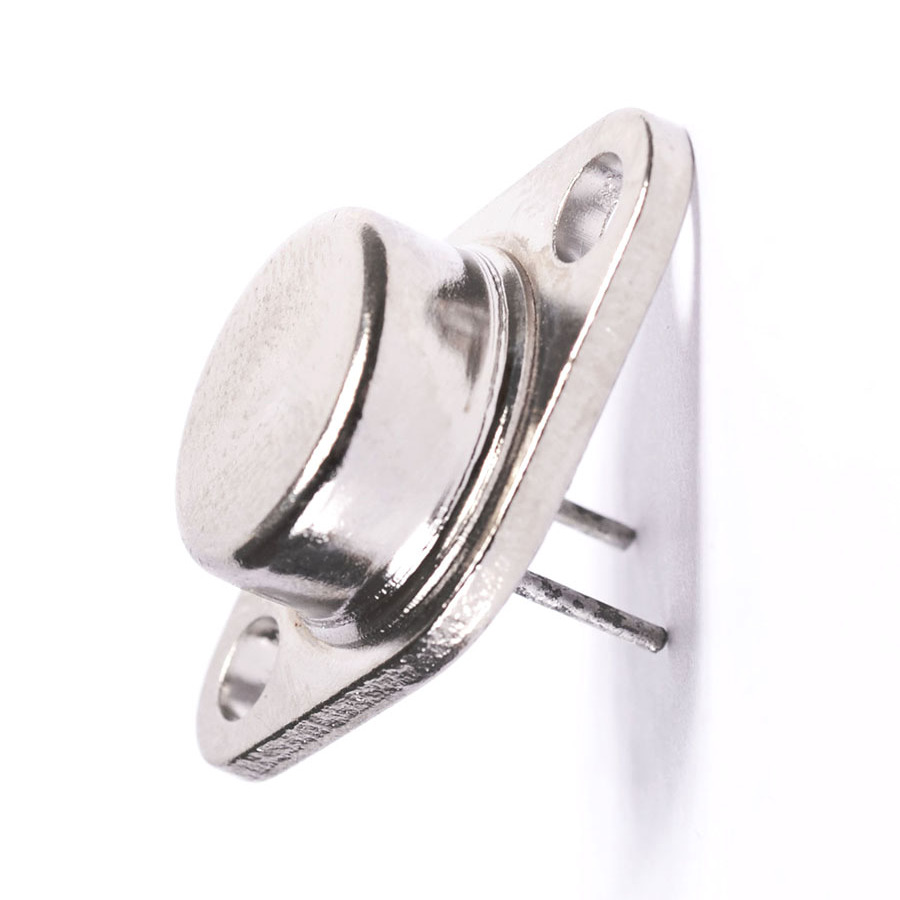

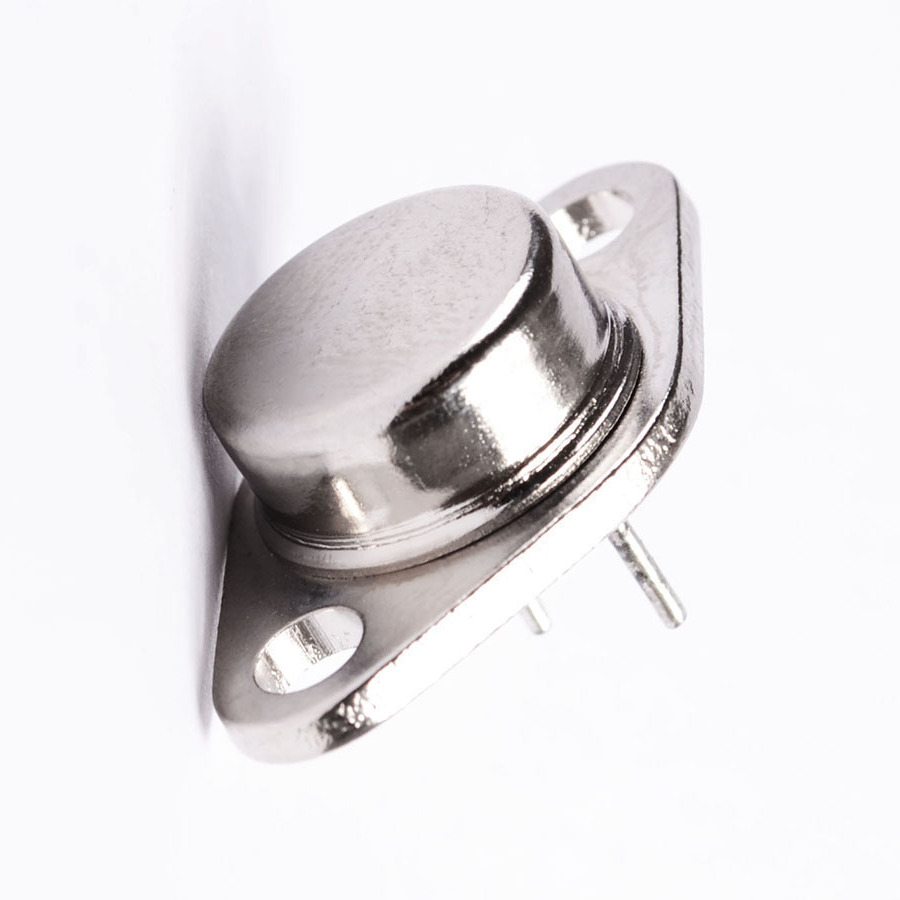

KU611 Transistor Silicon NPN CASE: SOT9 MAKE: Temex Electronics
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case SOT9
Manufacturer Temex Electronics
Vbr CBO 60
Vbr CEO 50
Max. PD (W) 10
Max. hFE 90
Min hFE 20
Ic Max. (A) 3.0
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 50u
Polarity NPN
Trans. Freq (Hz) Min. 15M
Oper. Temp (°C) Max. 155
@VCE (V) 6.0i
Pinout Equivalence Number 3-41
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 10 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 3 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 30 MHz
Forward Current Transfer Ratio (hFE), MIN 10
SKU 313967
