L6221N

L6221N

SKU: L6221N

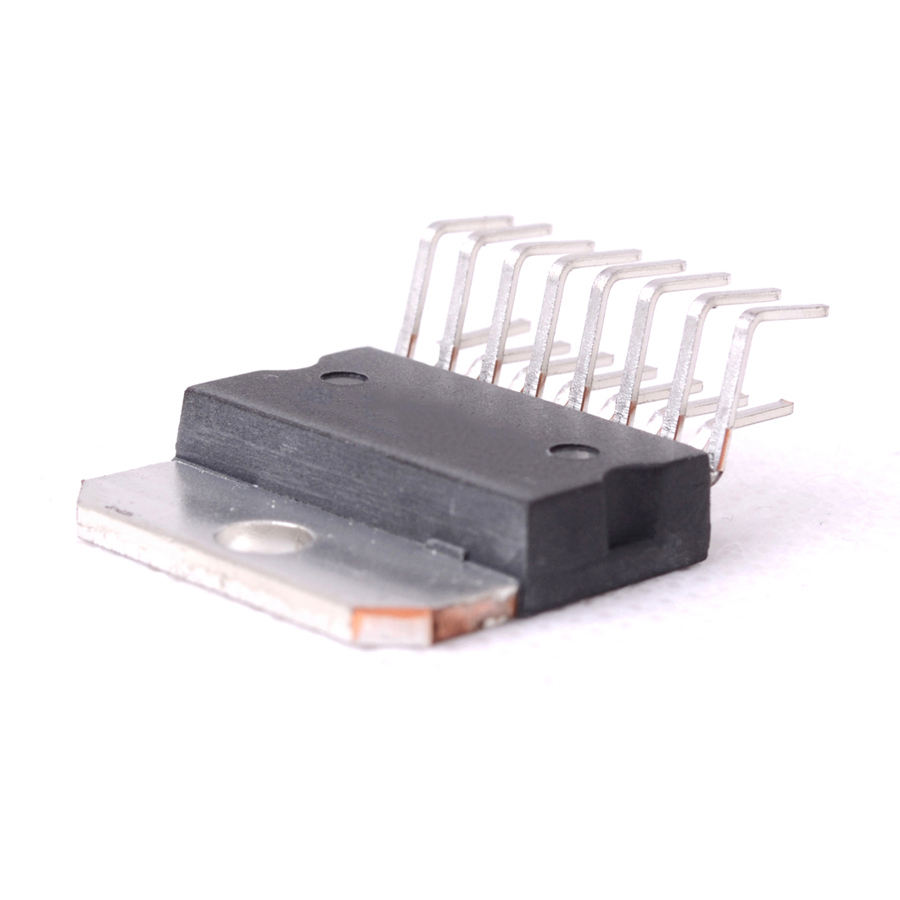

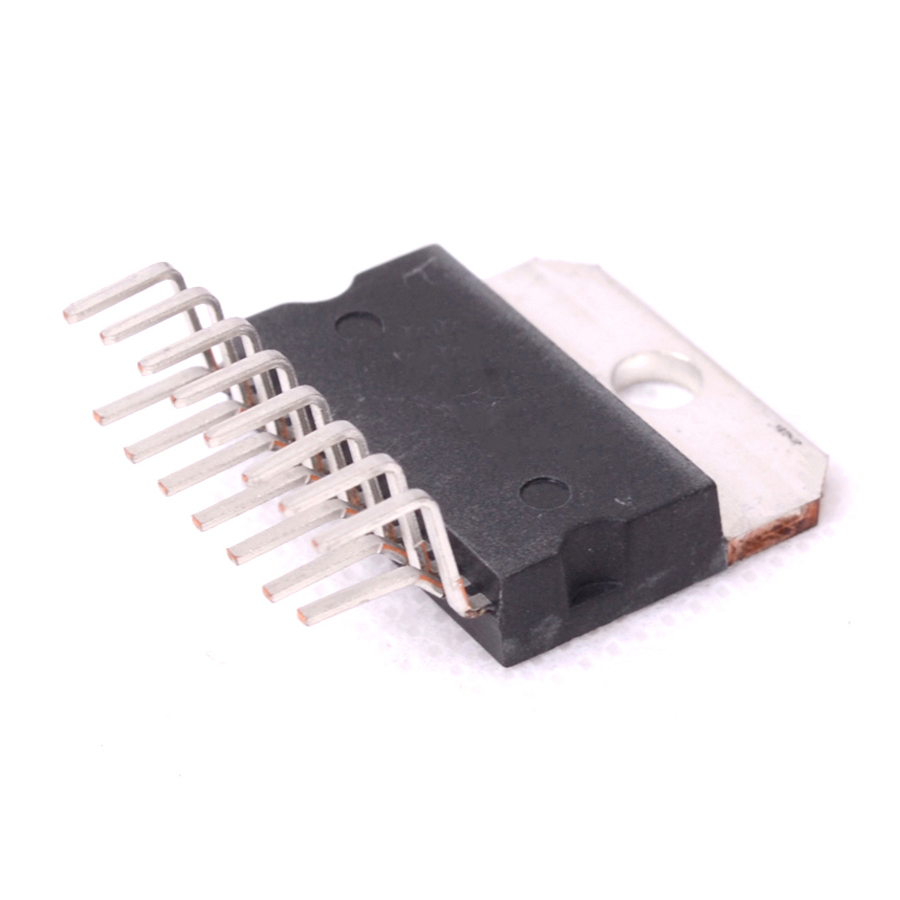

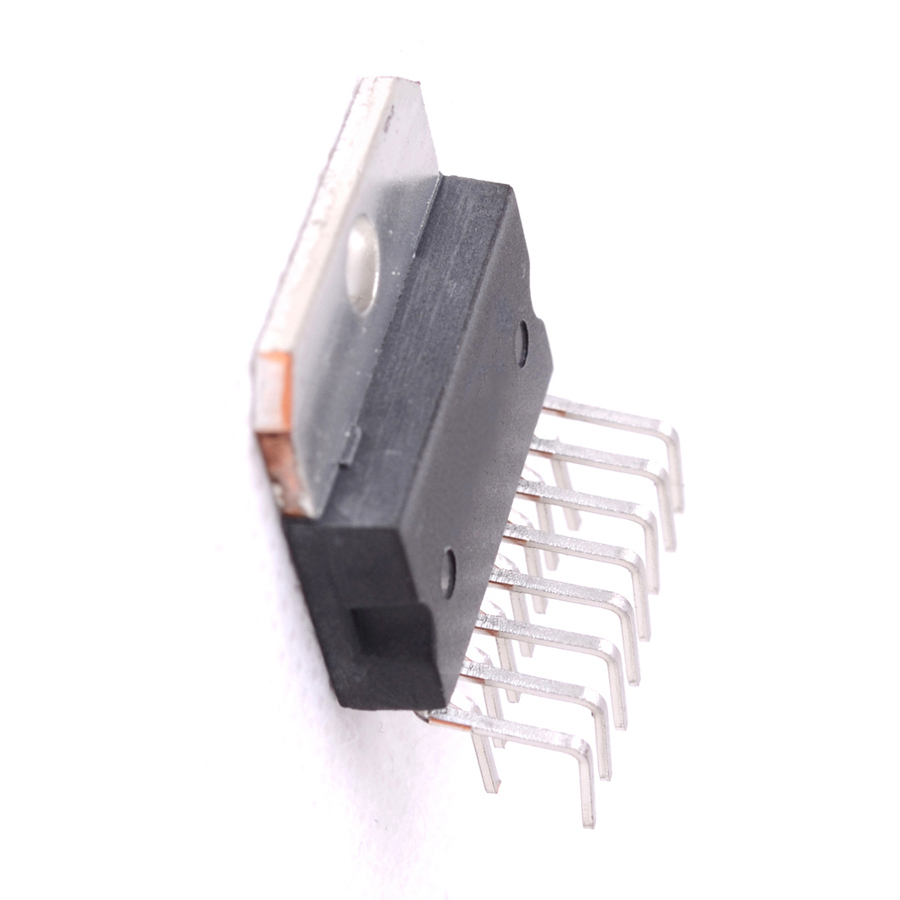

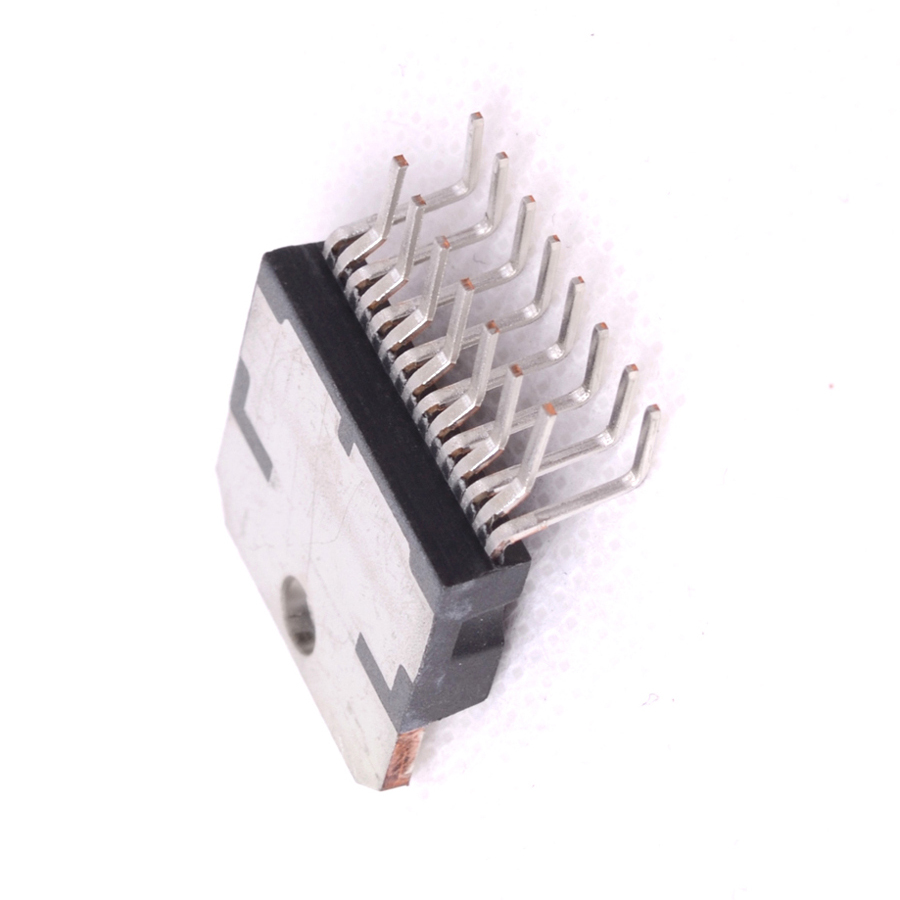

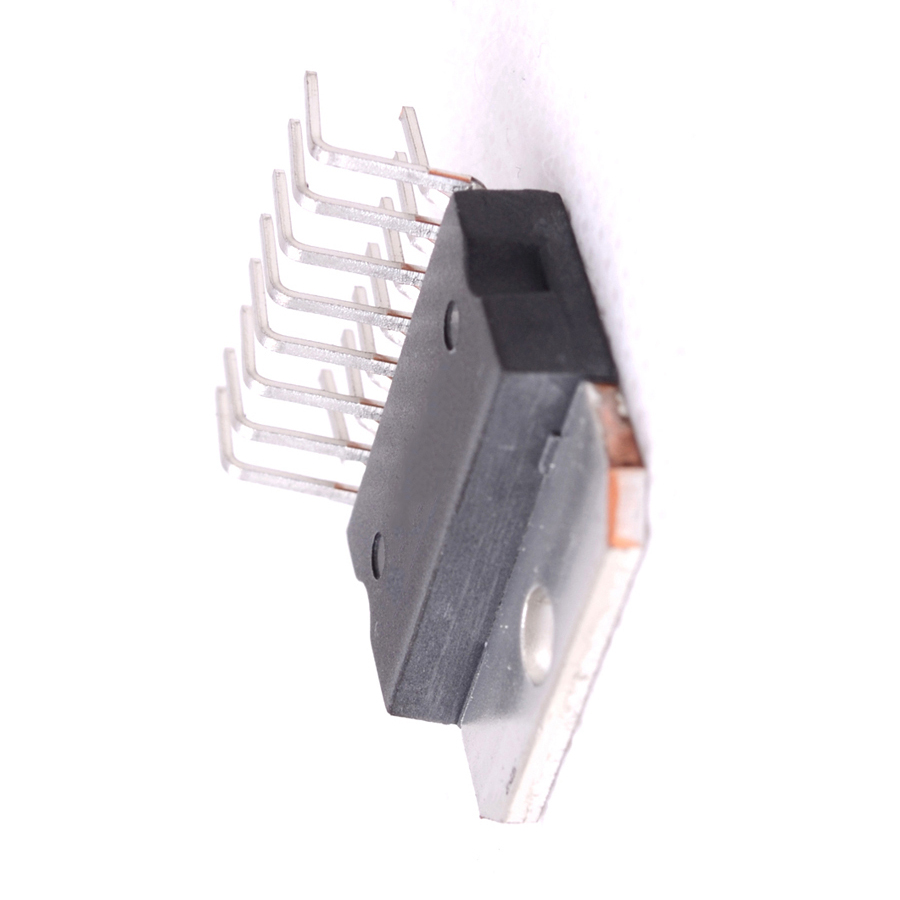

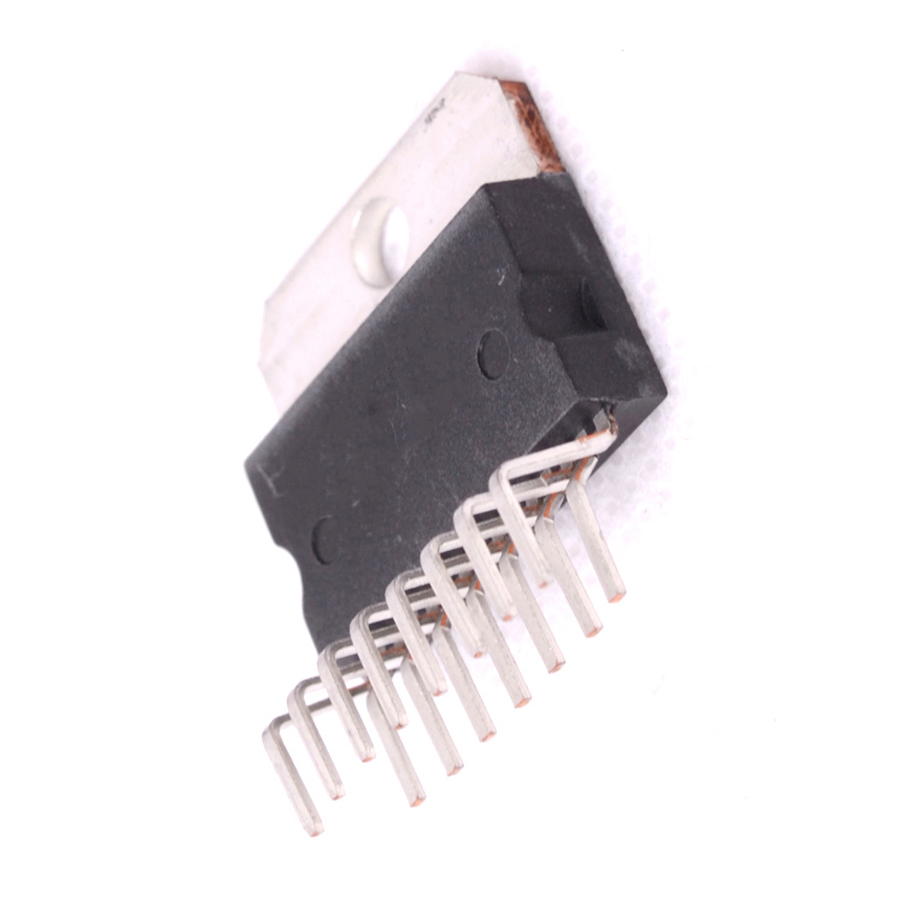

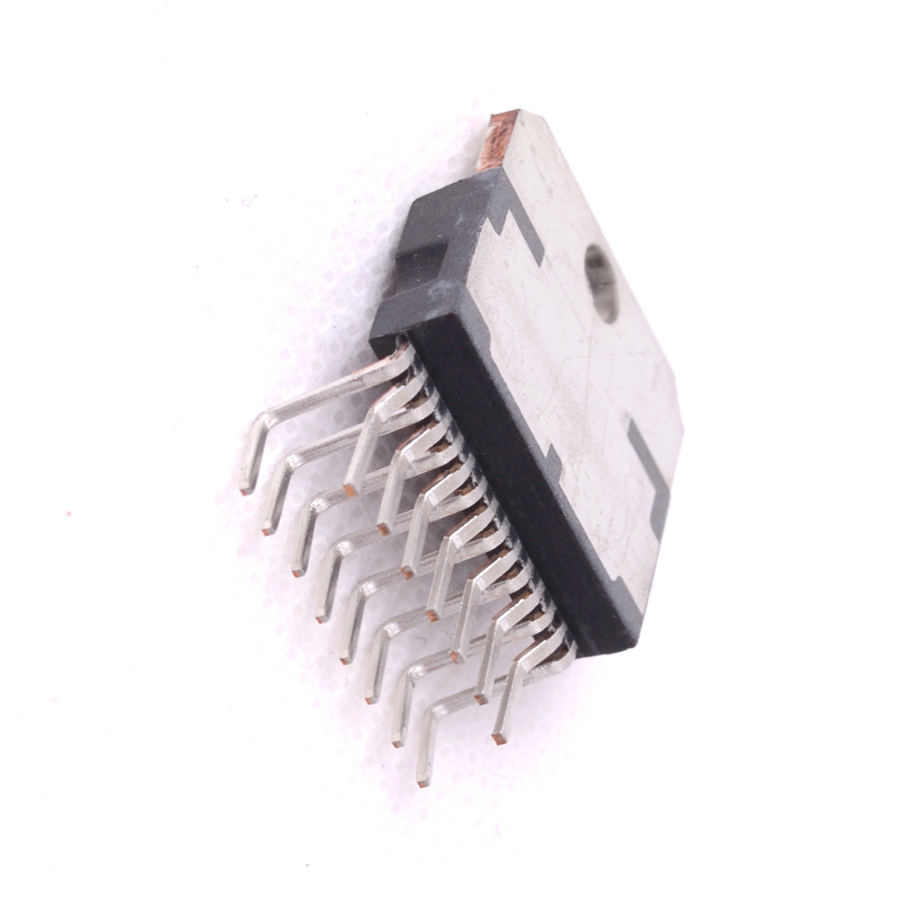

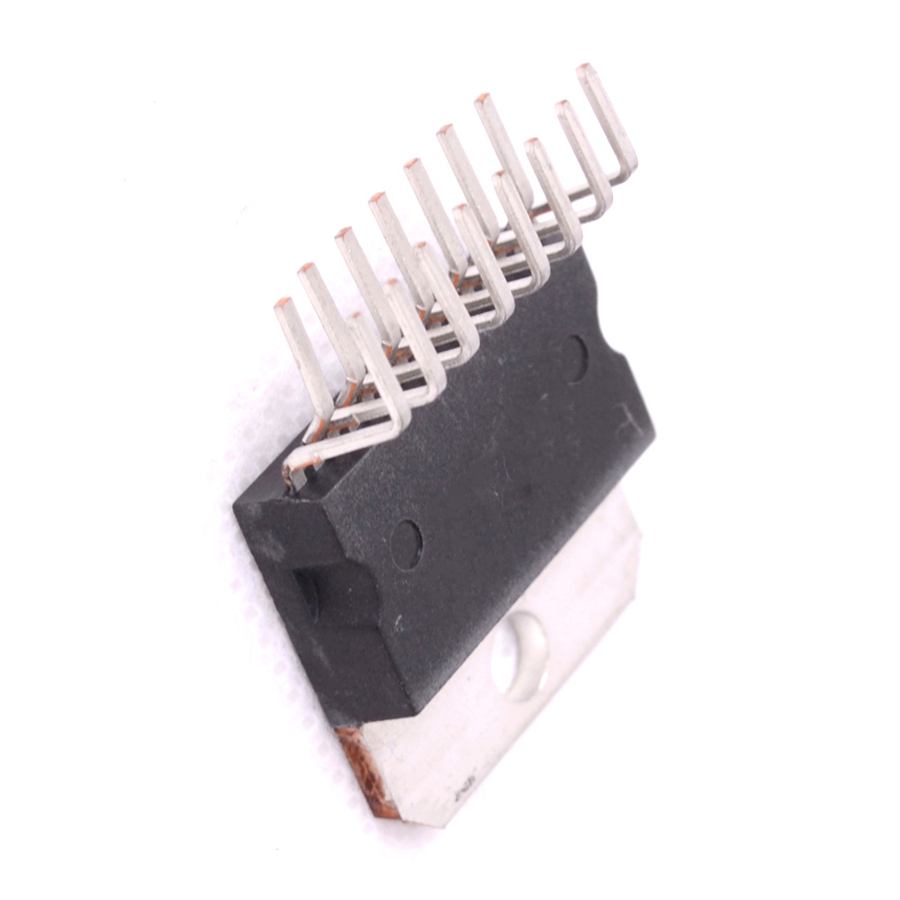

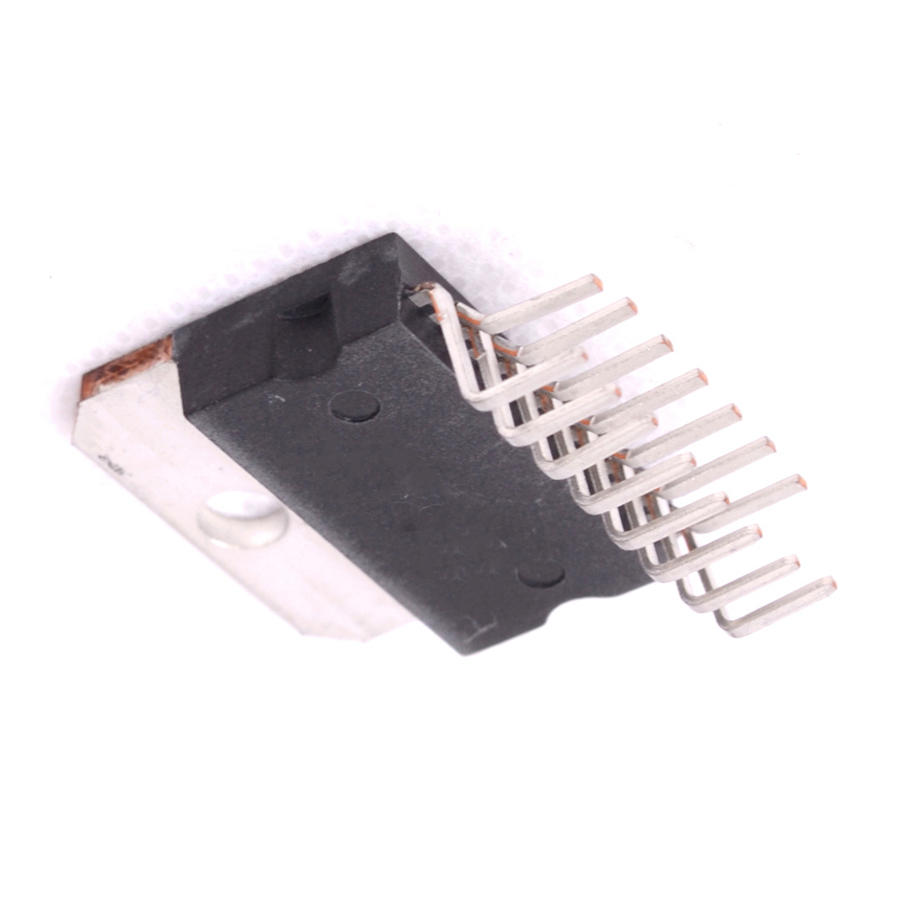

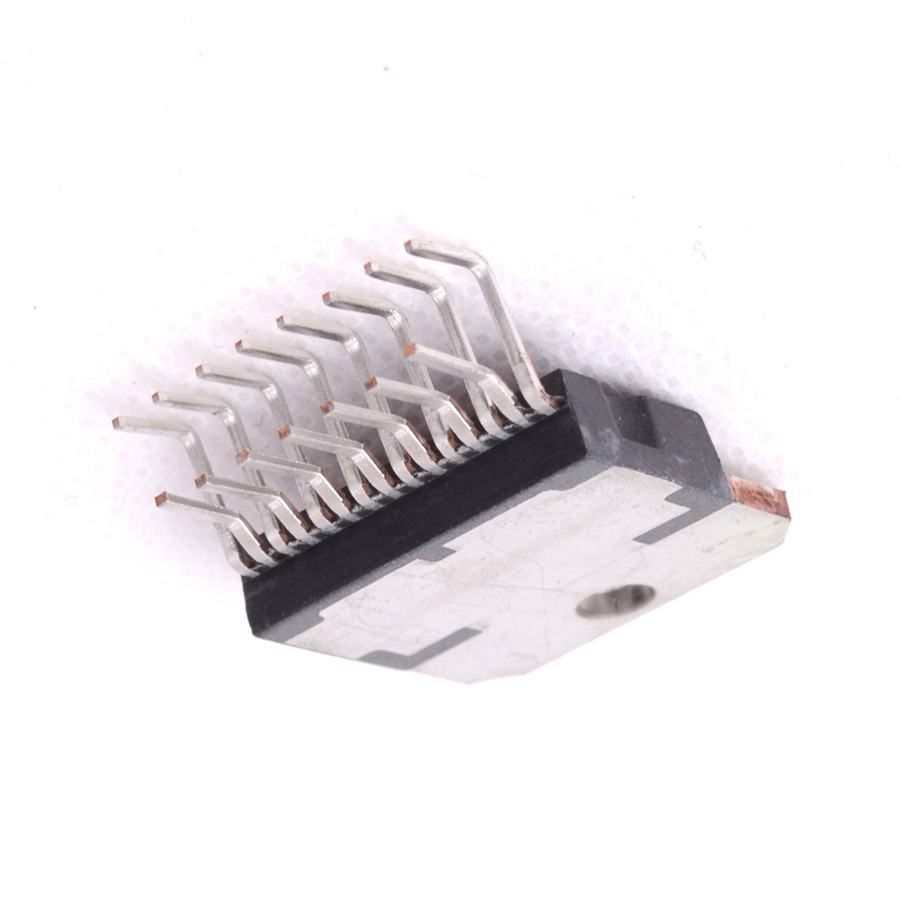

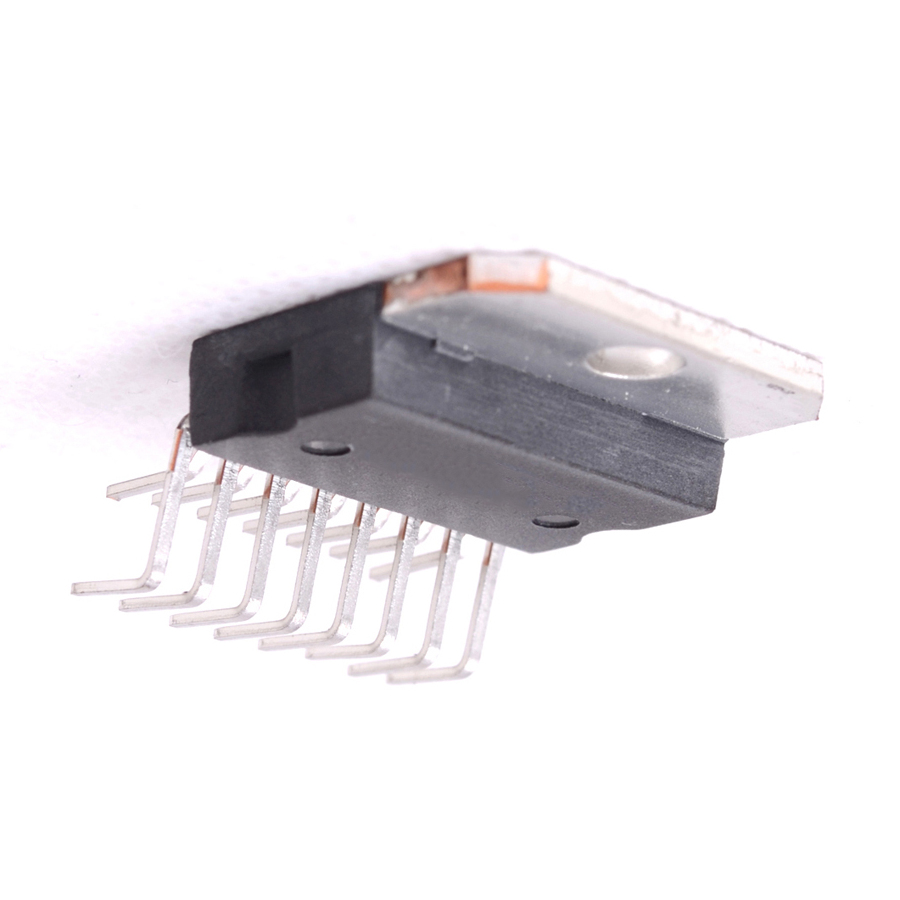

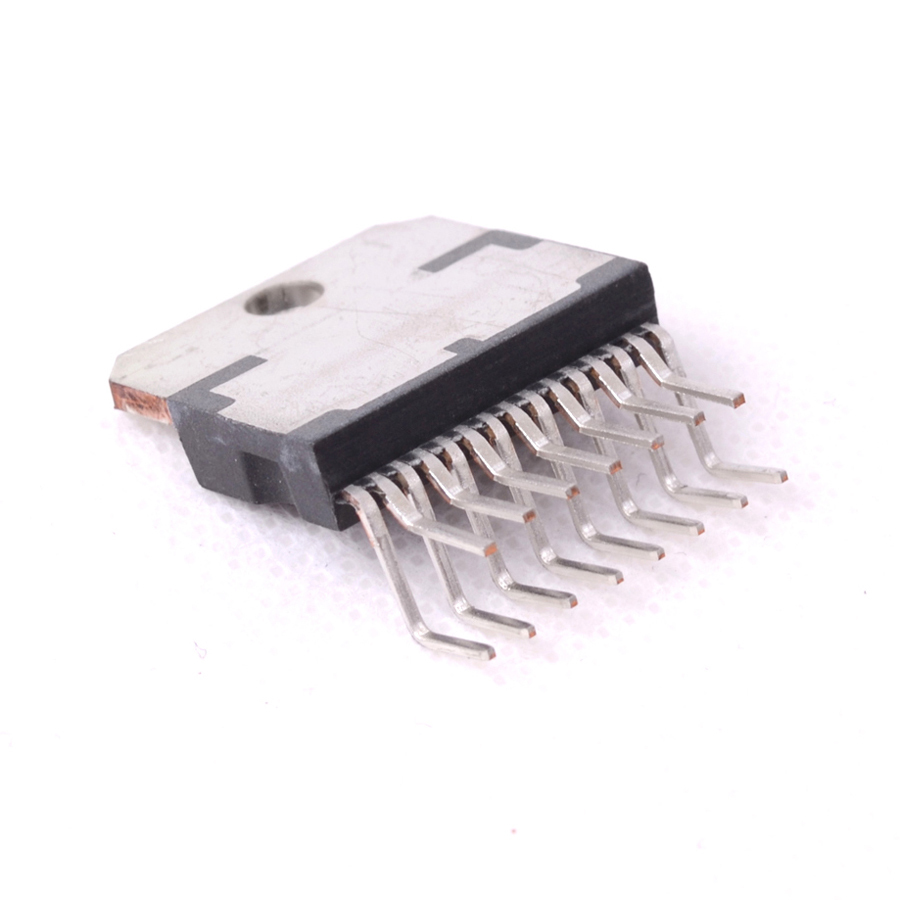

L6221N Integrated Circuit CASE: SQIL15 MAKE: SGS Thomson
Datasheet
L6221N Datasheet
Product specifications
Type Integrated Circuit
Case SQIL15
Manufacturer SGS Thomson
Vih Min (V) 2.0
Vil Max. (V) 0.8
Output Config Open-Coll.
Outp Transis. Ion Max. 1.8
PD Max. (W) 4.3
tPD Max. (S) 2.0u
Nom. Supp (V) 5.0
Tech. Bipolar Semiconductor
Logic Funct. Noninvert.
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 15-14
Surface Mounted Yes/No NO
SKU 219386
