LC6526C
View detailed images (13)

LC6526C

SKU: LC6526C

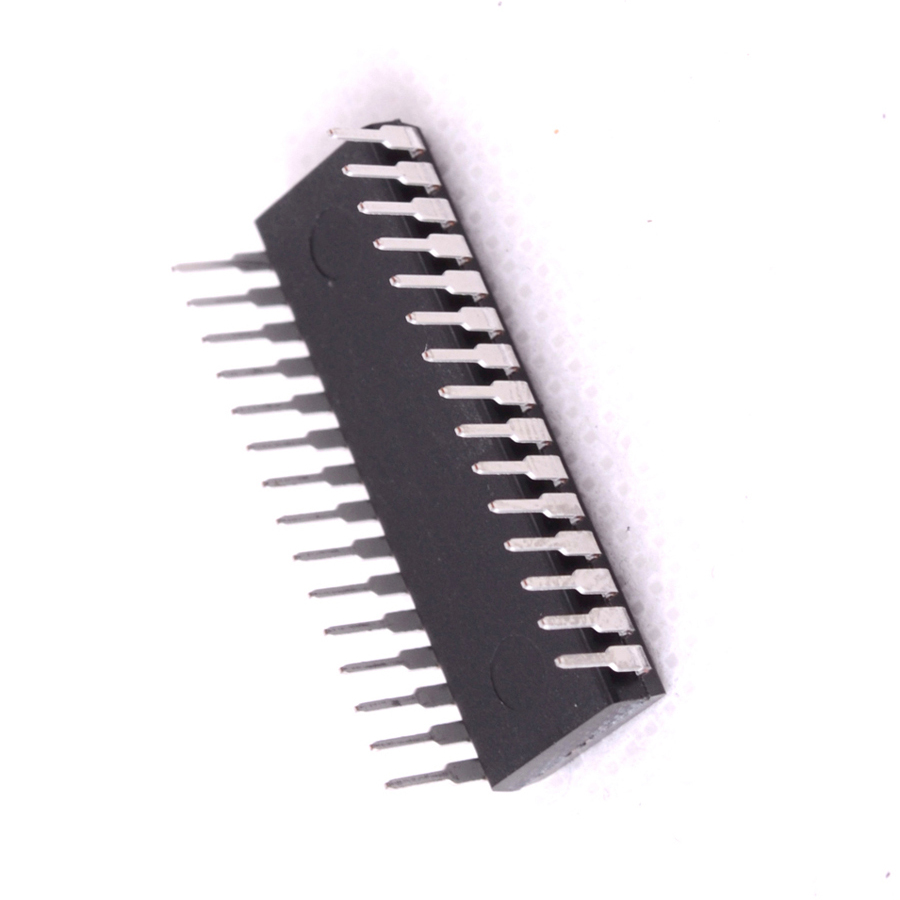

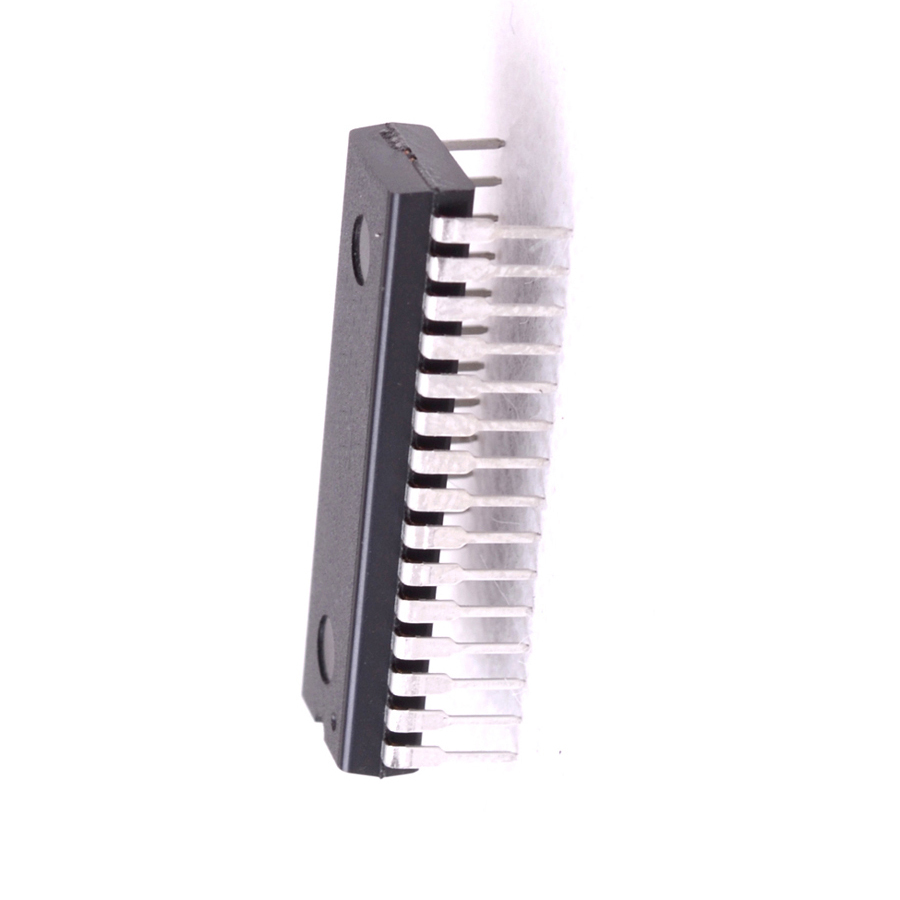

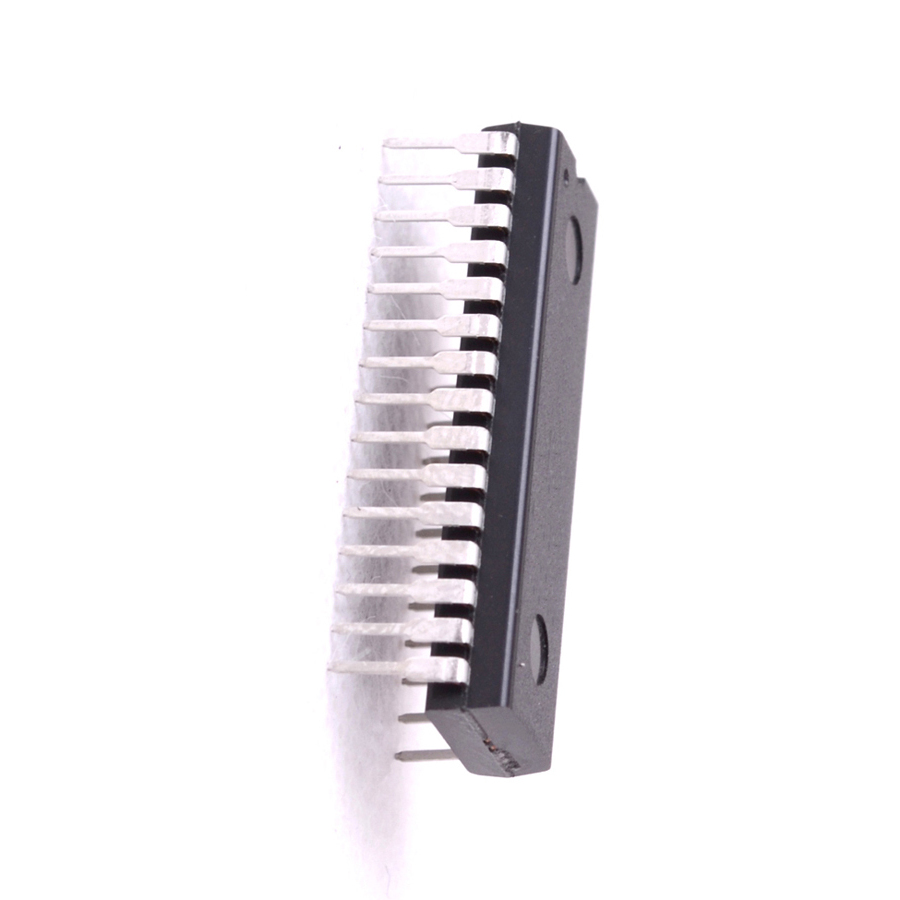

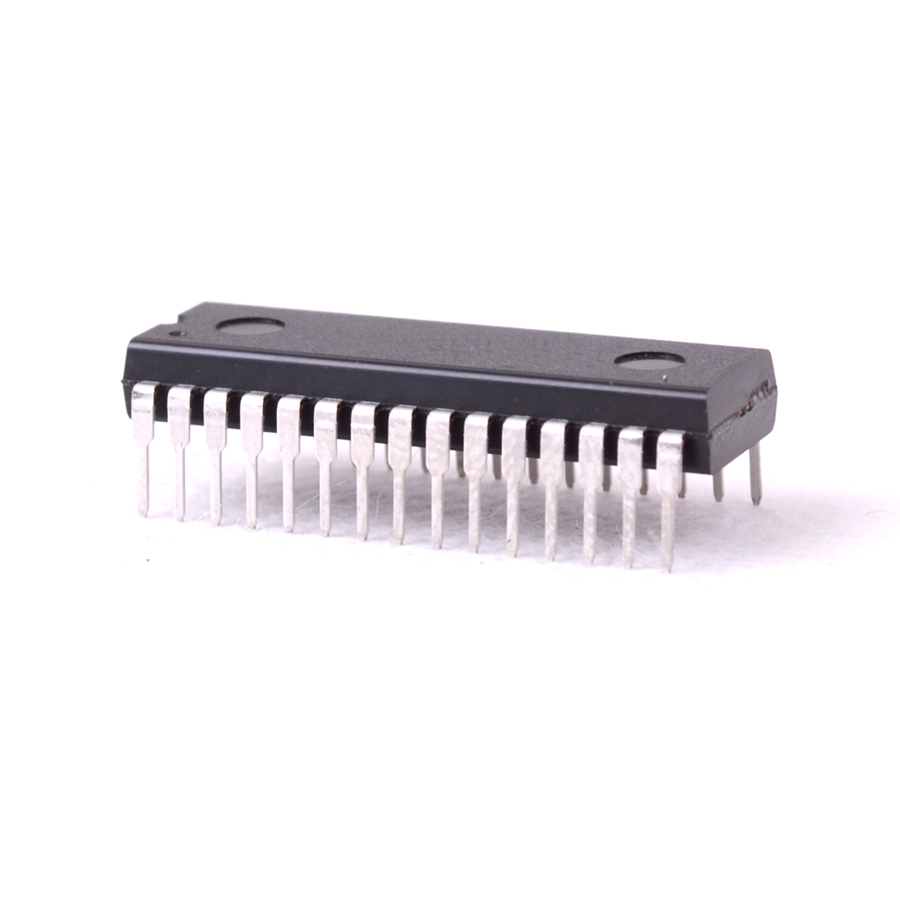

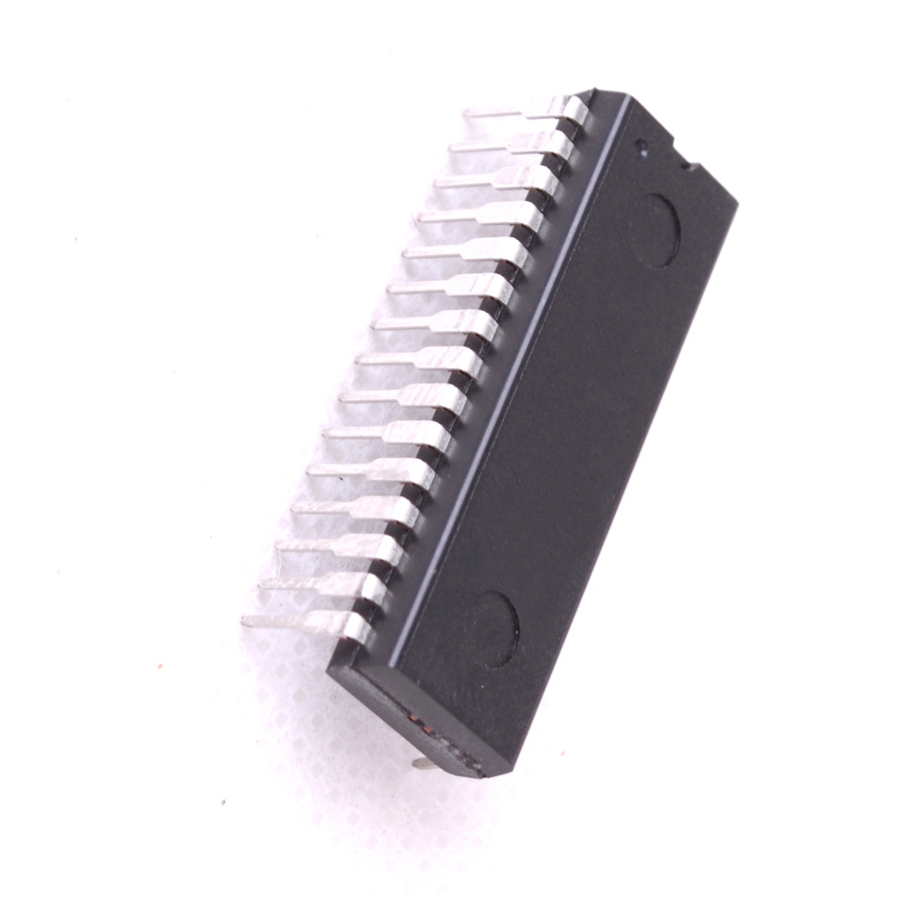

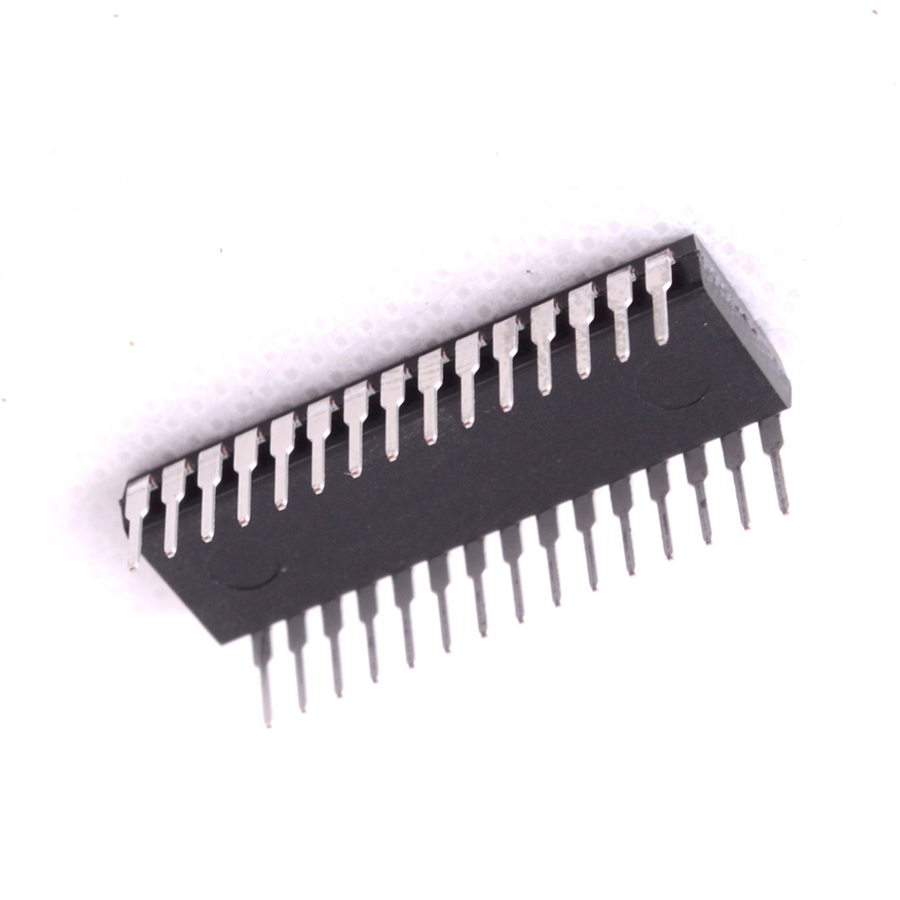

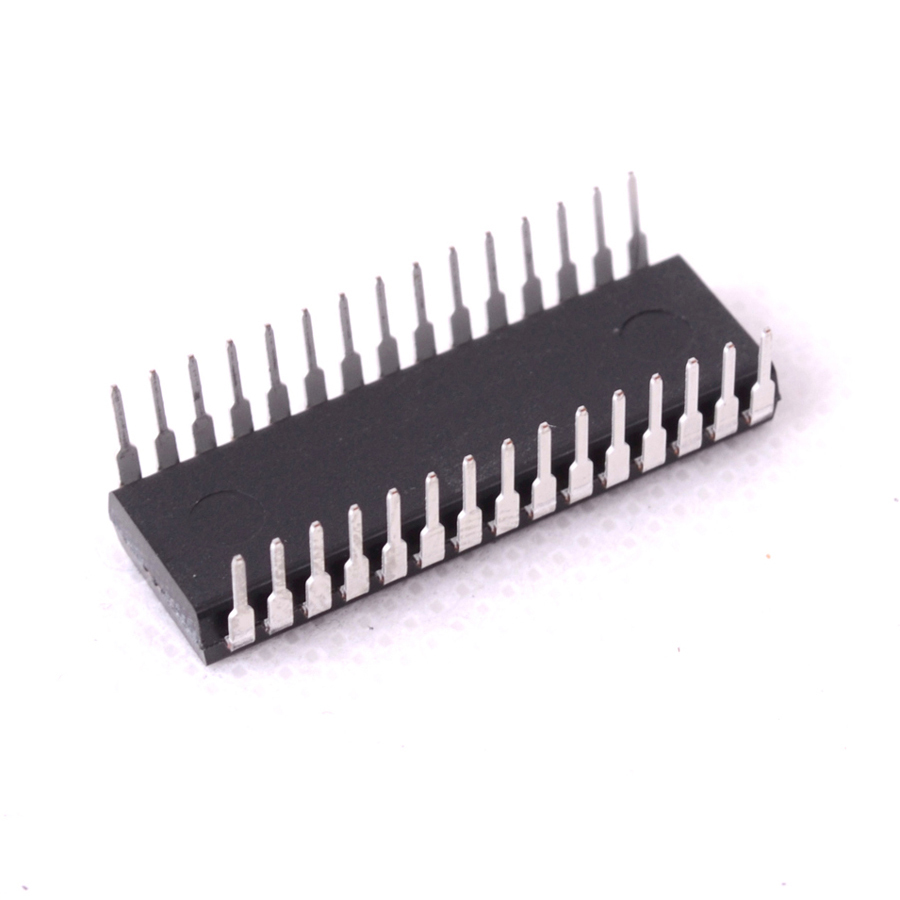

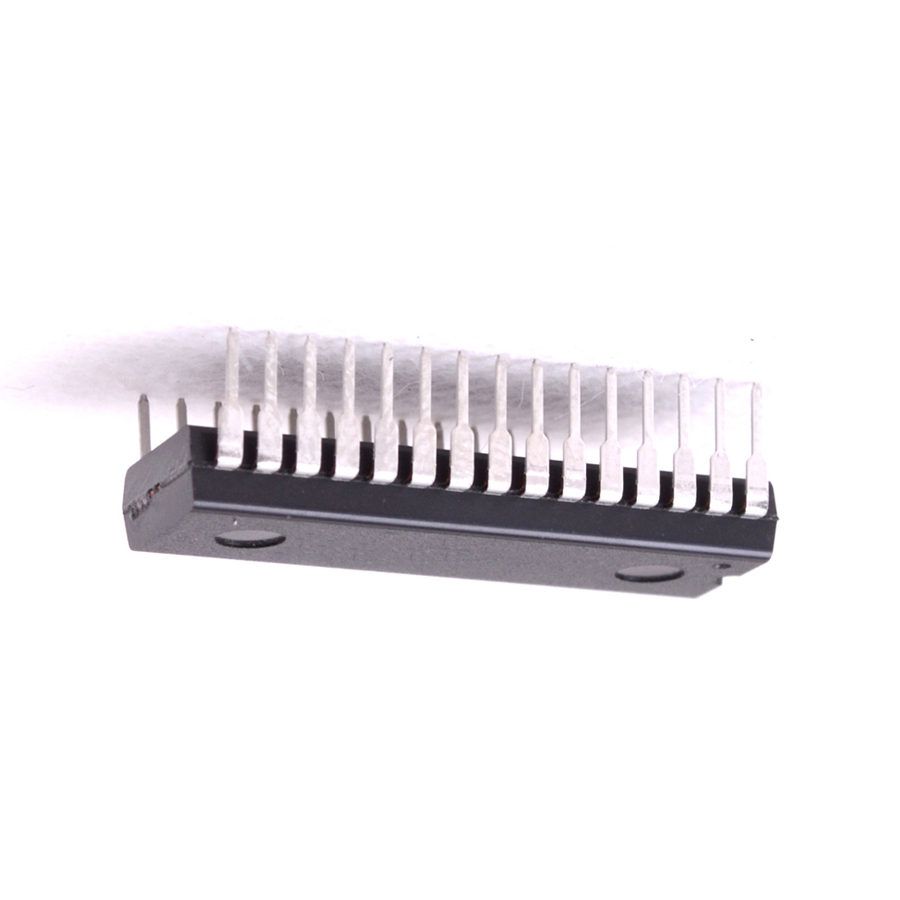

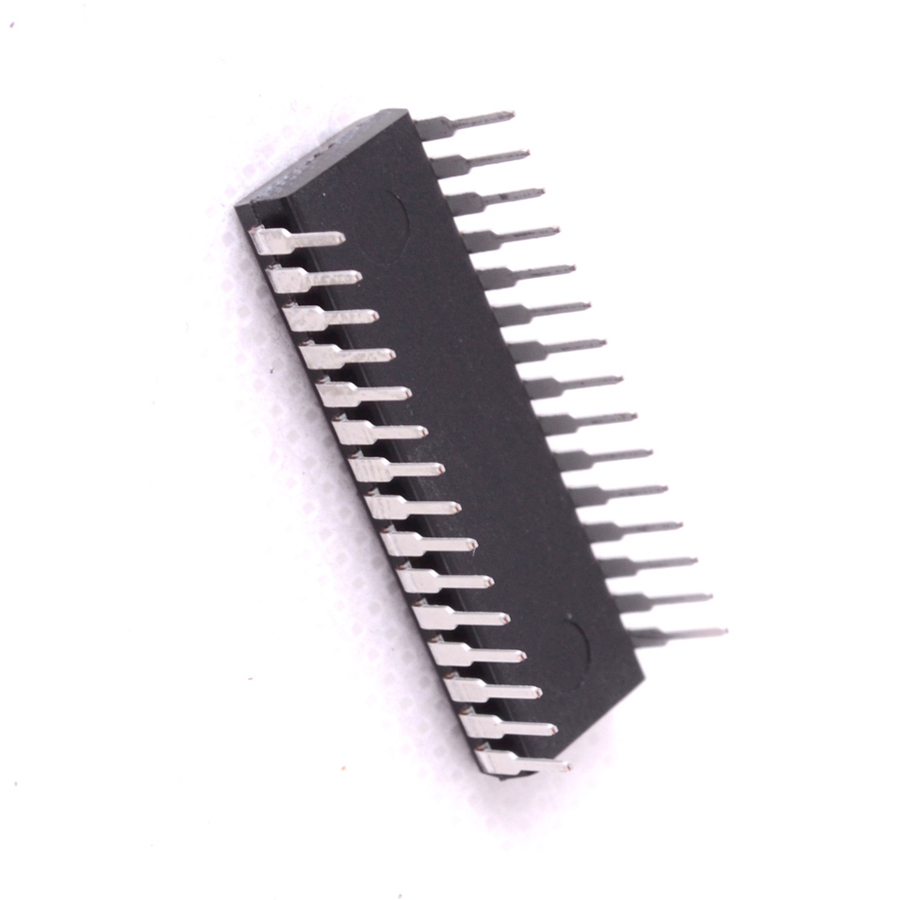

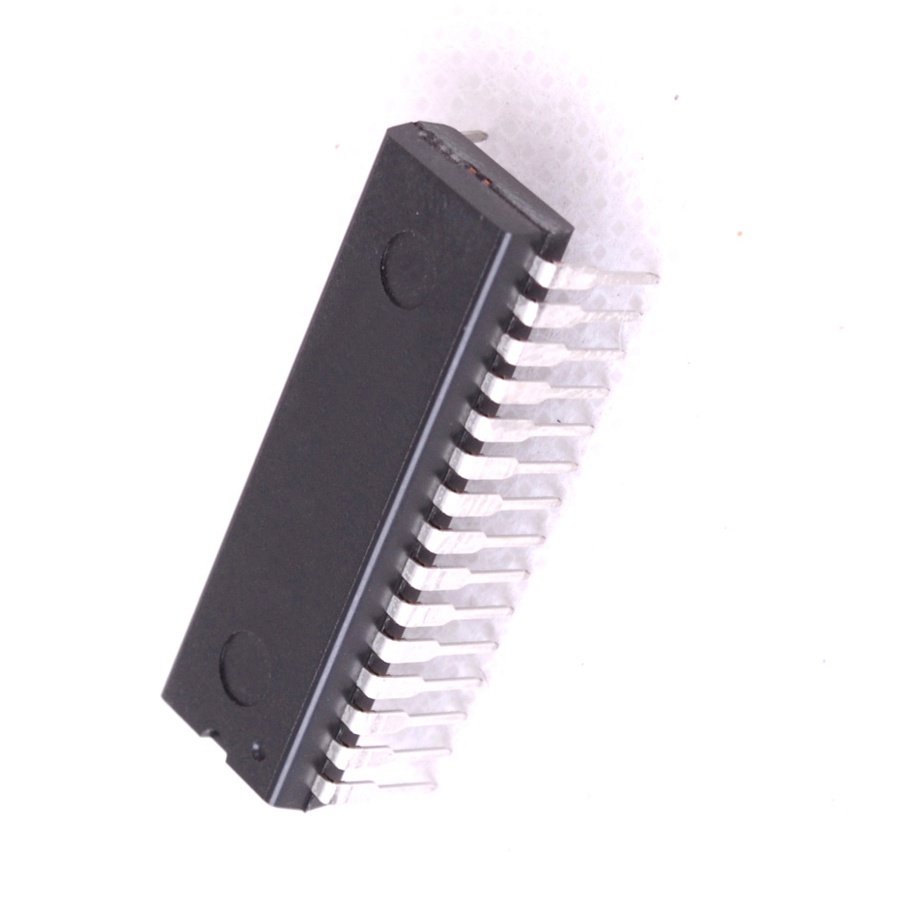

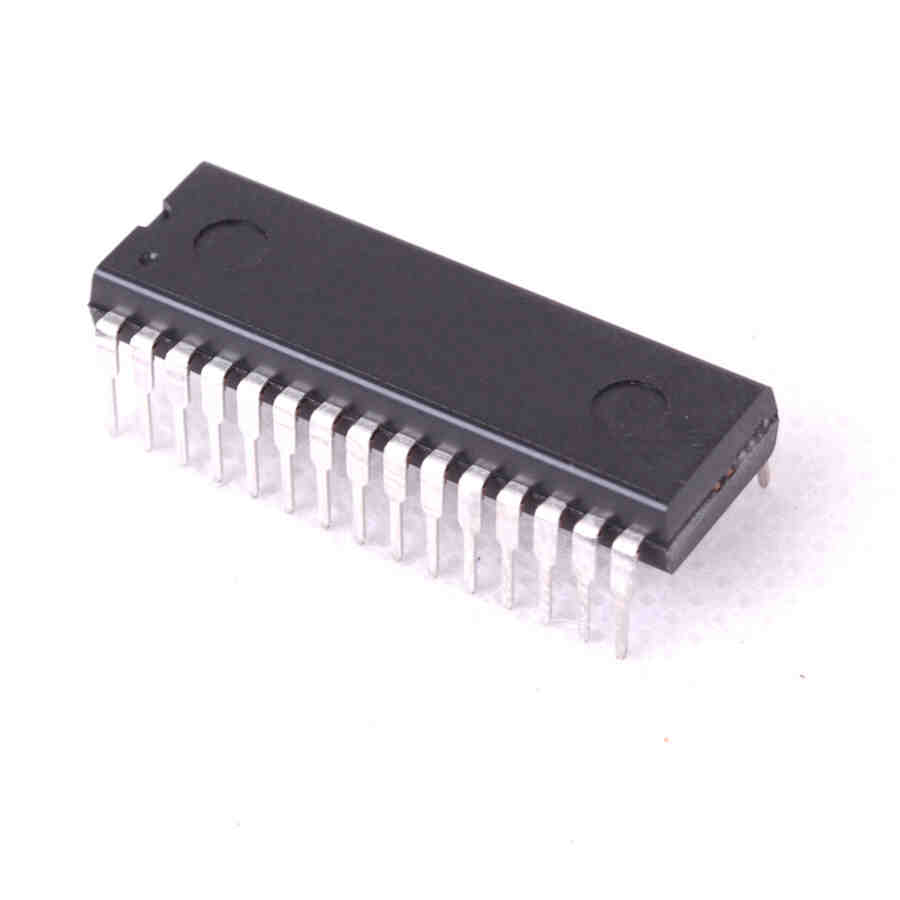

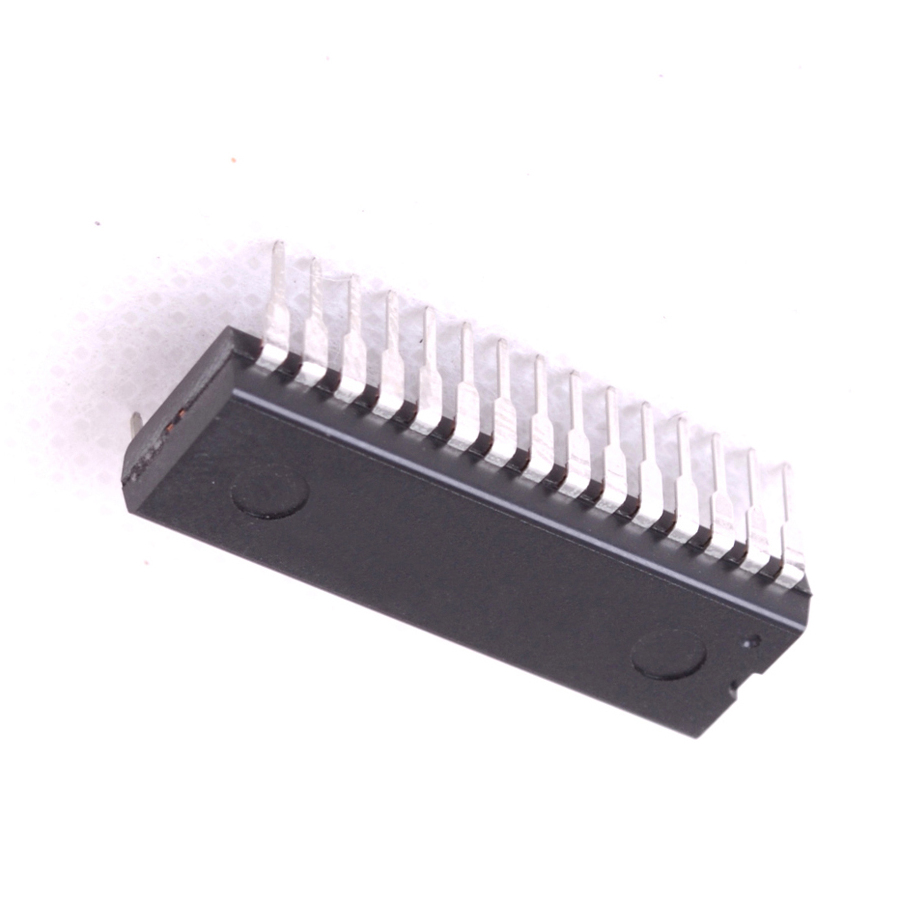

LC6526C Integrated Circuit CASE: DIP30 MAKE: Sanyo Semiconductor
Product specifications
Type Integrated Circuit
Case DIP30
Manufacturer Sanyo Semiconductor
No. of I/O Lines 25
I/O Line Types G/P Serial
Max. Inst. Len (bits) 16
Min Inst. Len (bits) 8
No. of Intrpt Lines 1
Intrpt Types Maskable
No. of Intrpt (mask) 1
fClk Max. (Hz) 1.4M
fClk Min (Hz) 200k
No. of I/O Ports 7
On-Chip ROM (bytes) 8k
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 256
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 30-5
Descript Oscillator configurable
No. of Pins 30
Surface Mounted Yes/No NO
SKU 615403
