LC7818
View detailed images (13)

LC7818

SKU: LC7818

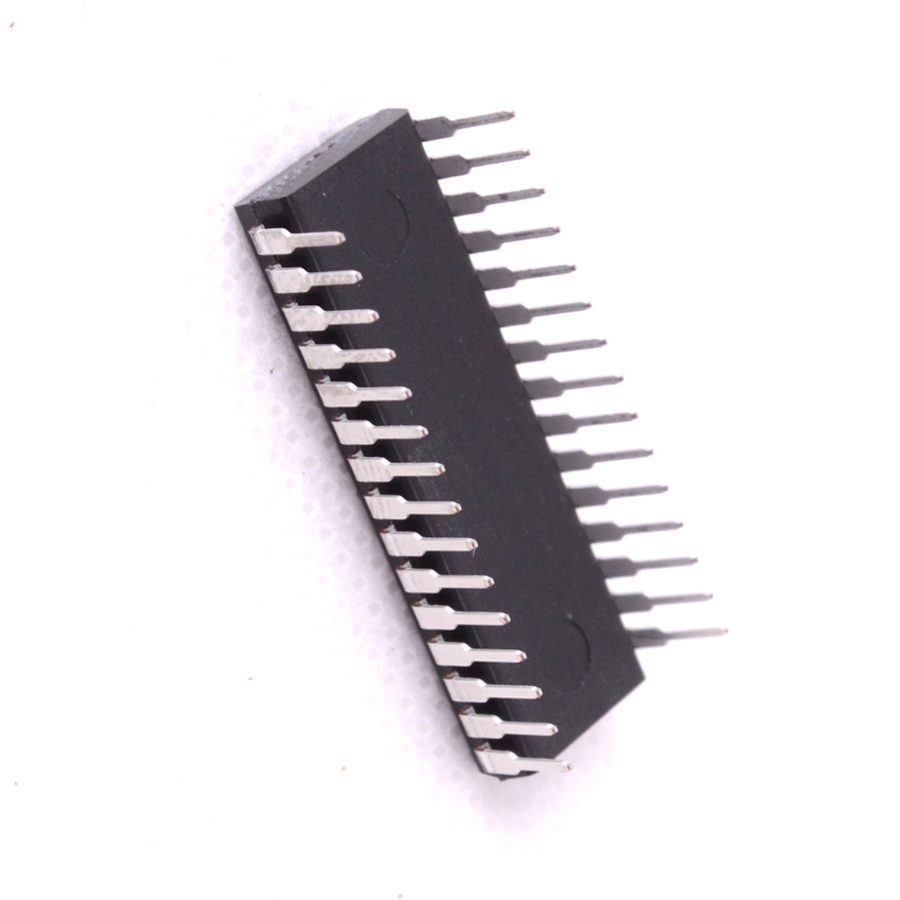

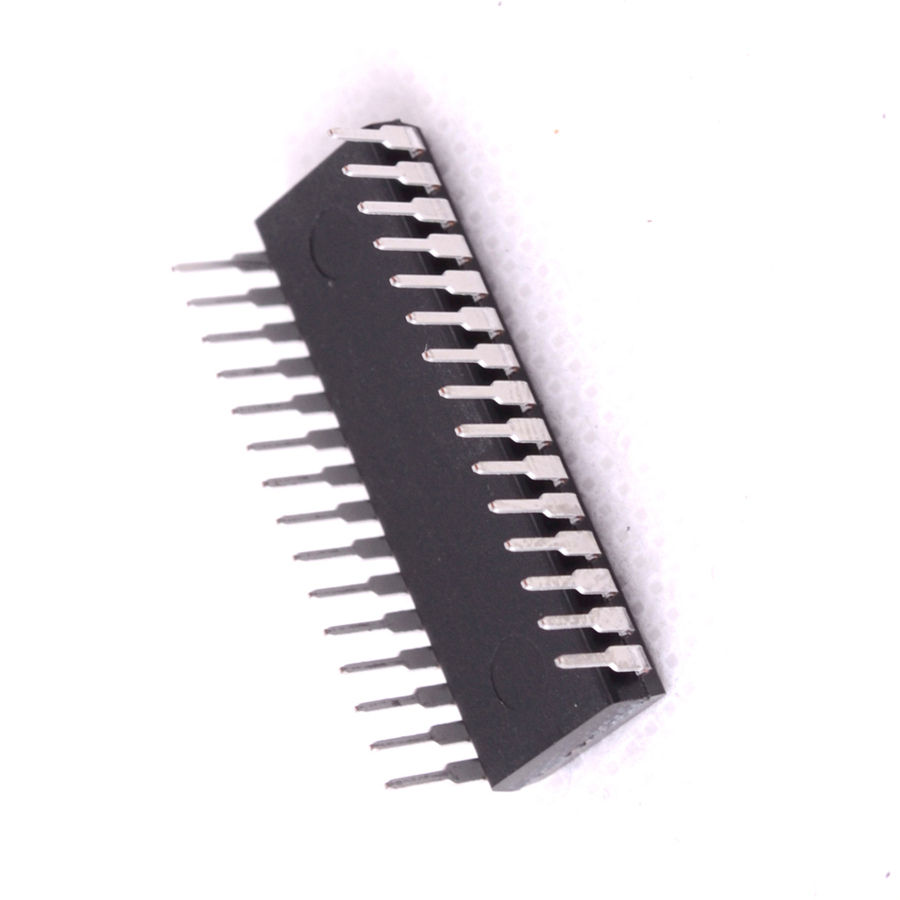

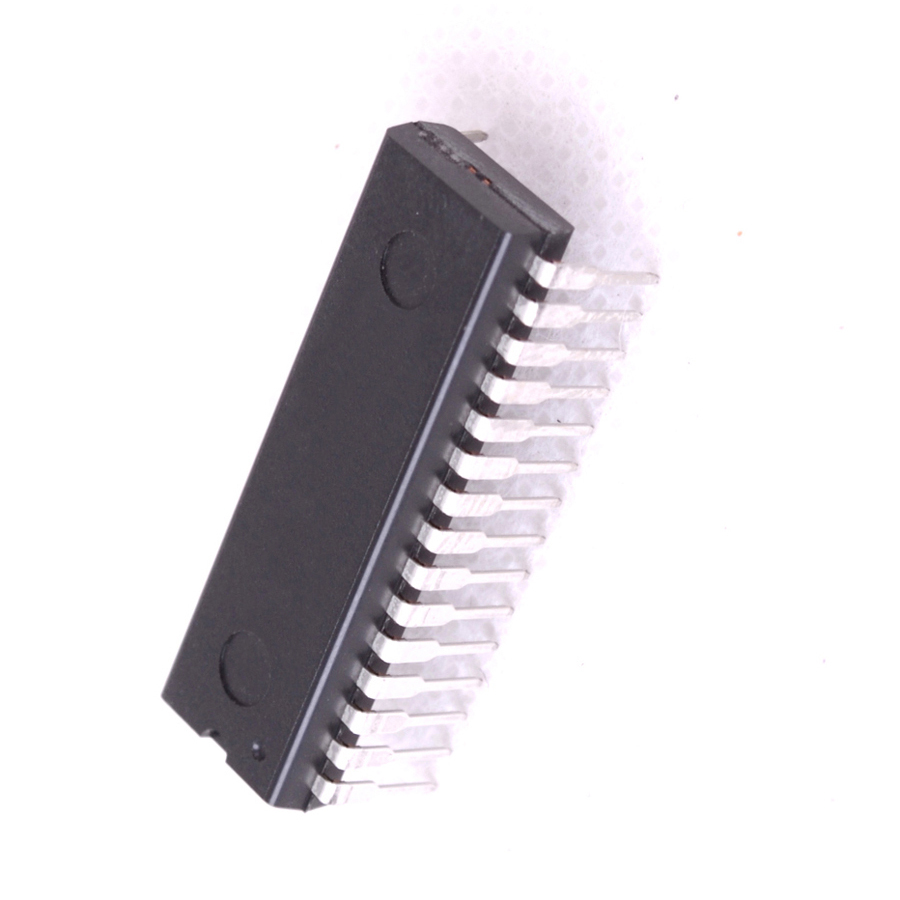

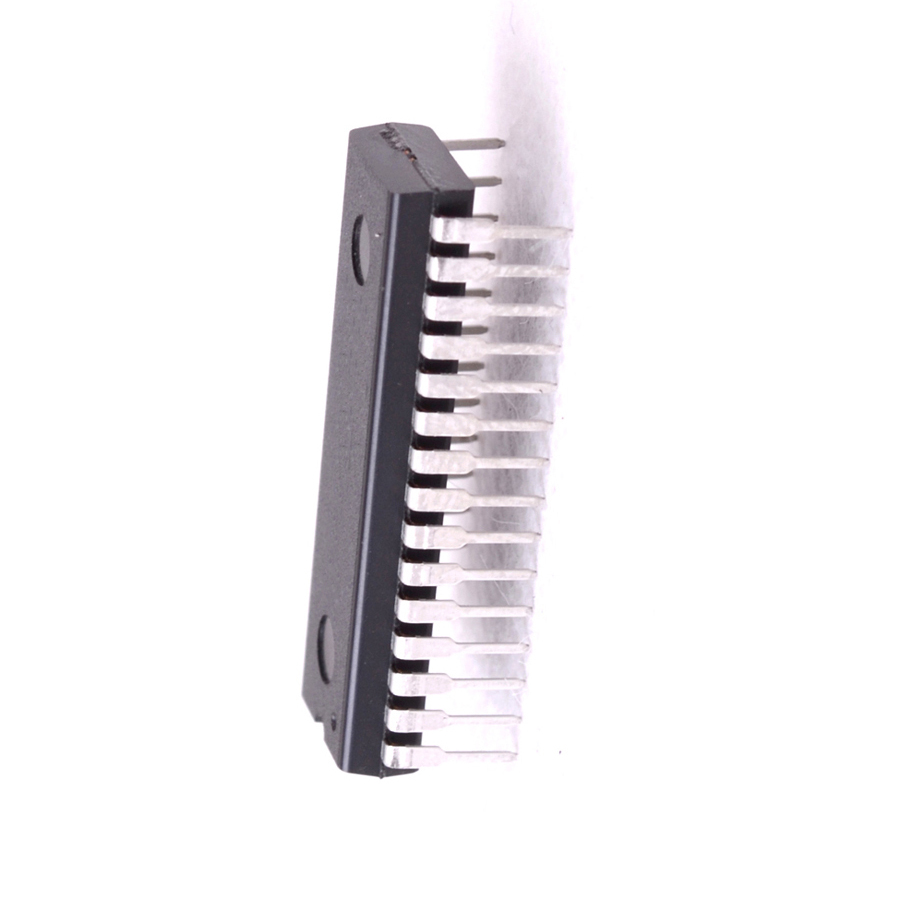

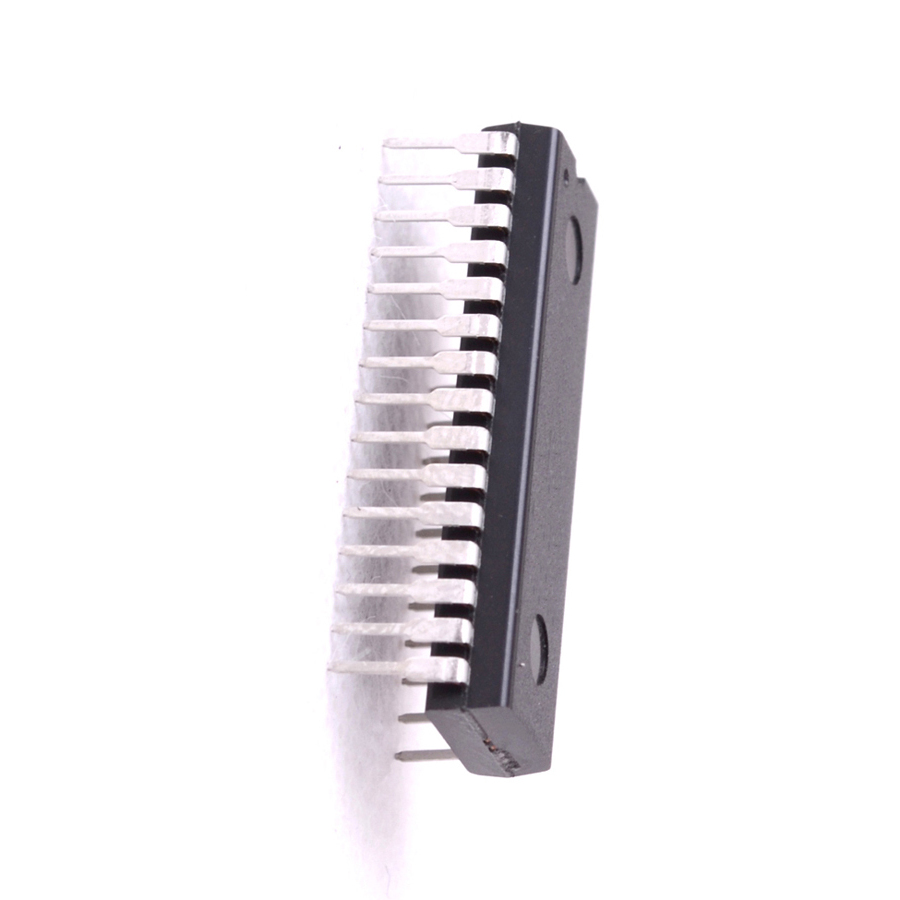

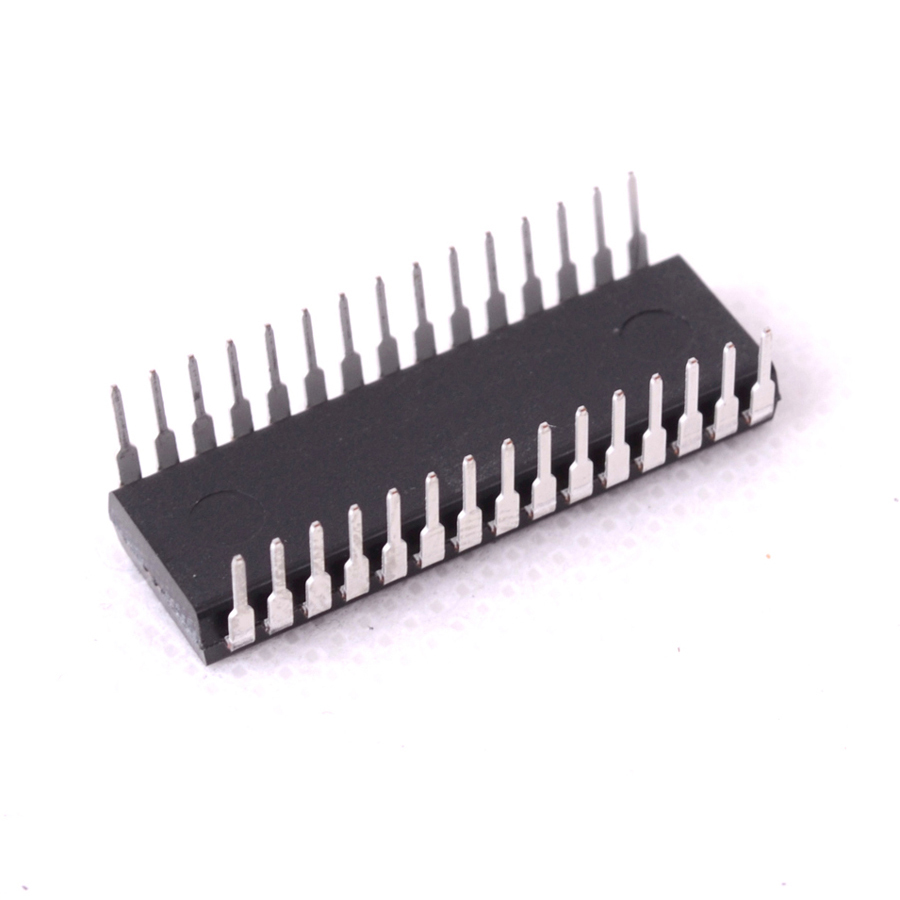

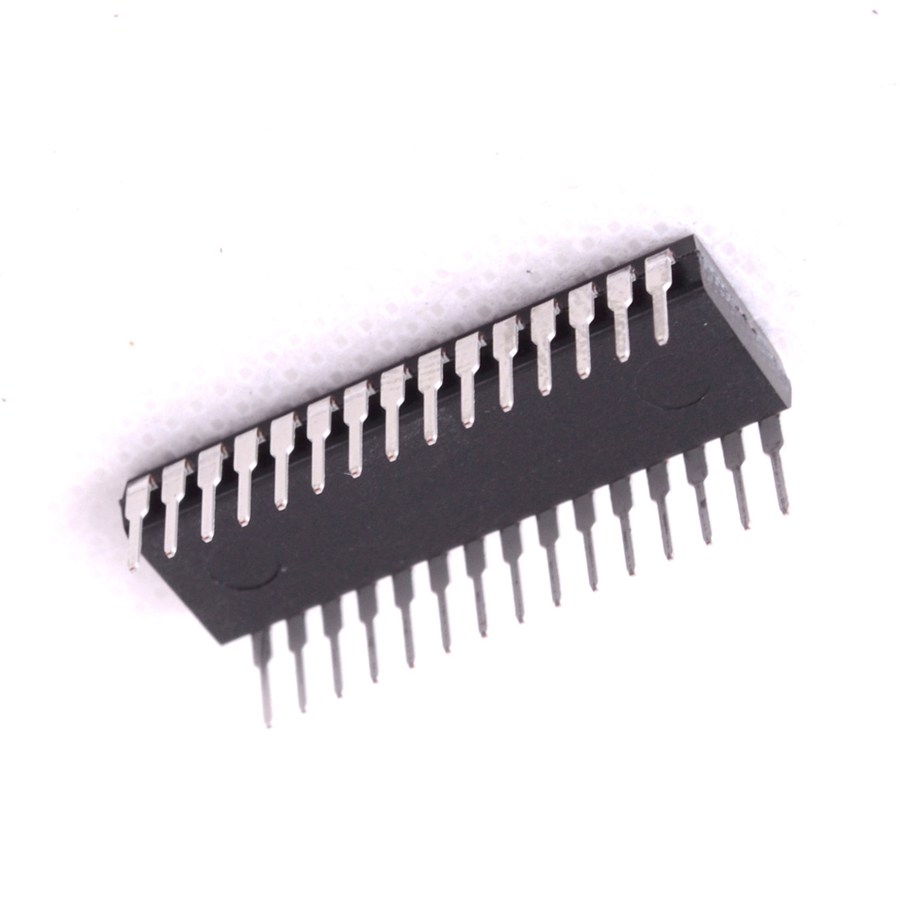

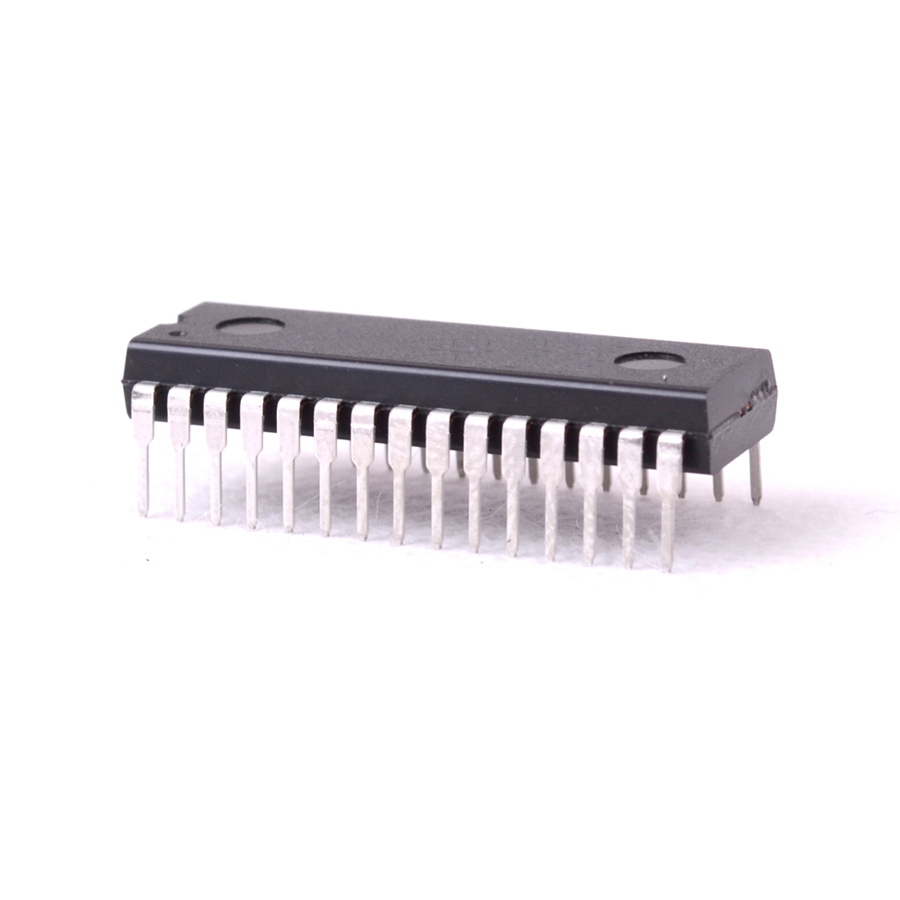

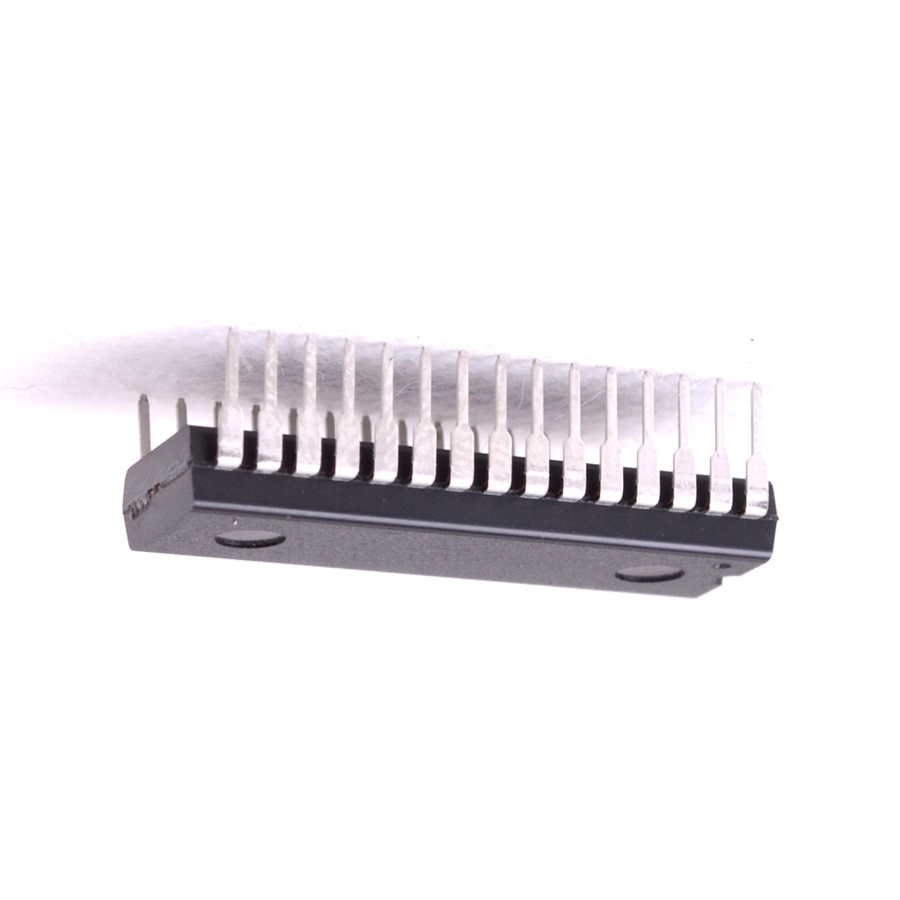

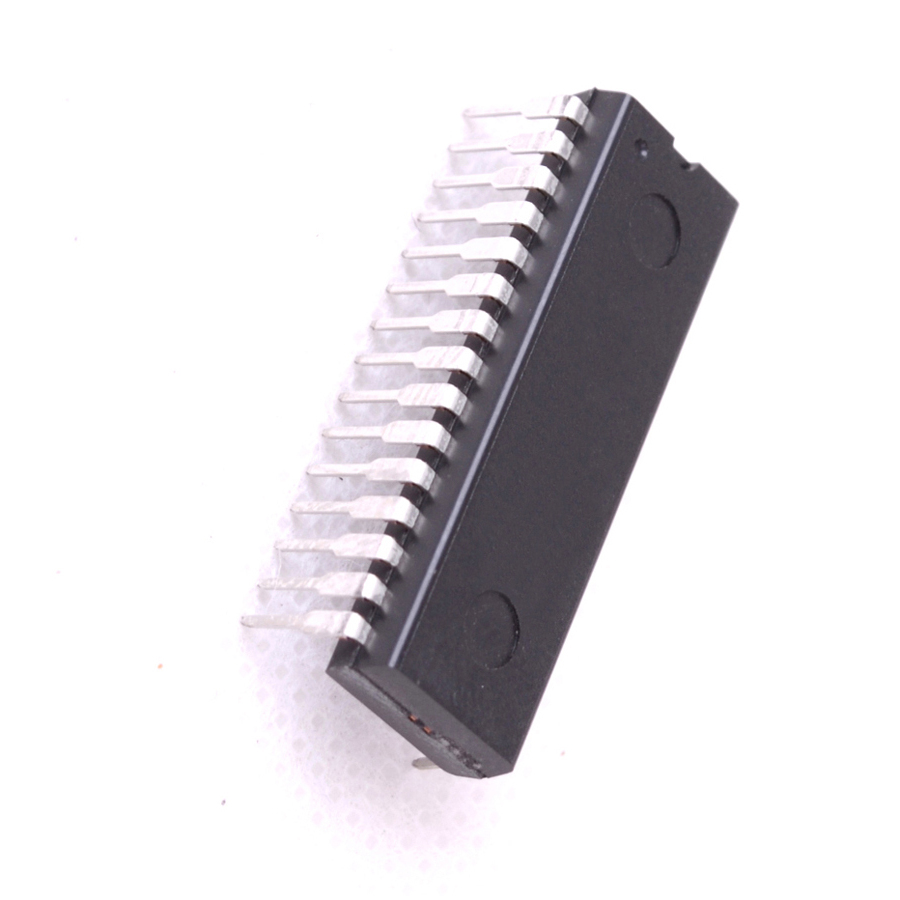

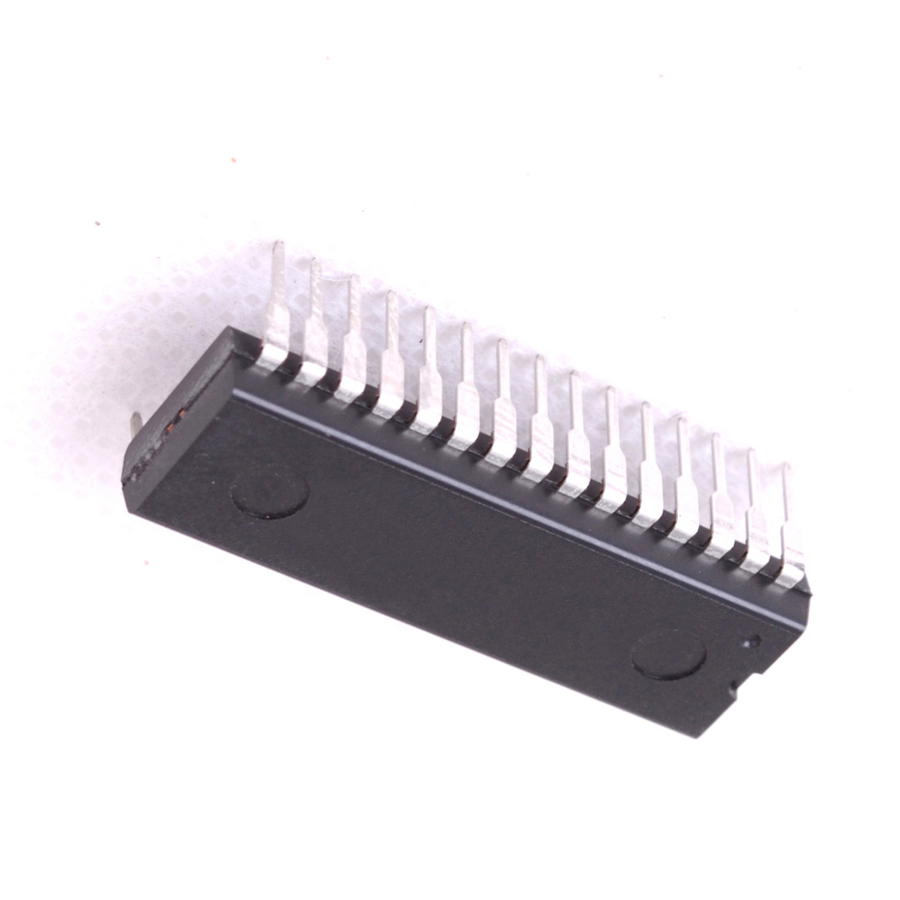

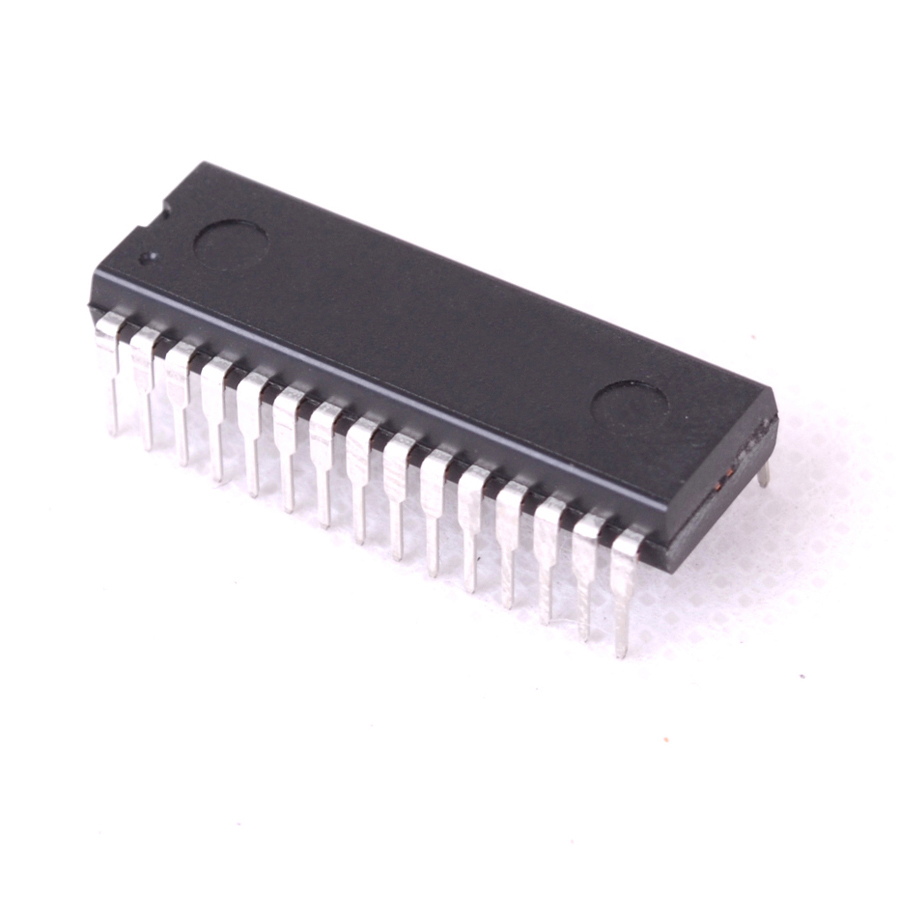

LC7818 is a CMOS LSI function switch designed for 2-channel, 5-position source selection with tape-monitor control. Supplied in a DIP-30S (30-pin) package, it supports supply voltages up to ±20 V and is produced by Sanyo Semiconductor / SANYO Electric Co., Ltd.
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • Last 29 pieces Ready to Ship
  • More pieces shipped in 14 days
?
Datasheet
LC7818 Datasheet
Product specifications
Type CMOS Logic IC
Case DIP30
Manufacturer Sanyo Semiconductor
Ckts Per Dev. 2
@Is (test) (A) 1.0m
PD Max. (W) 500m
Nom. Neg Supp 20
Nom. Pos. Supp 20
R(ds) On (Û) 120
Tech. CMOS Integrated Circuit
@Vd (test) (V) 9.0
Oper. Temp (°C) Min -30
Oper. Temp (°C) Max. 75
Pinout Equivalence Number 30-20
No. of Pins 30
Surface Mounted Yes/No NO
SKU 32113
