LD102
View detailed images (8)

LD102

SKU: LD102

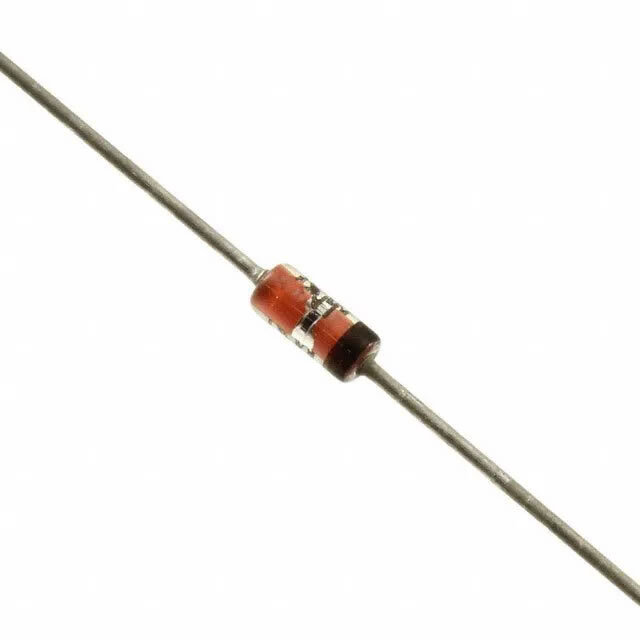

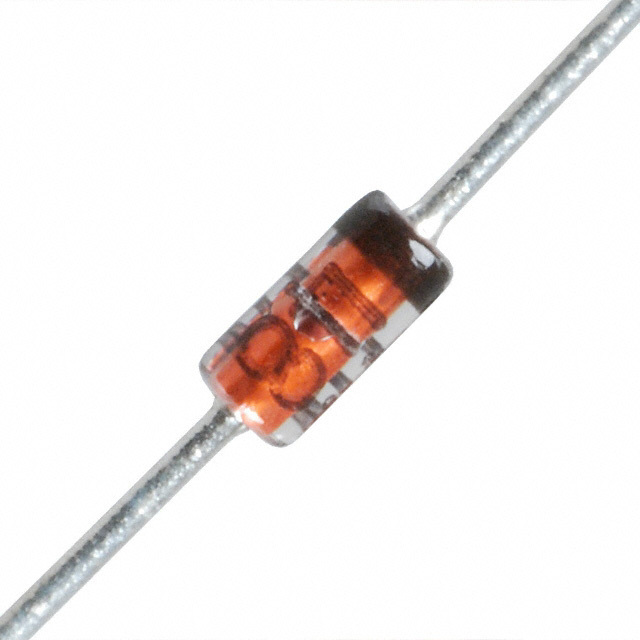

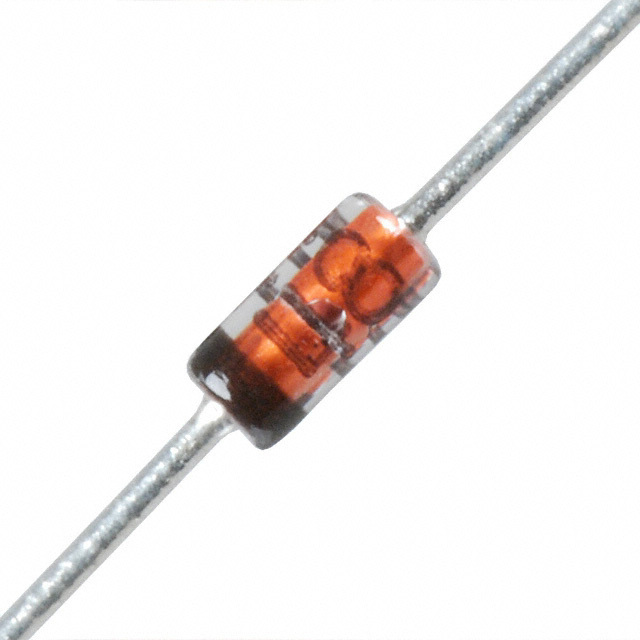

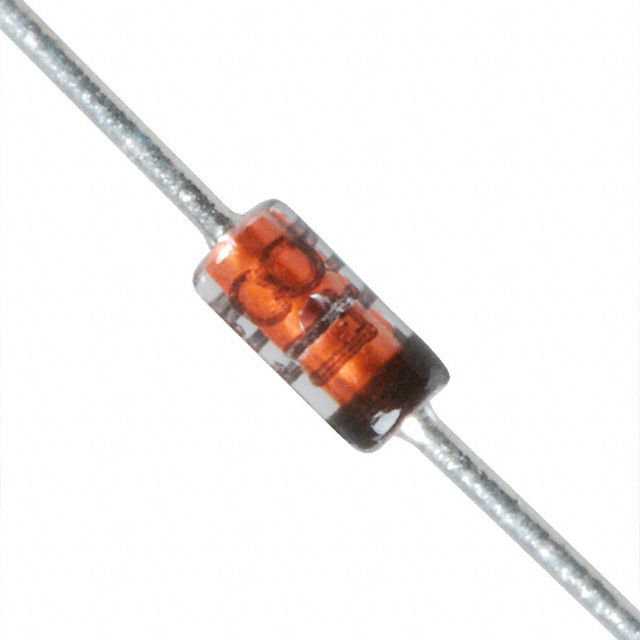

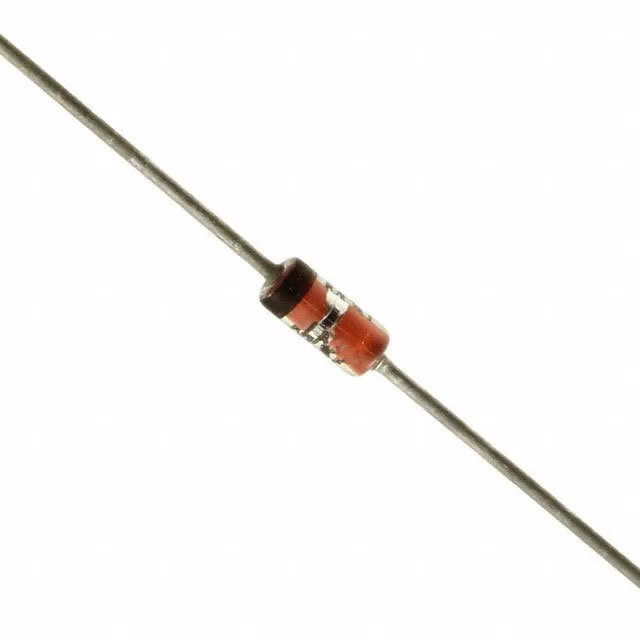

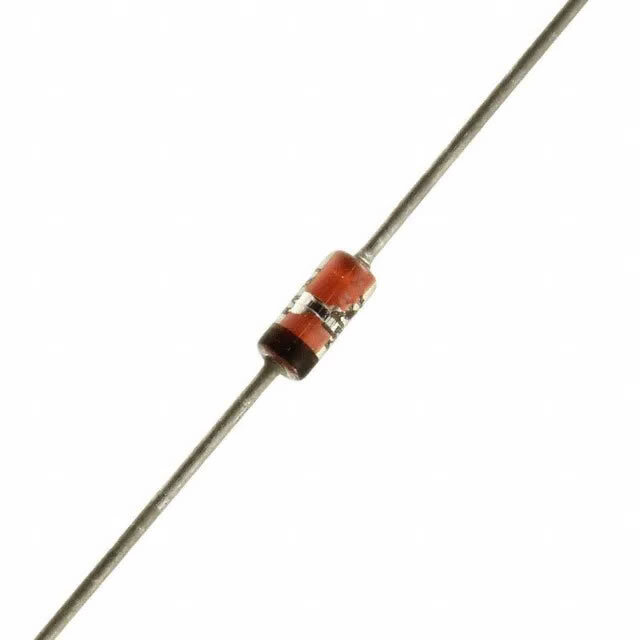

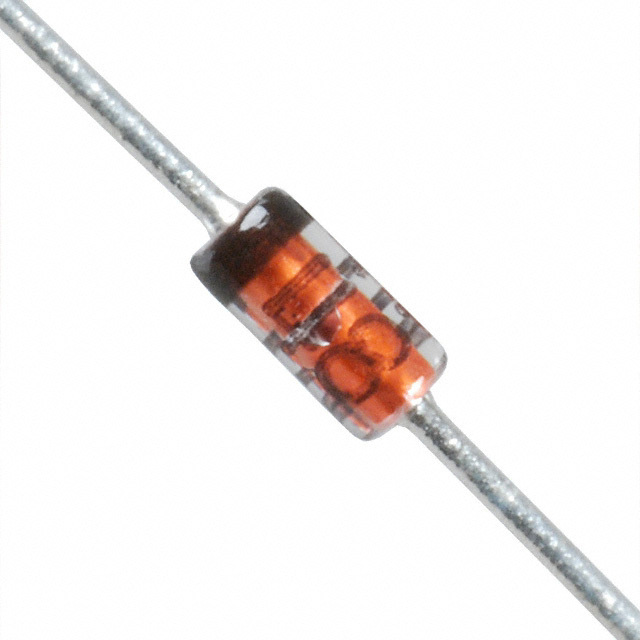

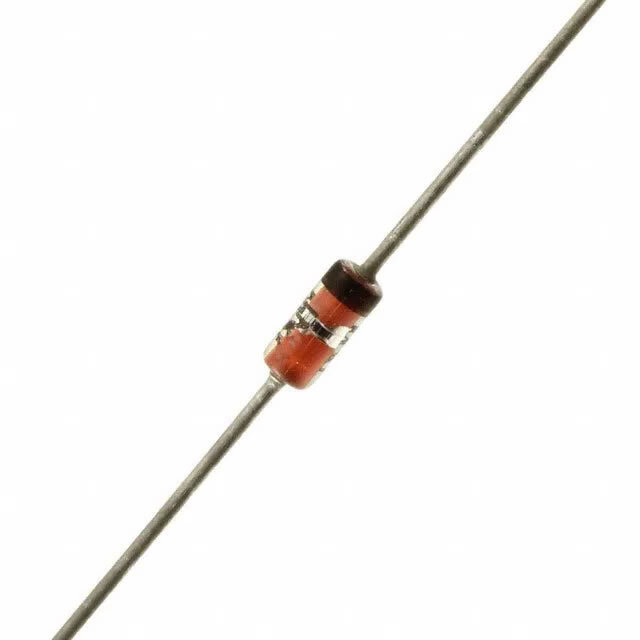

LD102 Semiconductor CASE: DO35 MAKE: General Instrument
Product specifications
Type Semiconductor
Case DO35
Manufacturer General Instrument
Vbr CBO 400
Vbr CEO 400
Ckts Per Dev. 1
Max. PD (W) 100
t(f) Max. (S) 900n
Min hFE 50
Ic Max. (A) 40
@Ic (test) (A) 10
Mat. Silicon Logic
VRRM 75
t(rr) (S) 2.0n
Tr Max. (s) 1.2u
Therm Res. (J-C) 300m
VCE(sat) Max. 2.5
Vf Max. 1.0
Ir @25°C .10u
I(out) (If AVG) Max. 100m
@Volts (test) (V) 75
@If (test) 100m
Oper. Temp (°C) Max. 125
Isolated Case (Y/N) Yes
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
SKU 838412
