LR3718X
View detailed images (13)

LR3718X

SKU: LR3718X

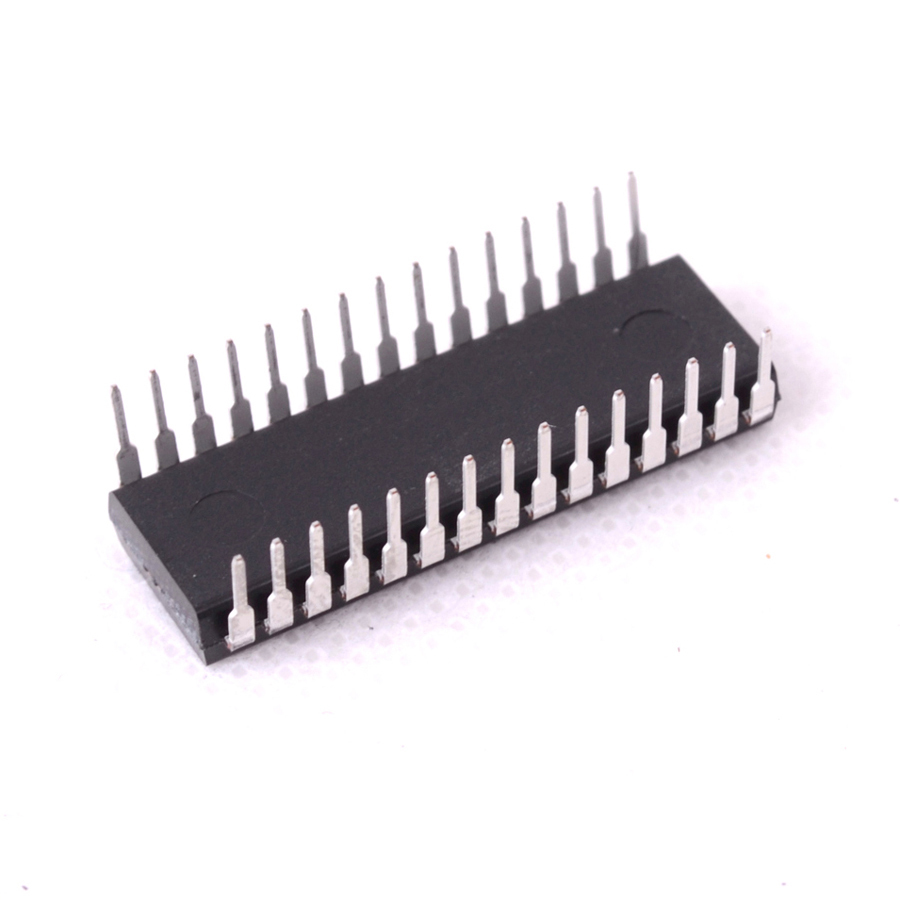

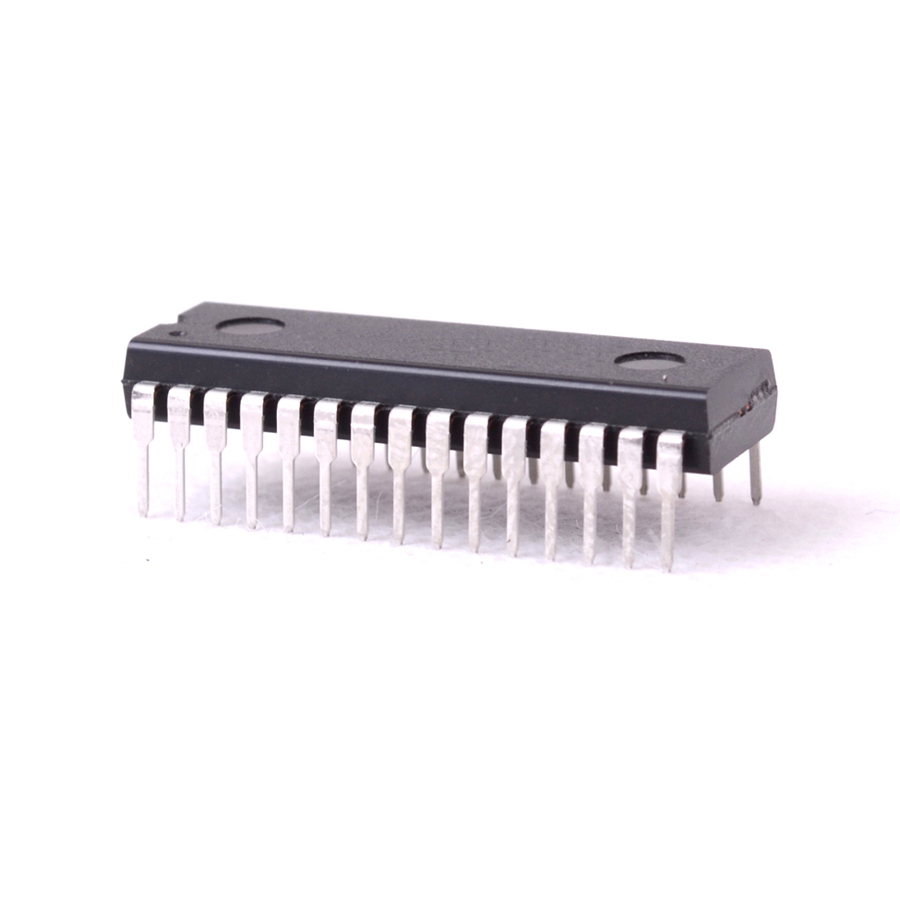

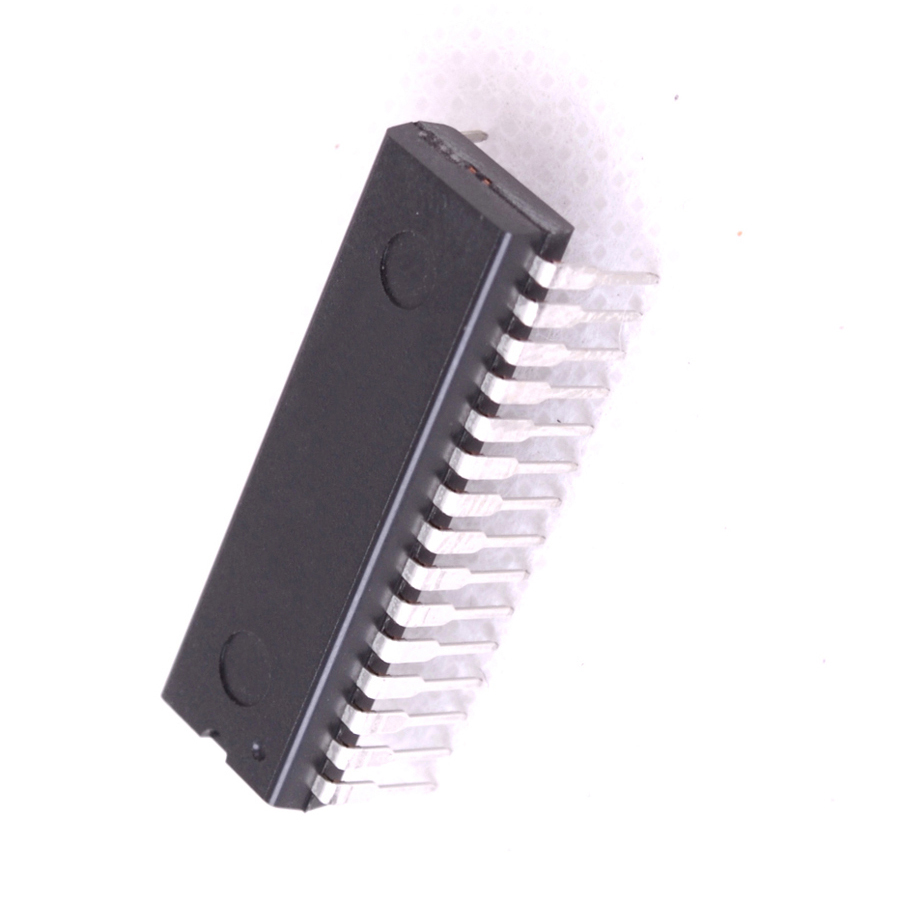

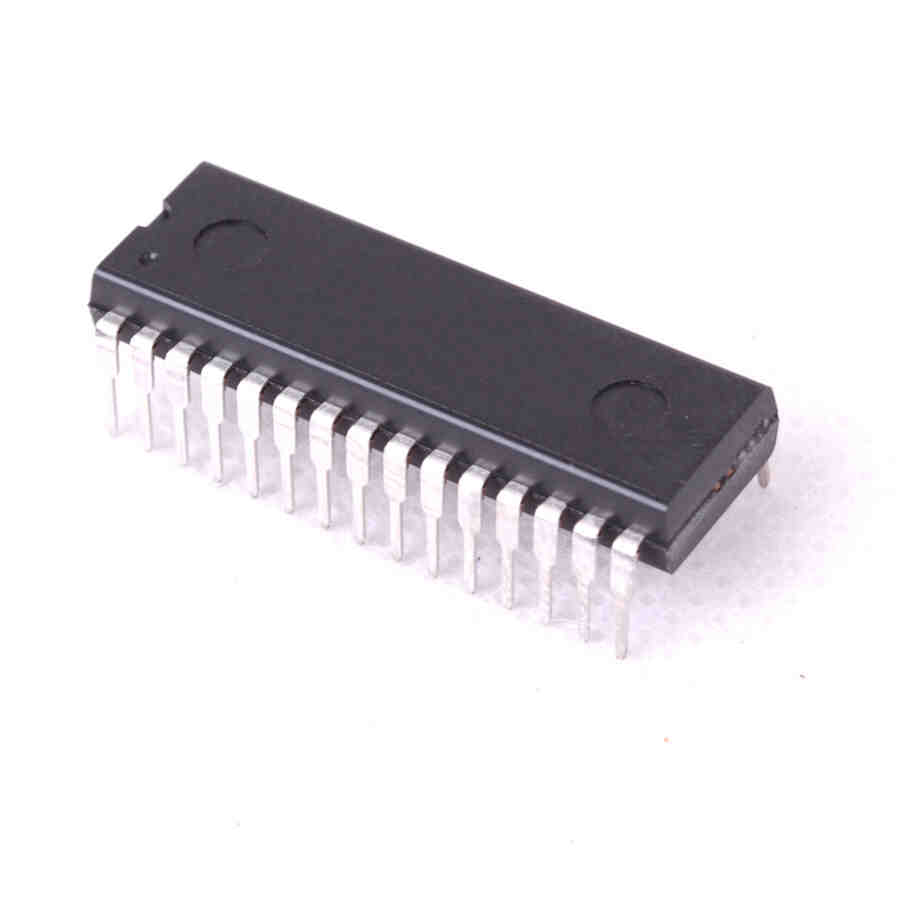

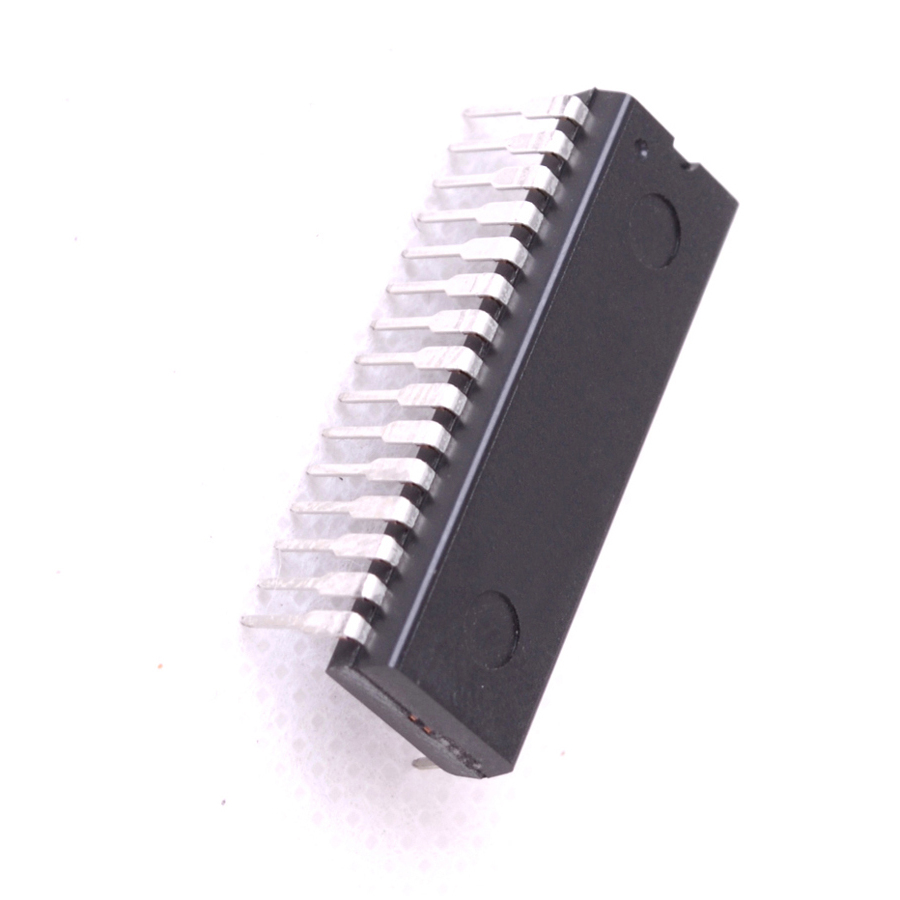

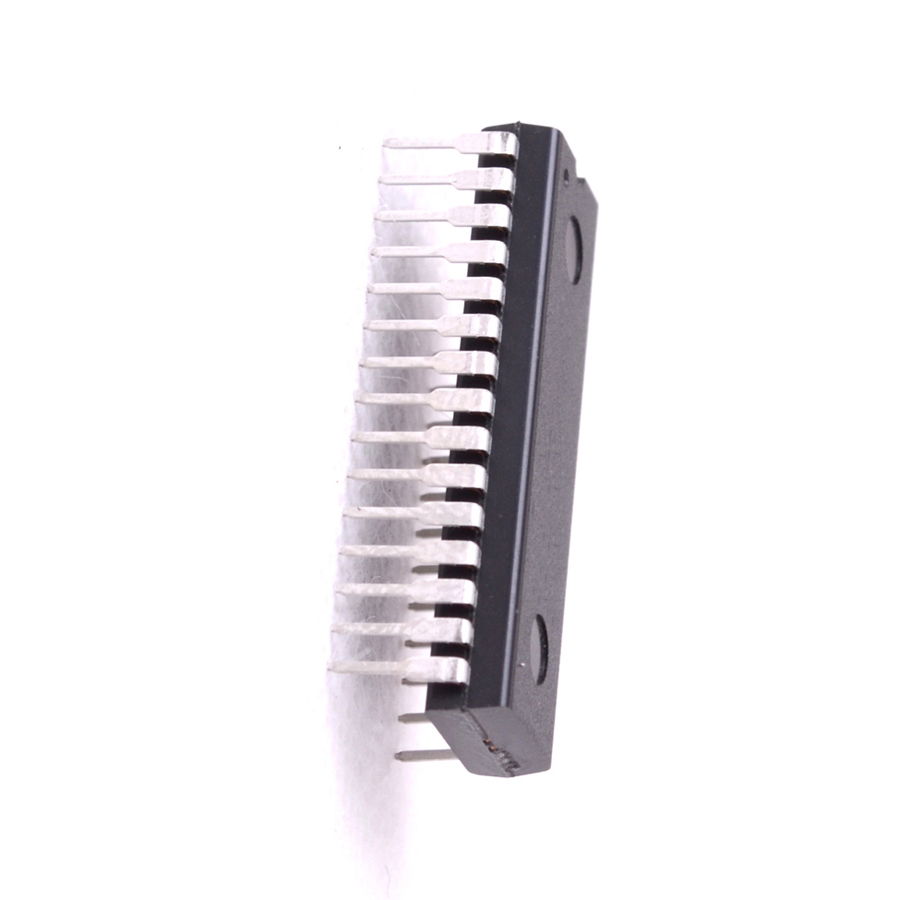

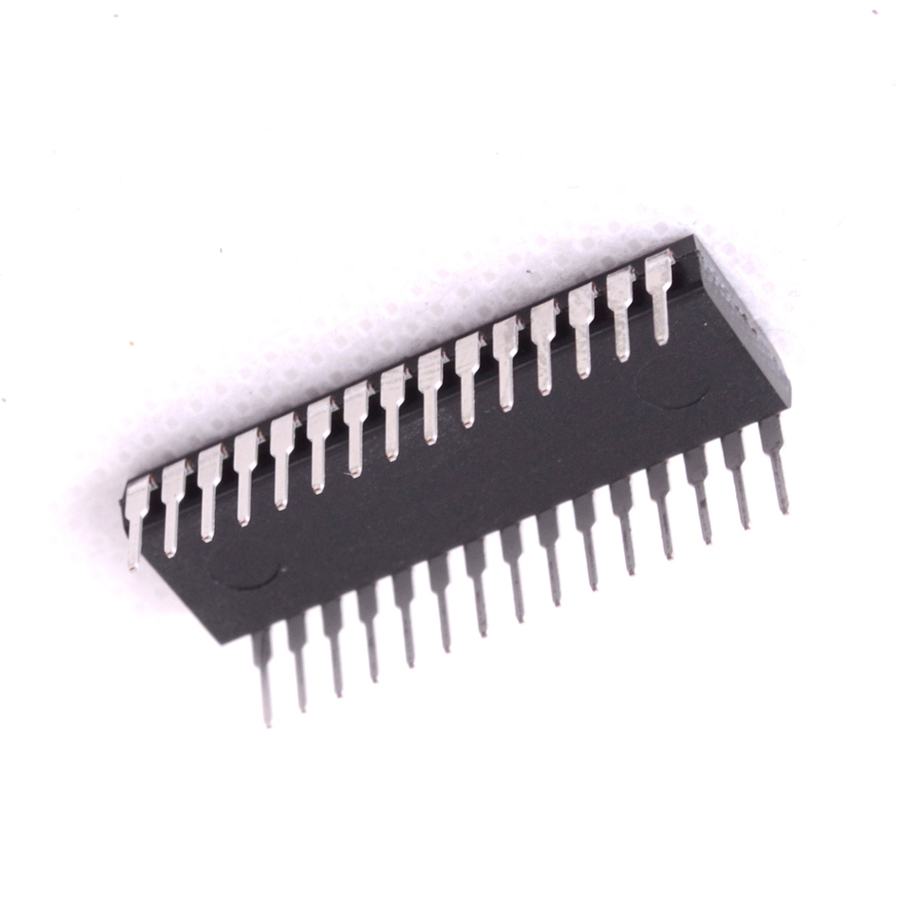

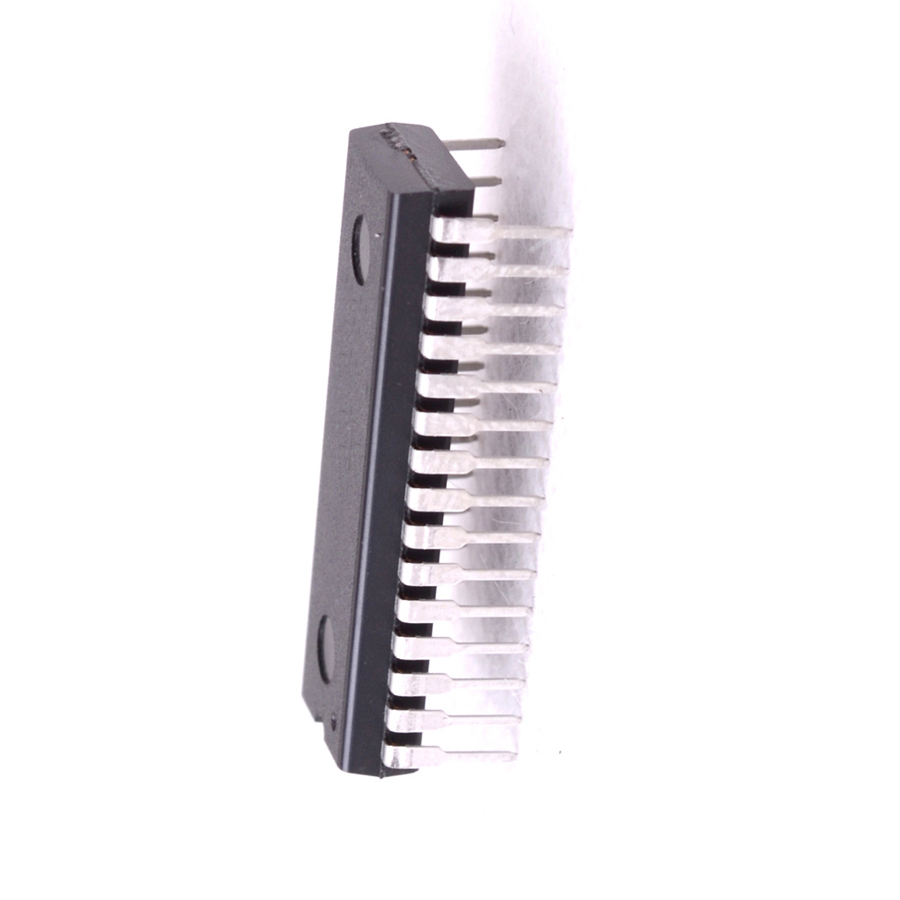

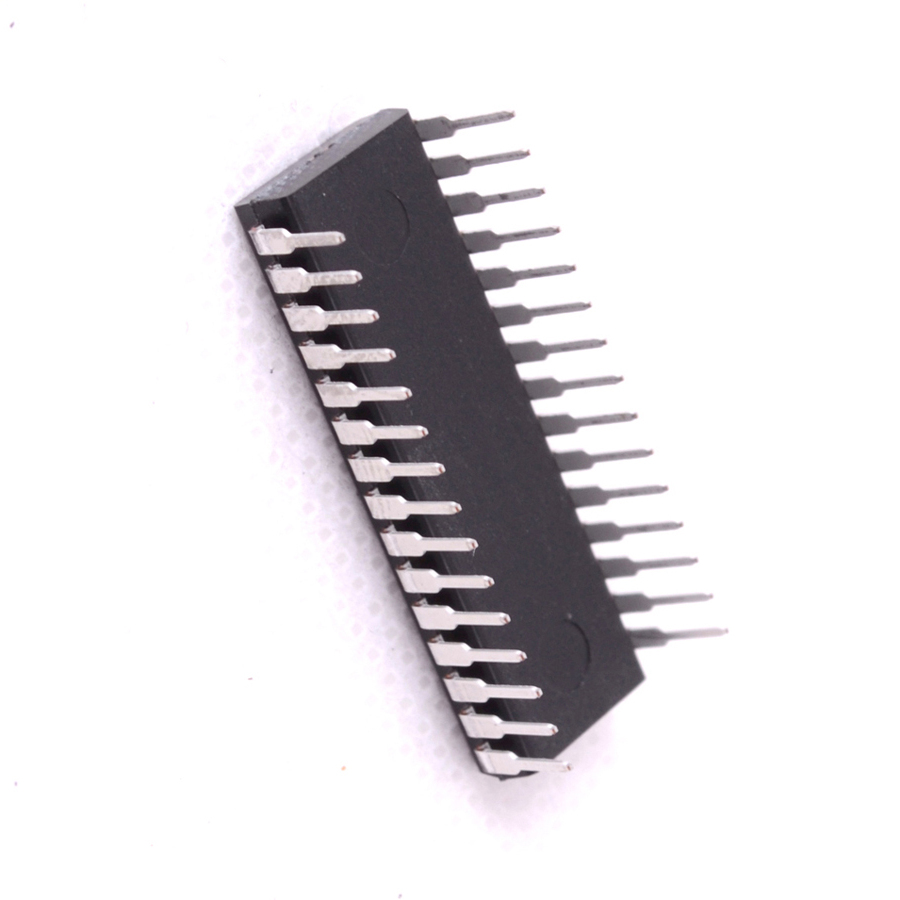

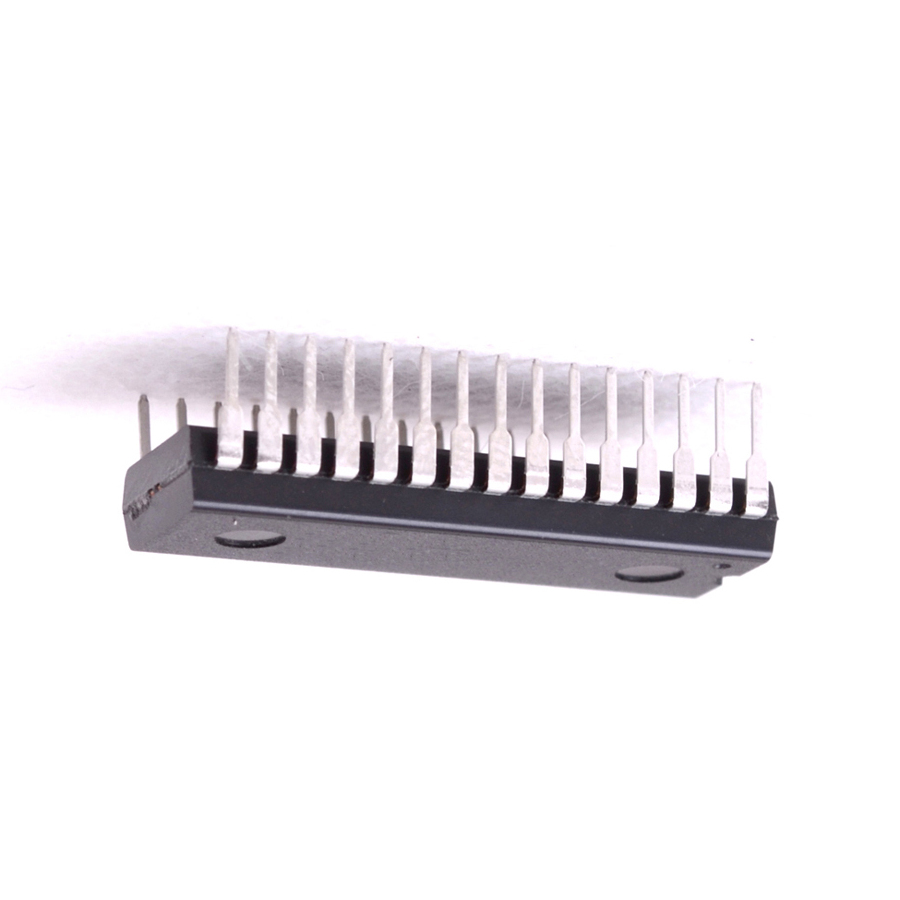

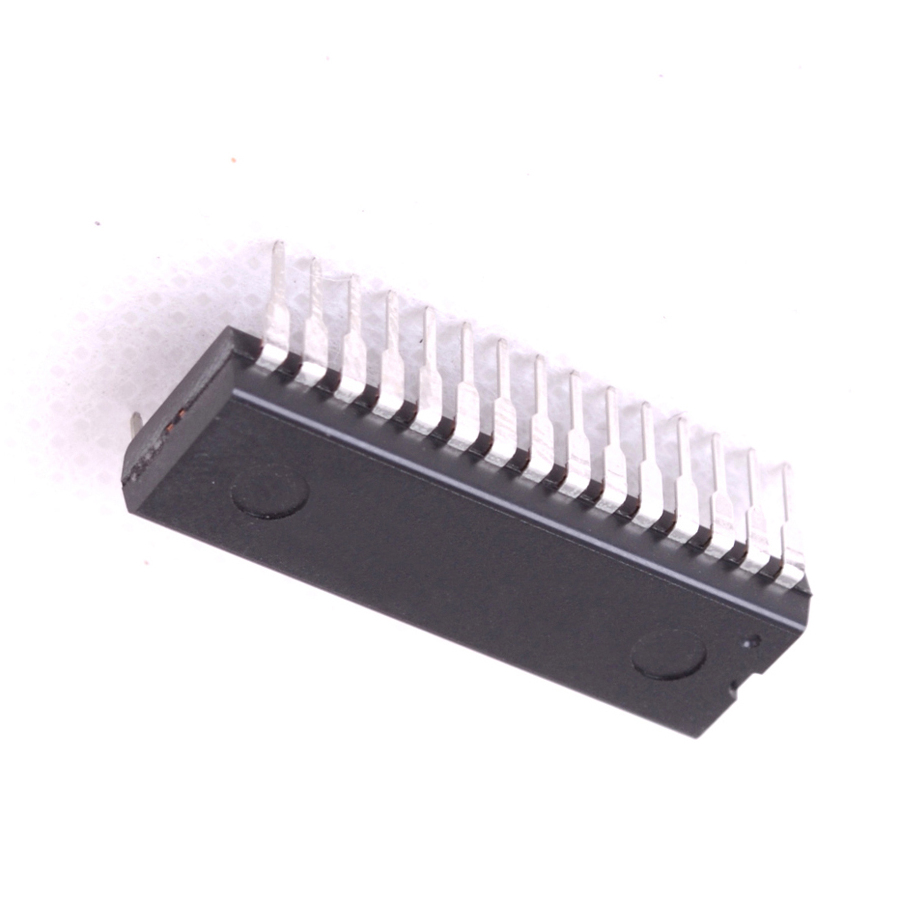

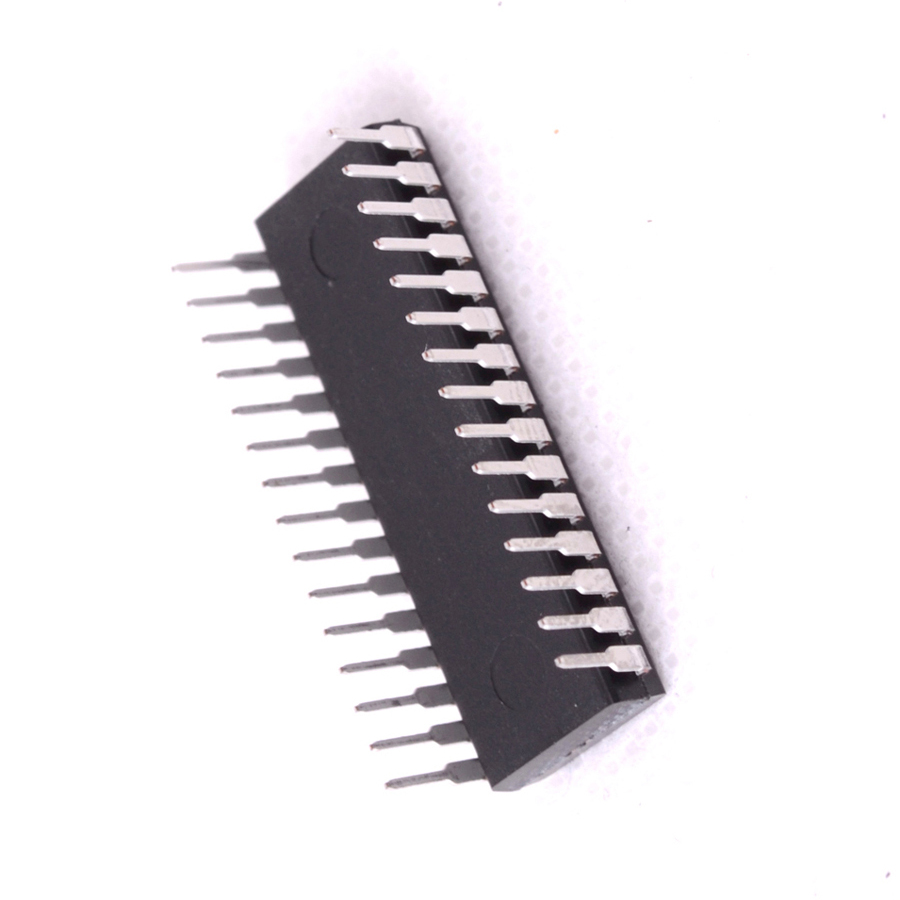

LR3718X Integrated Circuit CASE: DIP30 MAKE: Sharp Microelectronics
Product specifications
Type Integrated Circuit
Case DIP30
Manufacturer Sharp Microelectronics
No. of I/O Lines 22
I/O Line Types Word
Min Inst. Len (bits) 4
No. of I/O Ports 6
On-Chip ROM (bytes) 1.0k
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 16
Oper. Temp (°C) Min -10
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 30-9
Descript Package: 30,28,24,36 Pins available.
No. of Pins 30
Surface Mounted Yes/No NO
SKU 1125677
