LS303
View detailed images (4)

LS303

SKU: LS303

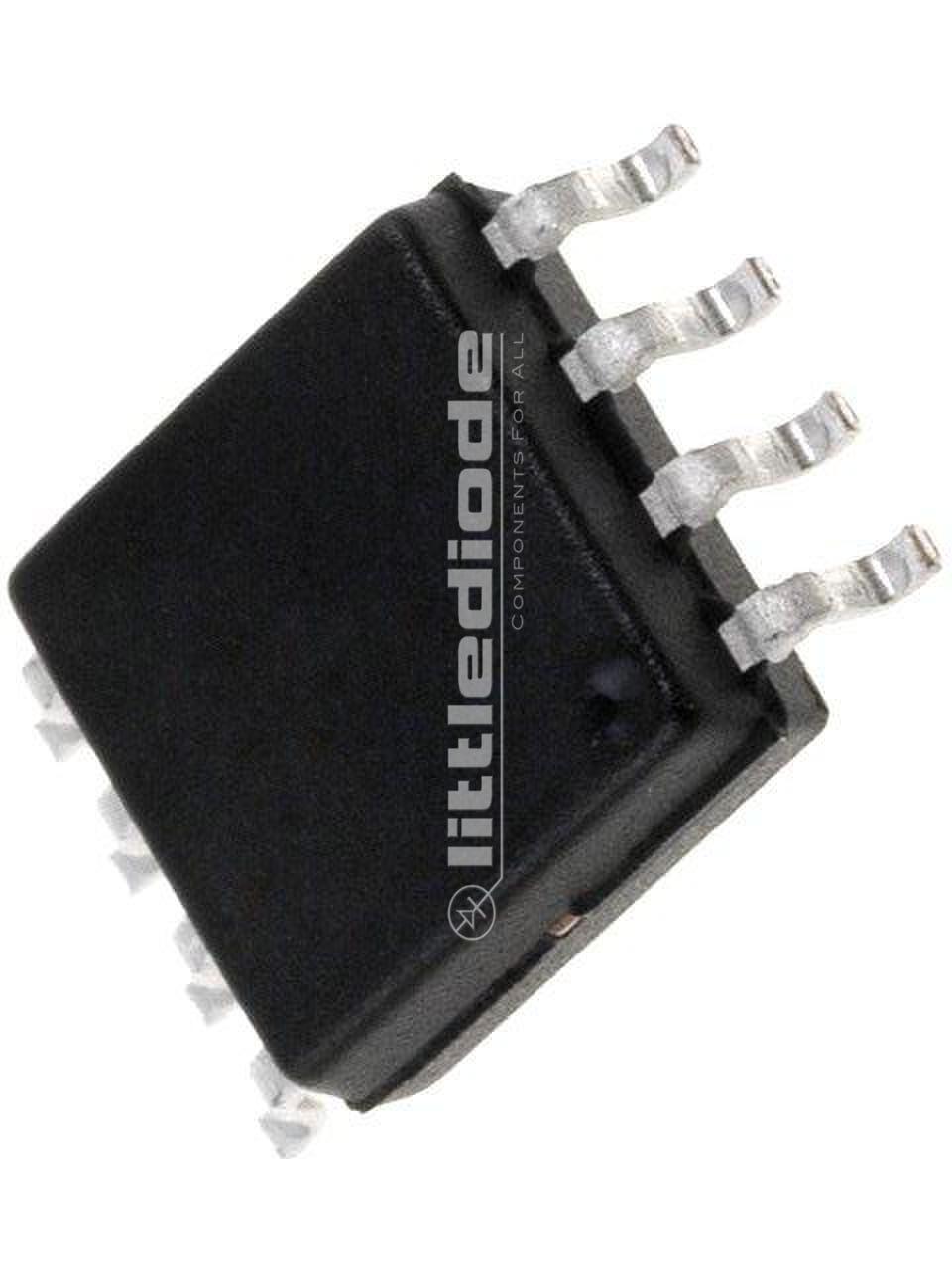

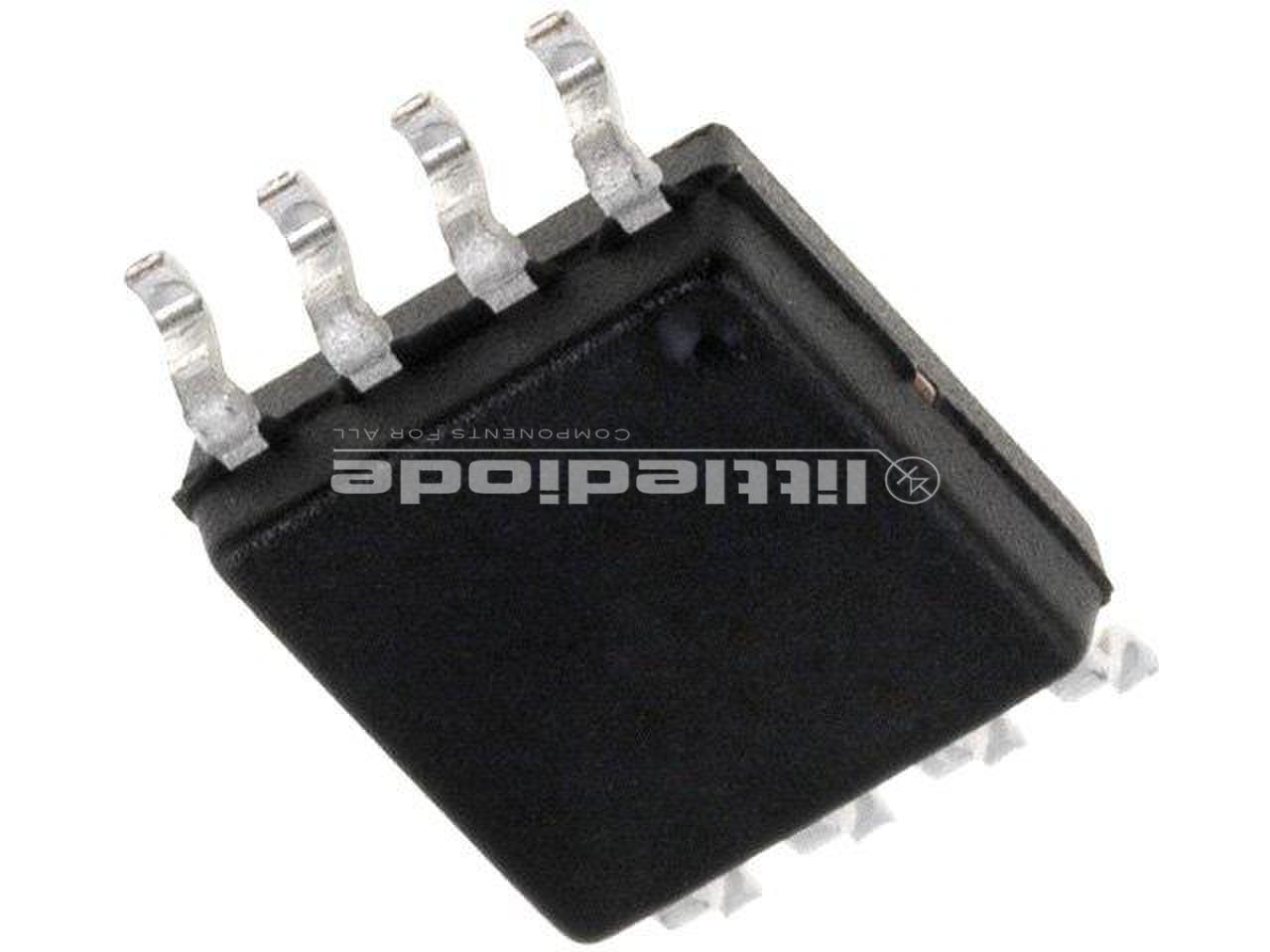

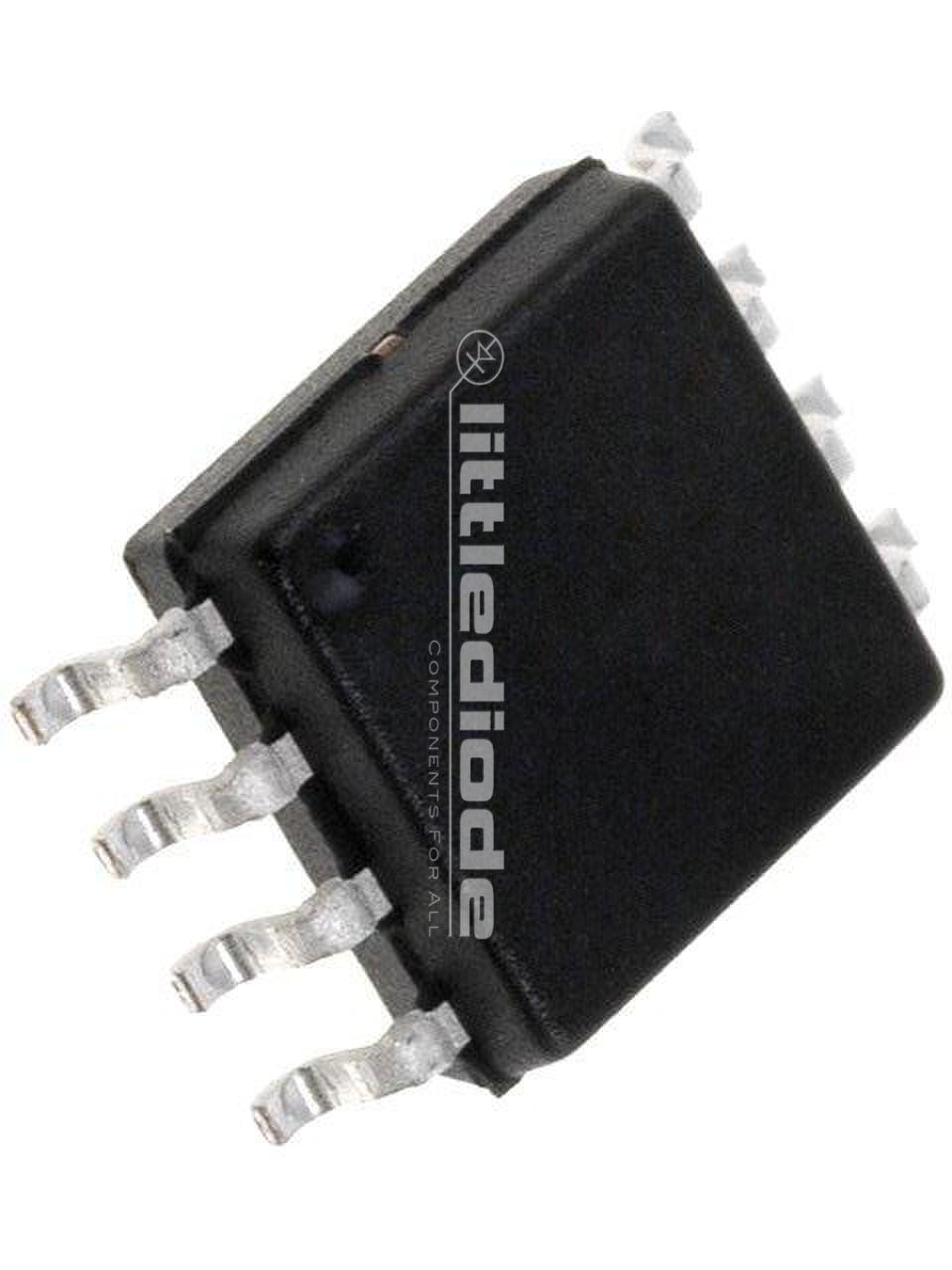

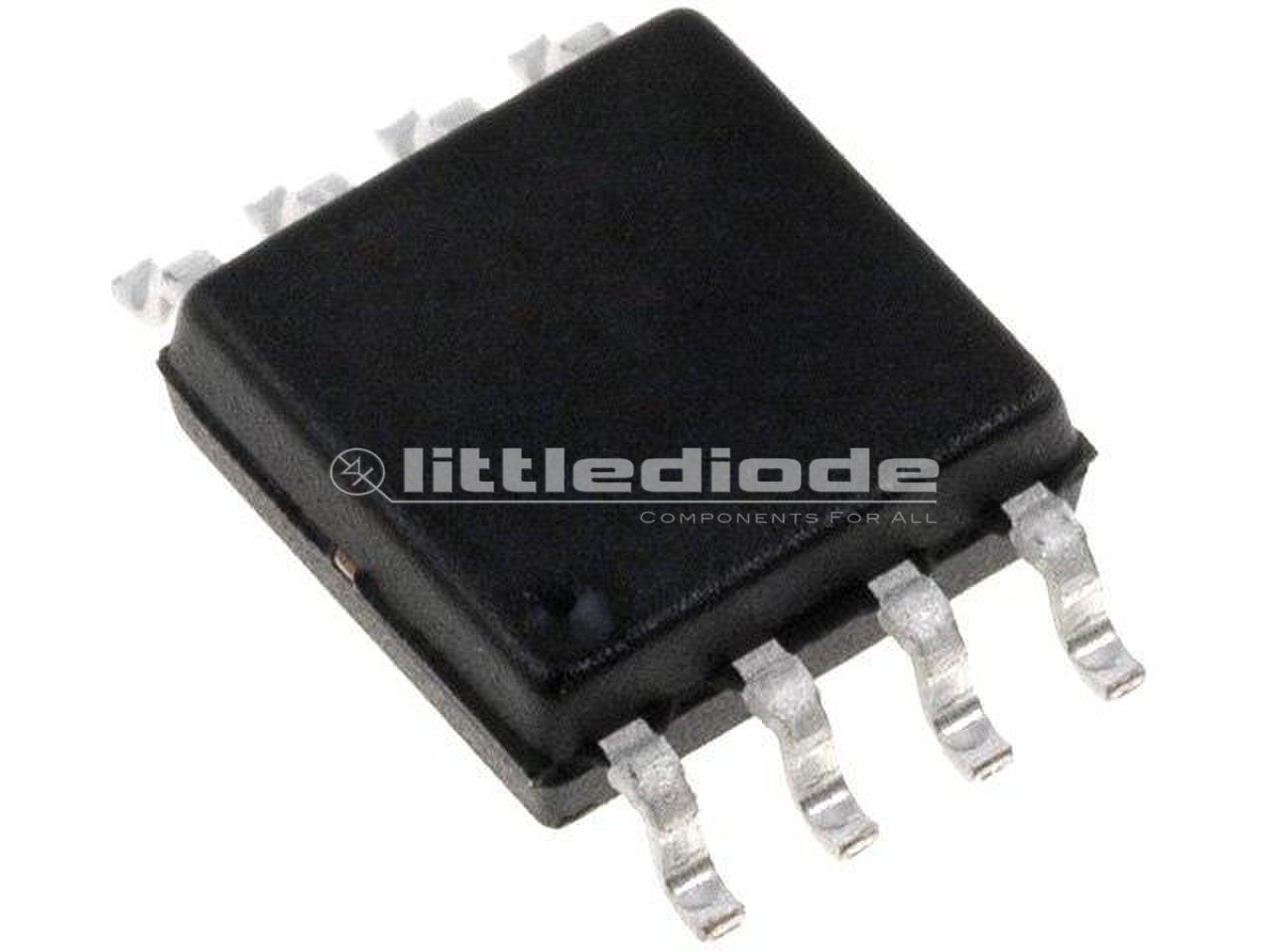

LS303 Transistor Silicon NPN CASE: SOIC8 MAKE: Generic
Product specifications
Type Transistor Silicon NPN
Case SOIC8
Manufacturer Generic
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.25 W
Maximum Collector-Base Voltage |Vcb| 10 V
Maximum Collector-Emitter Voltage |Vce| 10 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.005 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 2 pF
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN 2000
SKU 1436153
