LS3250A
View detailed images (4)

LS3250A

SKU: LS3250A

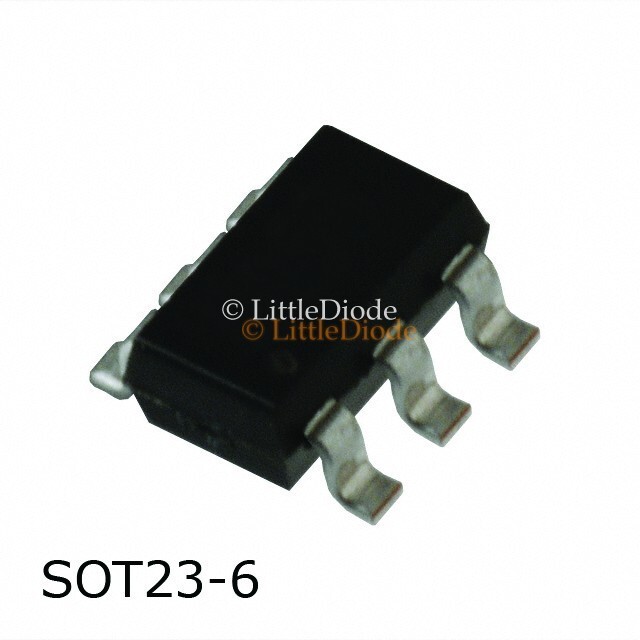

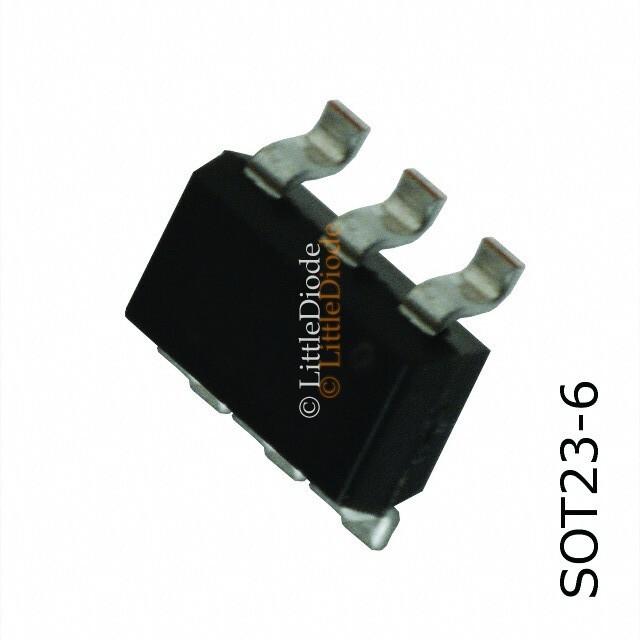

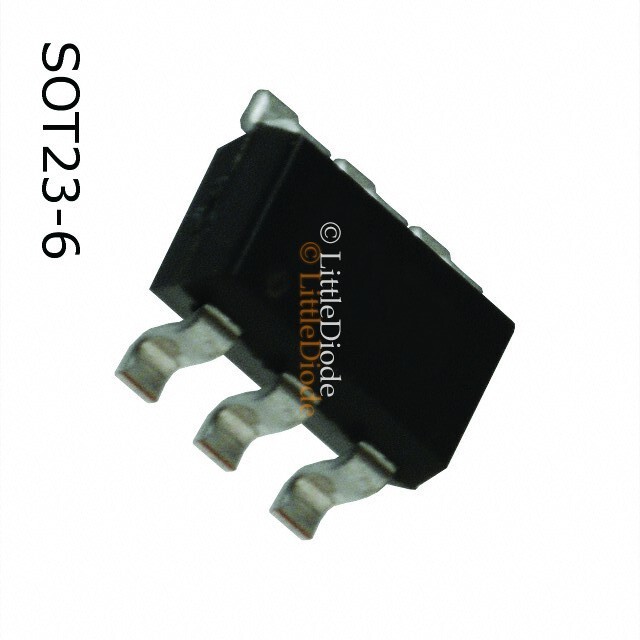

LS3250A Transistor Silicon NPN CASE: SOT23-6 MAKE: Generic
Product specifications
Type Transistor Silicon NPN
Case SOT23-6
Manufacturer Generic
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.225 W
Maximum Collector-Base Voltage |Vcb| 45 V
Maximum Collector-Emitter Voltage |Vce| 45 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 2 pF
Transition Frequency (ft): 600 MHz
Forward Current Transfer Ratio (hFE), MIN 150
SKU 1436158
