Home / Integrated Circuit / M27C2001-12F1
M27C2001-12F1

M27C2001-12F1

SKU: M27C2001-12F1

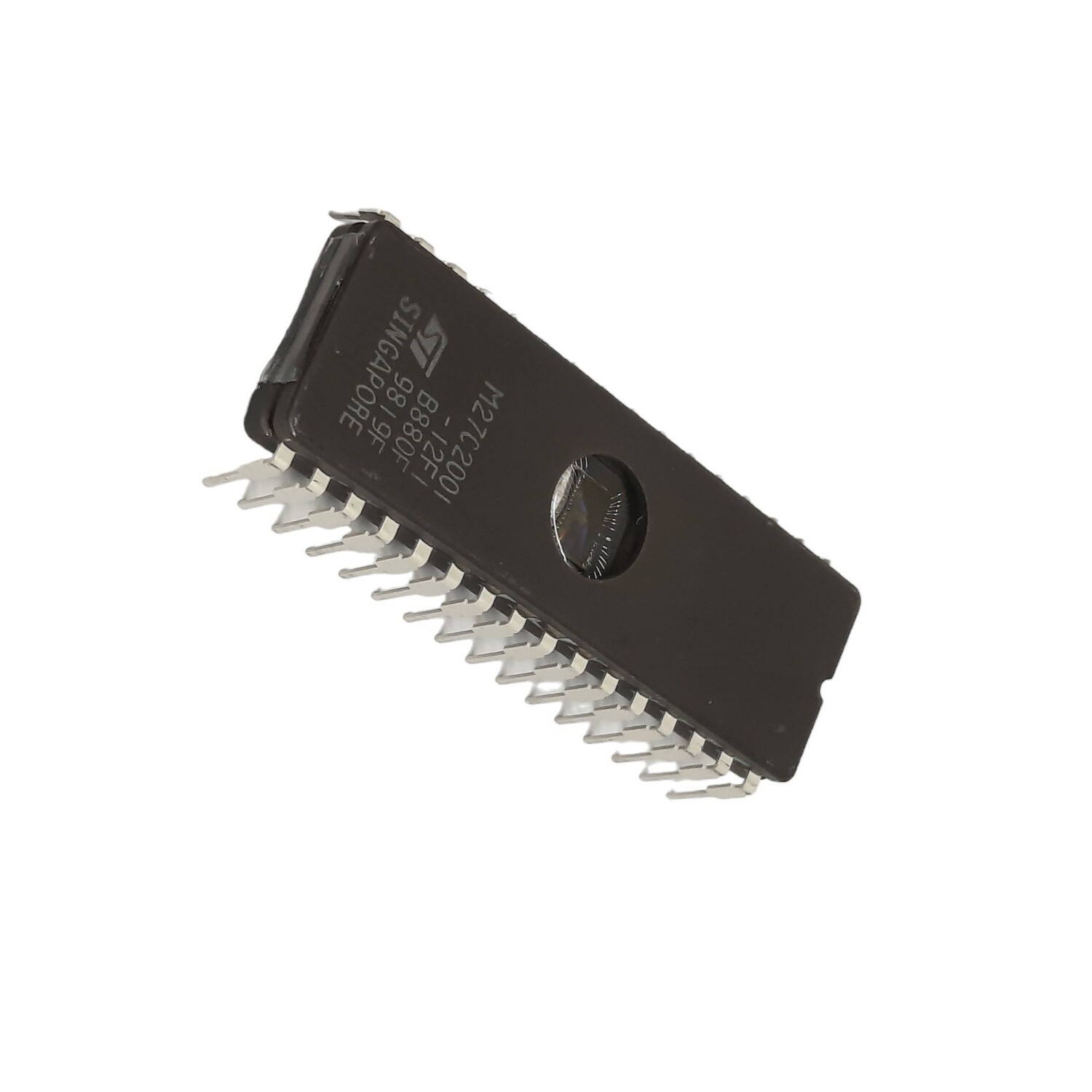

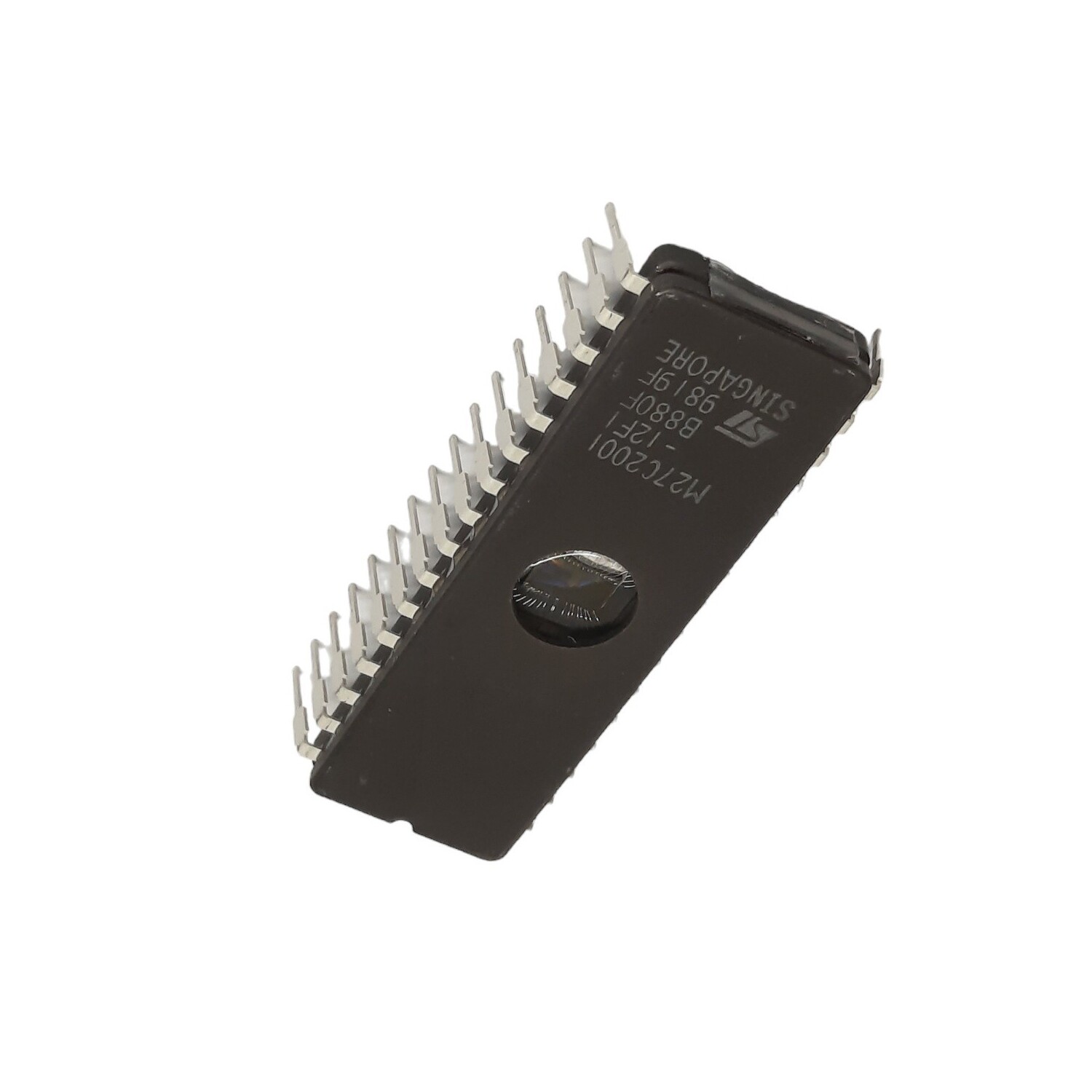

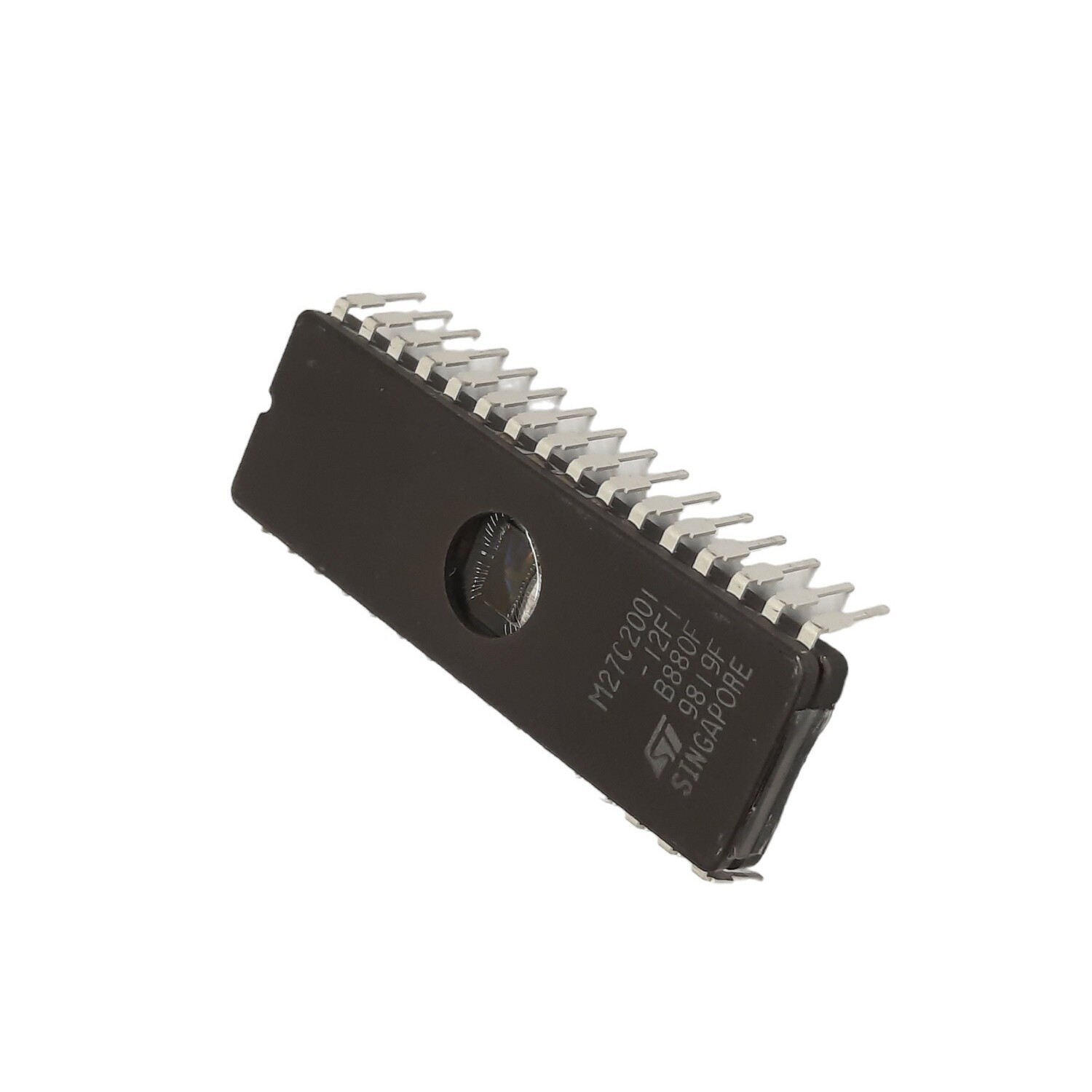

M27C2001-12F1 is a 2 Mbit (256K x 8) UV-erasable/OTP EPROM in a windowed FDIP32W (ceramic DIP-32) package. It operates from a 5 V supply, offers 120 ns access time and is specified for a 0–70°C temperature range.
Price:
£23.99 Inc. VAT (£19.99 Ex. VAT)
£23.99 Inc. VAT (£19.99 Ex. VAT)
Qty
  • Last 88 pieces Ready to Ship
  • More pieces shipped in 14 days
?
Datasheet
M27C2001-12F1 Datasheet
Product specifications
Type Integrated Circuit
Case DIP32
Manufacturer ST Microelectronics - STM
t(Acc) Max. (S) 120n
Bits Per Word 8
Output Config 3-State
Tech. CMOS Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Number of Words 256k
Program Voltage (V) 12.8
Number of Chip Selects 2
Pinout Equivalence Number 32-668
No. of Pins 32
Surface Mounted Yes/No NO
SKU 18887
