Home / Integrated Circuit / M50951XXXSP
M50951XXXSP

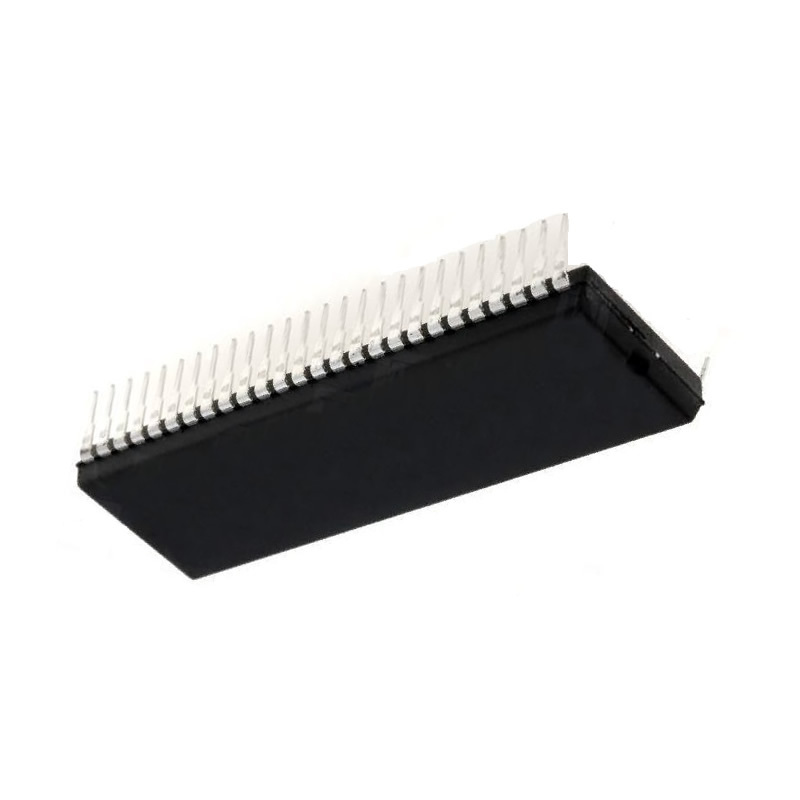

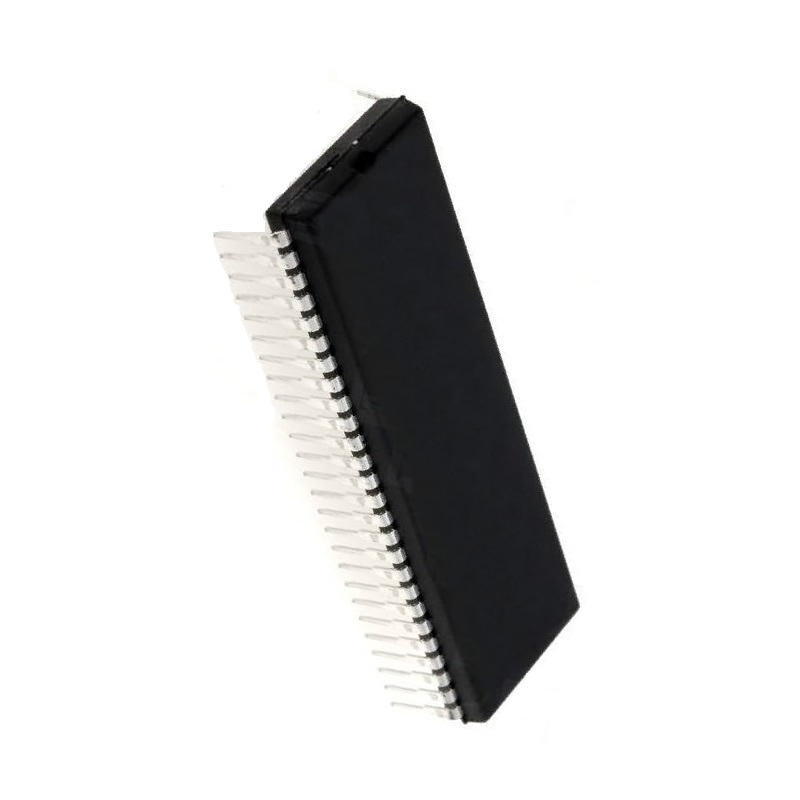

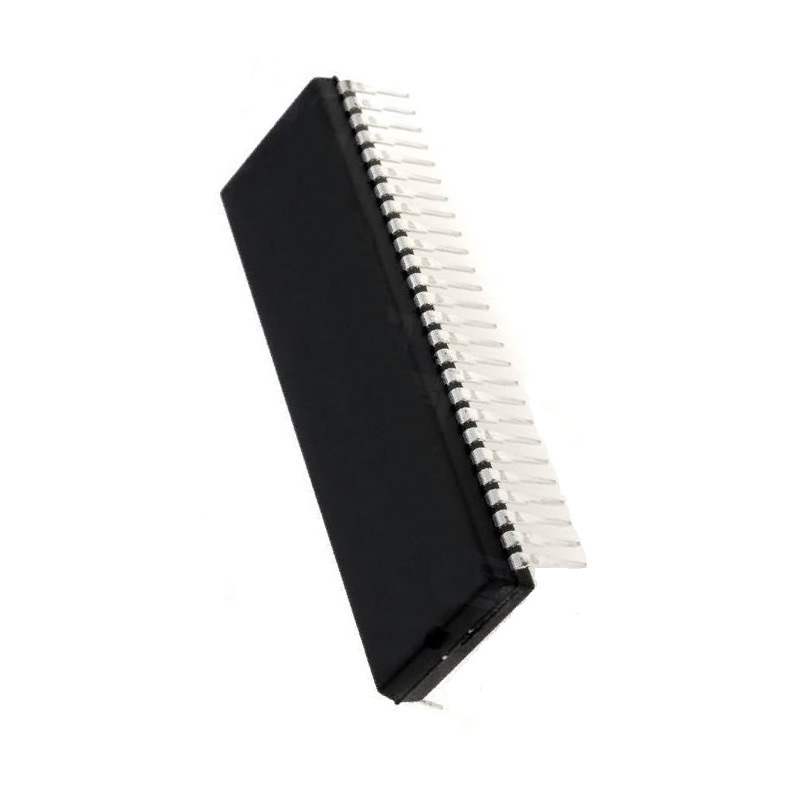

View detailed images (4)

M50951XXXSP

SKU: M50951XXXSP
M50951XXXSP Integrated Circuit CASE: DIP52 MAKE: Mitsubishi
Product specifications
Type Integrated Circuit
Case DIP52
Manufacturer Mitsubishi
Mem. Addr Rnge 1k
No.of Addr. Modes 5
No. of I/O Lines 40
I/O Line Types ByteVarble
Max. Inst. Len (bits) 24
Min Inst. Len (bits) 8
No. of Intrpt Lines 6
No. of Intrpt (NMI) 1
Intrpt Types Mask/Ext V
No. of Intrpt (mask) 5
fClk Max. (Hz) 5.0M
fClk Min (Hz) 1.0M
No. of I/O Ports 5
On-Chip ROM (bytes) 4k
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 144
Oper. Temp (°C) Min -10
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 52-37
No. of Pins 52
Surface Mounted Yes/No NO
SKU 1127672
