M75474L

M75474L

SKU: M75474L

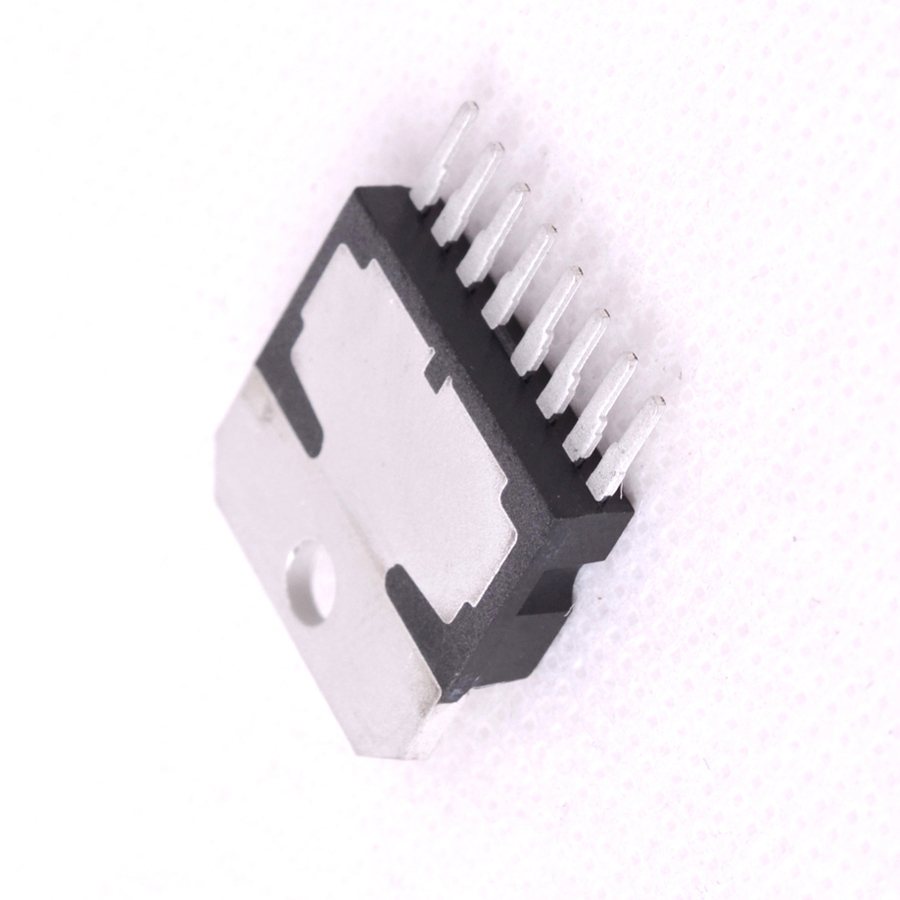

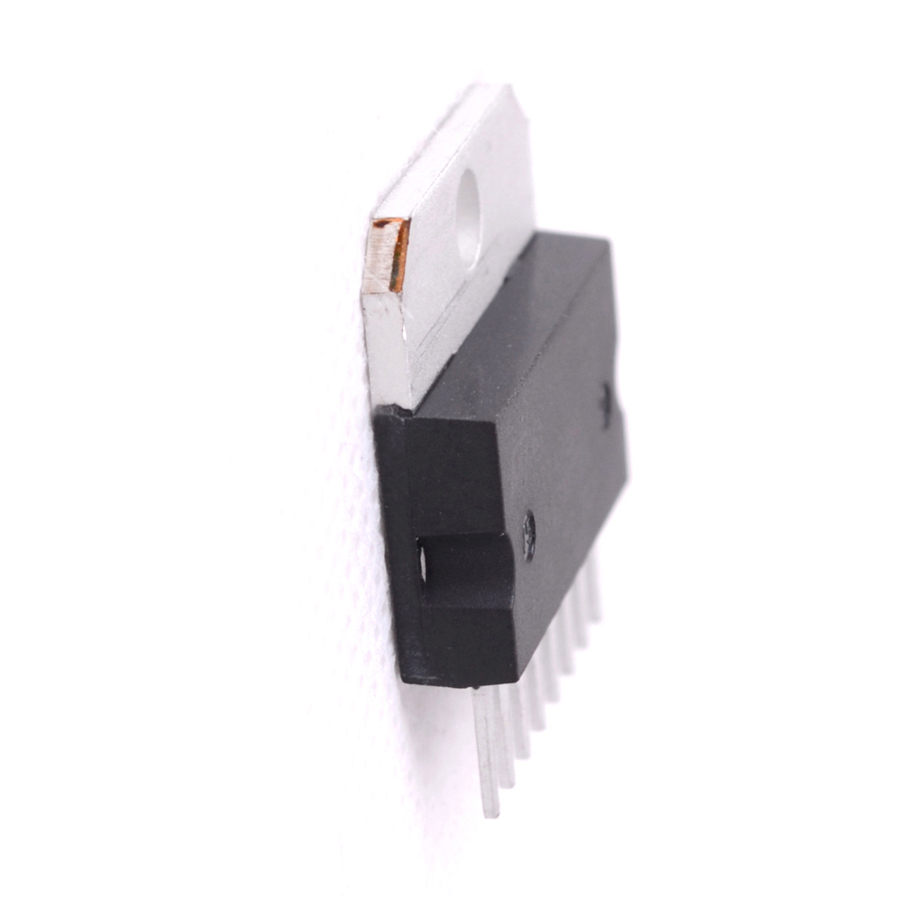

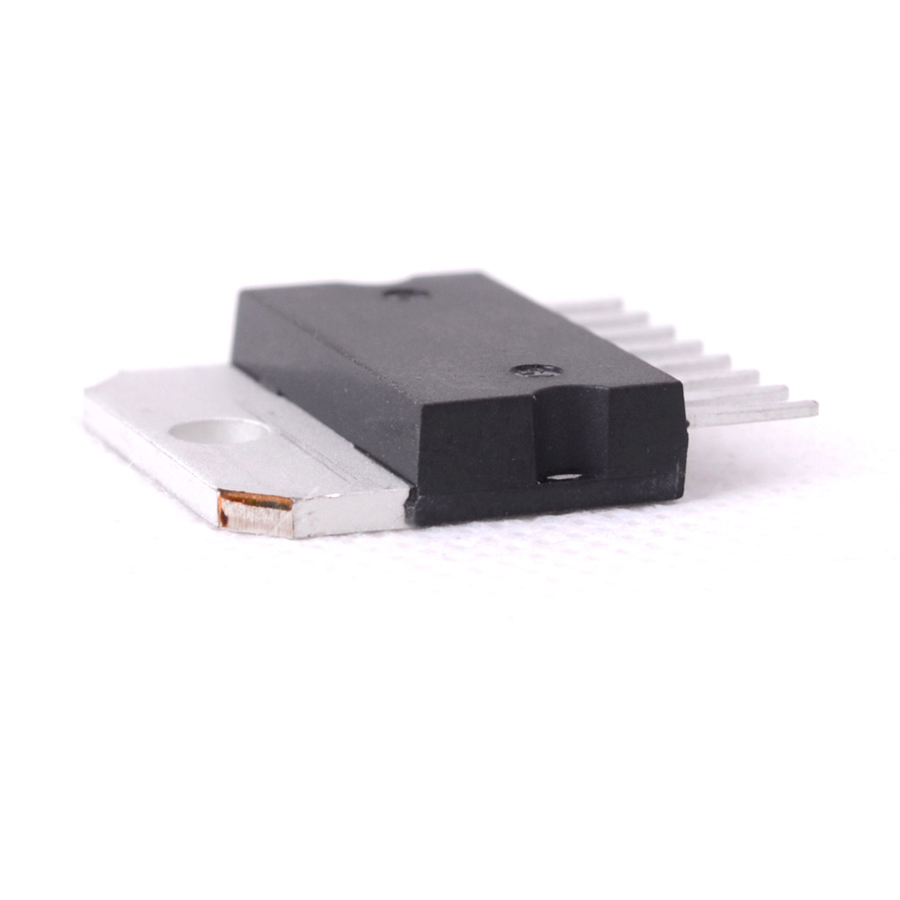

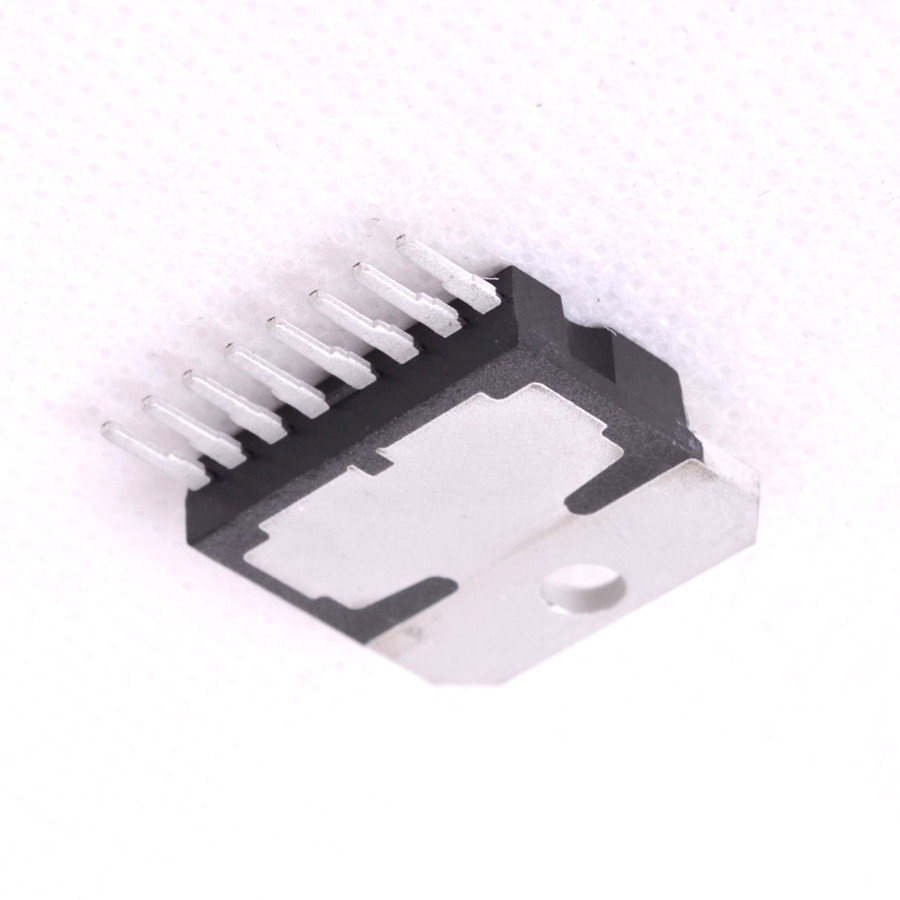

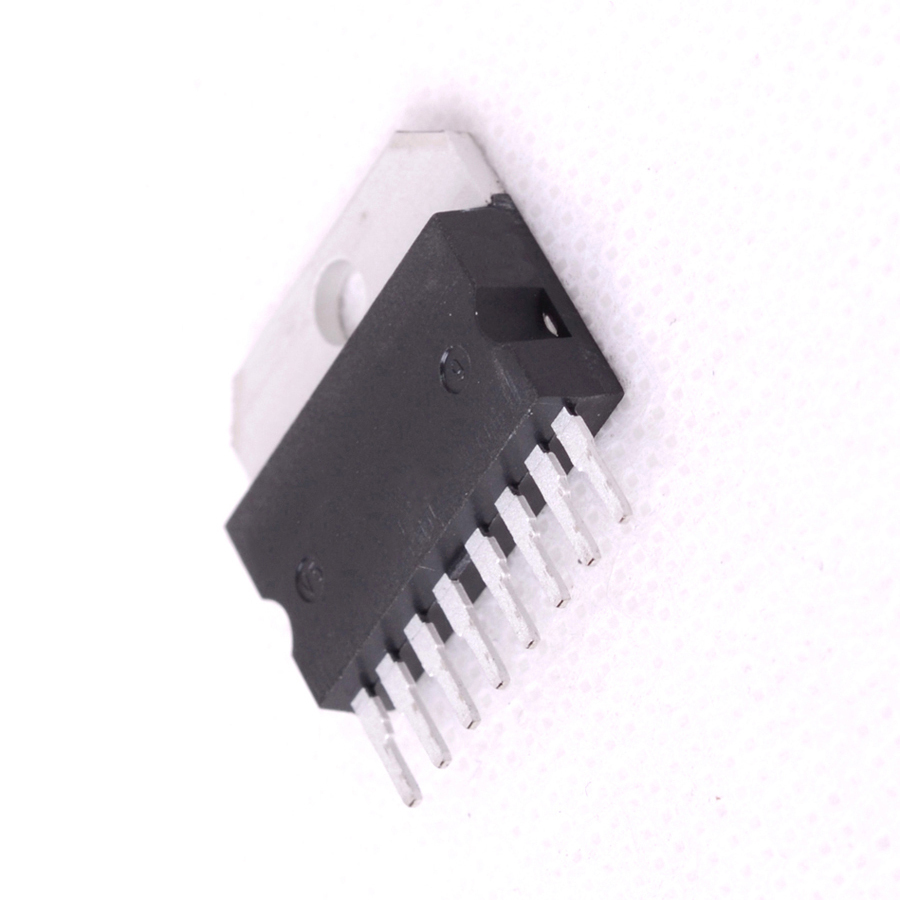

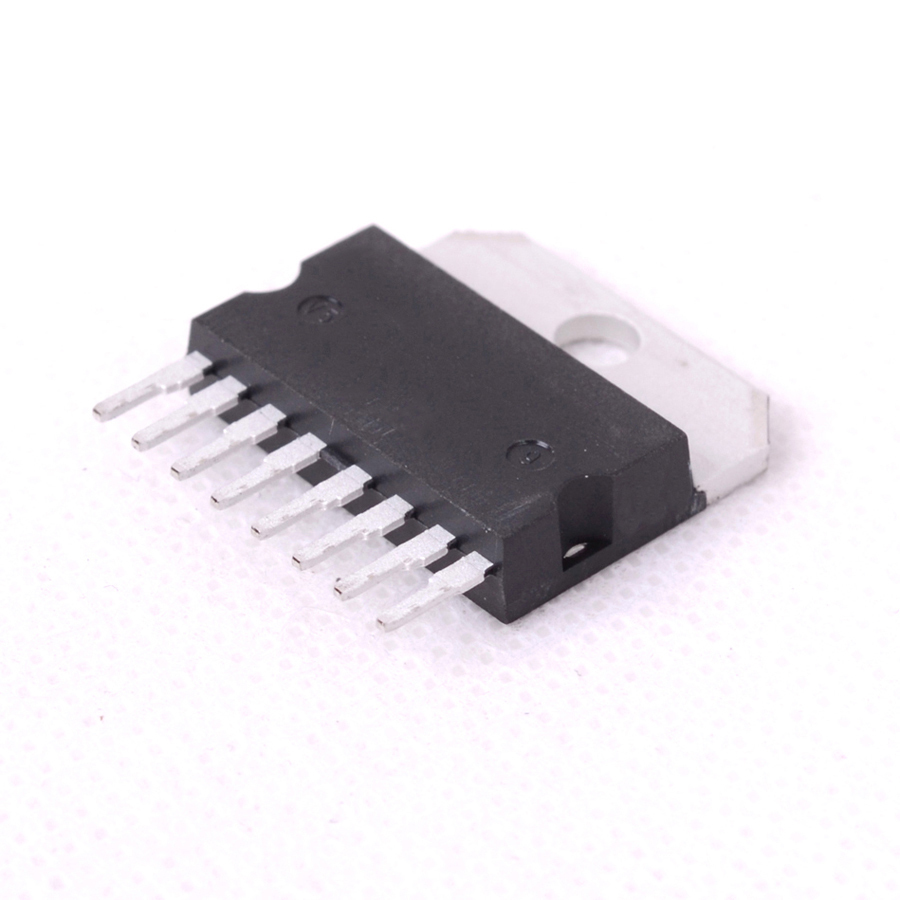

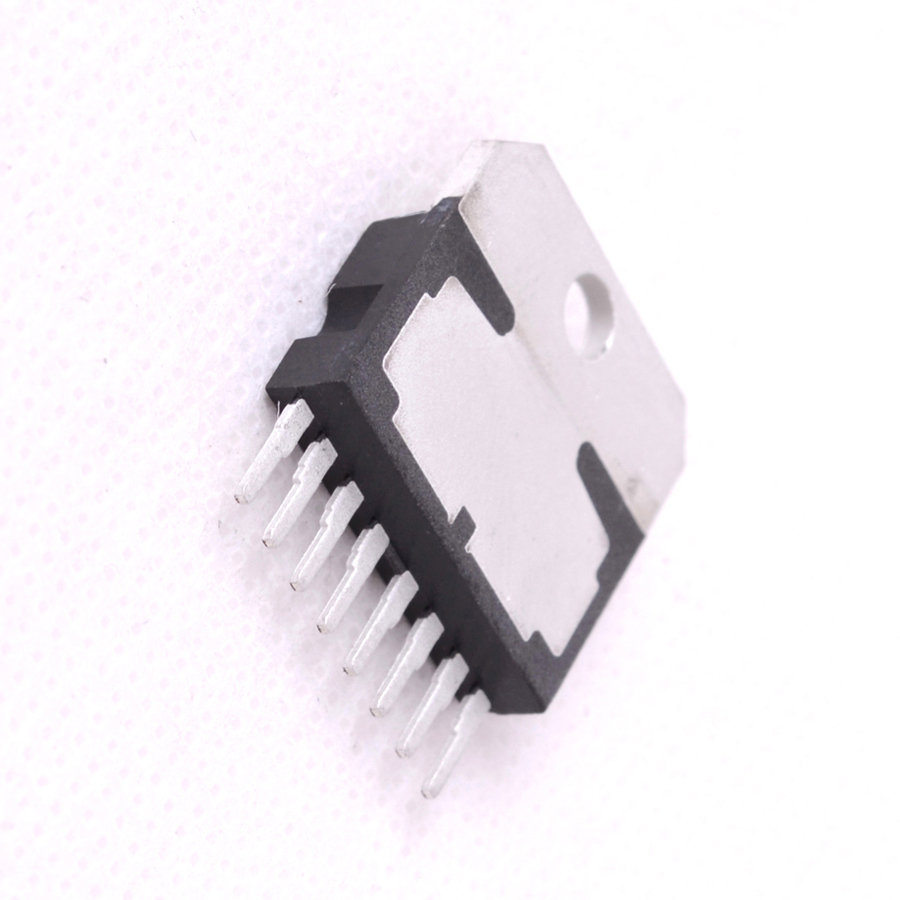

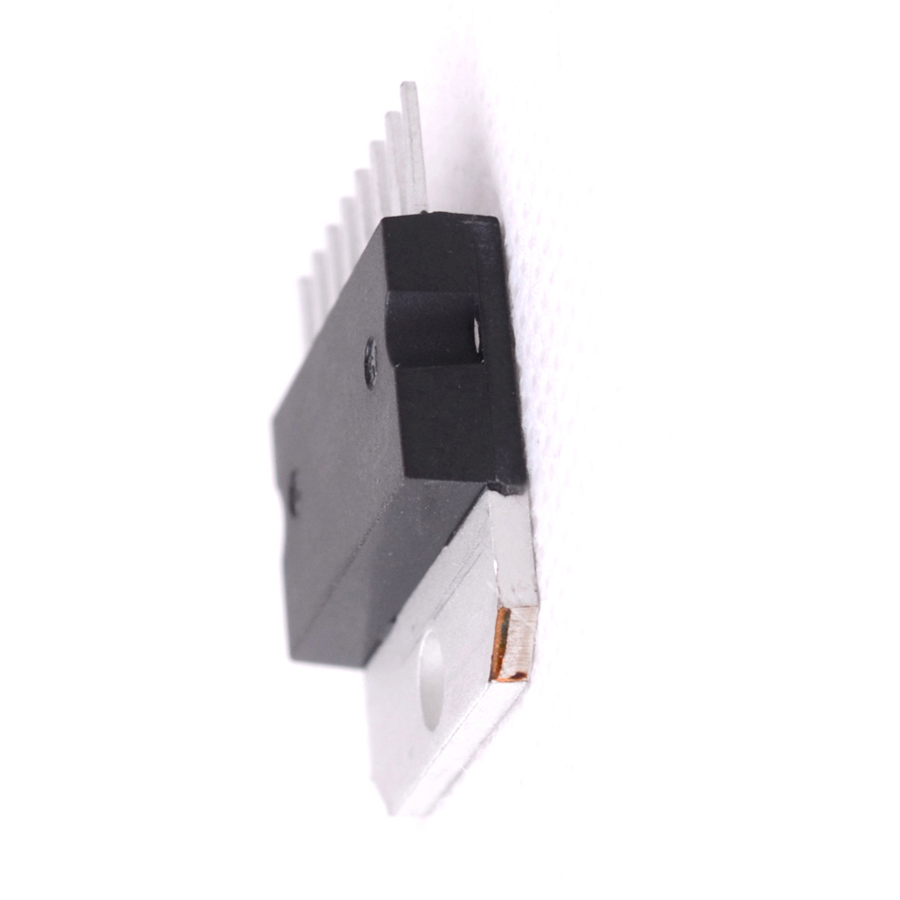

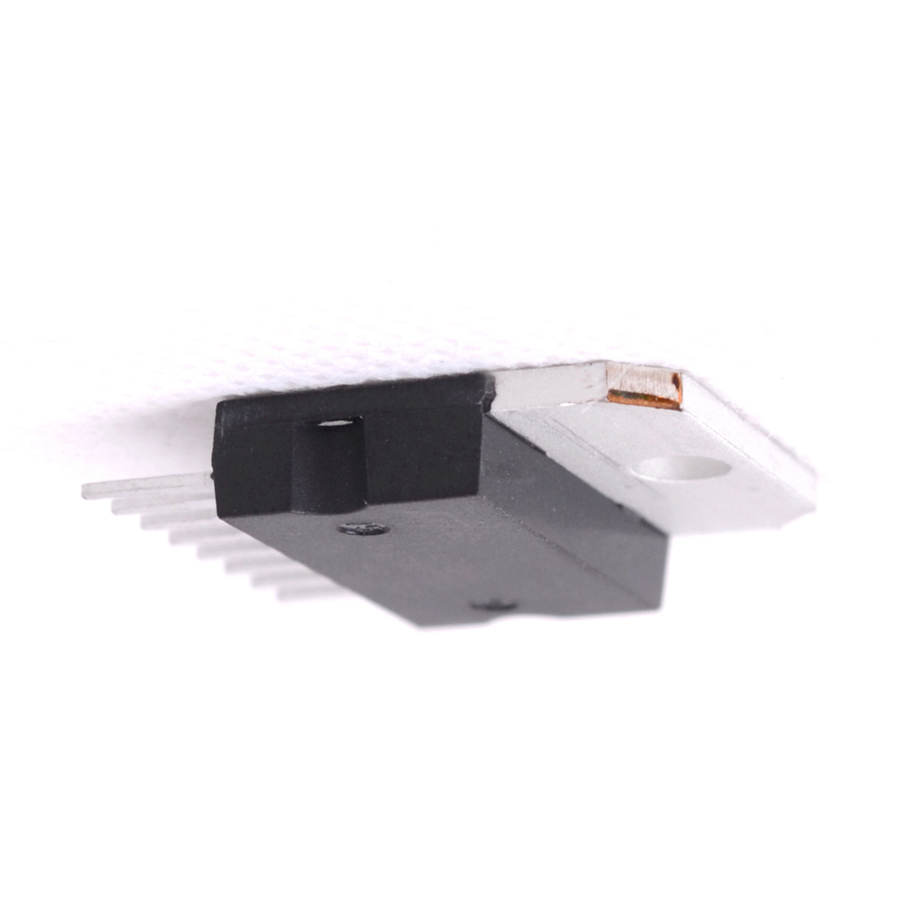

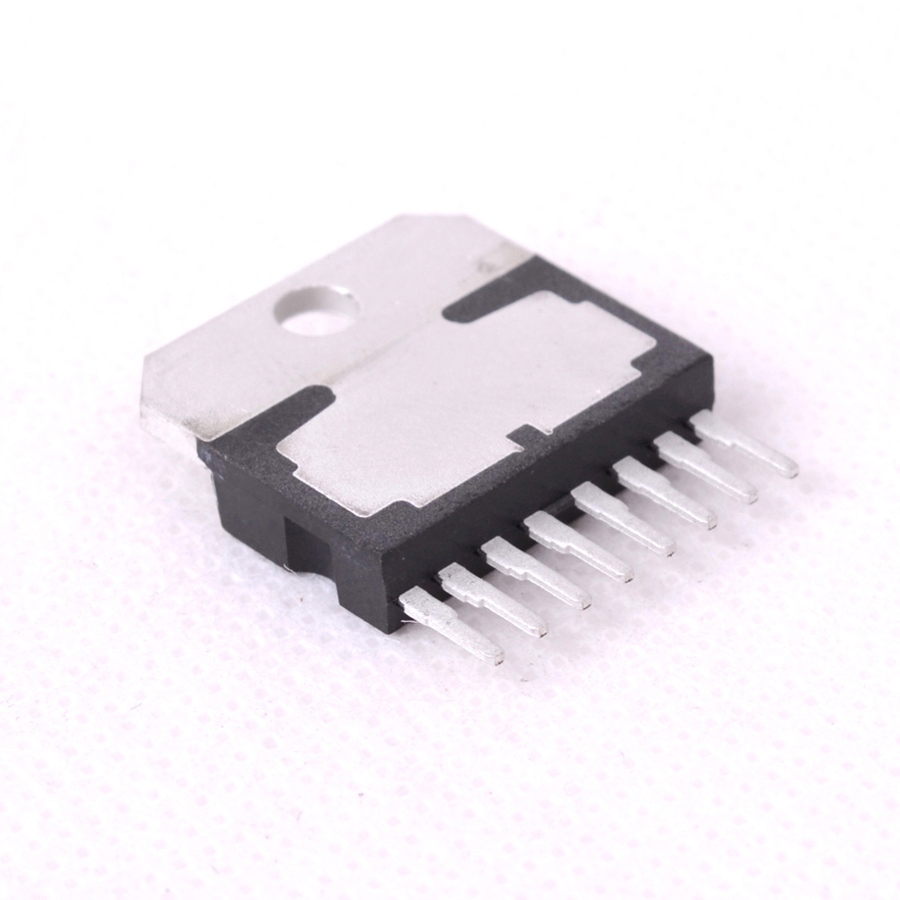

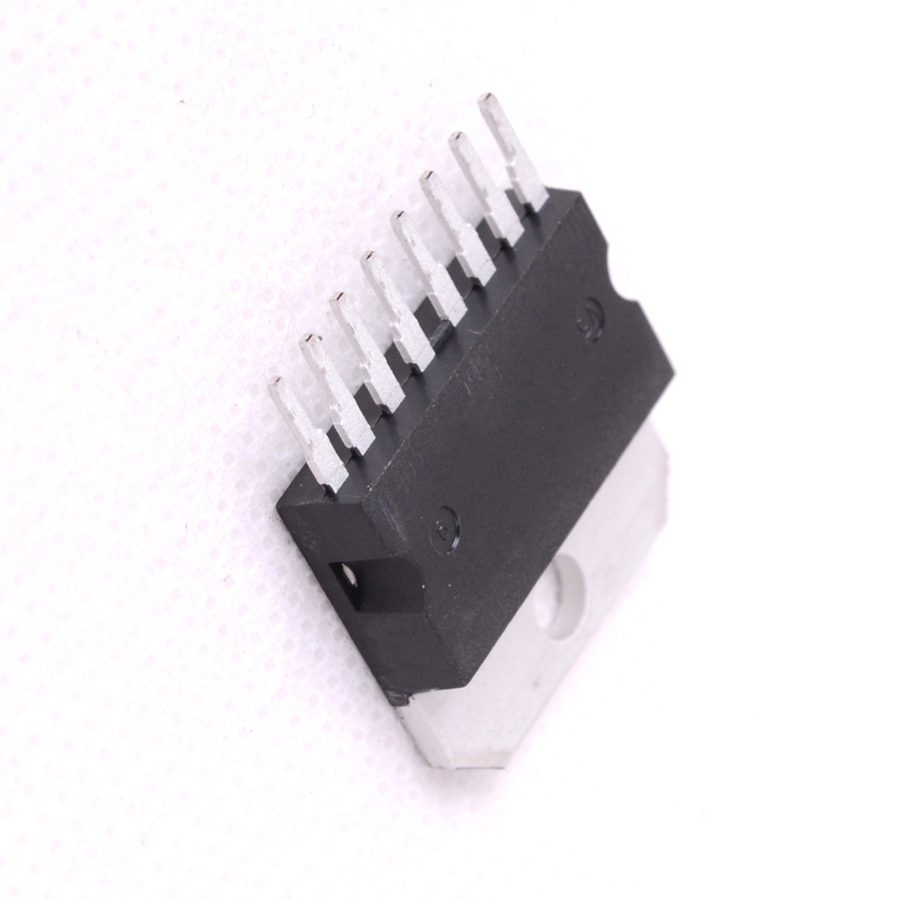

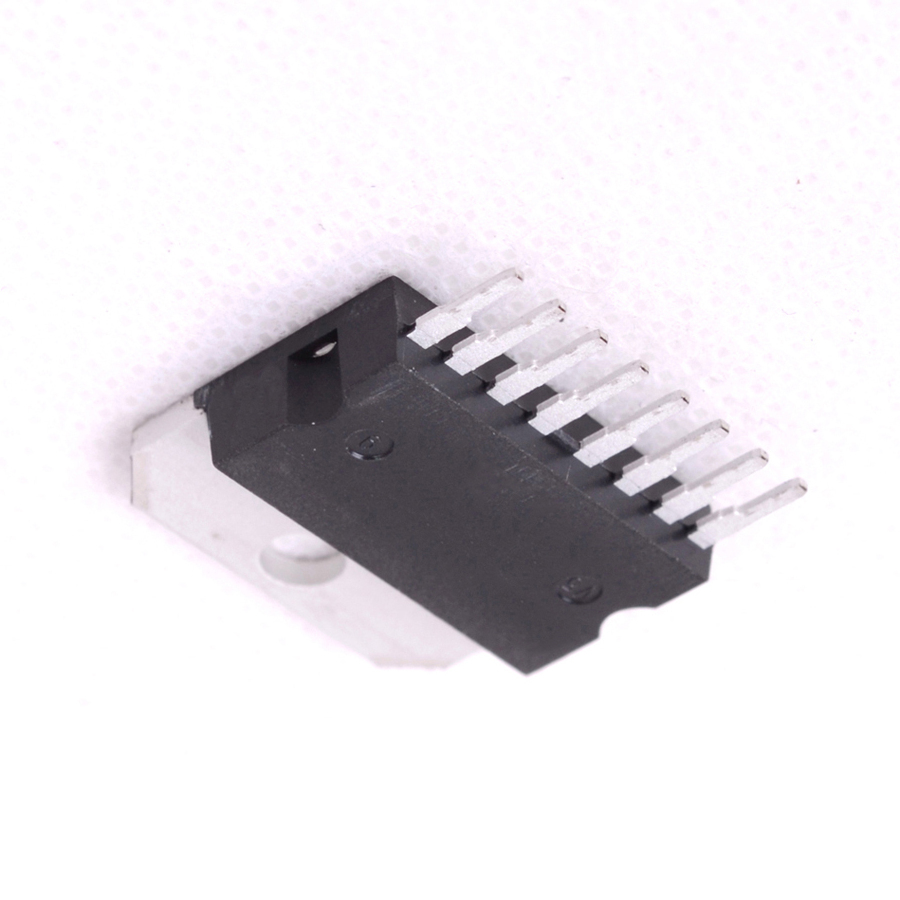

M75474L Semiconductor CASE: SIP8 MAKE: Mitsubishi
Product specifications
Type Semiconductor
Case SIP8
Manufacturer Mitsubishi
Vih Min (V) 2.0
Vil Max. (V) 0.8
Inp Logic Family TTL
Output Config Open-Coll.
VOL Max. 0.7
Outp Transis. Ion Max. 700m
PD Max. (W) 1.2
tPD Max. (S) 200n
Nom. Supp (V) 5.0
Tech. Bipolar Semiconductor
Logic Funct. NOR
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 75
VOH Max. 80
@Iol (A) 300m
Pinout Equivalence Number 8-44
No. of Pins 8
Surface Mounted Yes/No NO
SKU 926602
