MA159A
View detailed images (13)

MA159A

SKU: MA159A

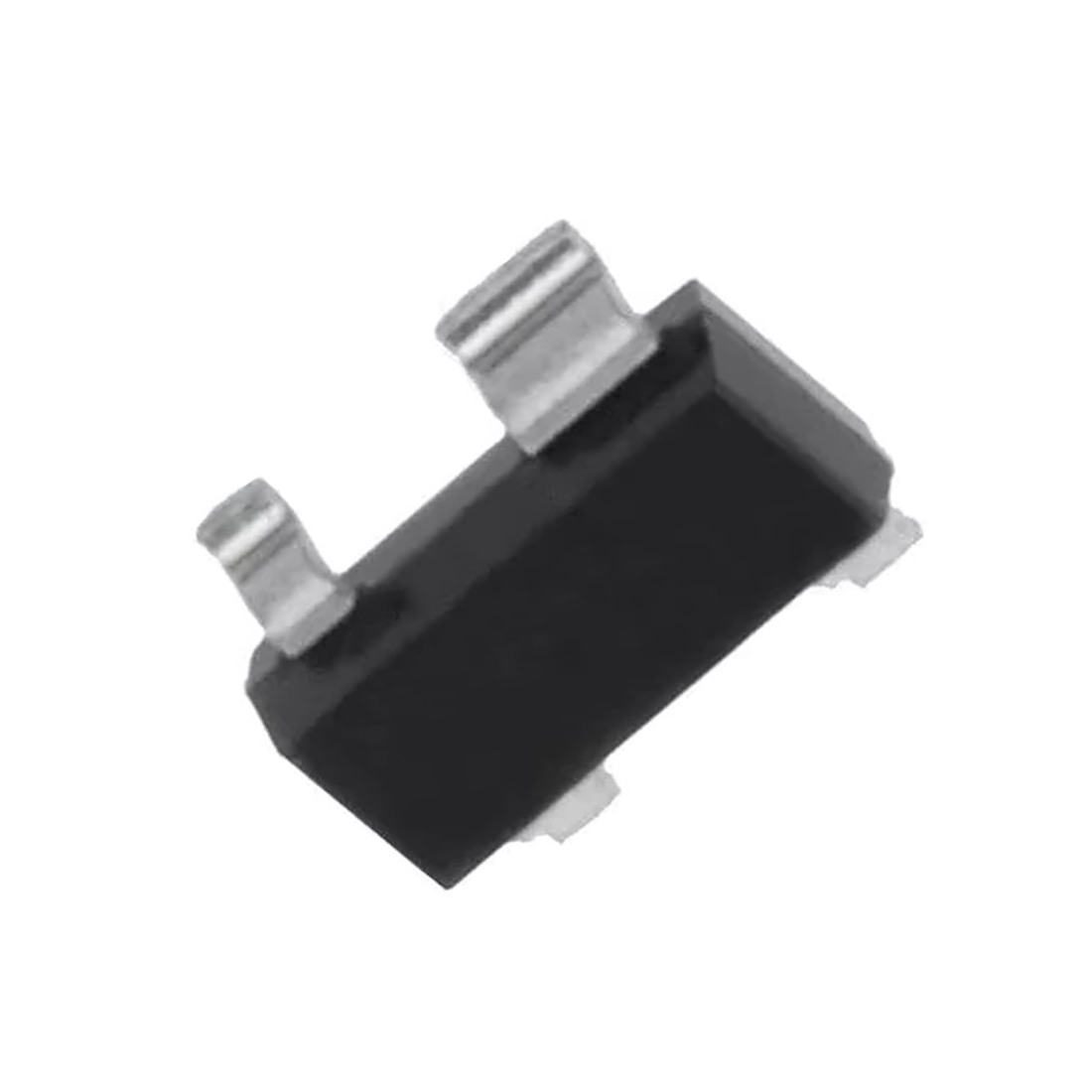

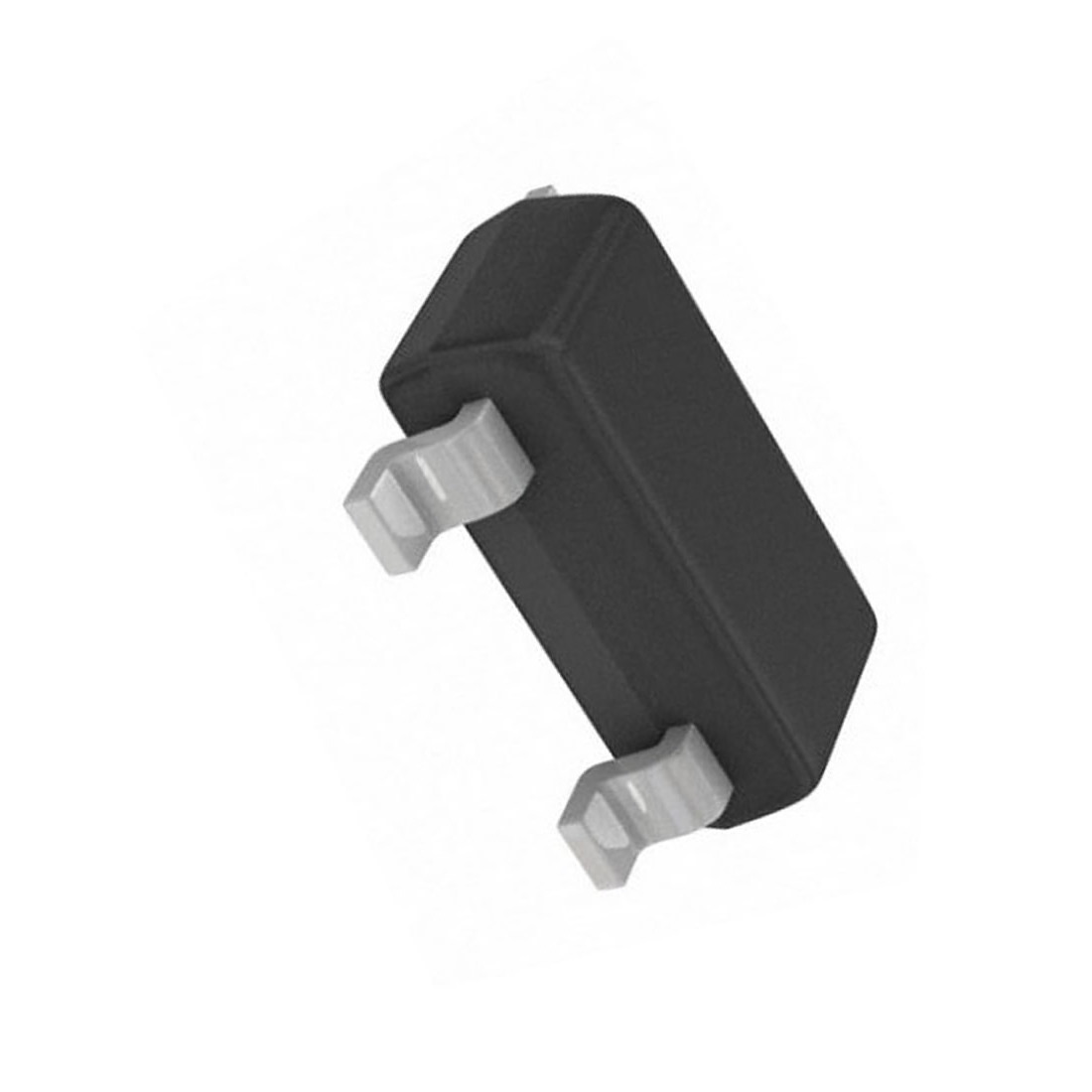

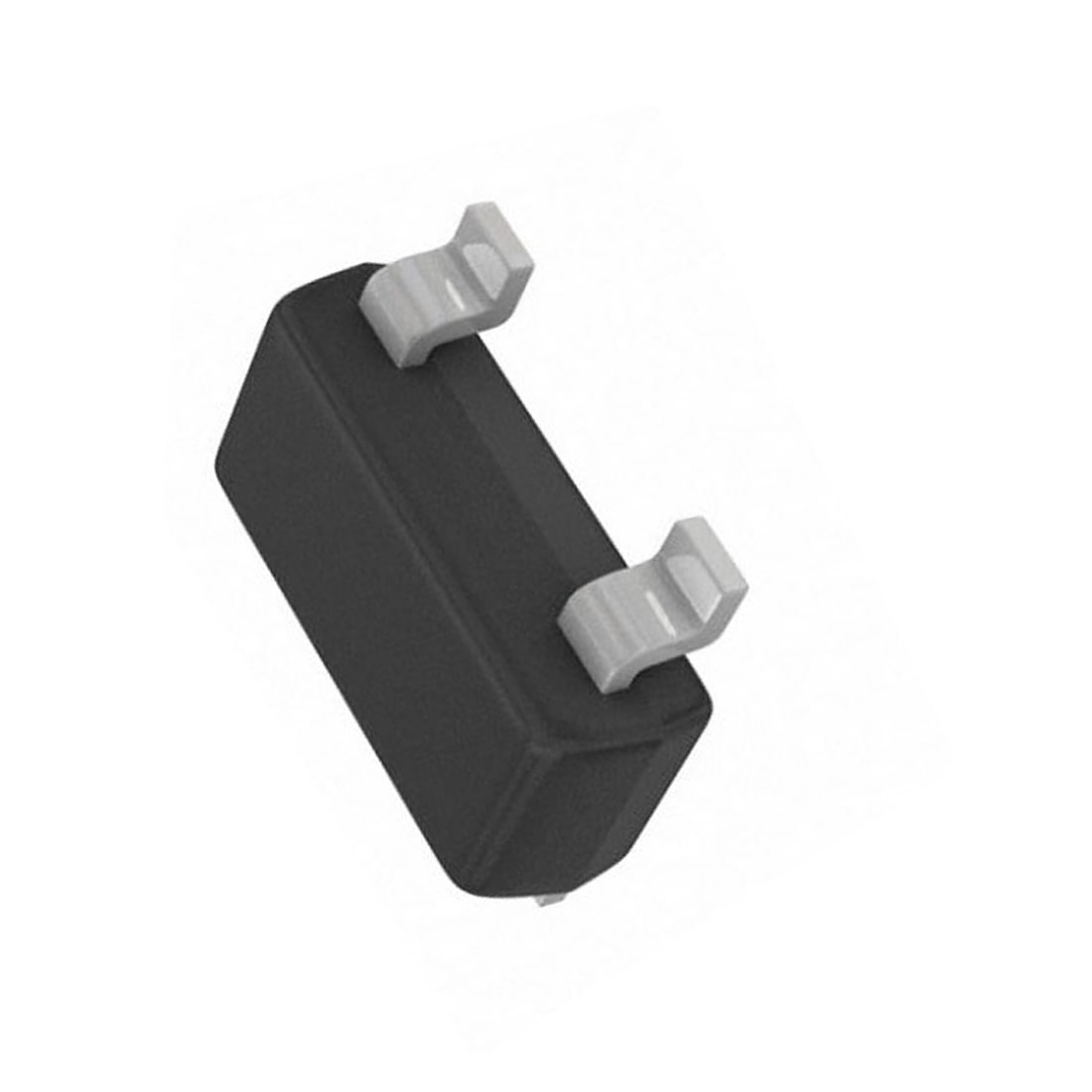

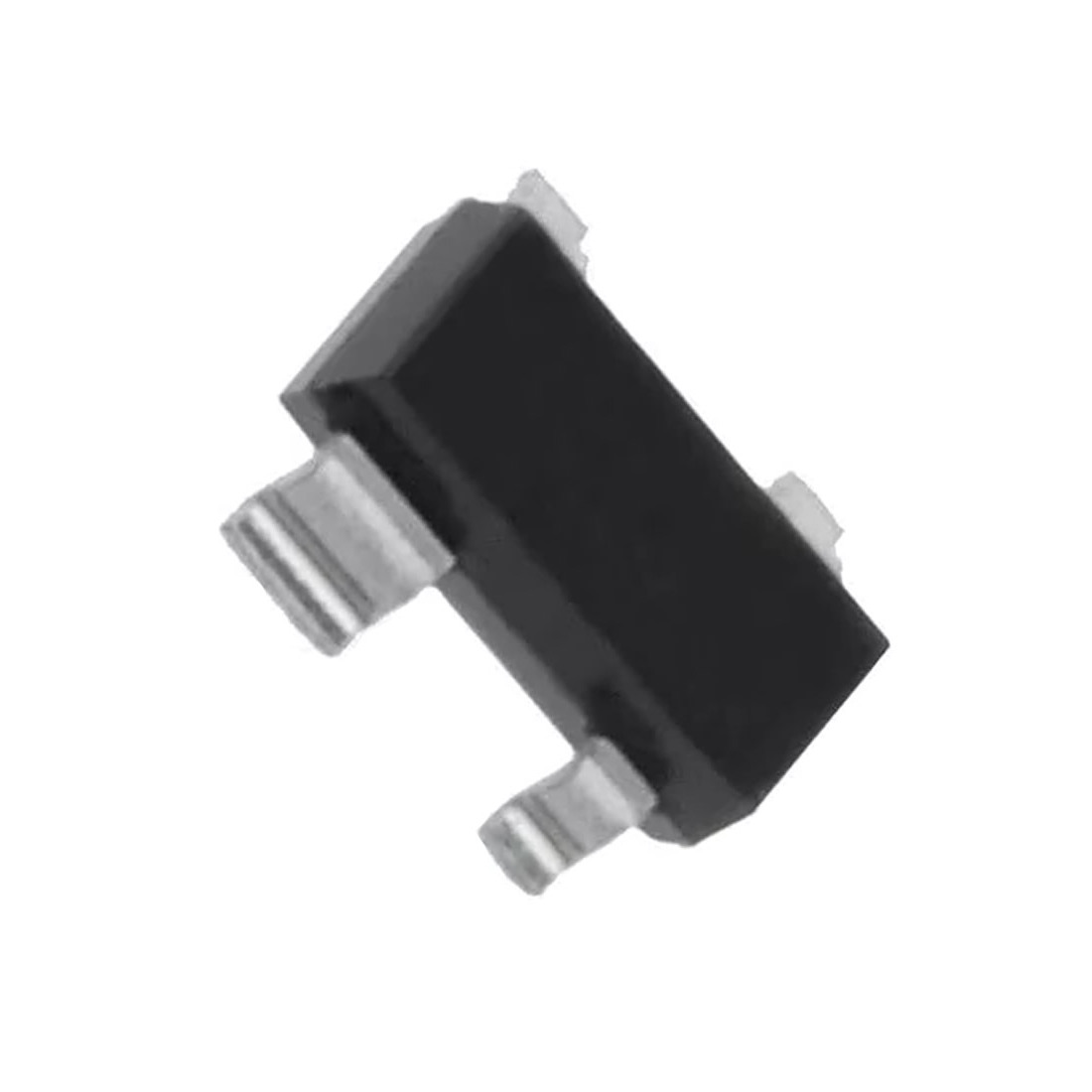

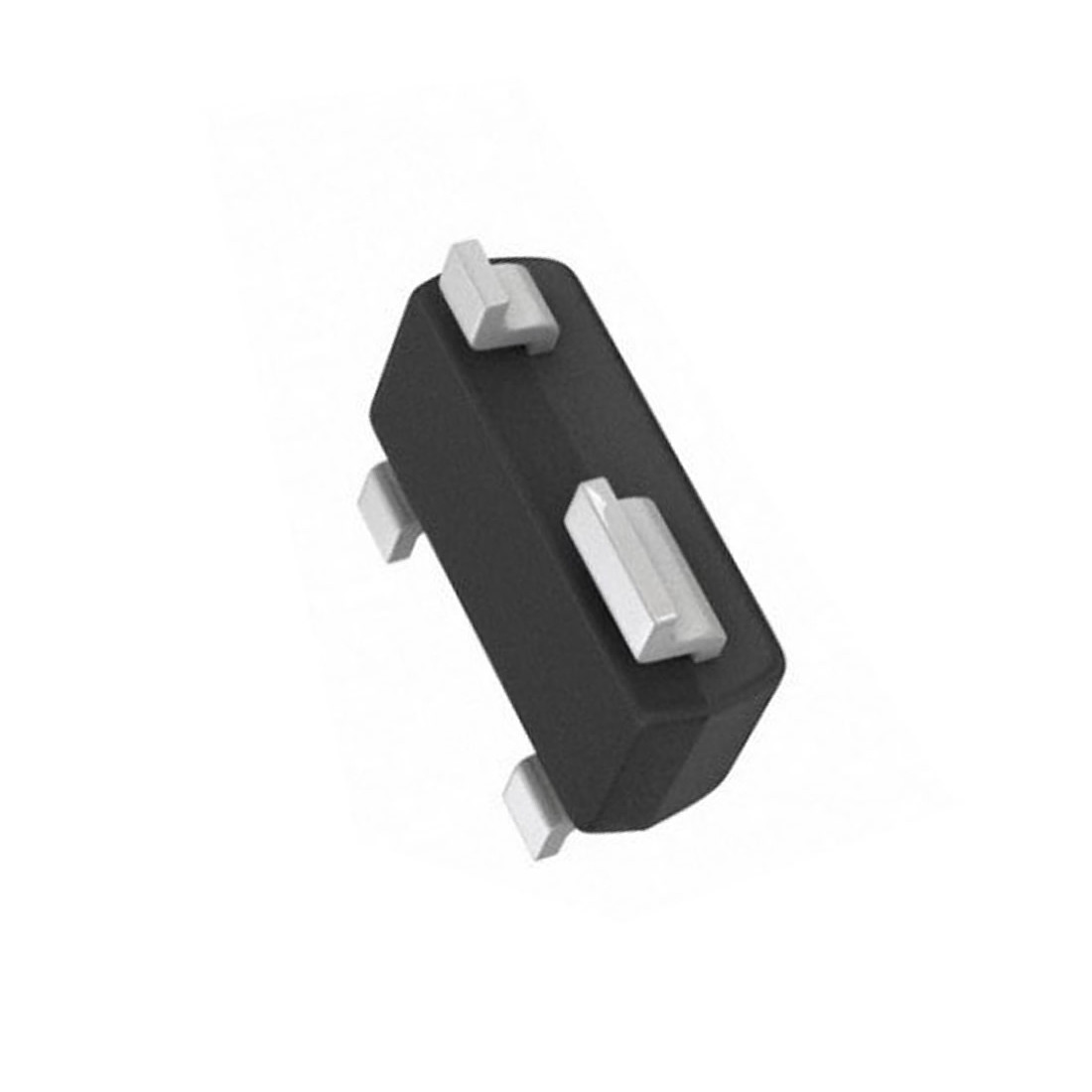

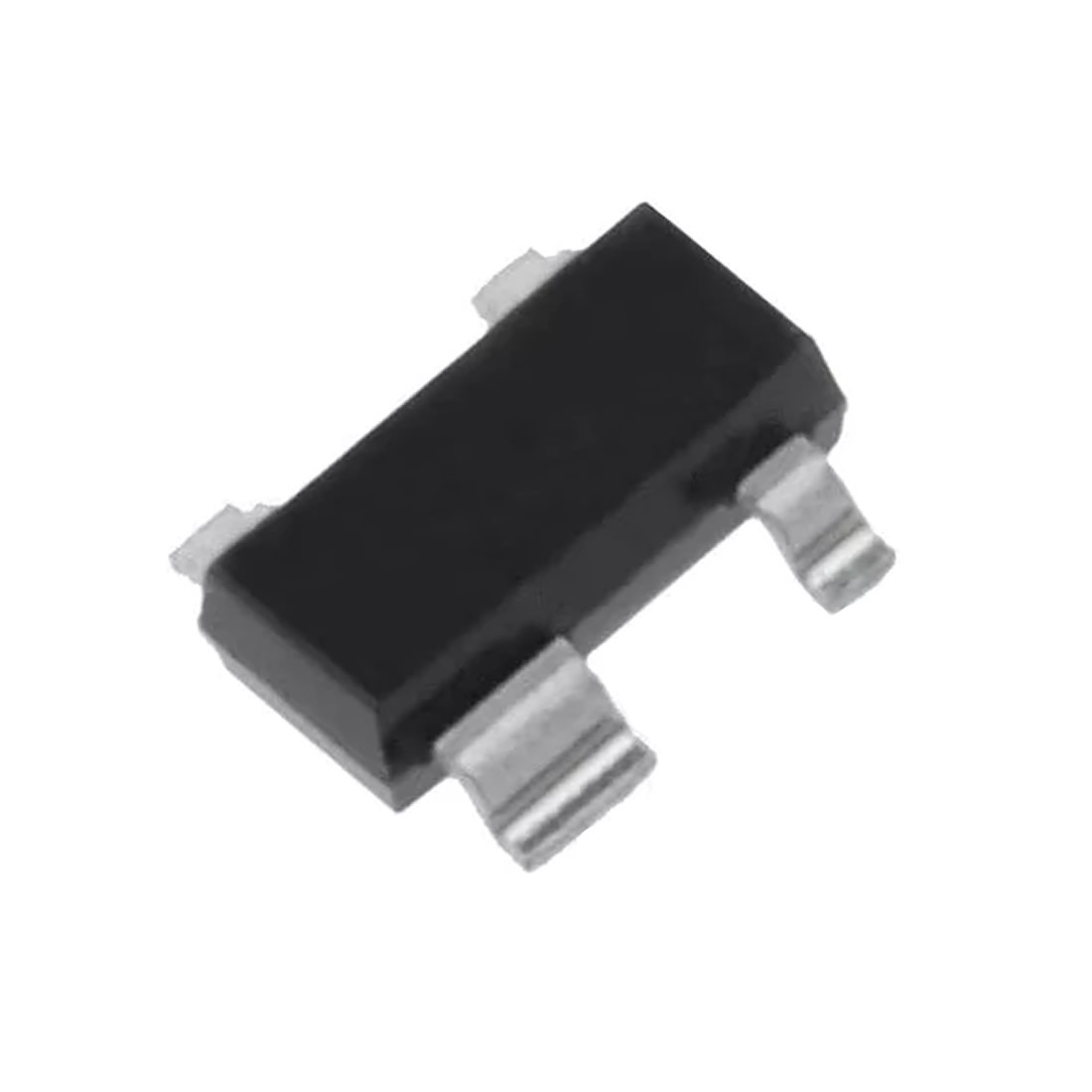

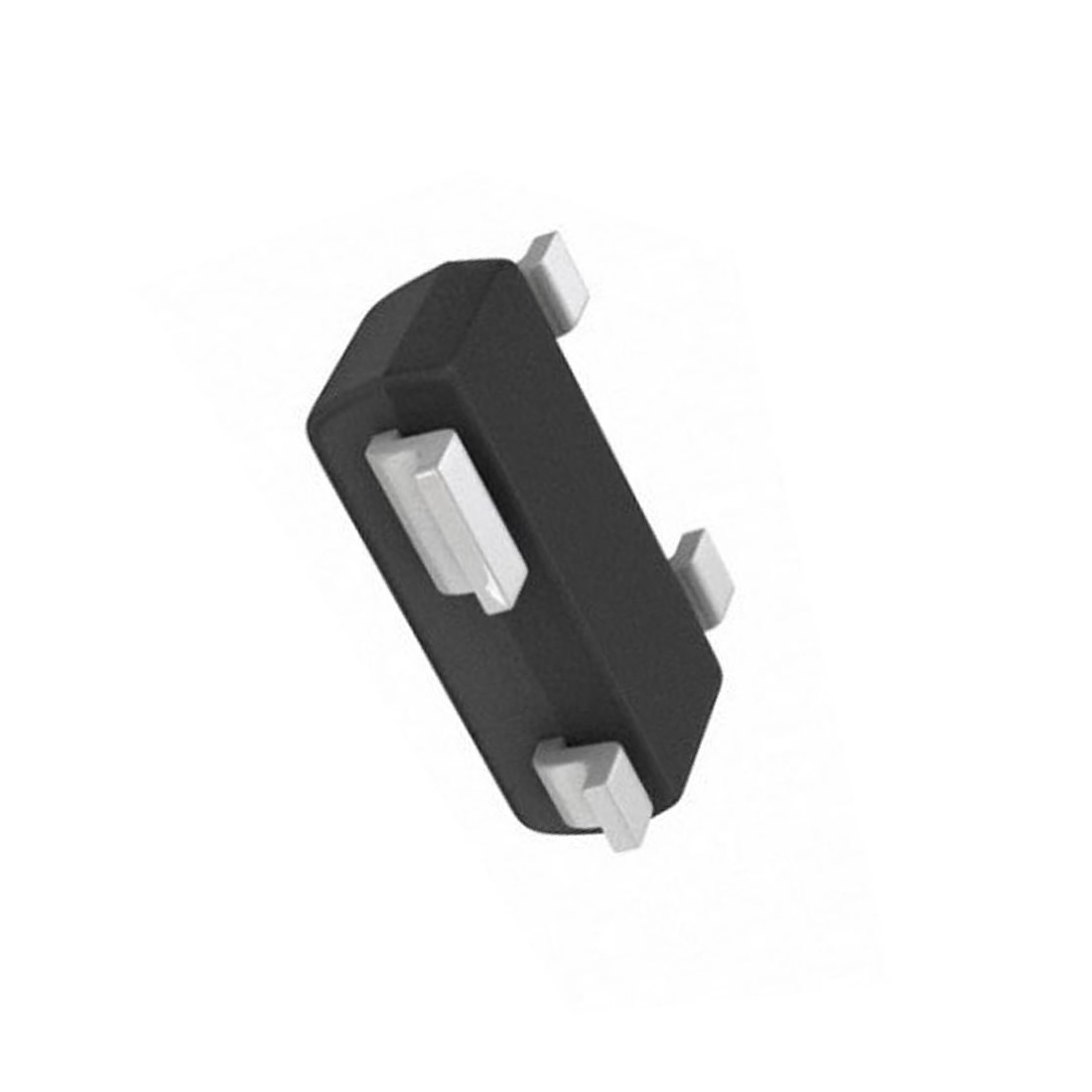

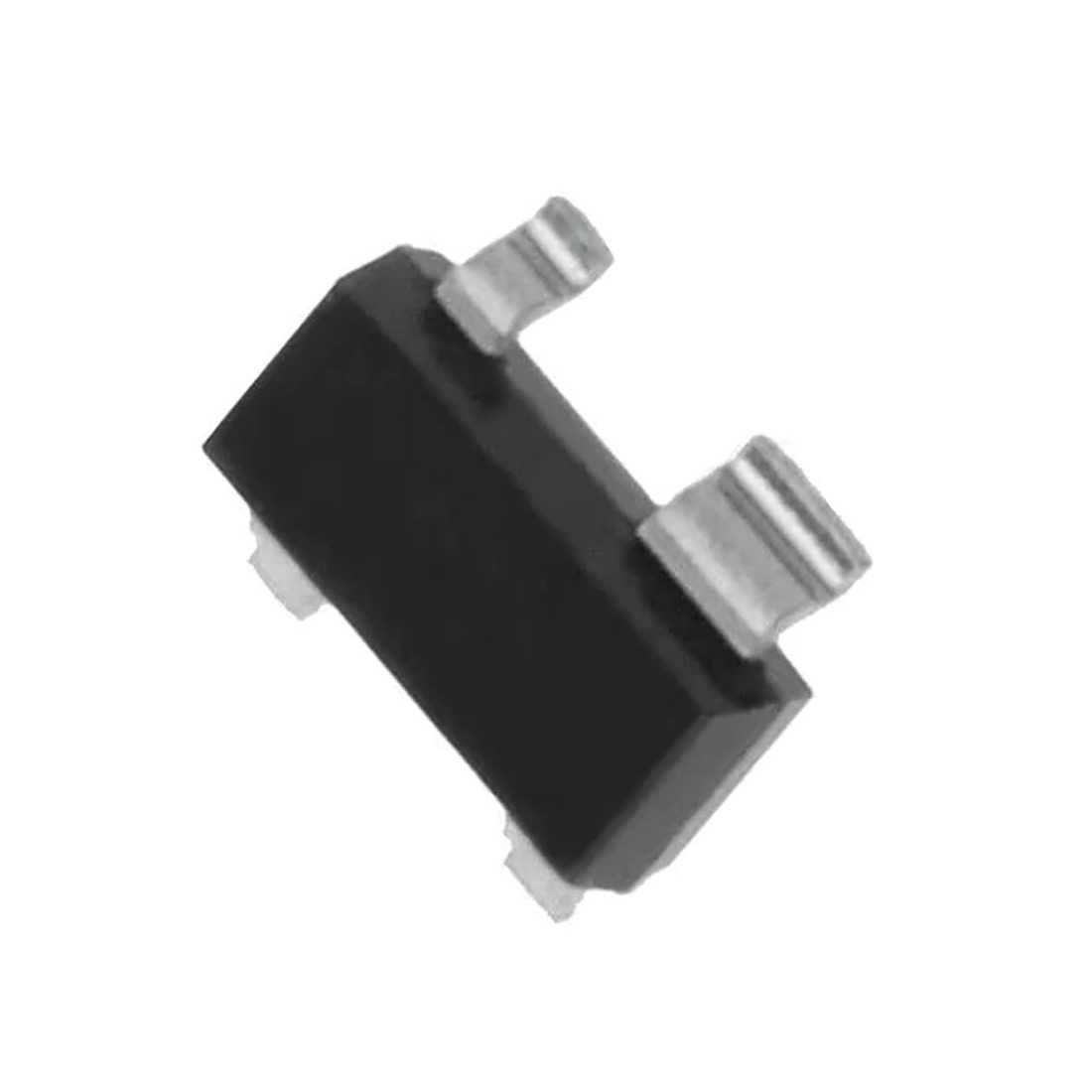

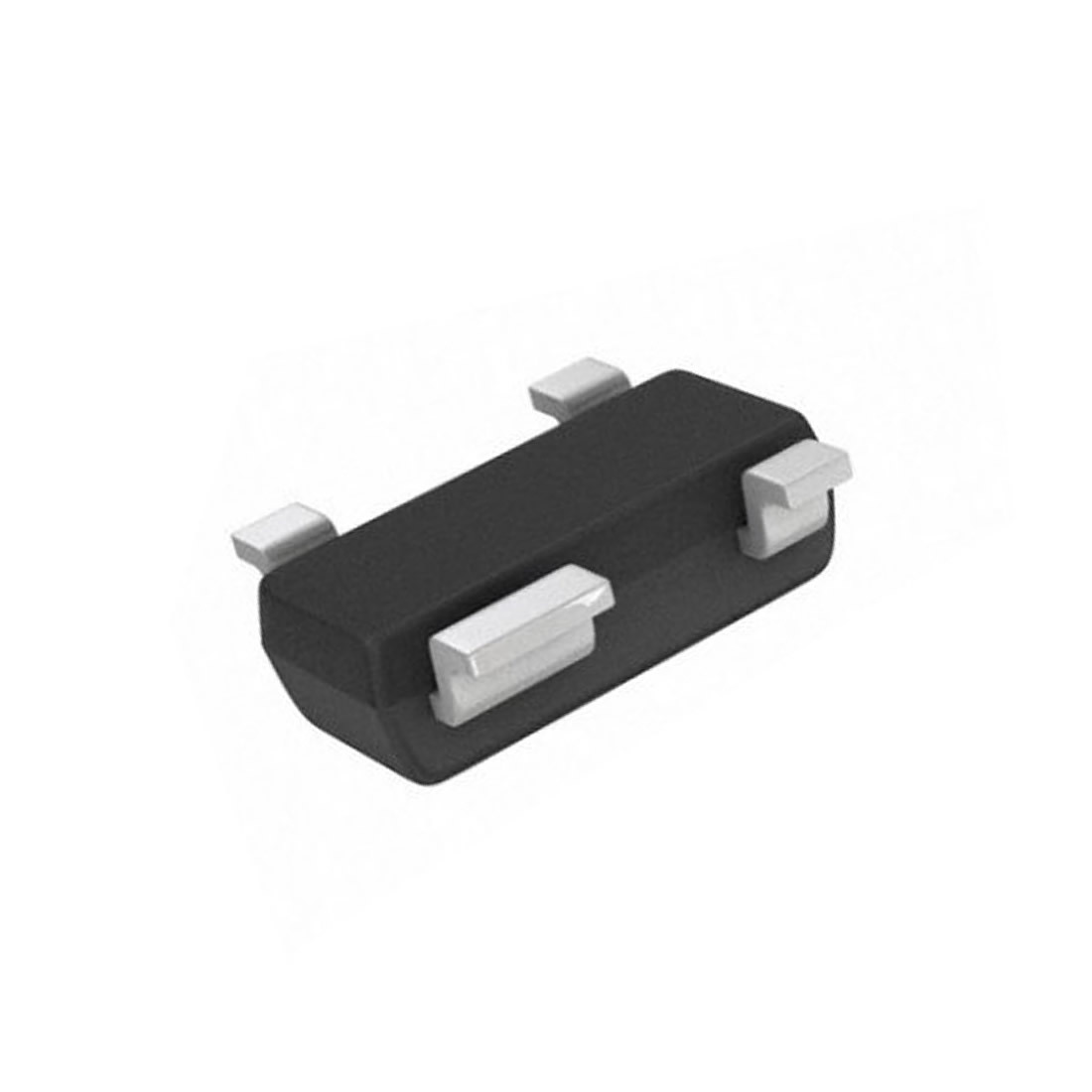

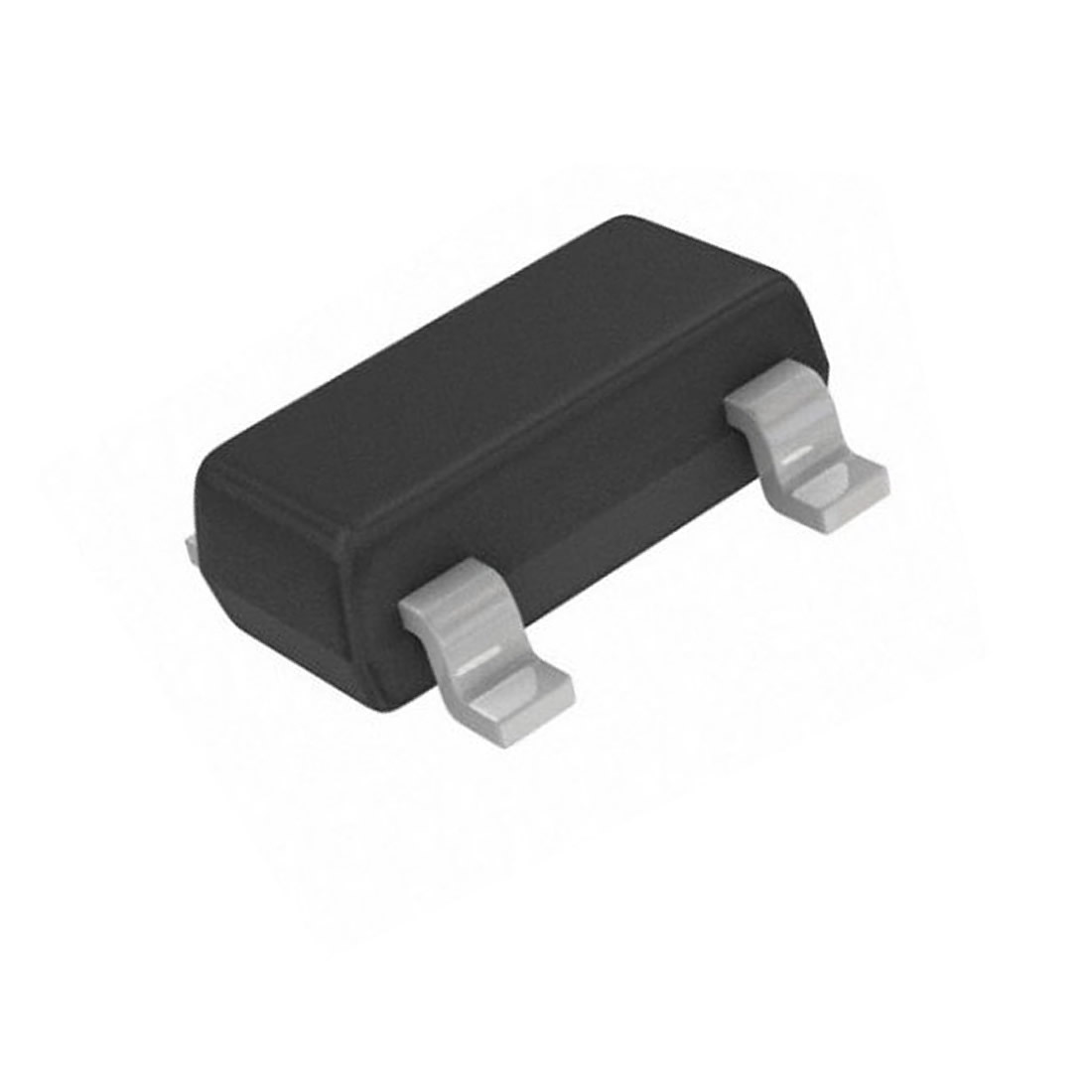

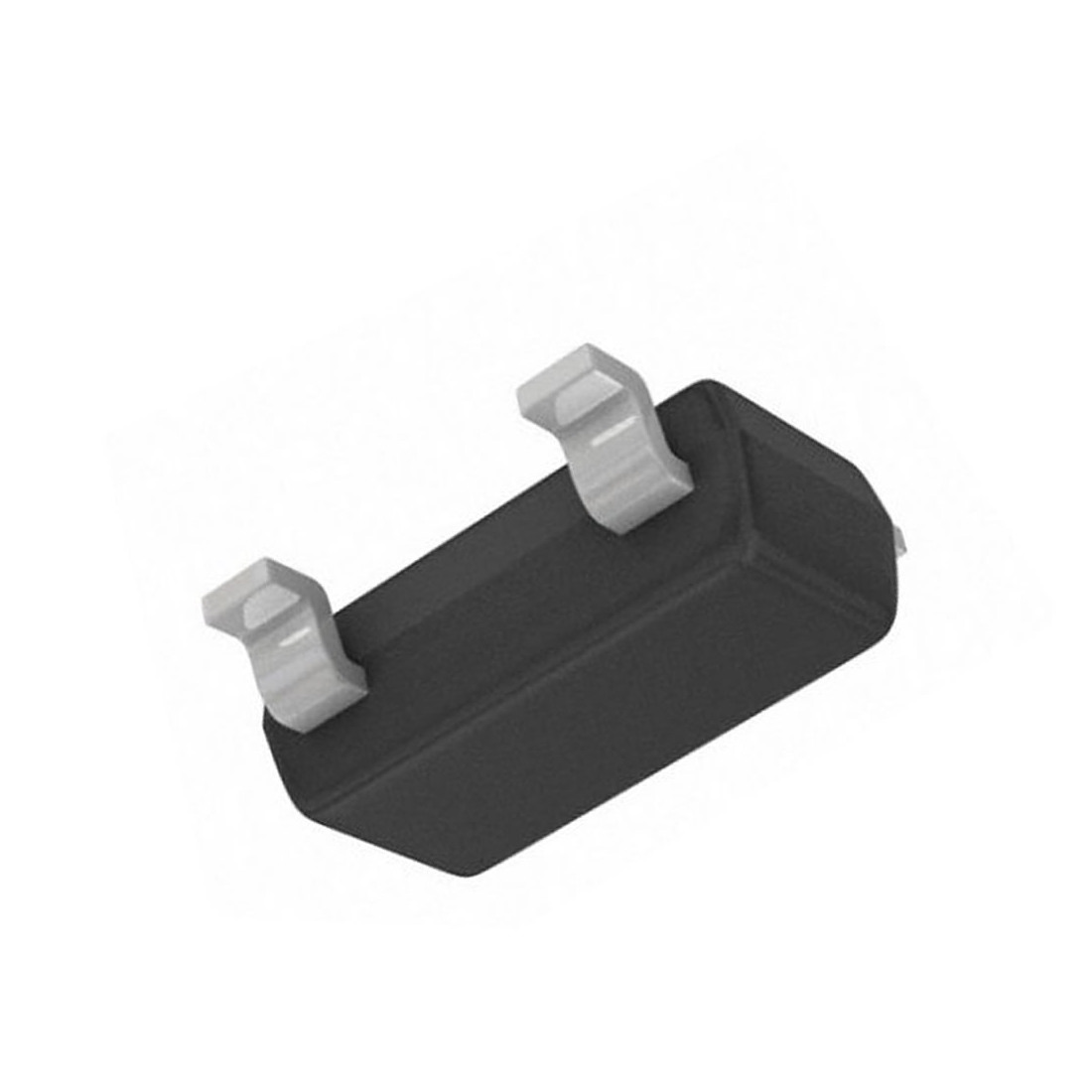

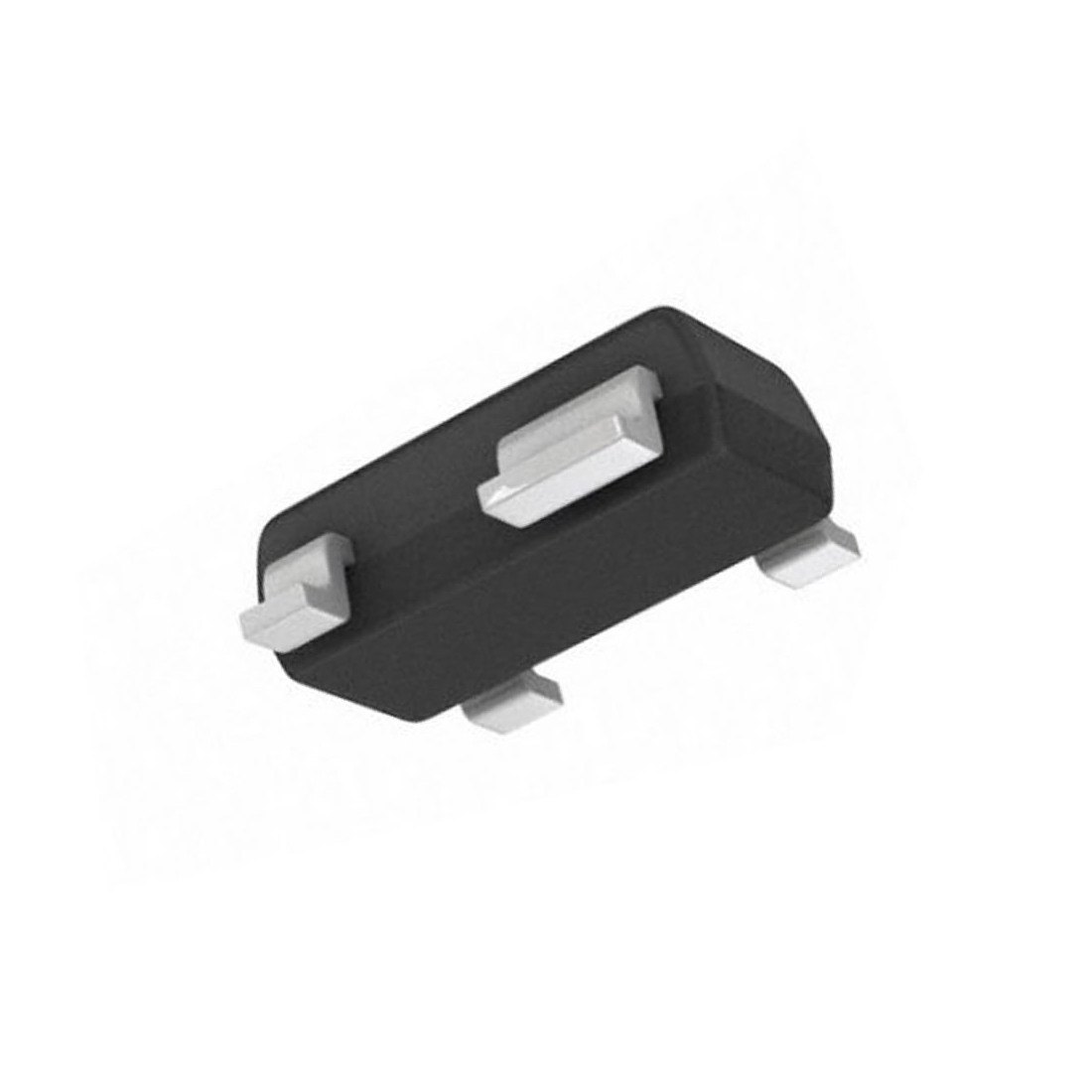

MA159A Diode CASE: SOT143R MAKE: Matsushita Electronics
Product specifications
Equivalent MA159
Type Diode

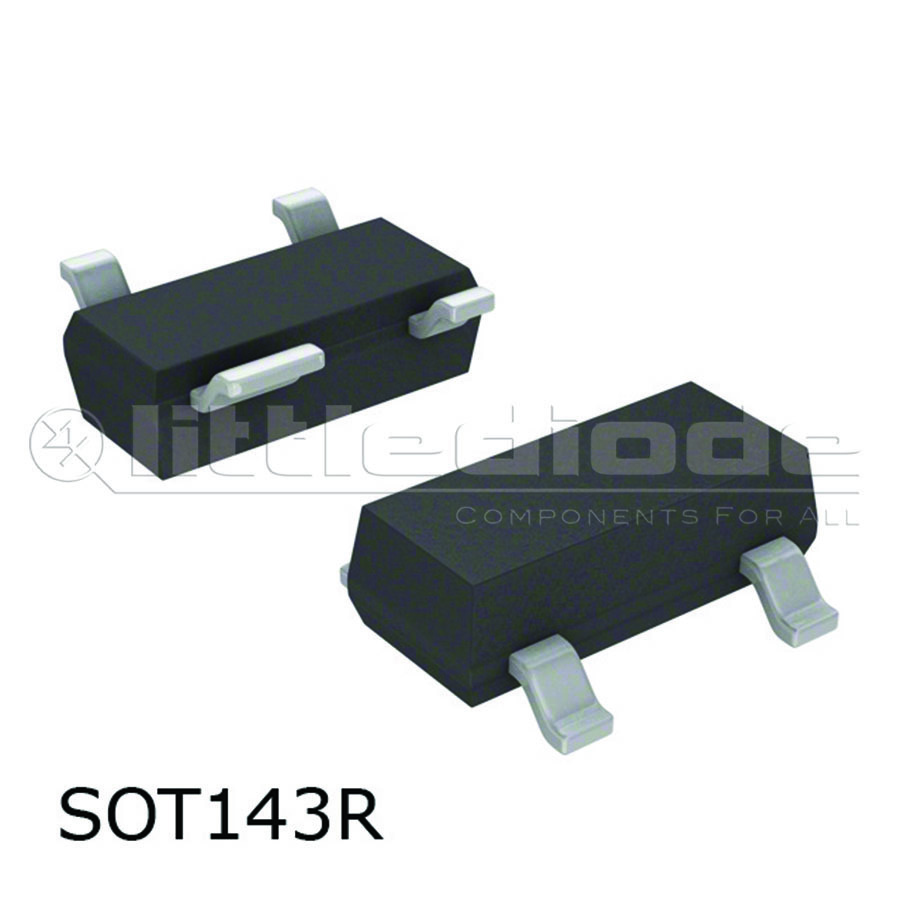

Case SOT143R
Manufacturer Matsushita Electronics
Ckts Per Dev. 2
Diodes Per Ckt 1
If Max. (A) 100m
@If (test) (A) 100m
Ir(stat) Max. (A) 100n
@Ir (test) (A) 1.0m
VRRM 80
t(rr) (S) 3.0n
t(rr) Max. (S) 3.0n
Vf Max. 1.2
Vf Max. 1.2
Ir @25°C 0.1u
VRRM 40
I(out) (If AVG) Max. 100m
@Volts (test) (V) 75
@If (test) 10m
@If (test) 100m
@If (test) 10m
@Vr (test) 35
@Ir (A) 1.0m
Pinout Equivalence Number N/A
Surface Mounted Yes/No YES
SKU 550006
