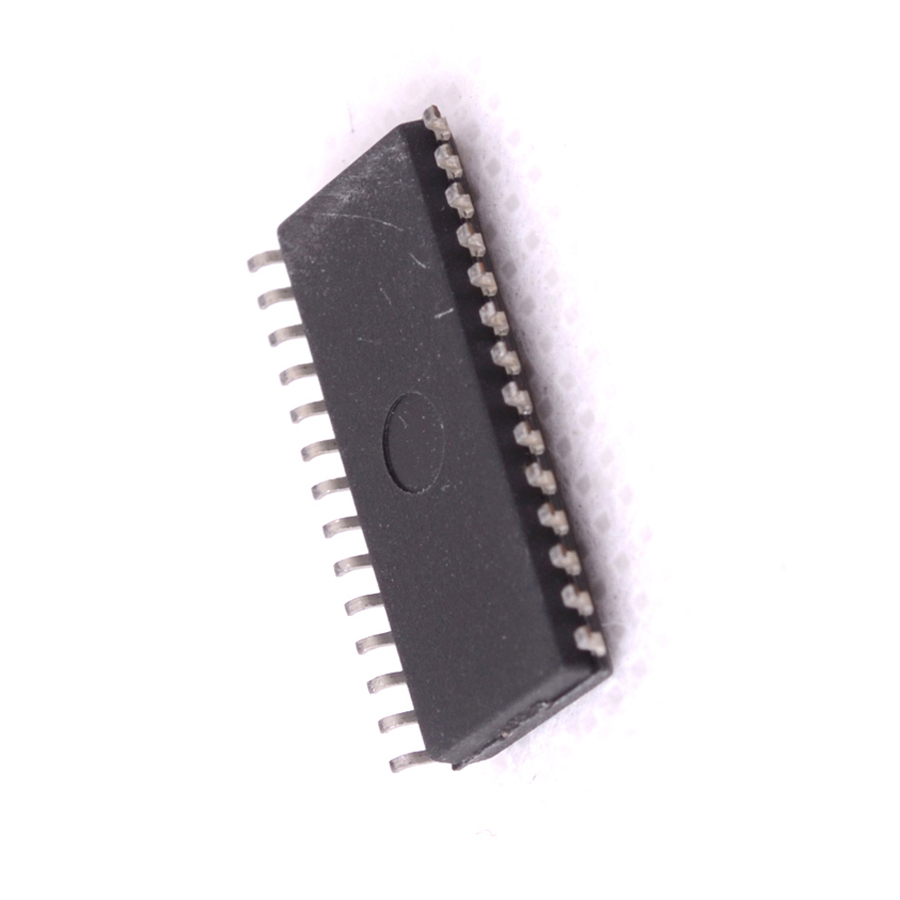

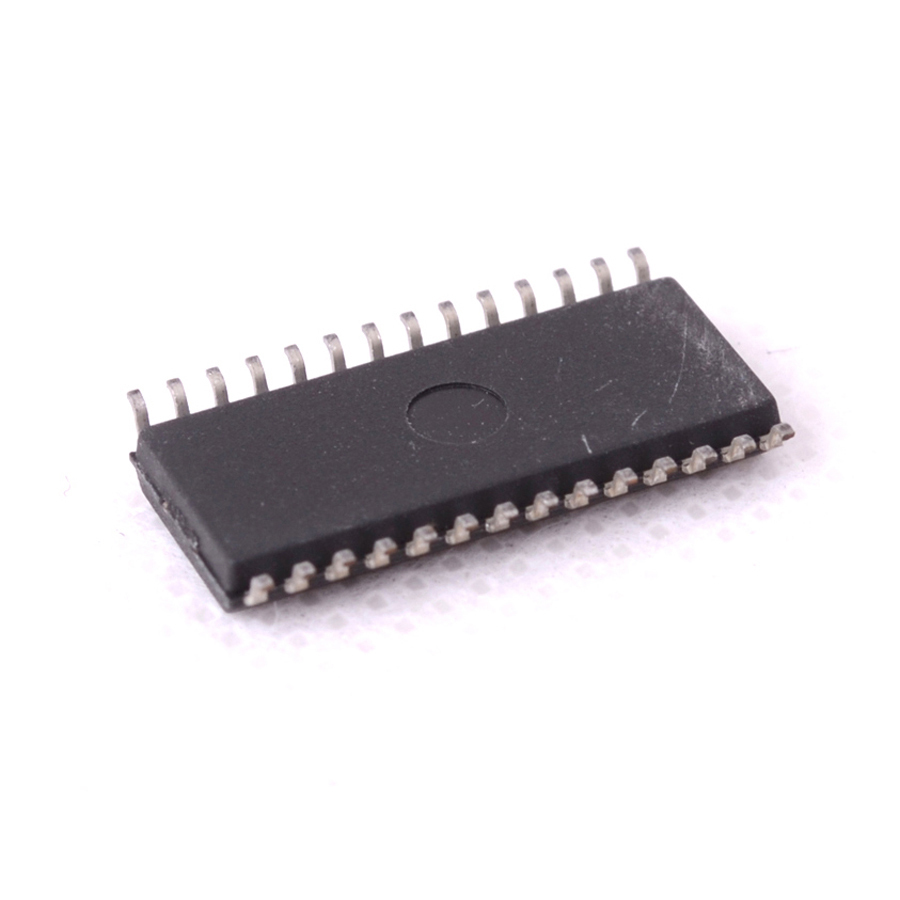

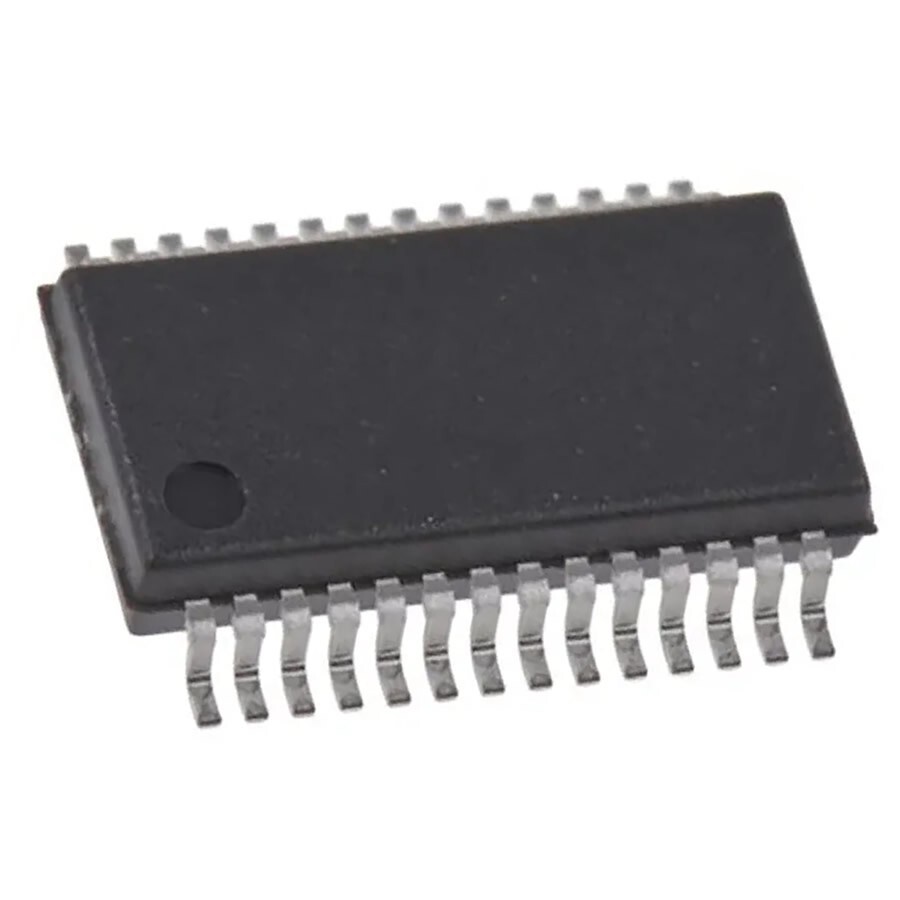

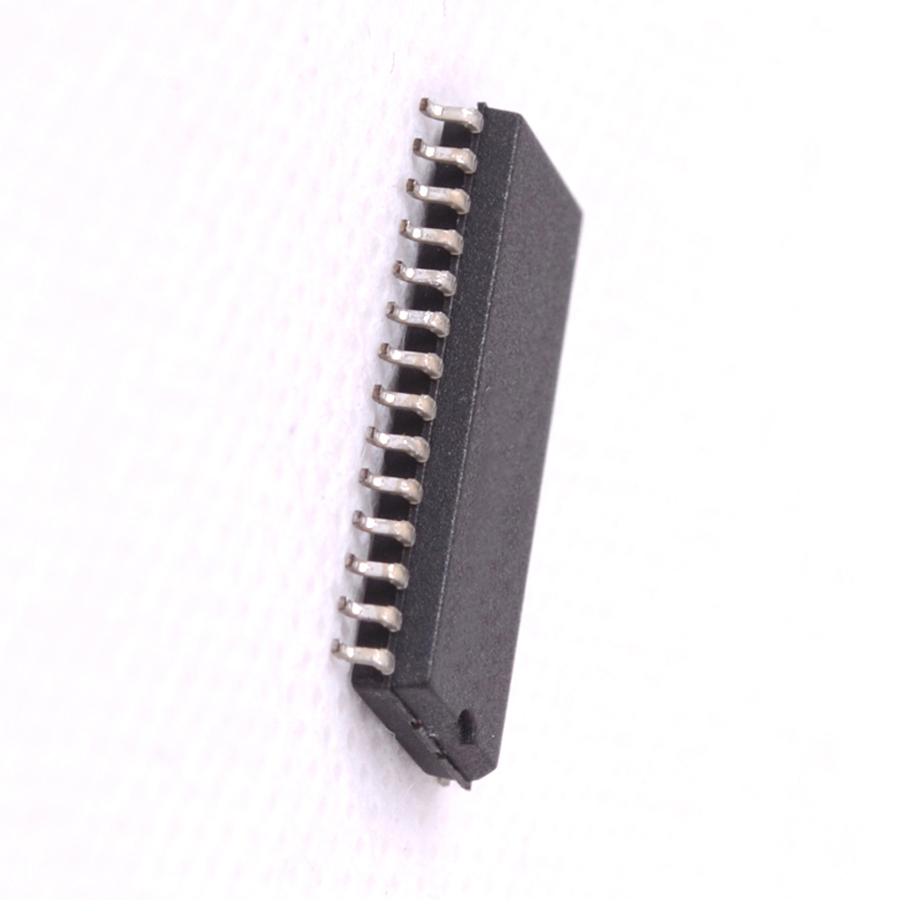

MAX158ACWI

MAX158ACWI

SKU: MAX158ACWI

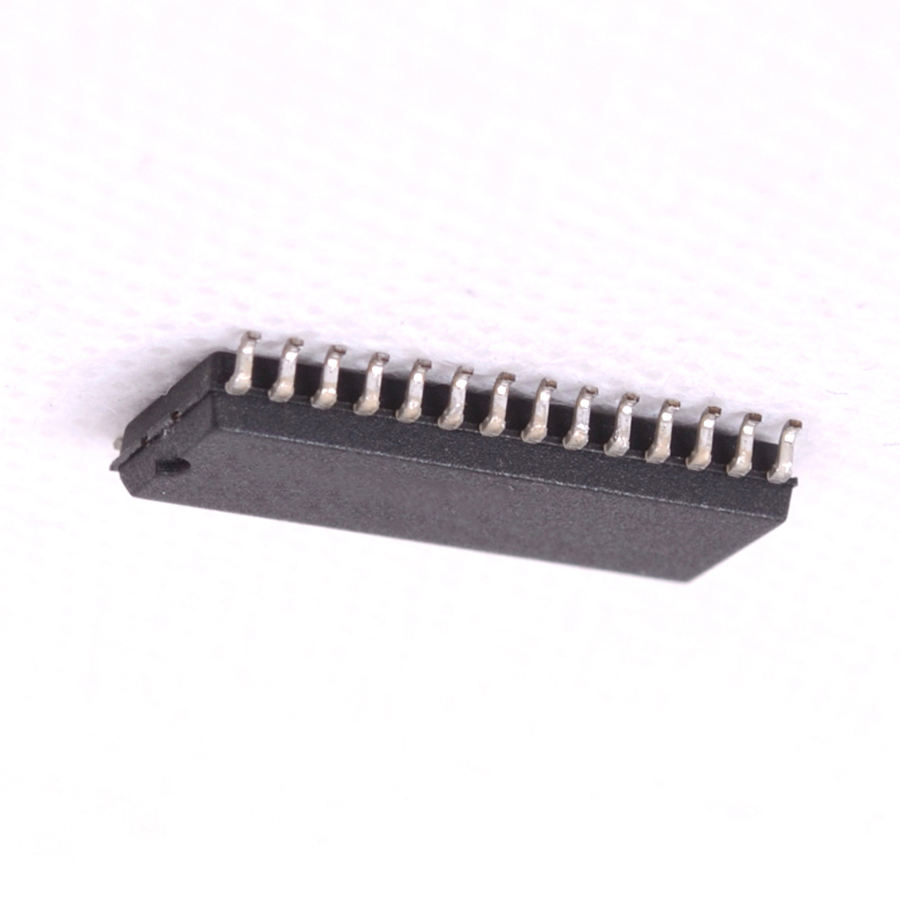

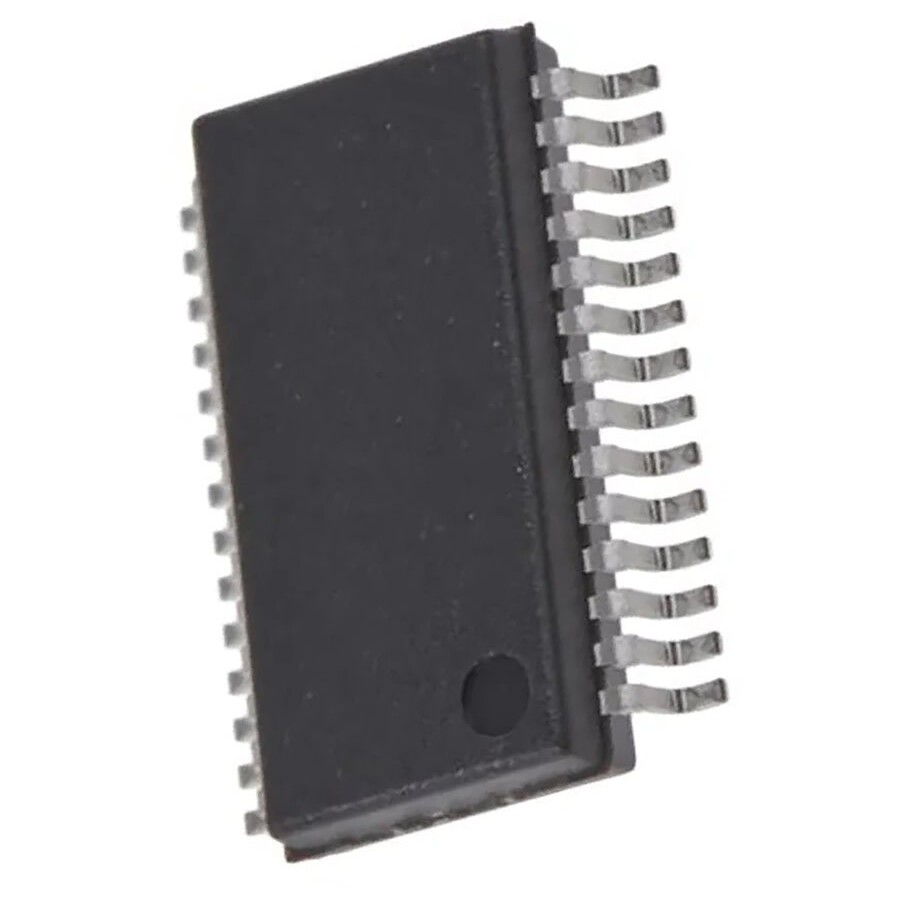

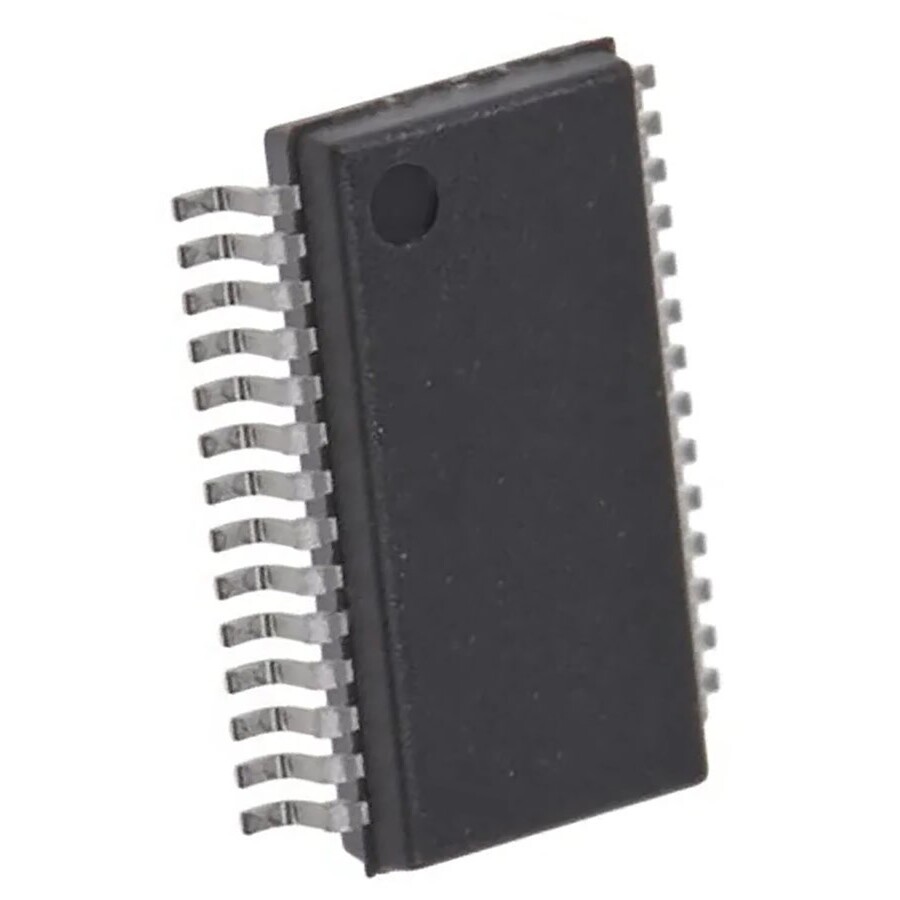

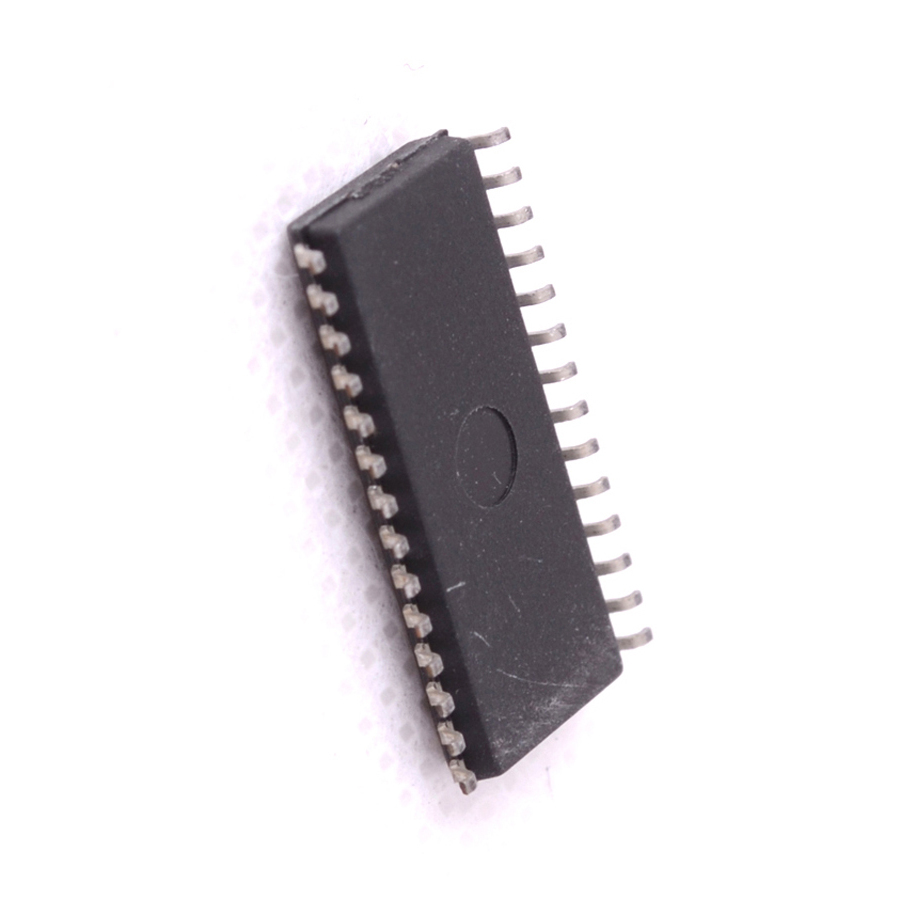

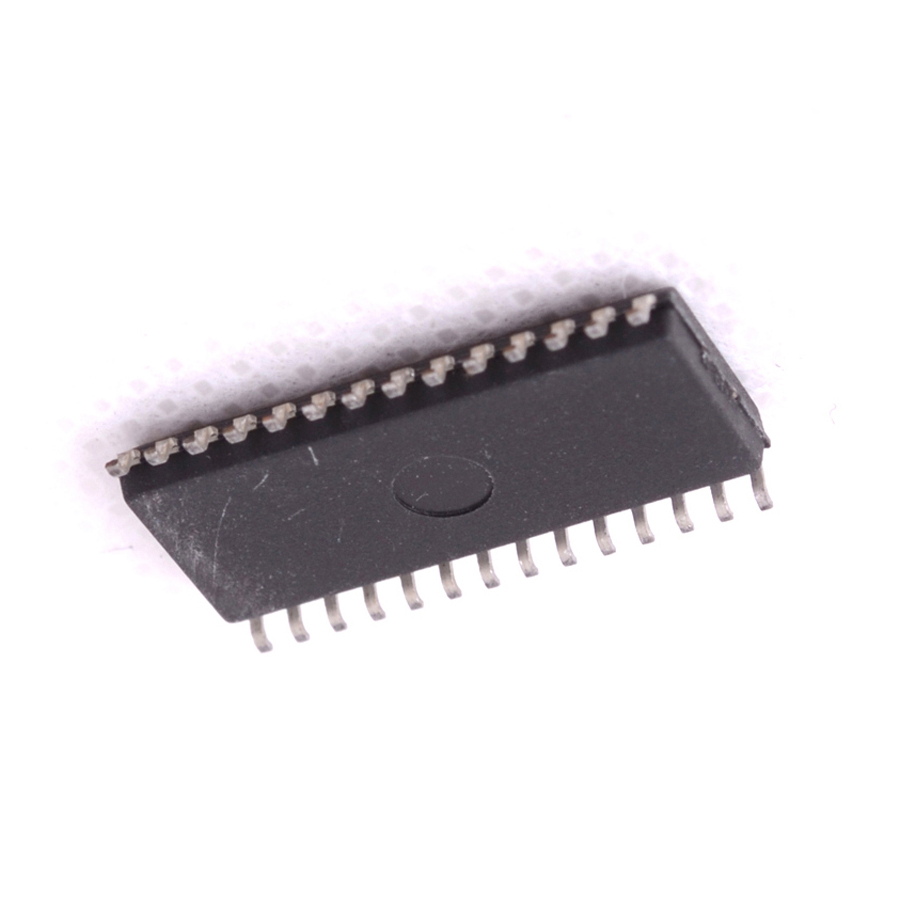

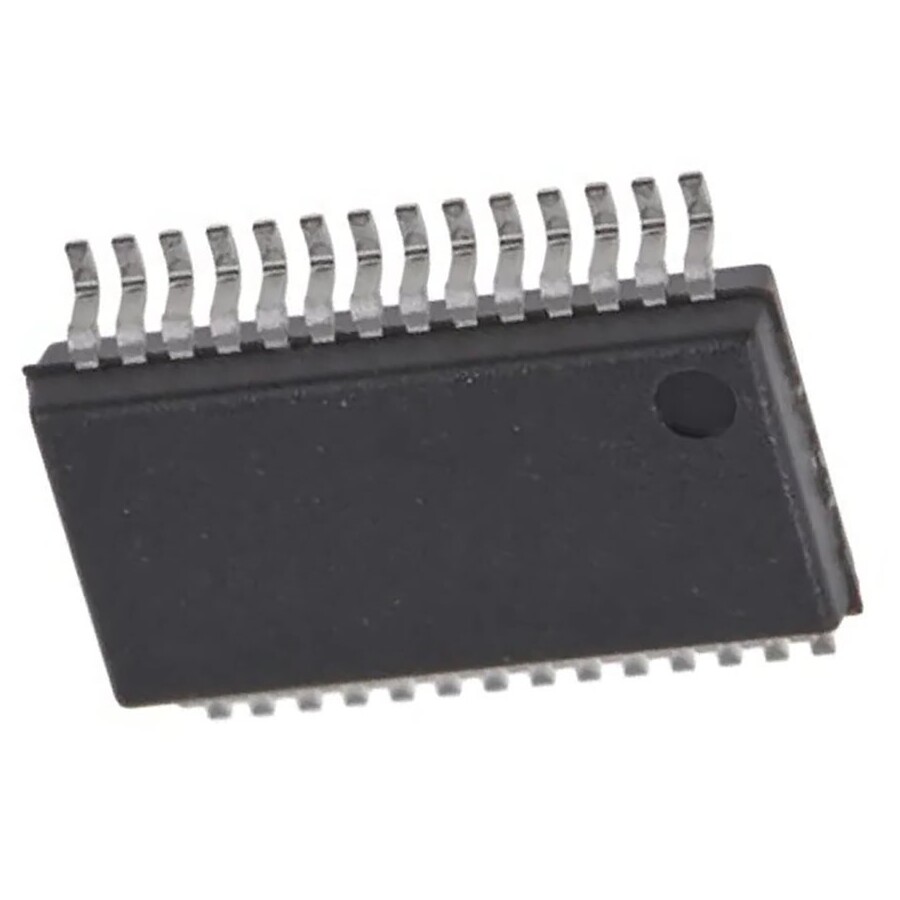

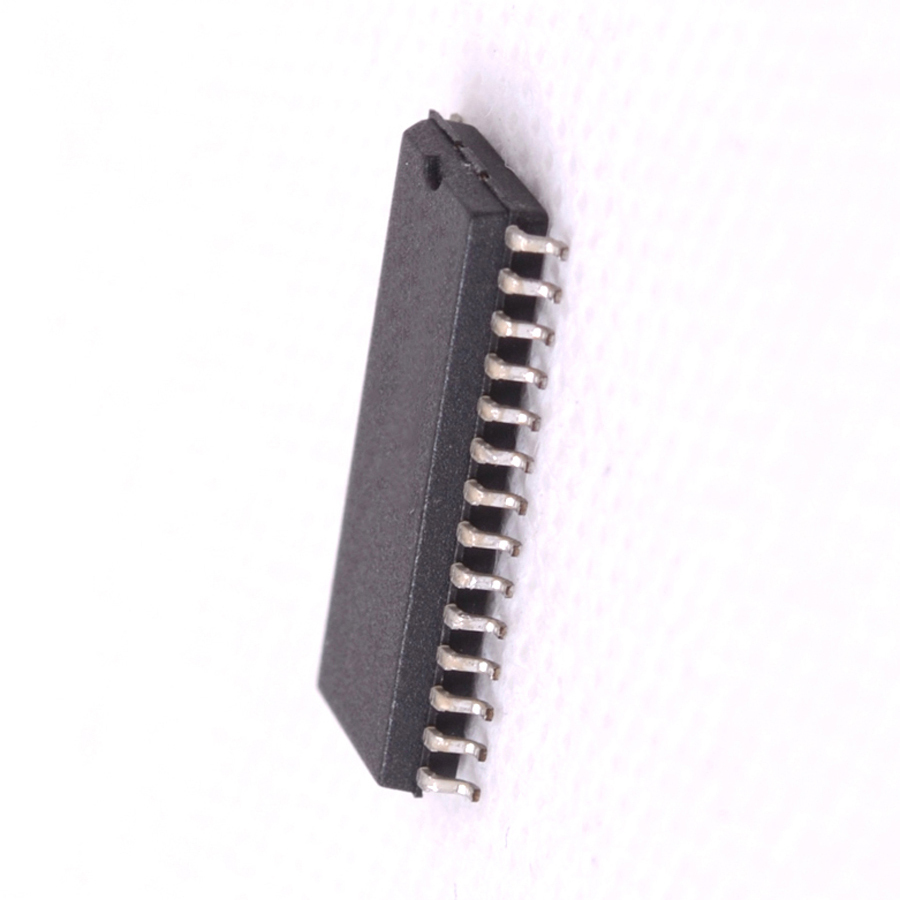

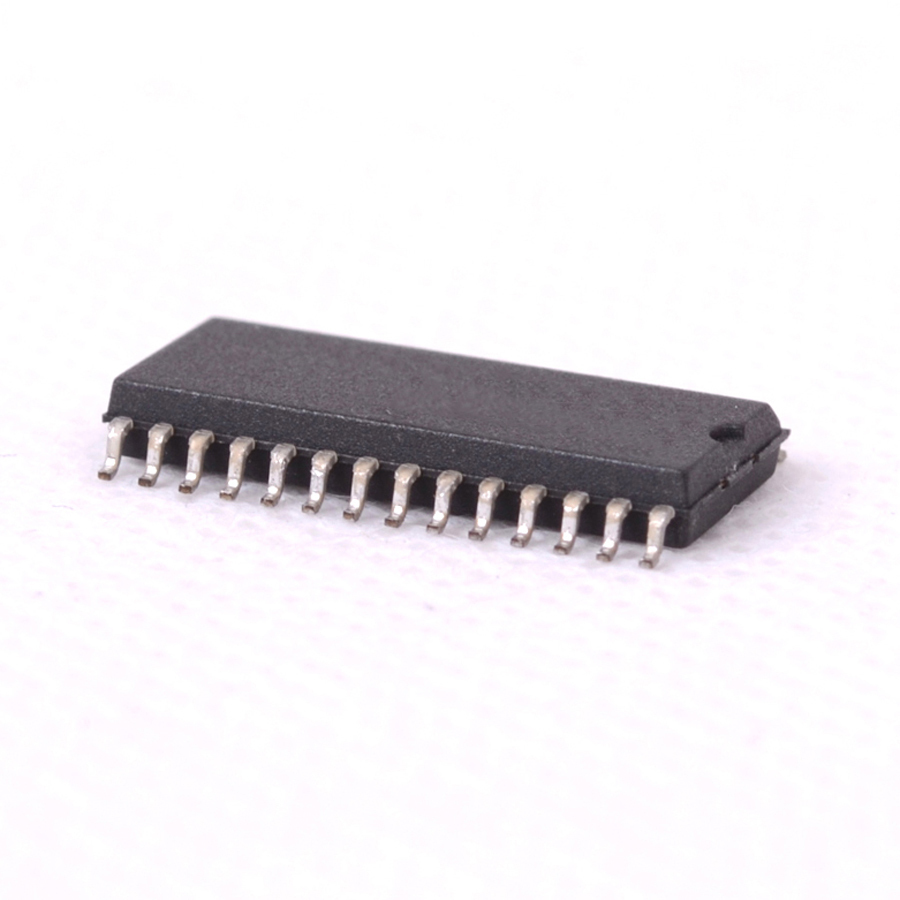

MAX158ACWI Integrated Circuit CASE: SOP28 MAKE: Maxim Integrated
Product specifications
Type Integrated Circuit
Case SOP28
Manufacturer Maxim Integrated
t(conv) (S) 2.4u
FSR Error (LSB/%) .50
Vin Range (Vp-p) 5.0
Outp Arith. Code A
VOH Min. 4.0
VOL Max. 0.4
PD Max. (W) 450m
Nom. Neg Supp 0.0
Nom. Pos. Supp 5.0
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Volt or Cur. Mode Voltage
Logic Level Family TTL
Pinout Equivalence Number 28-82
No. of Pins 28
Surface Mounted Yes/No YES
SKU 240919
