Home / Integrated Circuit / MAX9686CSA

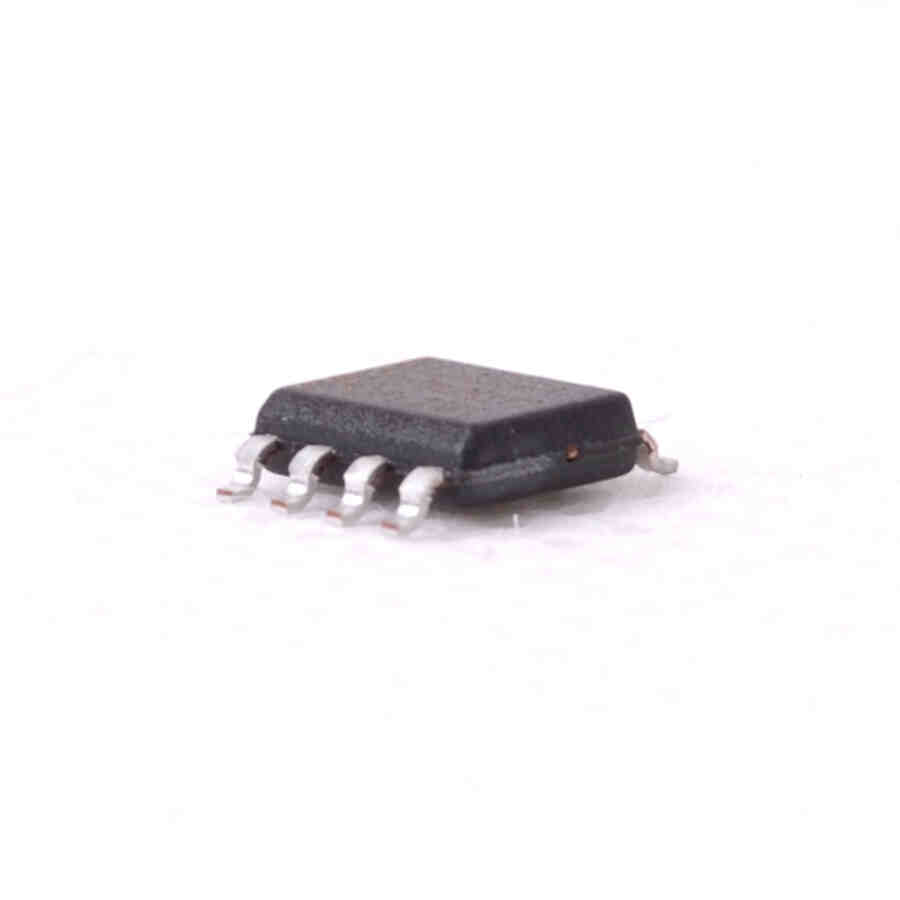

MAX9686CSA

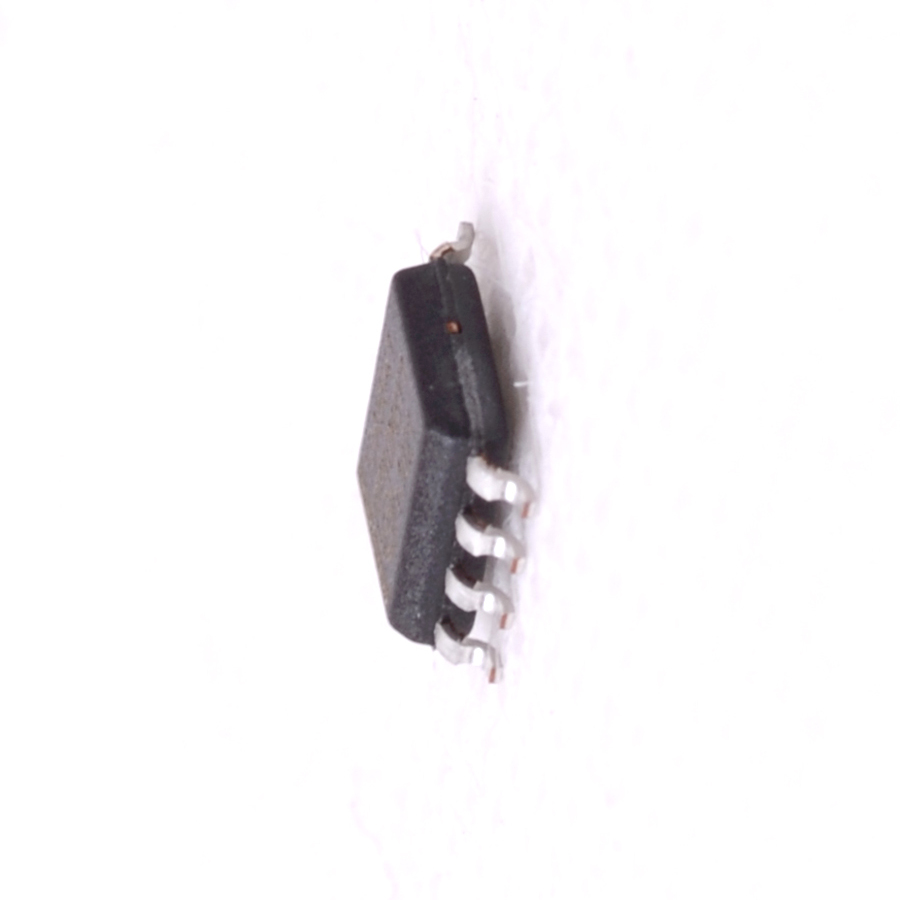

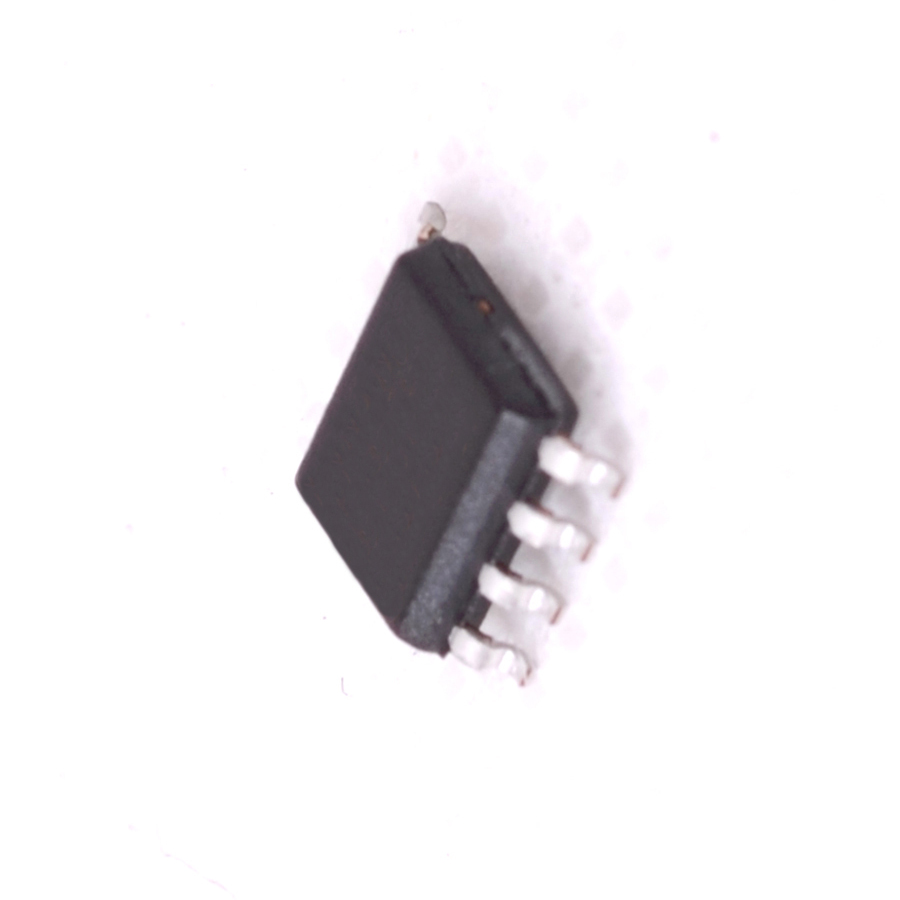

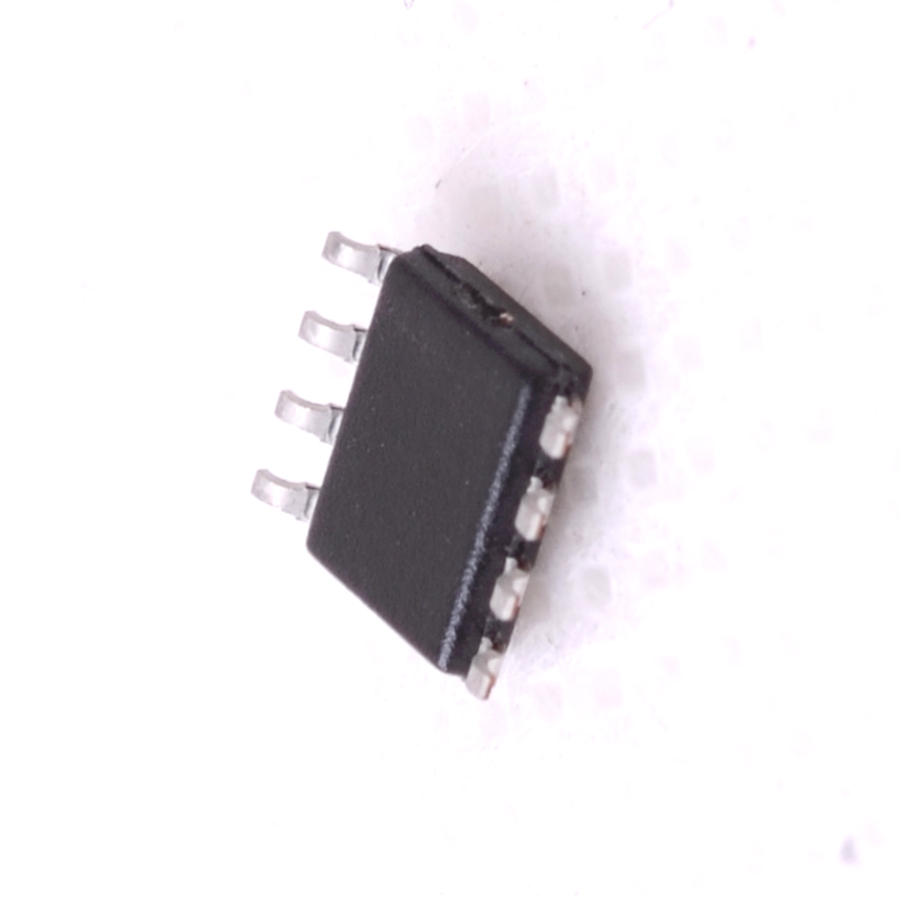

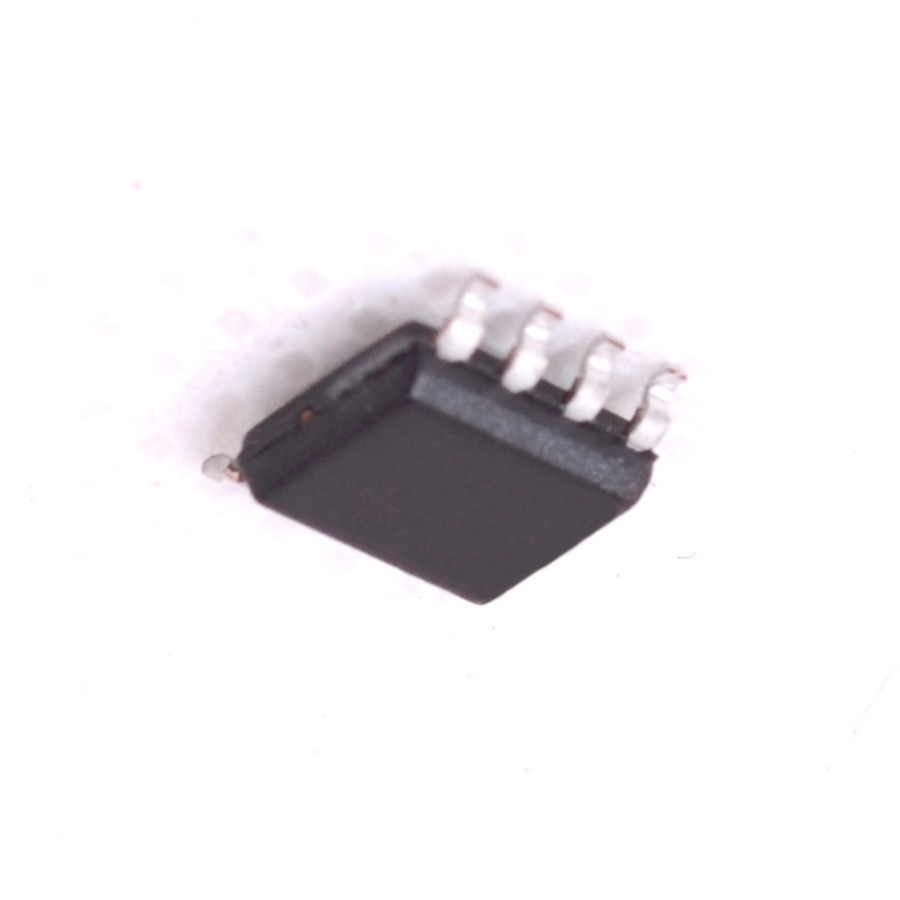

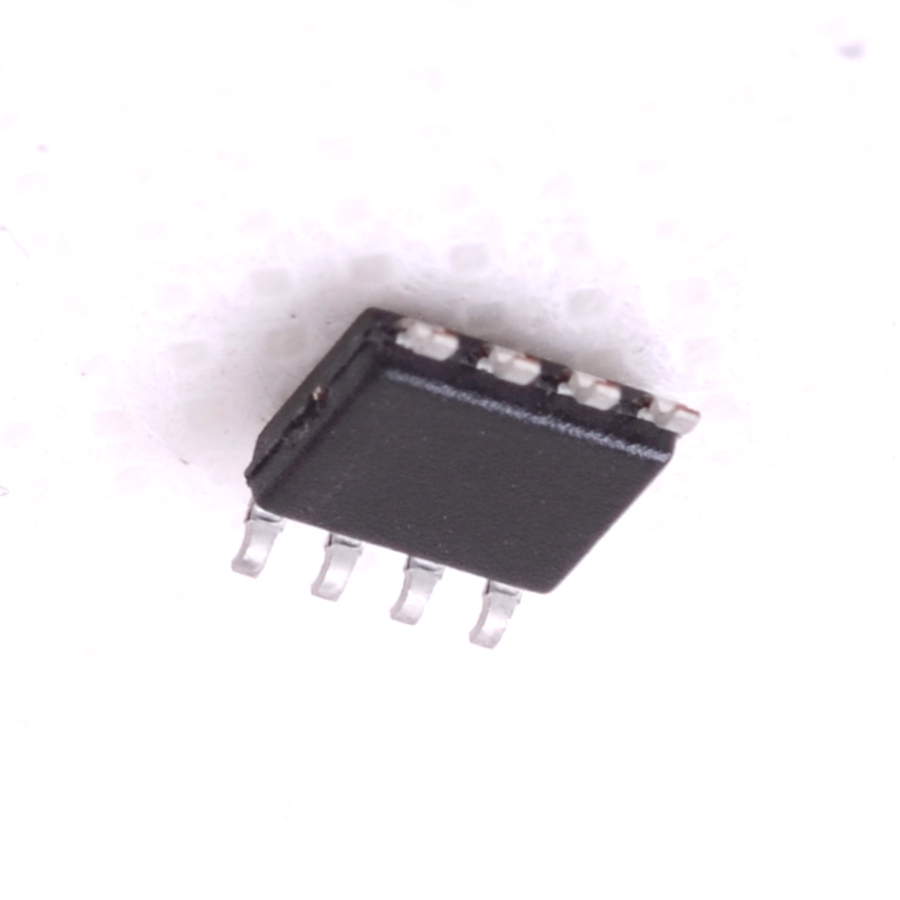

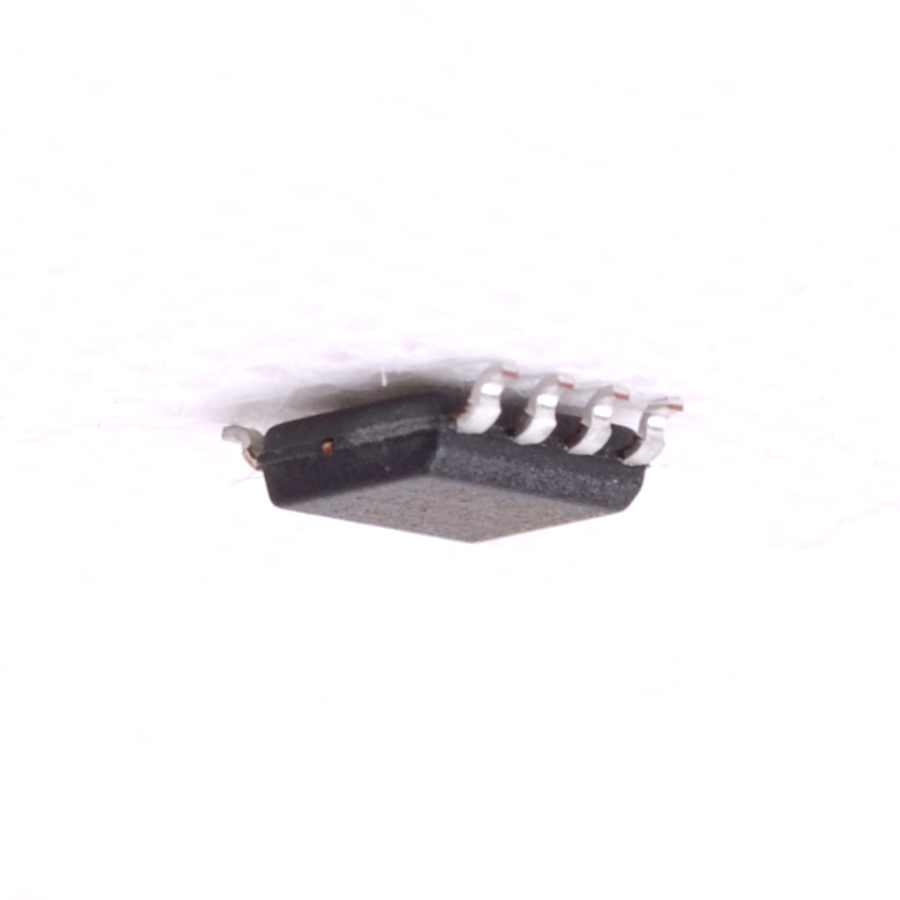

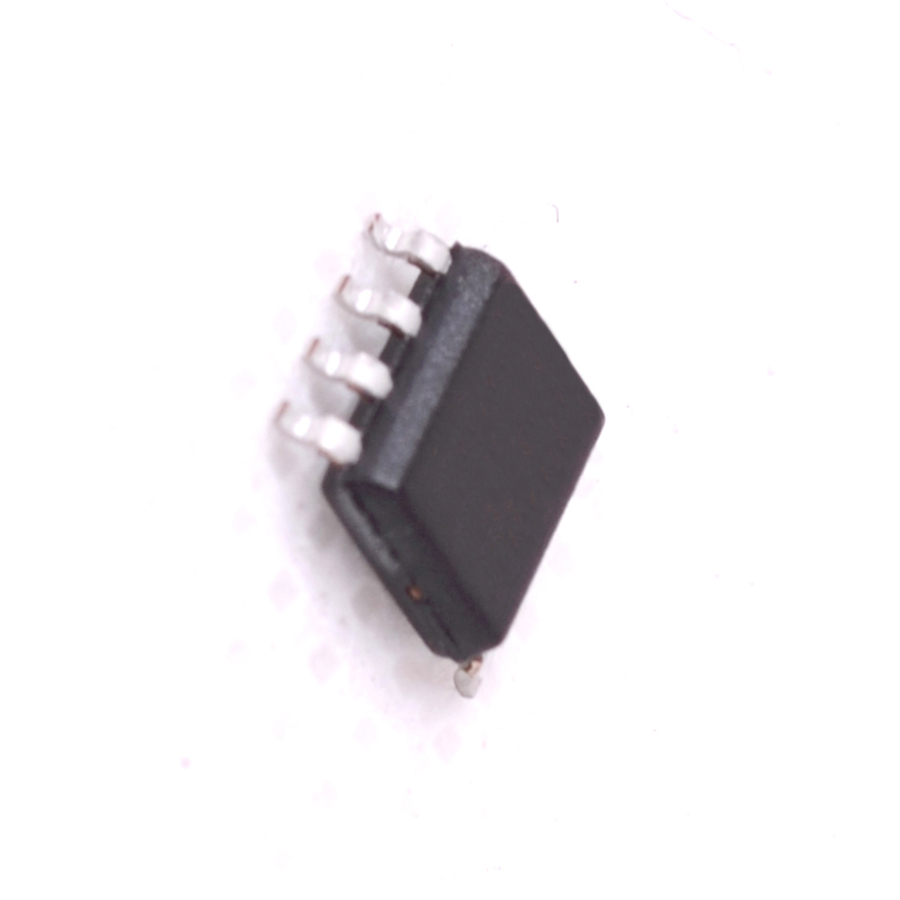

View detailed images (13)

MAX9686CSA

SKU: MAX9686CSA

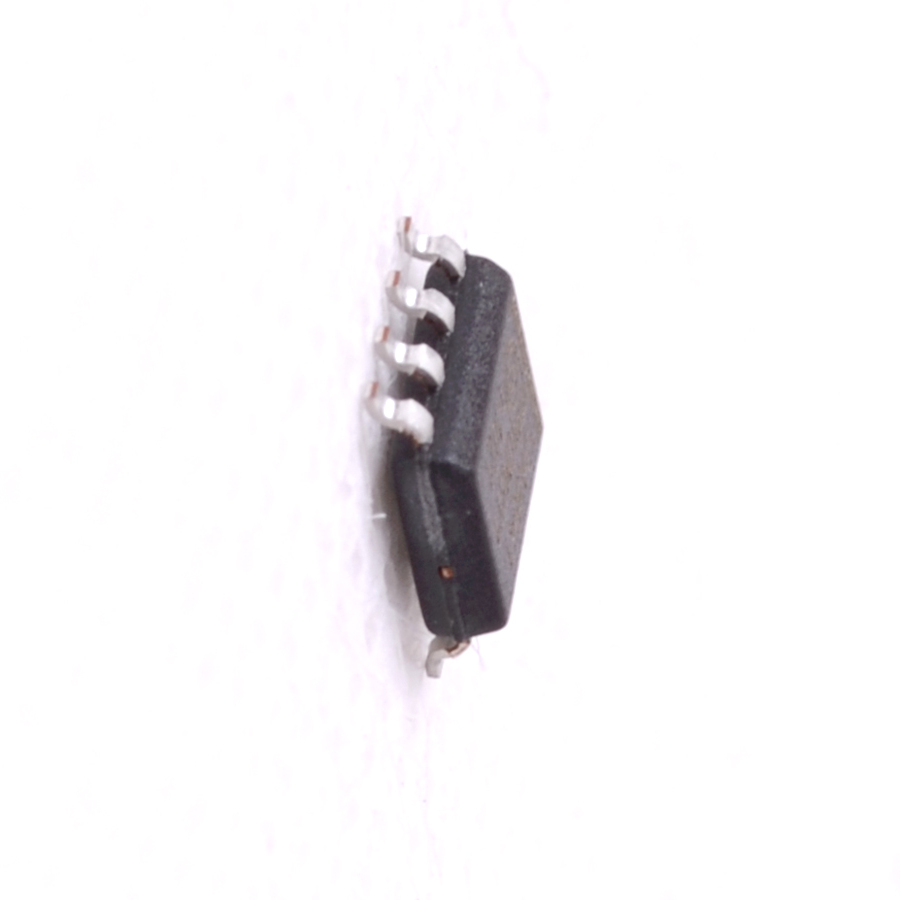

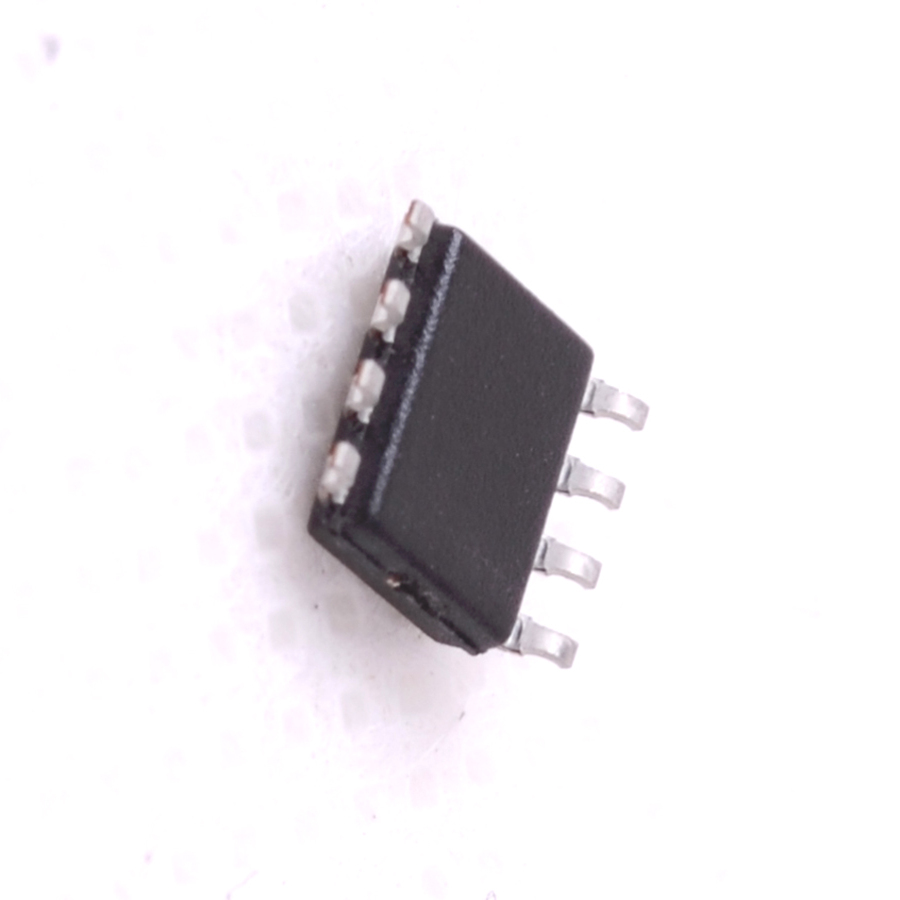

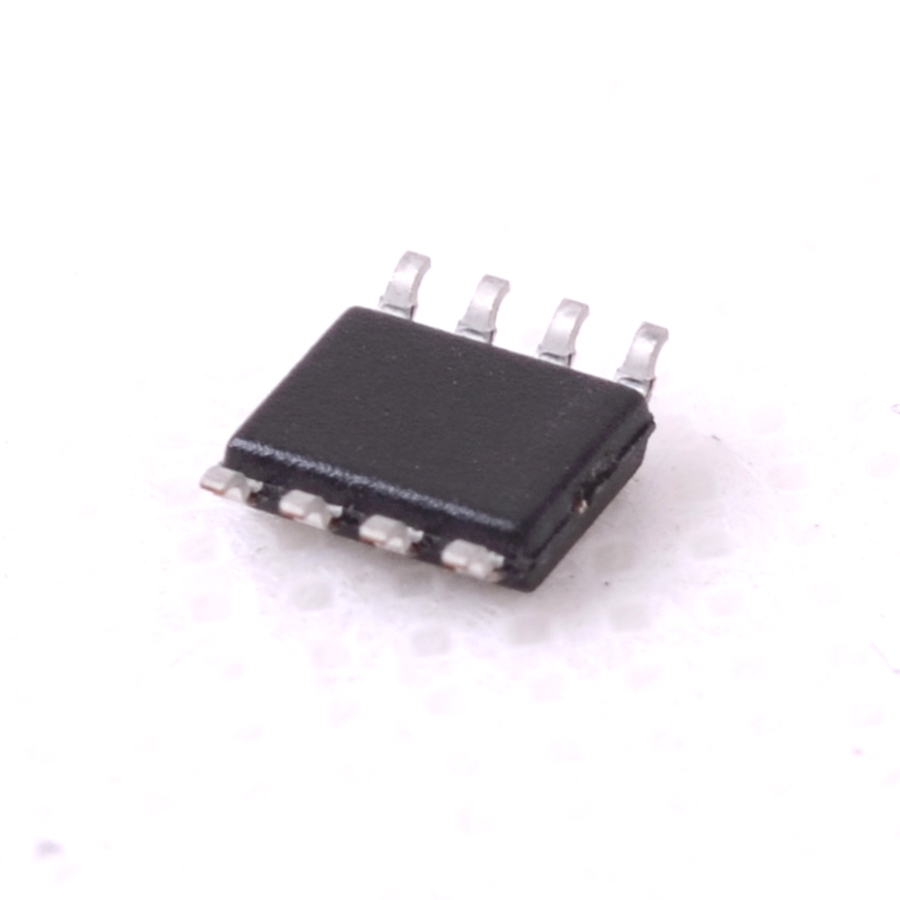

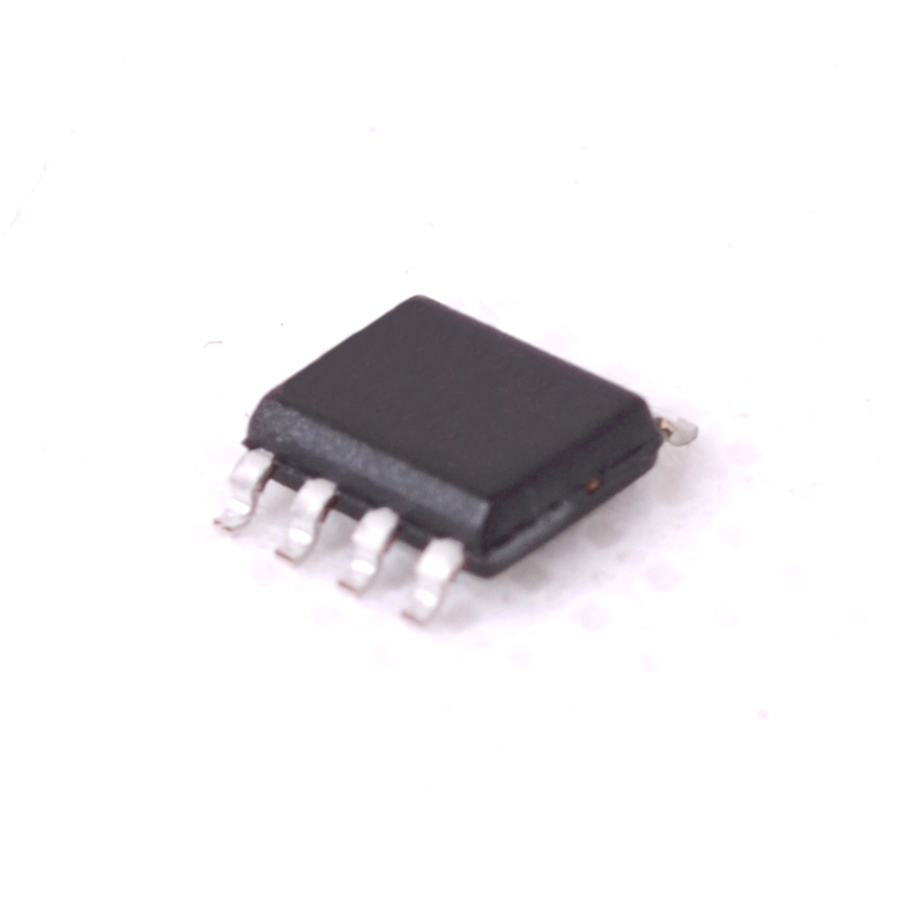

MAX9686CSA Integrated Circuit CASE: SOP8 MAKE: Maxim Integrated
Product specifications
Type Integrated Circuit
Case SOP8
Manufacturer Maxim Integrated
I(io) Max. (A) 5.0u
V(io) Max. (V) 3.0m
PD Max. (W) 336m
Nom. Supp (V) 5.0
Inp Bias Curr. Max. (A) 25u
Com Mode Inp Range (VICR) 3.0
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
t(resp) (S) 9.0n
Strobe Inp (Y/N) No
Pinout Equivalence Number 8-721
No. of Pins 8
Surface Mounted Yes/No YES
SKU 1102300
