Home / Integrated Circuit / MB88505HPF
MB88505HPF

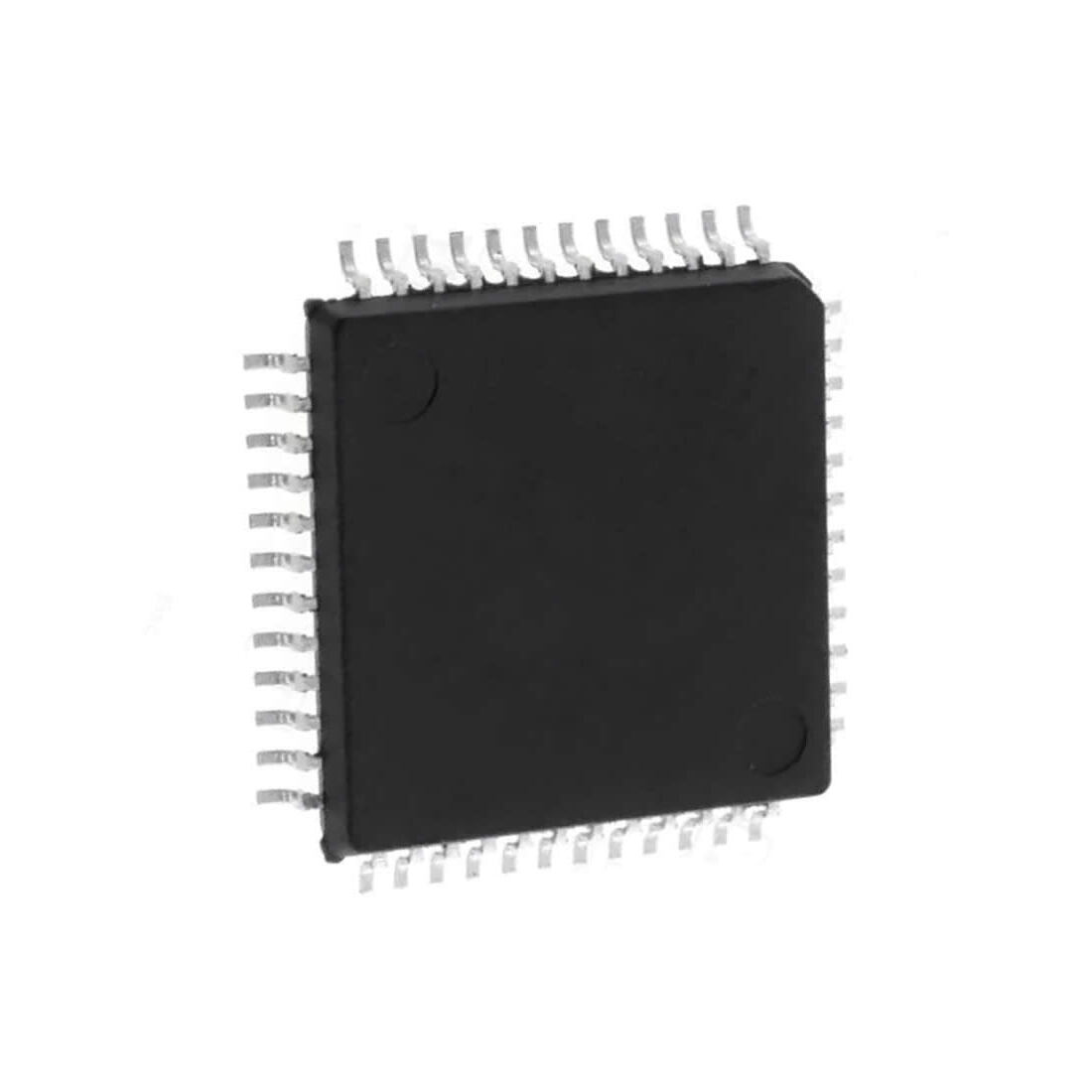

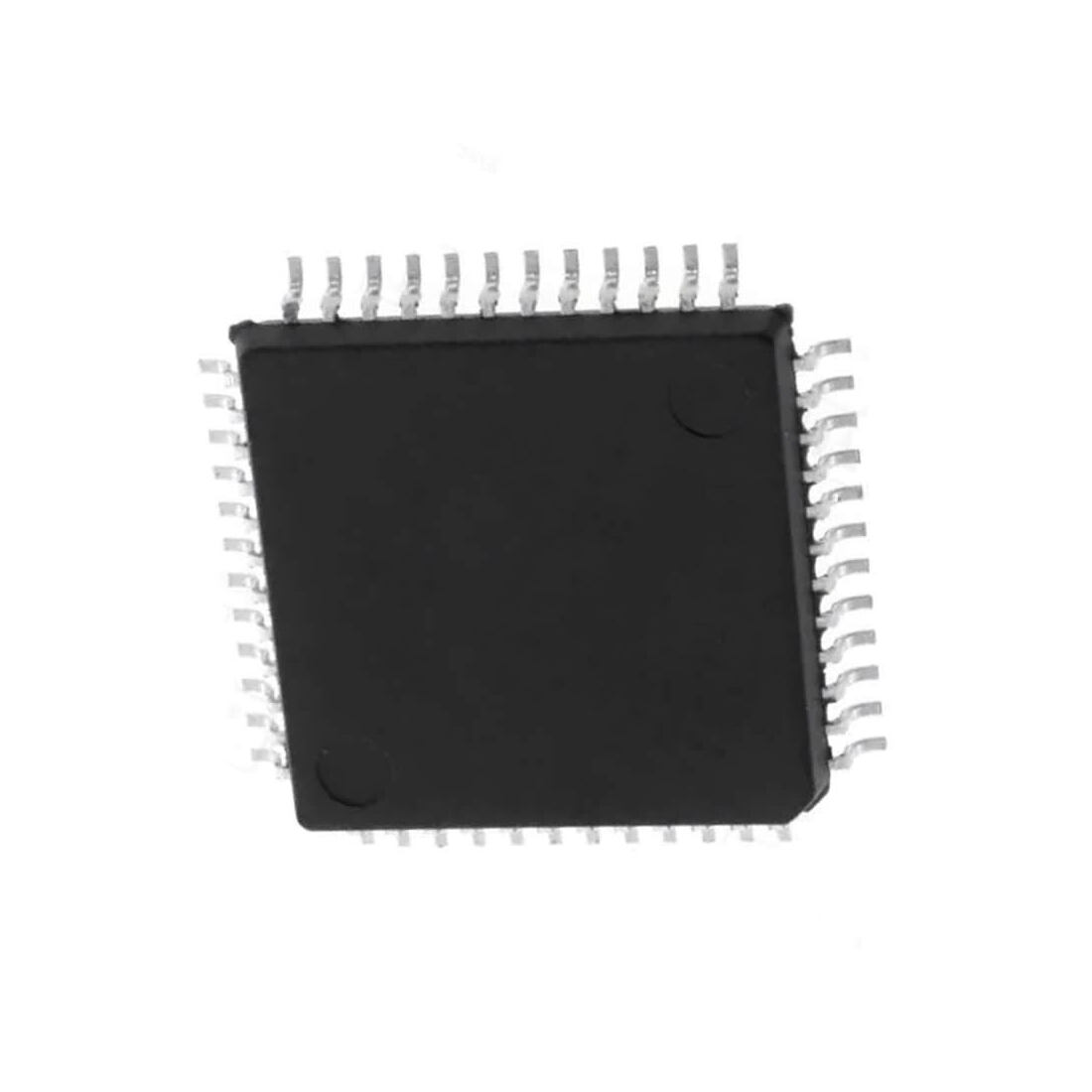

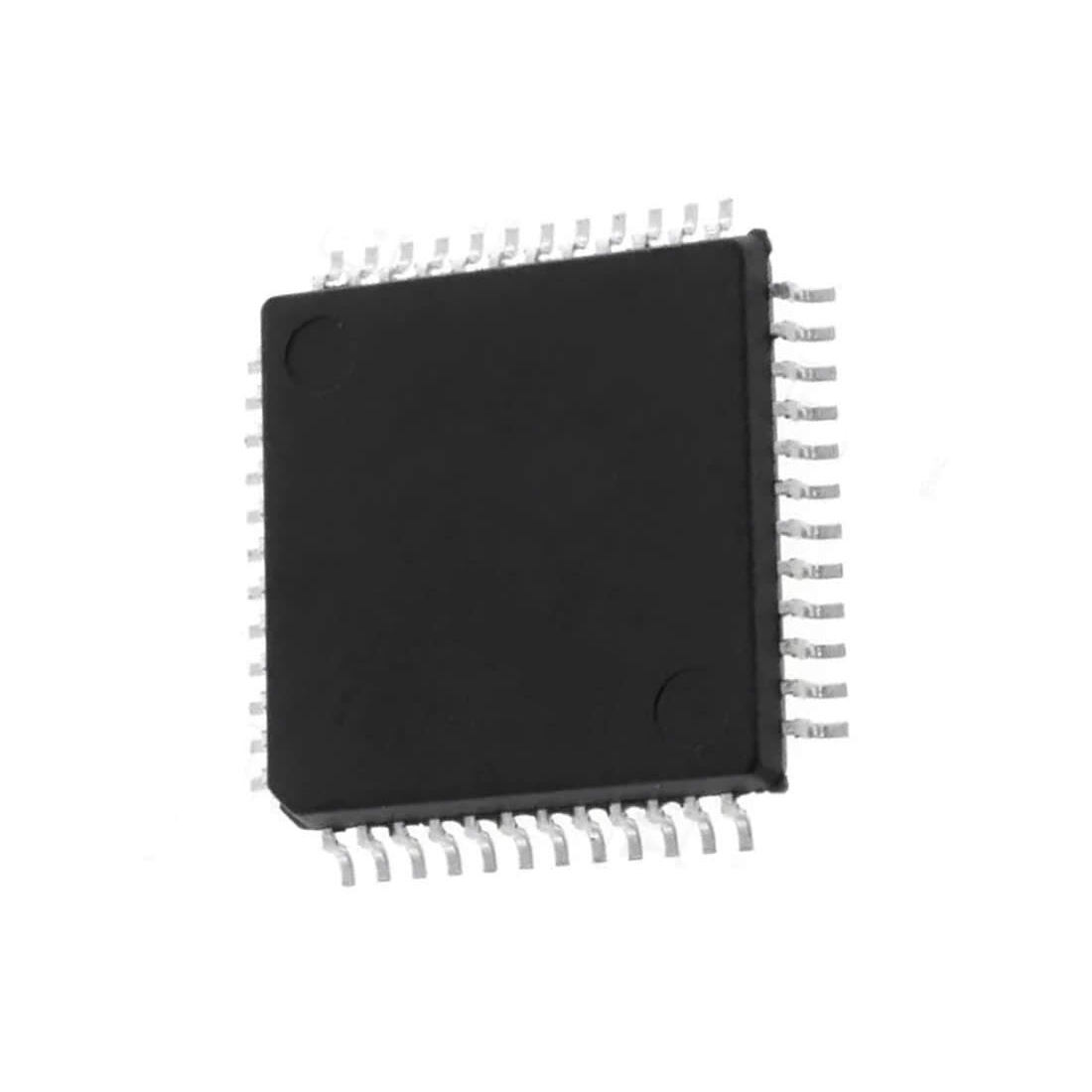

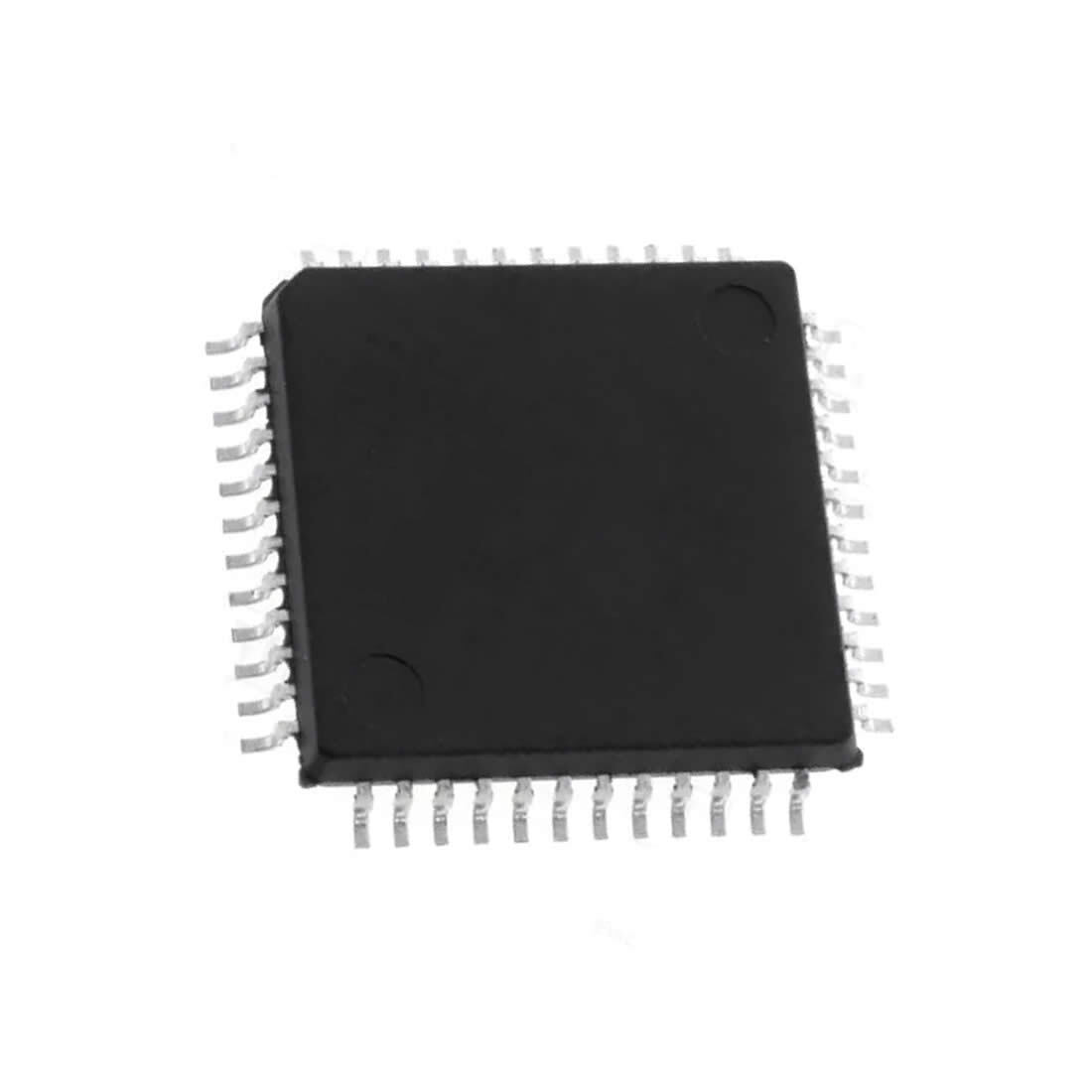

View detailed images (4)

MB88505HPF

SKU: MB88505HPF
MB88505HPF Integrated Circuit CASE: QFP48 MAKE: Generic
Product specifications
Type Integrated Circuit
Case QFP48
Manufacturer Generic
Mem. Addr Rnge 4k
No.of Addr. Modes 7
No. of I/O Lines 16
I/O Line Types G/P Serial
Max. Inst. Len (bits) 16
Min Inst. Len (bits) 8
No. of Intrpt Lines 1
No. of Intrpt (NMI) 0
Intrpt Types Mask/Ext V
No. of Intrpt (mask) 1
fClk Max. (Hz) 8.0M
fClk Min (Hz) 2.0M
No. of I/O Ports 4
On-Chip ROM (bytes) 4k
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 1k
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
Pinout Equivalence Number 48-134
No. of Pins 48
Surface Mounted Yes/No YES
SKU 1125605
