MBT35200MT1
View detailed images (5)

MBT35200MT1

SKU: MBT35200MT1

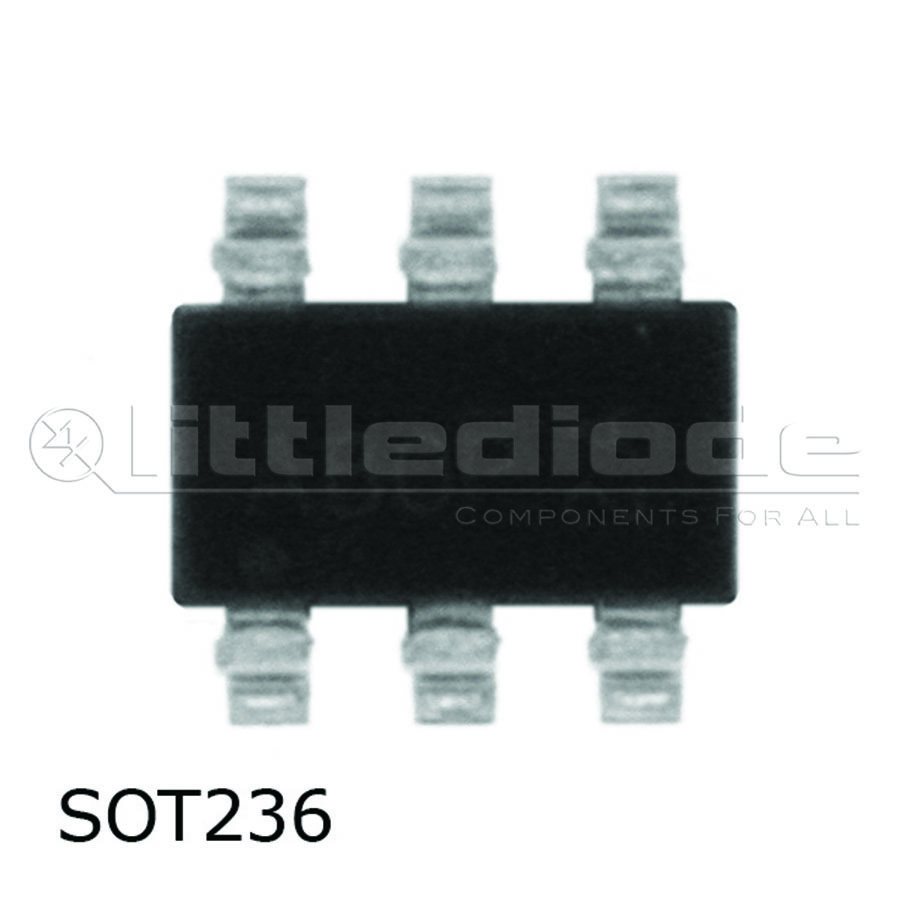

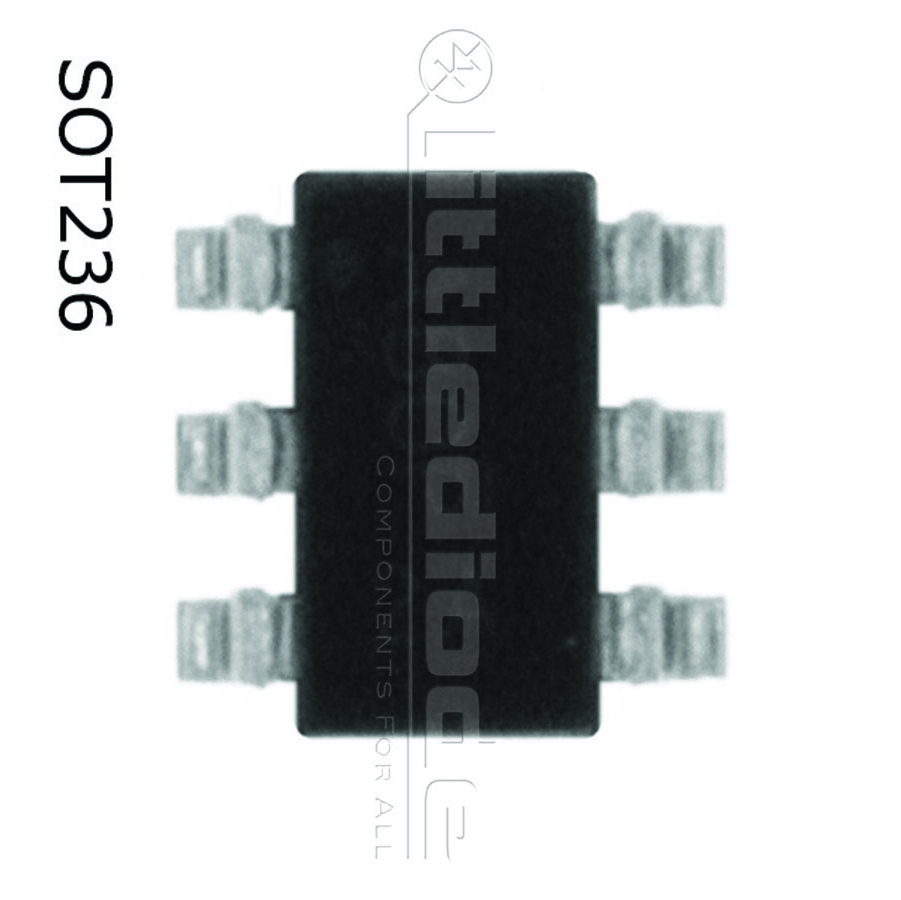

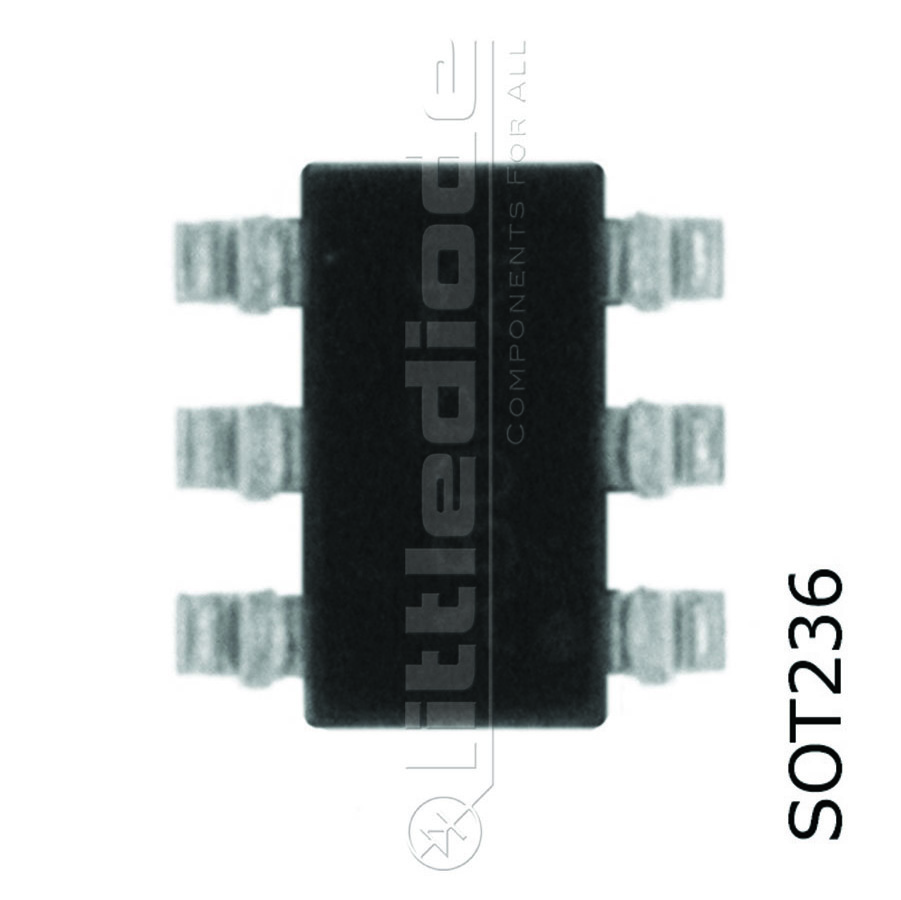

MBT35200MT1 Semiconductor CASE: SOT236 MAKE: ON
Price:
£4.79 Inc. VAT (£3.99 Ex. VAT)
£4.79 Inc. VAT (£3.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Semiconductor
Case SOT236
Manufacturer ON
Polarity PNP
Maximum Collector Power Dissipation (Pc) 0.63 W
Maximum Collector-Base Voltage |Vcb| 55 V
Maximum Collector-Emitter Voltage |Vce| 35 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 2 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 100 pF
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN 100
SMD Transistor Code G4
SKU 560261
