Home / Integrated Circuit / MC10H145FN
MC10H145FN

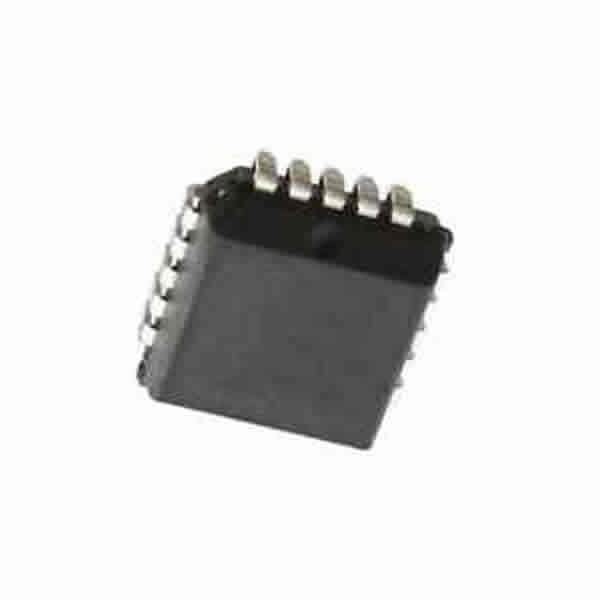

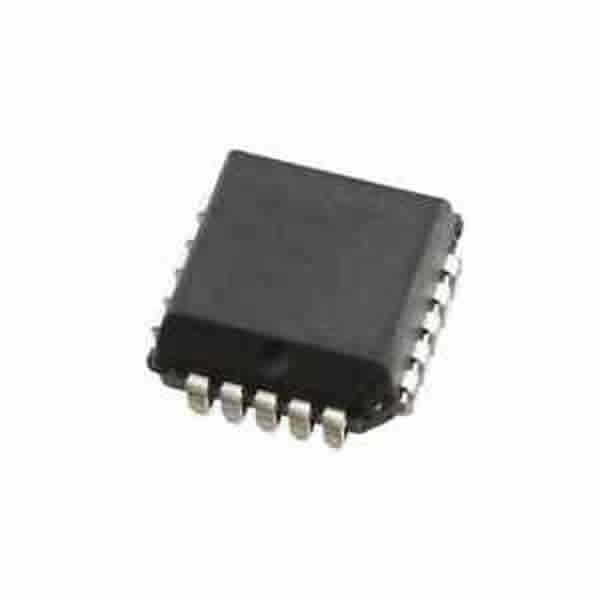

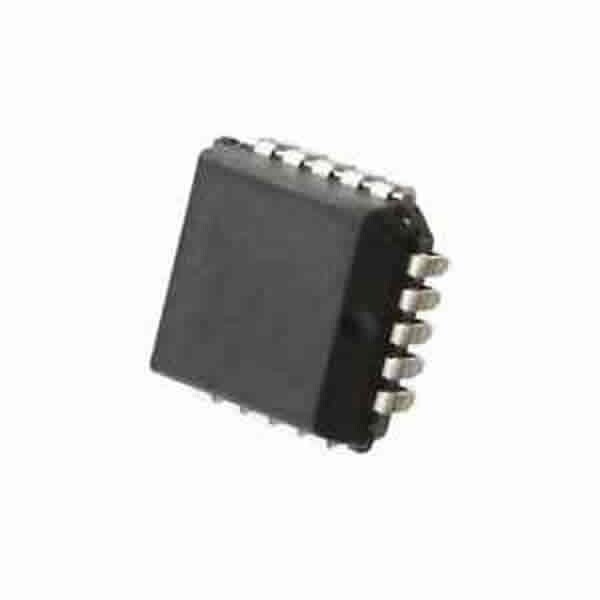

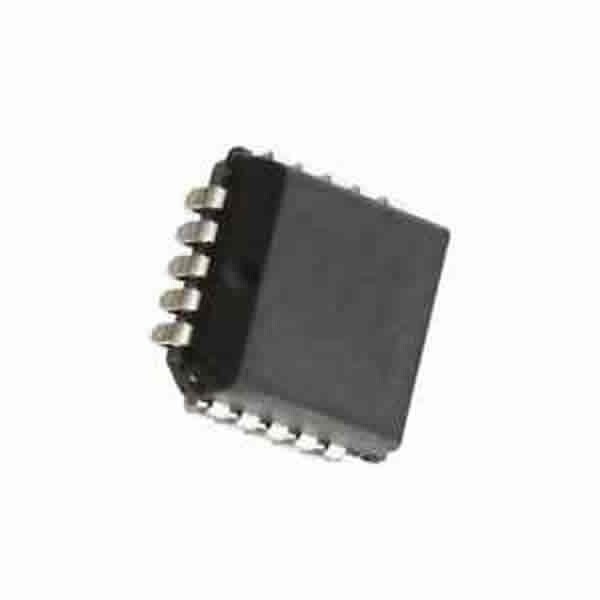

View detailed images (4)

MC10H145FN

SKU: MC10H145FN
MC10H145FN Integrated Circuit CASE: PLCC20 MAKE: Motorola Semiconductor
Product specifications
Type Integrated Circuit
Case PLCC20
Manufacturer Motorola Semiconductor
Bits Per Word 4
Output Config Open-Emit.
PD Max. (W) 700m
Nom. Supp (V) -5.2
t(acc) Max. (S) 6.0n
Tech. ECL - Emitter-Coupled Logic Semiconductor
tW Min (S) 6.0n
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Number of Words 16
Pinout Equivalence Number N/A
Descript Noise 150mV over temp. range
No. of Pins N/A
Surface Mounted Yes/No YES
SKU 246608
