Home / Integrated Circuit / MC10H334FN
MC10H334FN

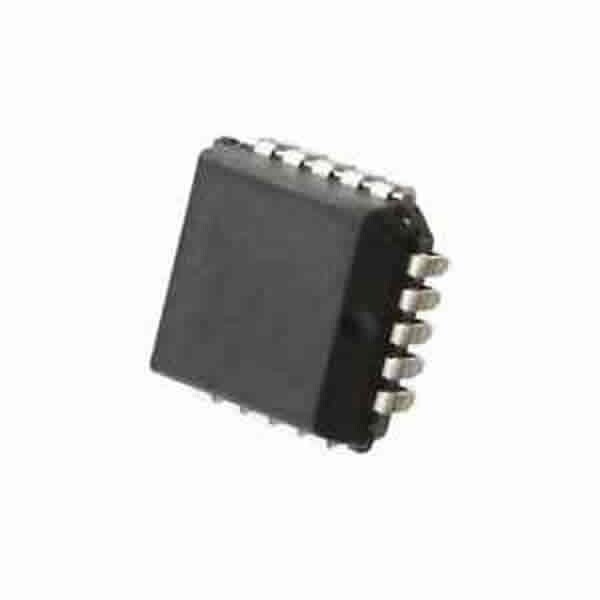

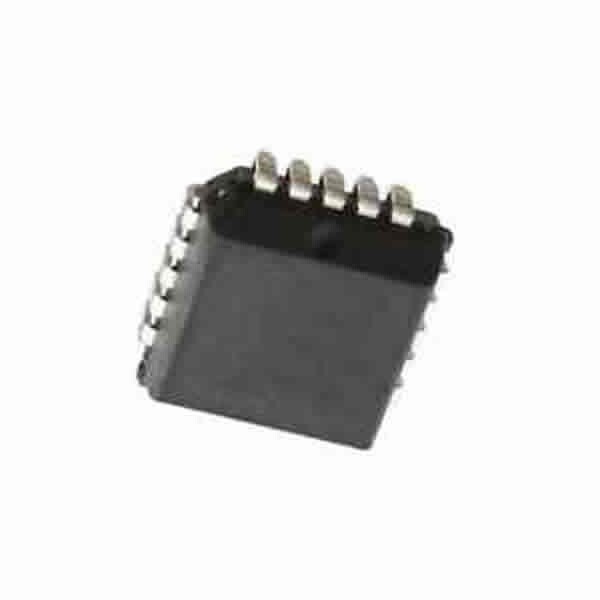

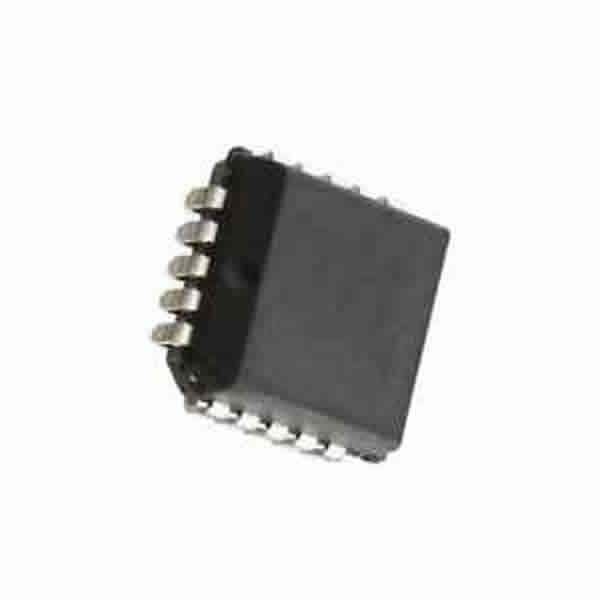

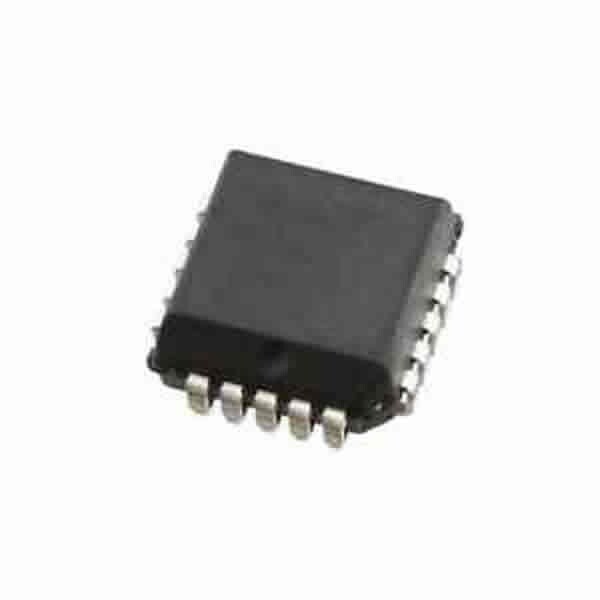

View detailed images (4)

MC10H334FN

SKU: MC10H334FN
MC10H334FN Integrated Circuit CASE: PLCC20 MAKE: Motorola Semiconductor
Product specifications
Type Integrated Circuit
Case PLCC20
Manufacturer Motorola Semiconductor
Inp Thrshld Hi (V) -1.1
Inp Thrshld Lo (V) -1.5
Mode I/O D or S Differenti
tPD Max. (S) 2.5n
Nom. Neg Supp 5.2
Nom. Pos. Supp 0.0
Tech. ECL - Emitter-Coupled Logic Semiconductor
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
VOL Max. (Rcvr) -1.6
VOH Min (Rcvr) -.98
Pinout Equivalence Number 20-234
No. of Pins 20
Surface Mounted Yes/No YES
SKU 246663
