MC1489AP

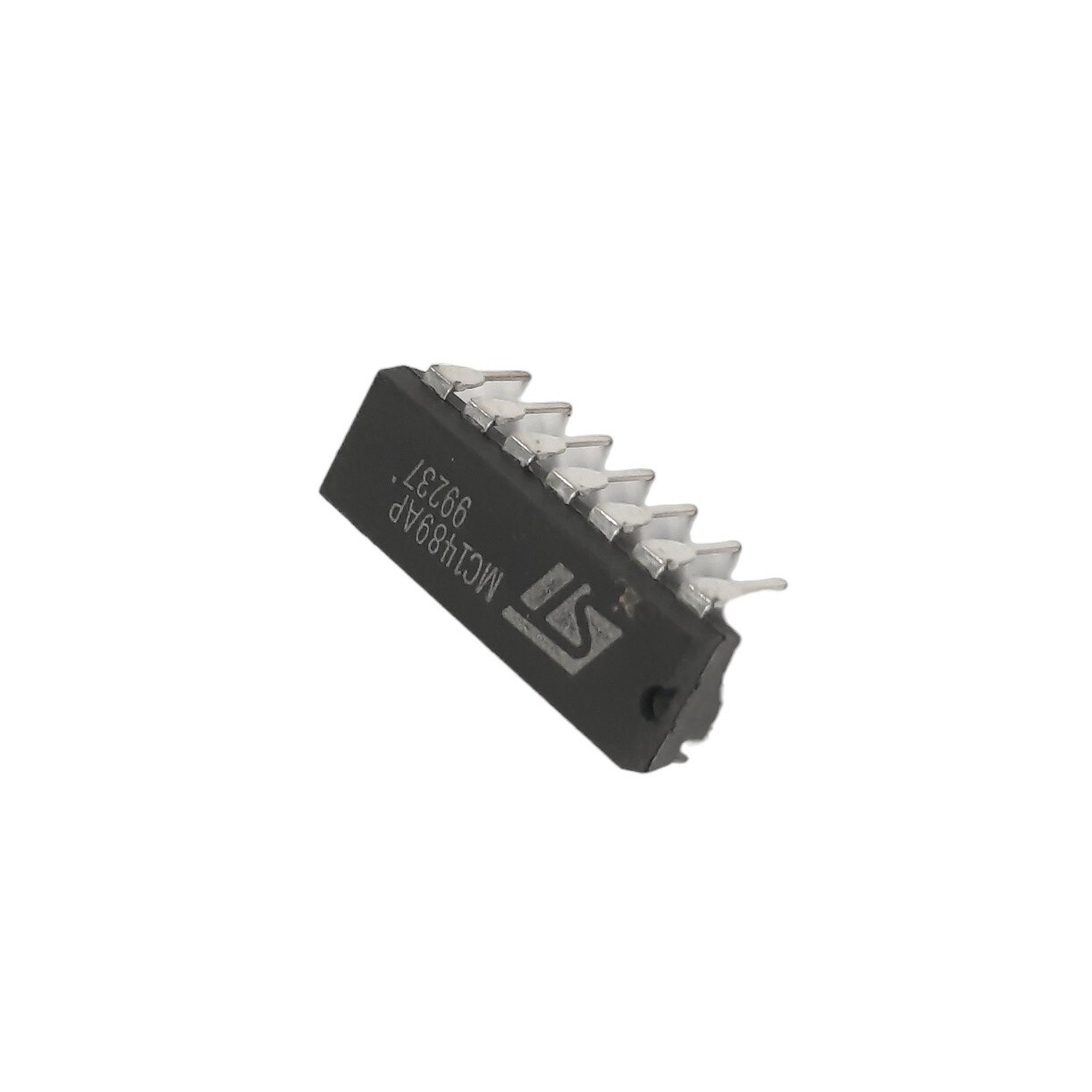

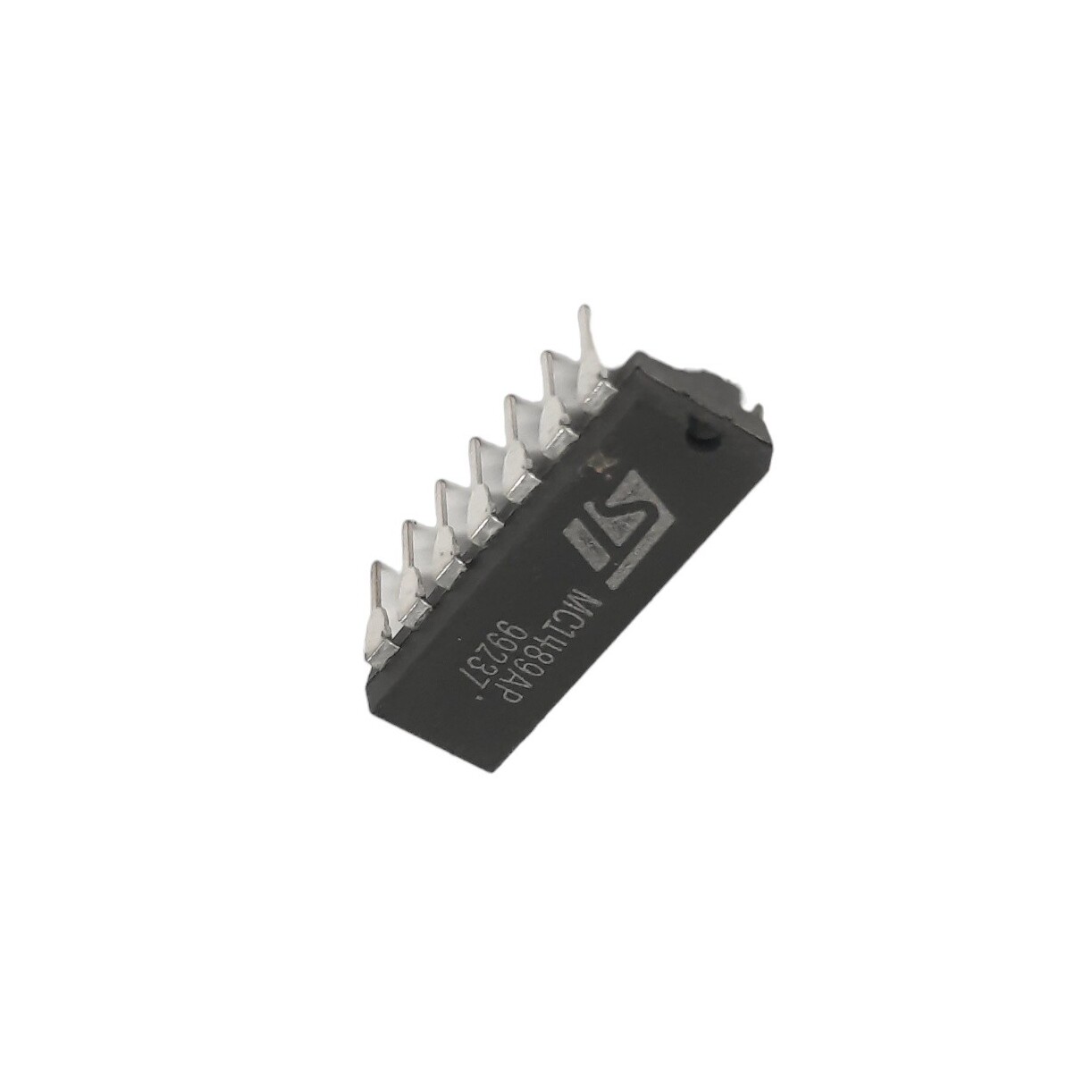

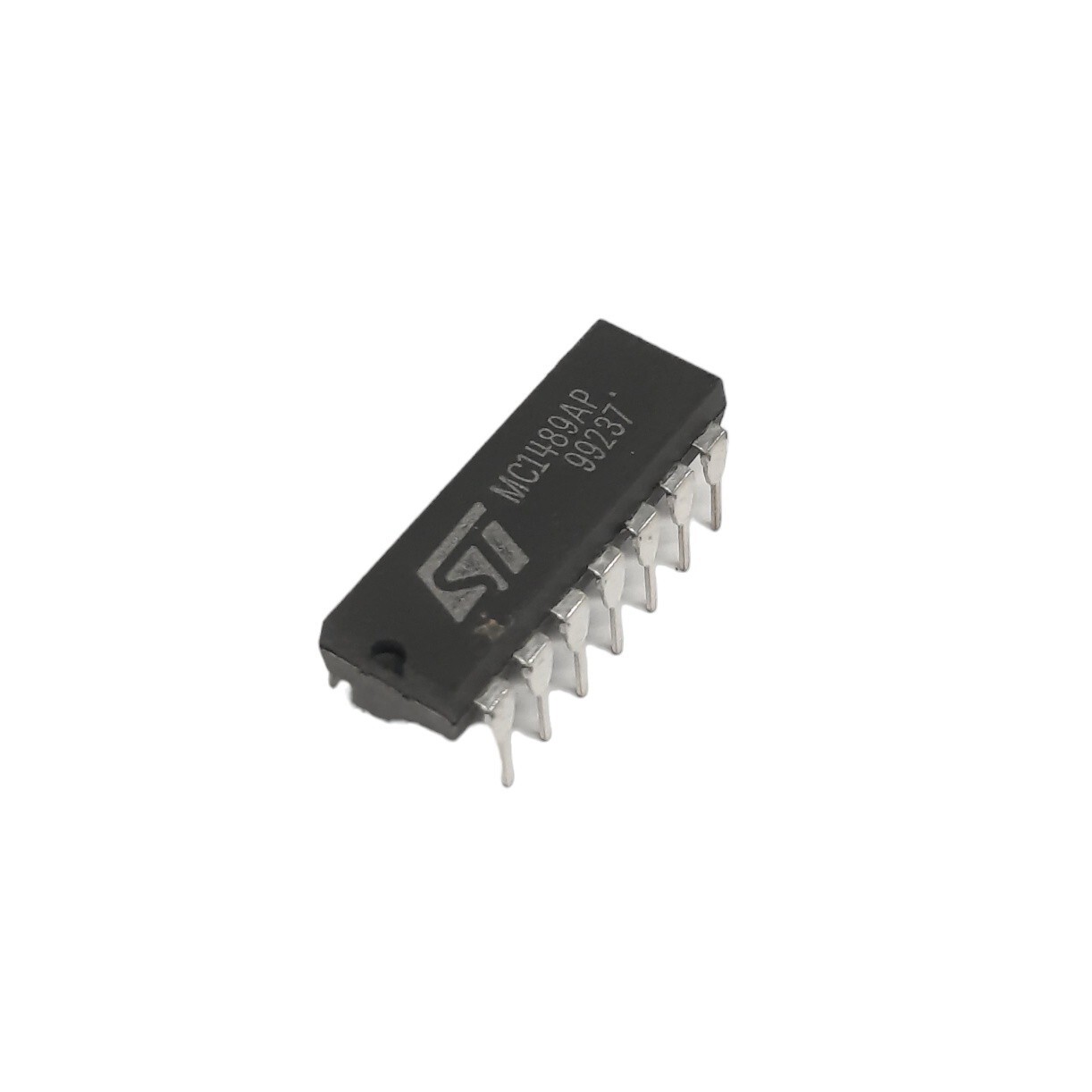

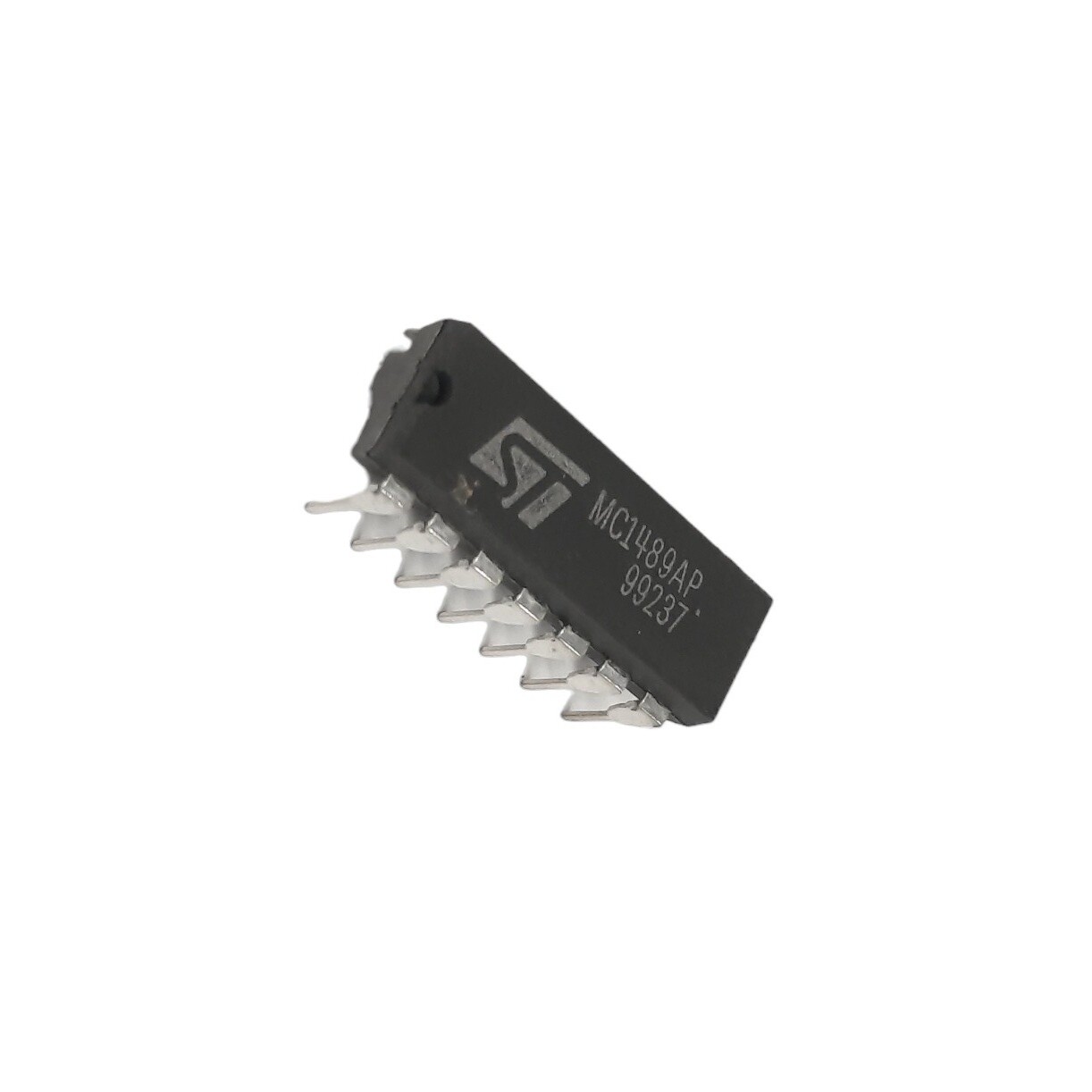

View detailed images (4)

MC1489AP

SKU: MC1489AP
MC1489AP Logic IC CASE: DIP14 MAKE: Motorola Semiconductor
Price:
£9.59 Inc. VAT (£7.99 Ex. VAT)
£9.59 Inc. VAT (£7.99 Ex. VAT)
Qty
  • 150 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Logic IC
Case DIP14
Manufacturer Motorola Semiconductor
Ckts Per Dev. 4
Inp Thrshld Hi (V) 2.25
Inp Thrshld Lo (V) .75
VOL (loaded) Max. .45
VOH Min. 2.6
VOL Max. 0.45
PD Max. (W) 1.0
tPD Max. (S) 85n
Nom. Neg Supp 0.0
Nom. Pos. Supp 5.0
Tech. DTL - Diode–Transistor Logic Semiconductor
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
@Iol (A) 10m
Logic Level Family TTL
Pinout Equivalence Number 14-120
Surface Mounted Yes/No NO
SKU 247837
