MC6802P
View detailed images (9)

MC6802P

SKU: MC6802P

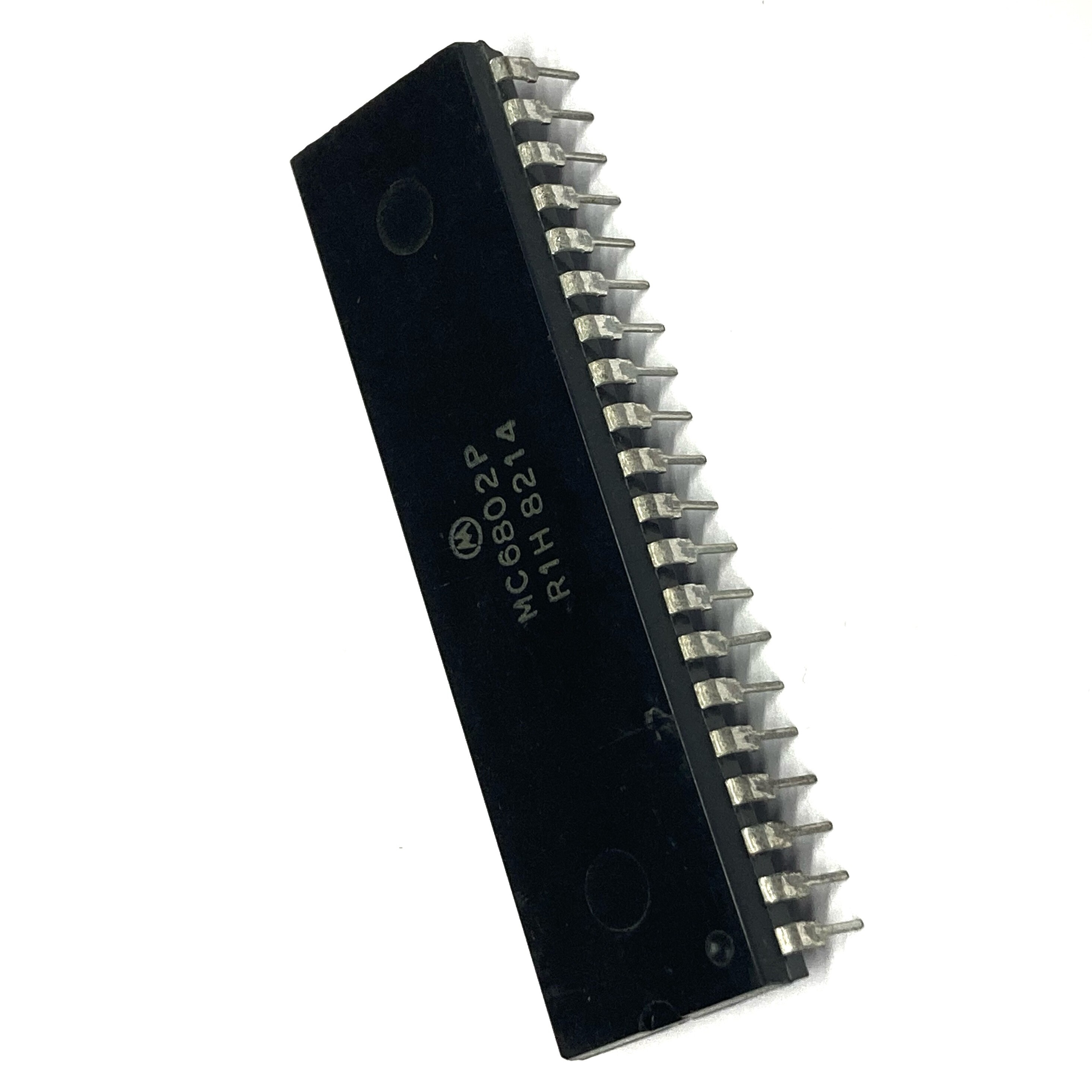

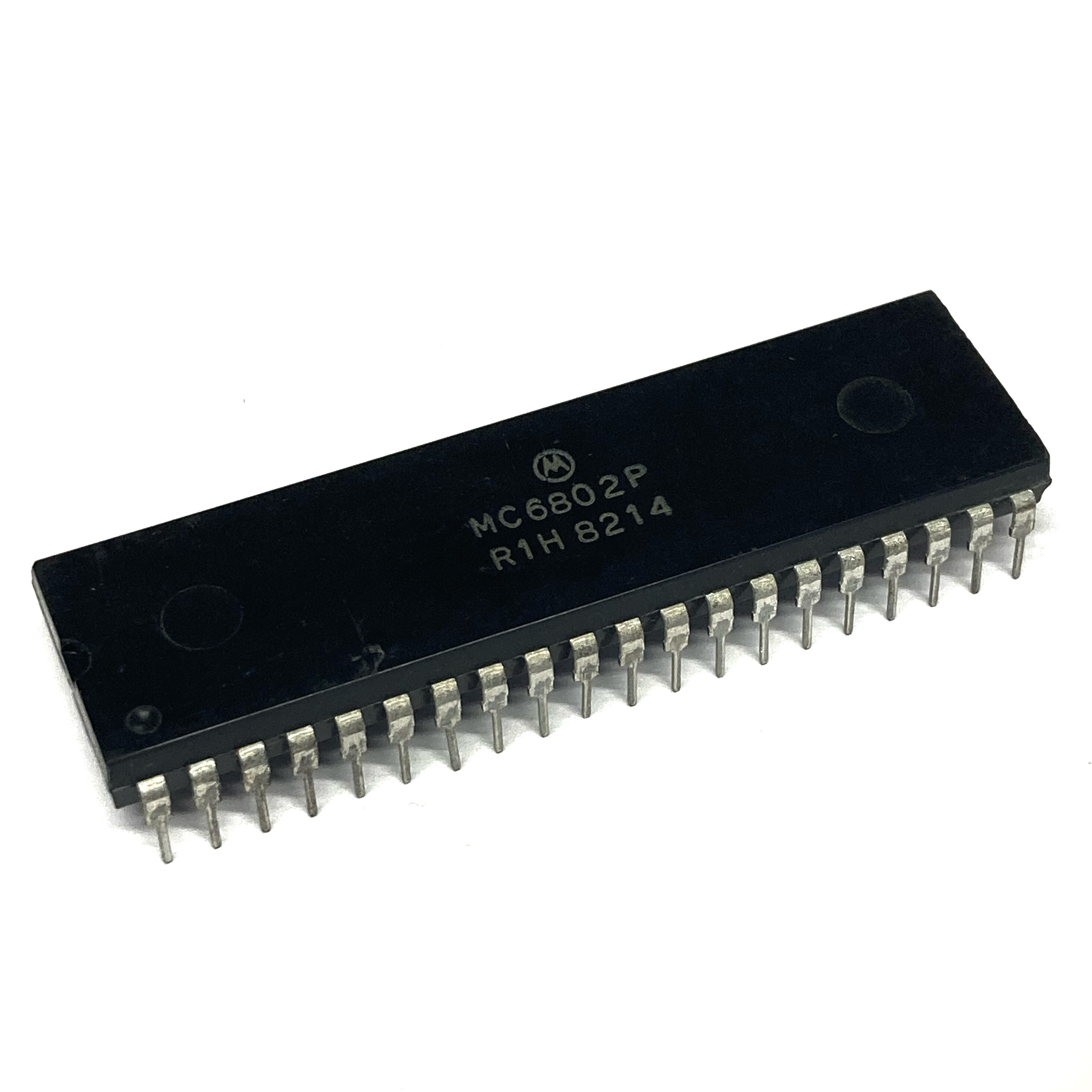

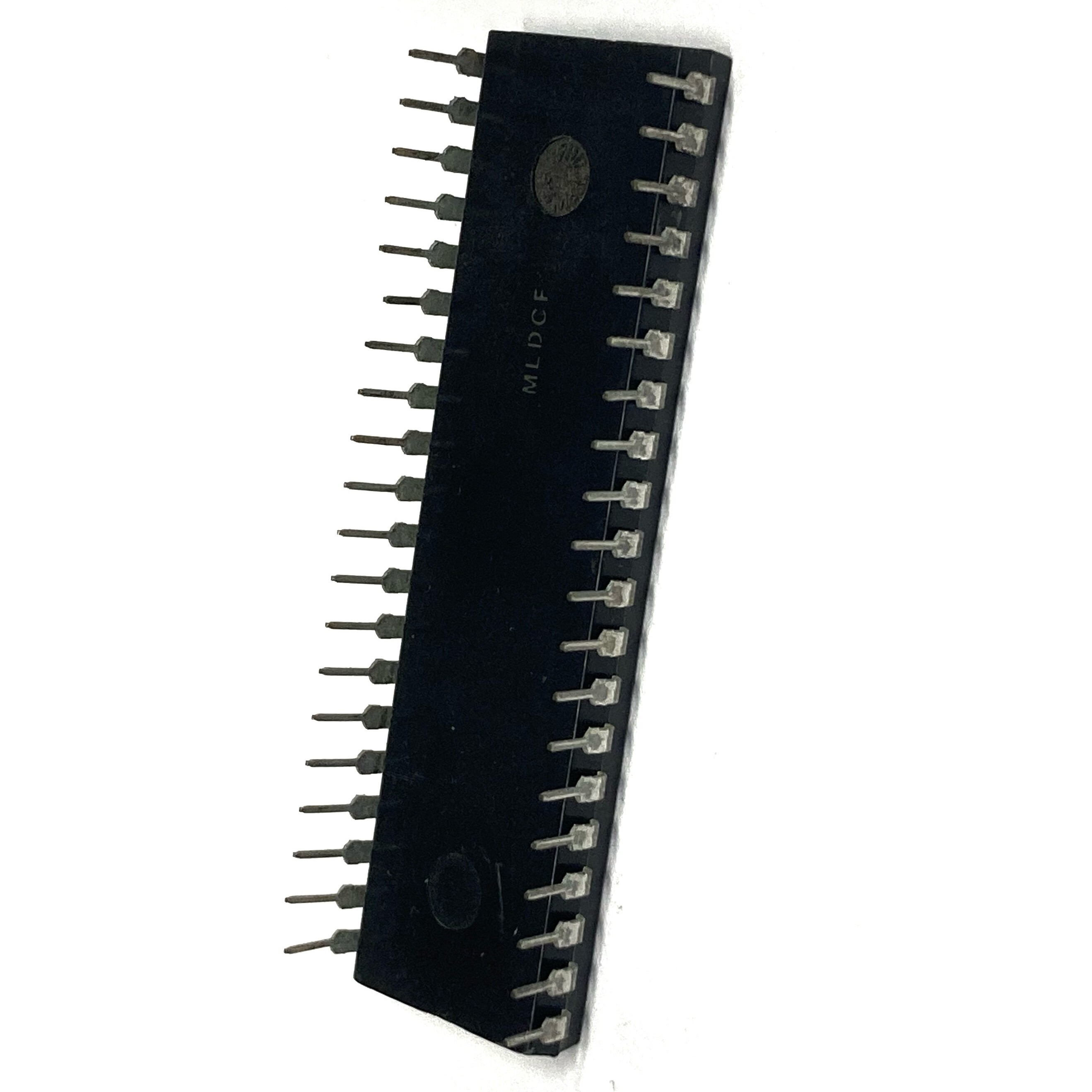

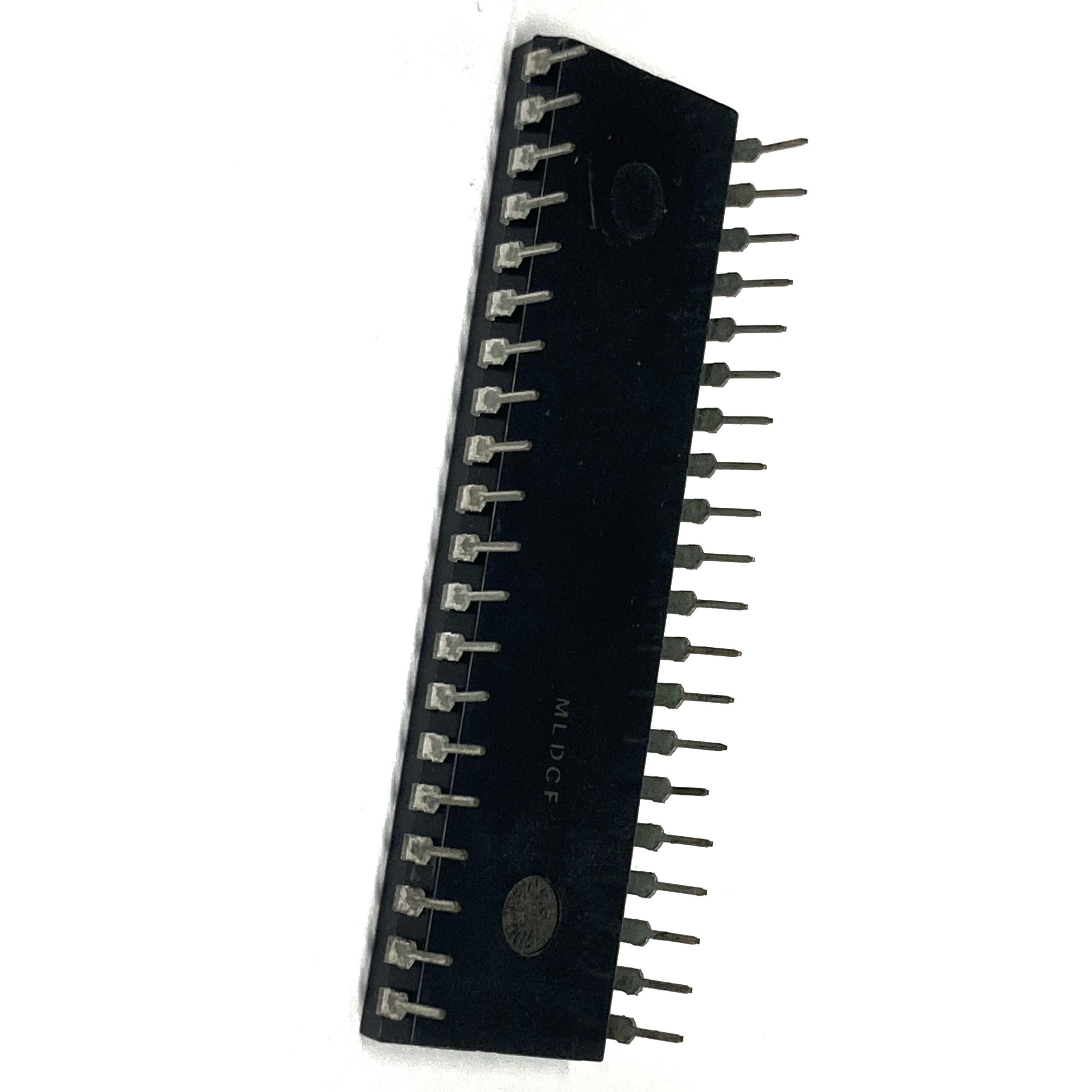

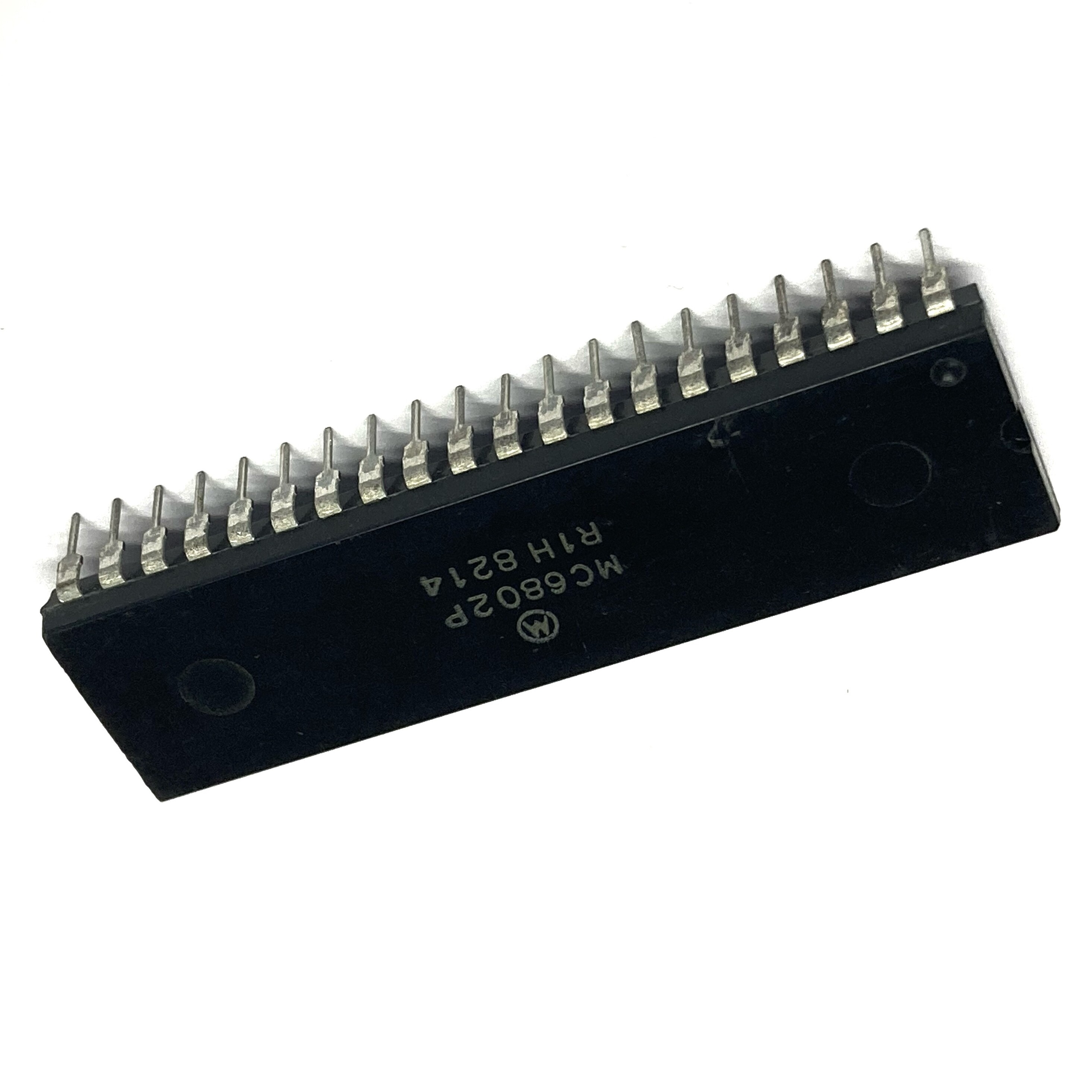

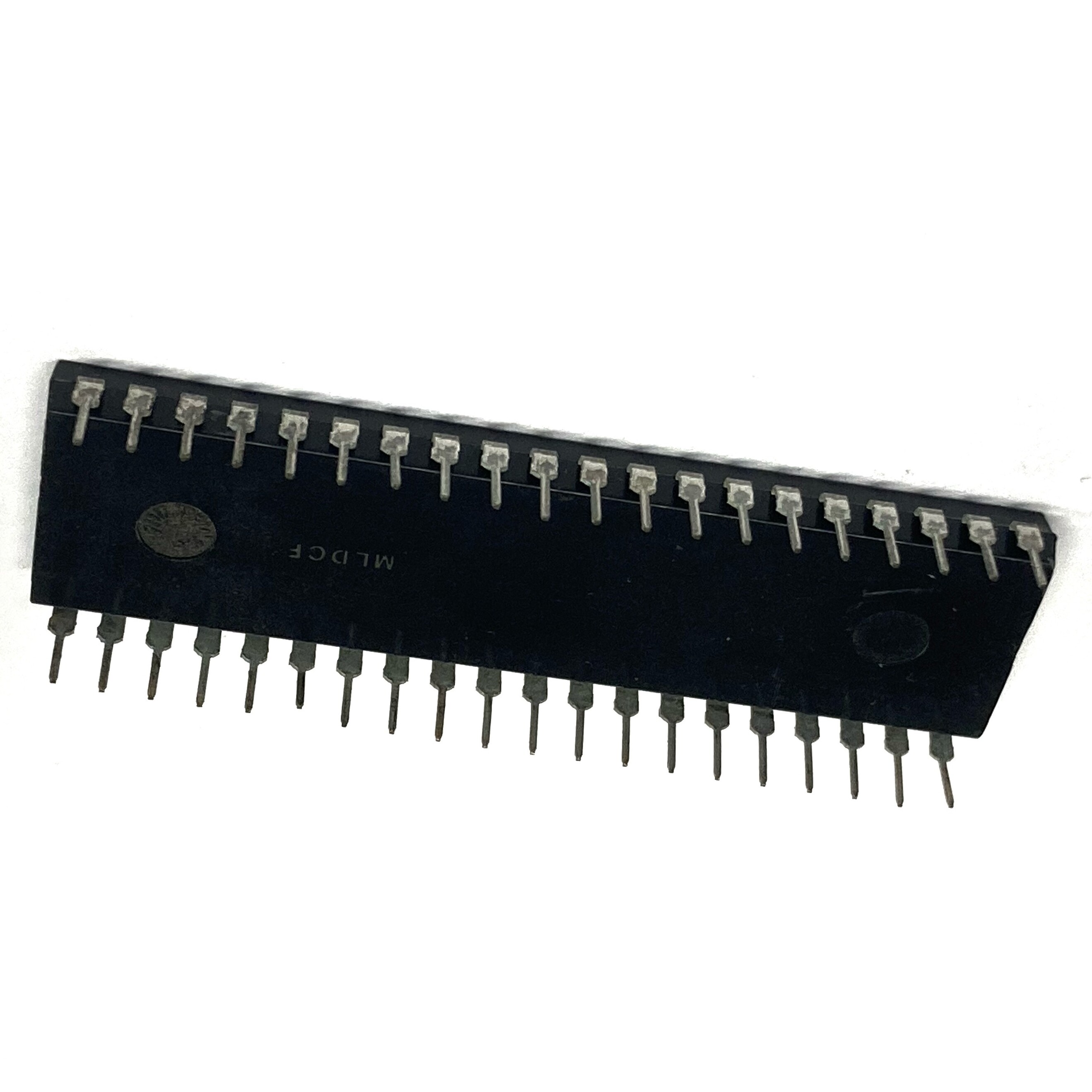

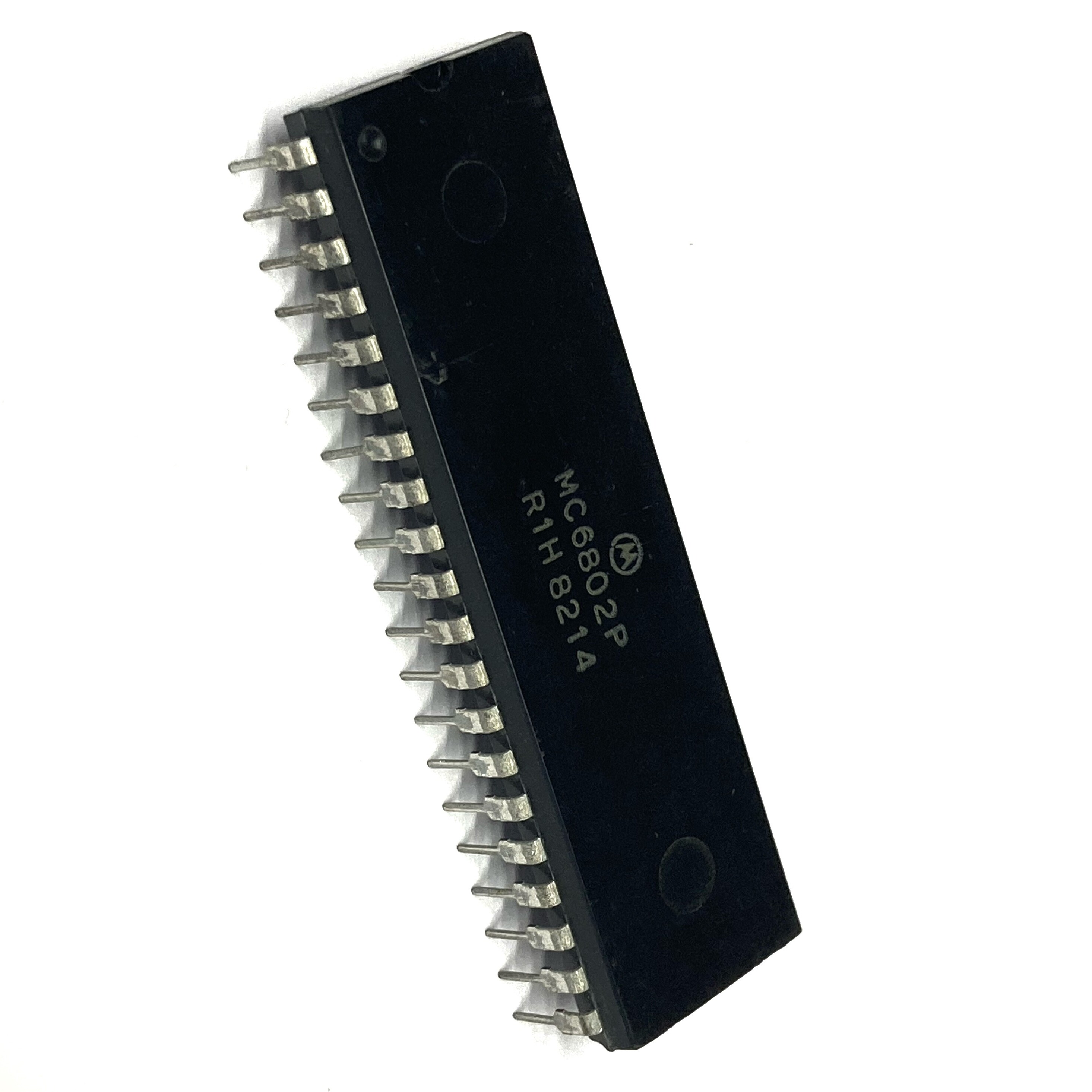

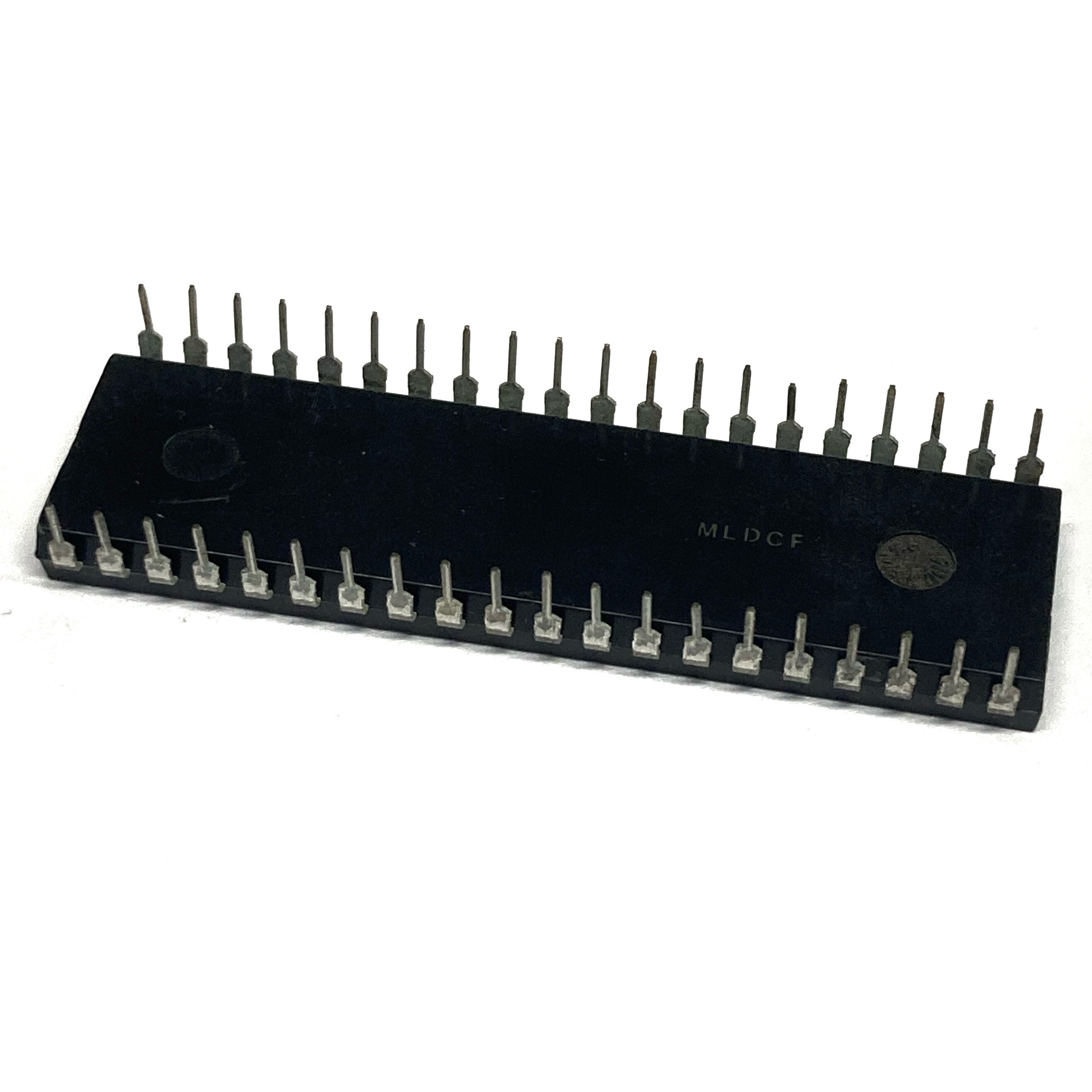

MC6802P Integrated Circuit CASE: DIP40 MAKE: Motorola Semiconductor
Price: £11.99
+ VAT 20% for UK purchases
£11.99
Qty
+ VAT 20% for UK purchases
  • 111 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Integrated Circuit
Case DIP40
Manufacturer Motorola Semiconductor
Mem. Addr Rnge 64k
No.of Addr. Modes 7
No. of I/O Lines 16
I/O Line Types Byte/MUXed
Max. Inst. Len (bits) 24
Min Inst. Len (bits) 8
No. of Intrpt Lines 2
No. of Intrpt (NMI) 1
Intrpt Types Prty/Ext V
No. of Intrpt (mask) 1
fClk Max. (Hz) 1.0M
fClk Min (Hz) 100k
Nom. Supp Volt 5.0
Tech. NMOS Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 40-506
Descript On-chip Clock circuit
No. of Pins 40
Surface Mounted Yes/No NO
SKU 18907
