Home / Integrated Circuit / MC68A09EL
MC68A09EL
View detailed images (5)

MC68A09EL

SKU: MC68A09EL

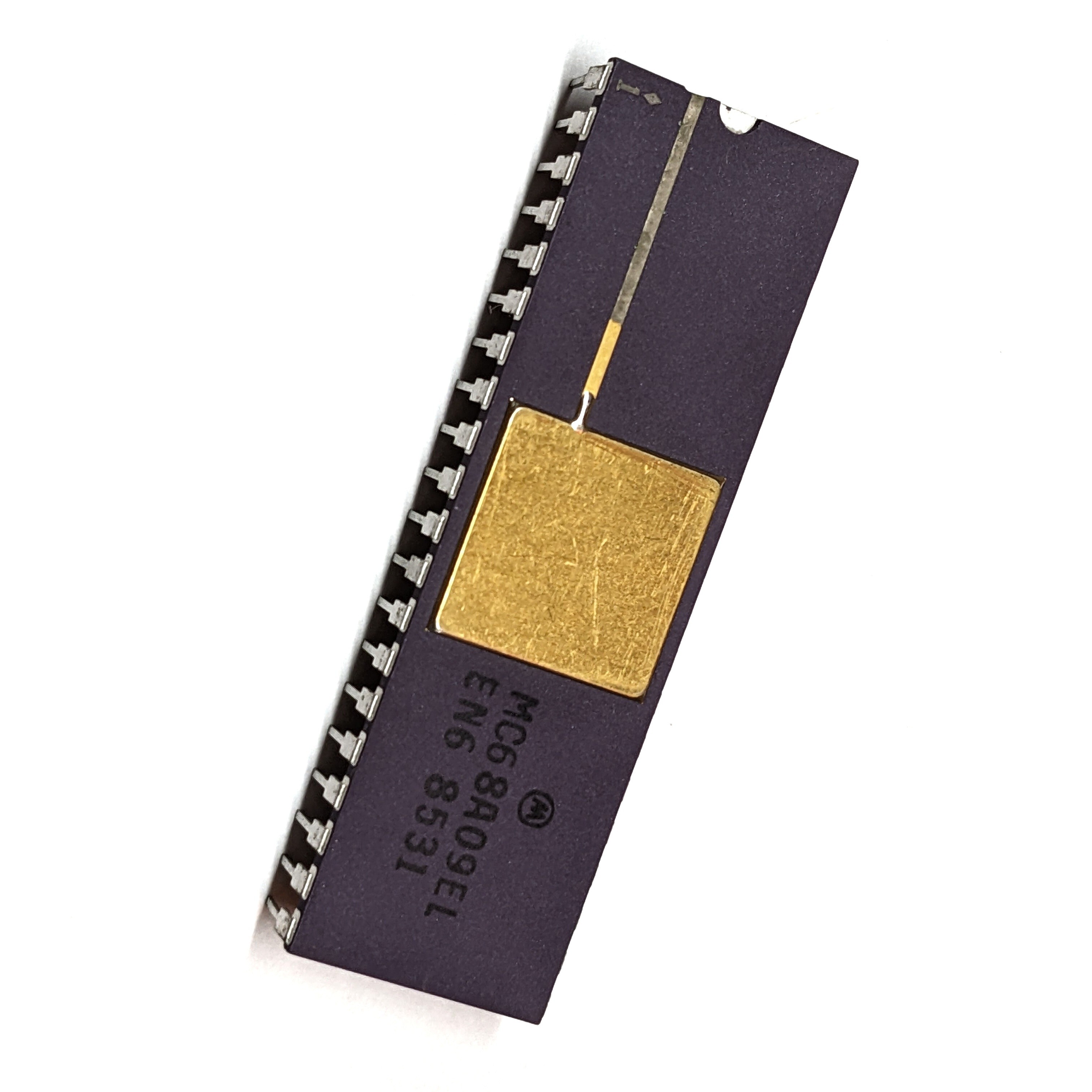

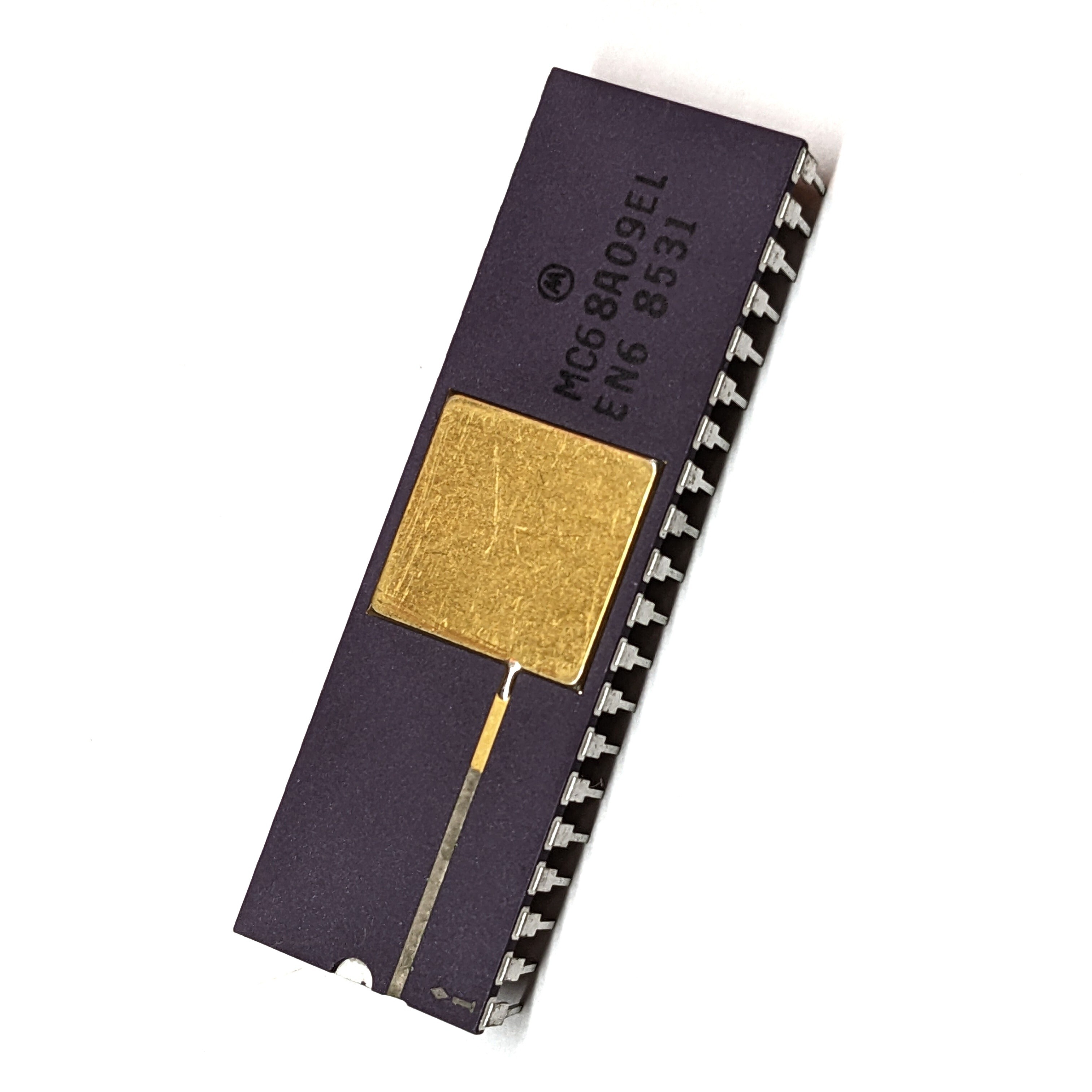

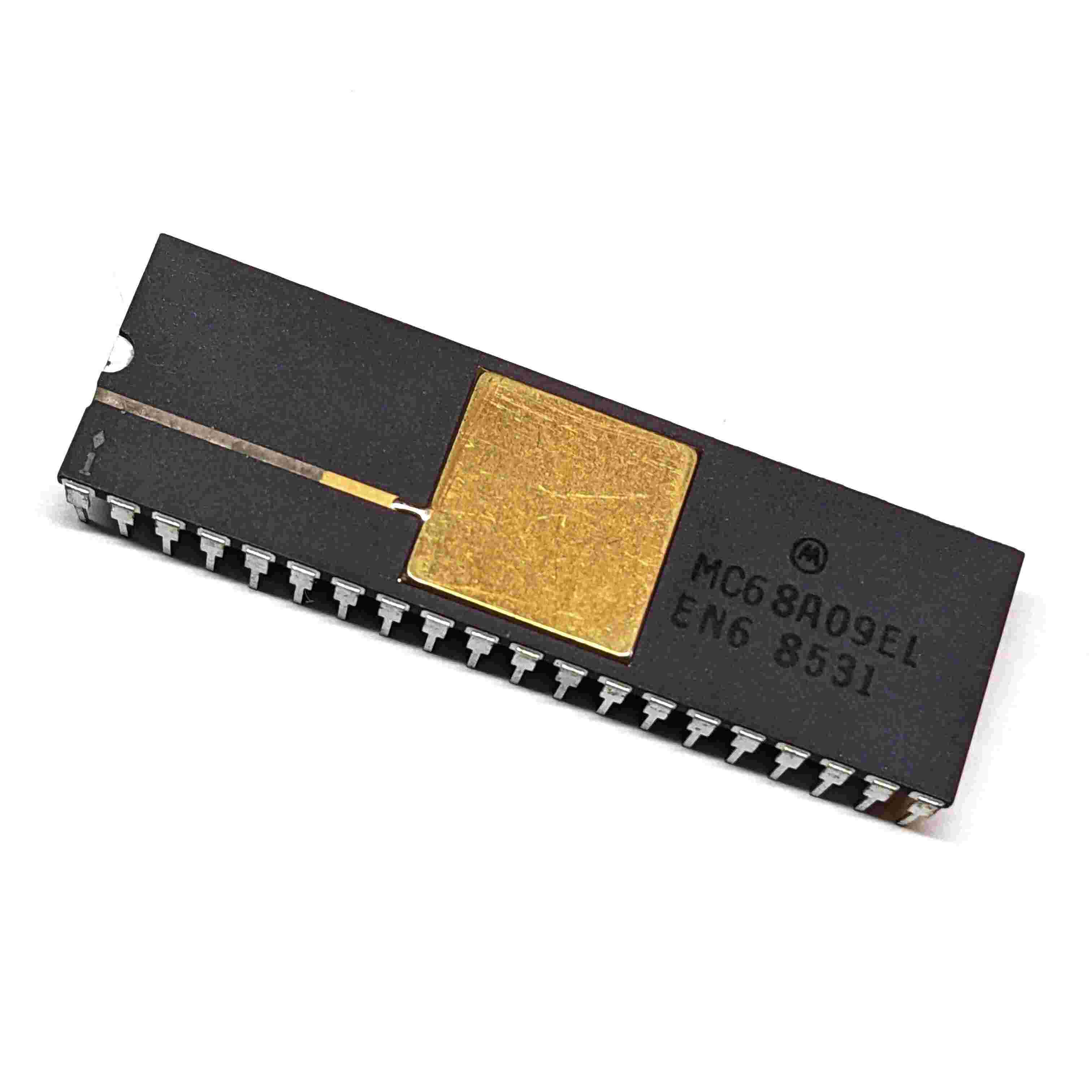

MC68A09EL Integrated Circuit CASE: DIP40 MAKE: Motorola Semiconductor
Price:
£38.39 Inc. VAT (£31.99 Ex. VAT)
£38.39 Inc. VAT (£31.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Integrated Circuit
Case DIP40
Manufacturer Motorola Semiconductor
Mem. Addr Rnge 64k
No.of Addr. Modes 13
No. of I/O Lines 16
I/O Line Types Byte/MUXed
Max. Inst. Len (bits) 32
Min Inst. Len (bits) 8
No. of Intrpt Lines 3
No. of Intrpt (NMI) 1
Intrpt Types Prty/Ext V
No. of Intrpt (mask) 2
fClk Max. (Hz) 1.5M
fClk Min (Hz) 100k
Nom. Supp Volt 5.0
Tech. NMOS Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 40-502
No. of Pins 40
Surface Mounted Yes/No NO
SKU 431687
