MC68HC04J2CP
View detailed images (12)

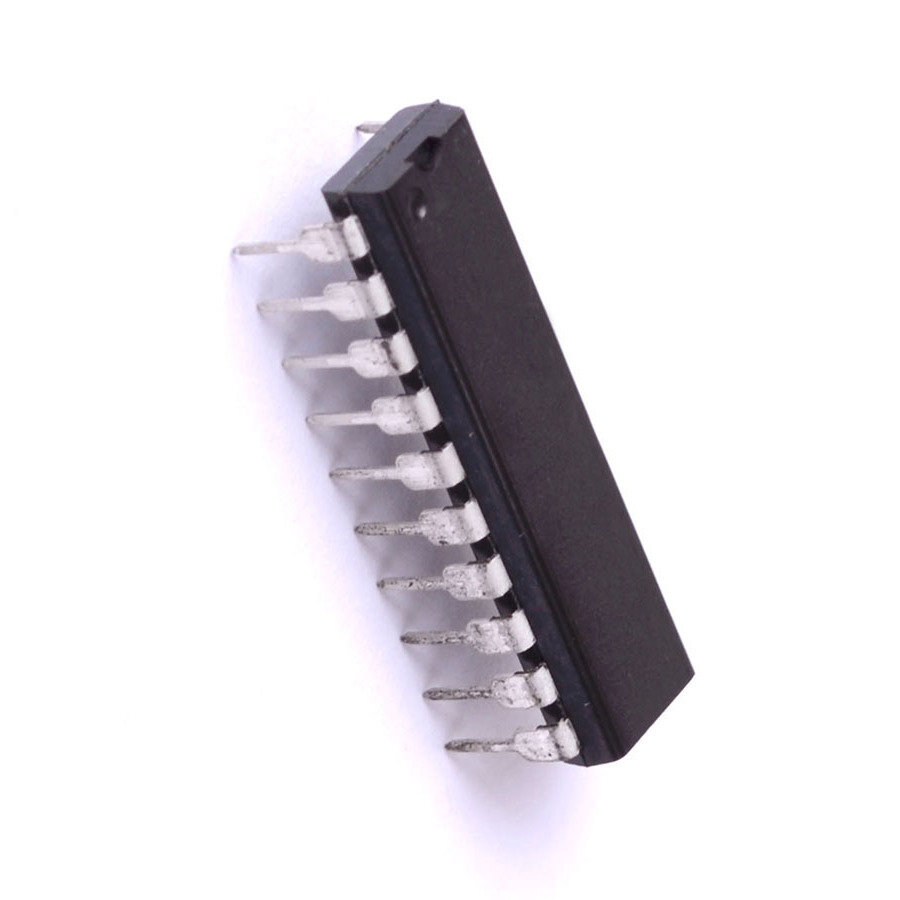

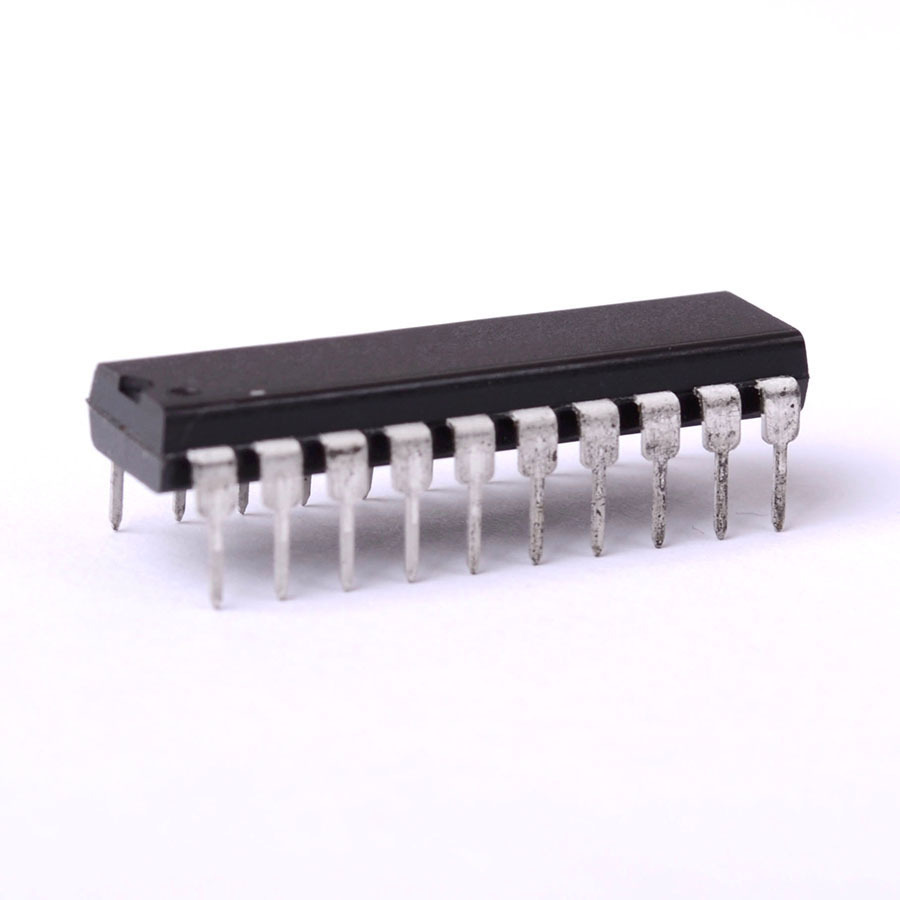

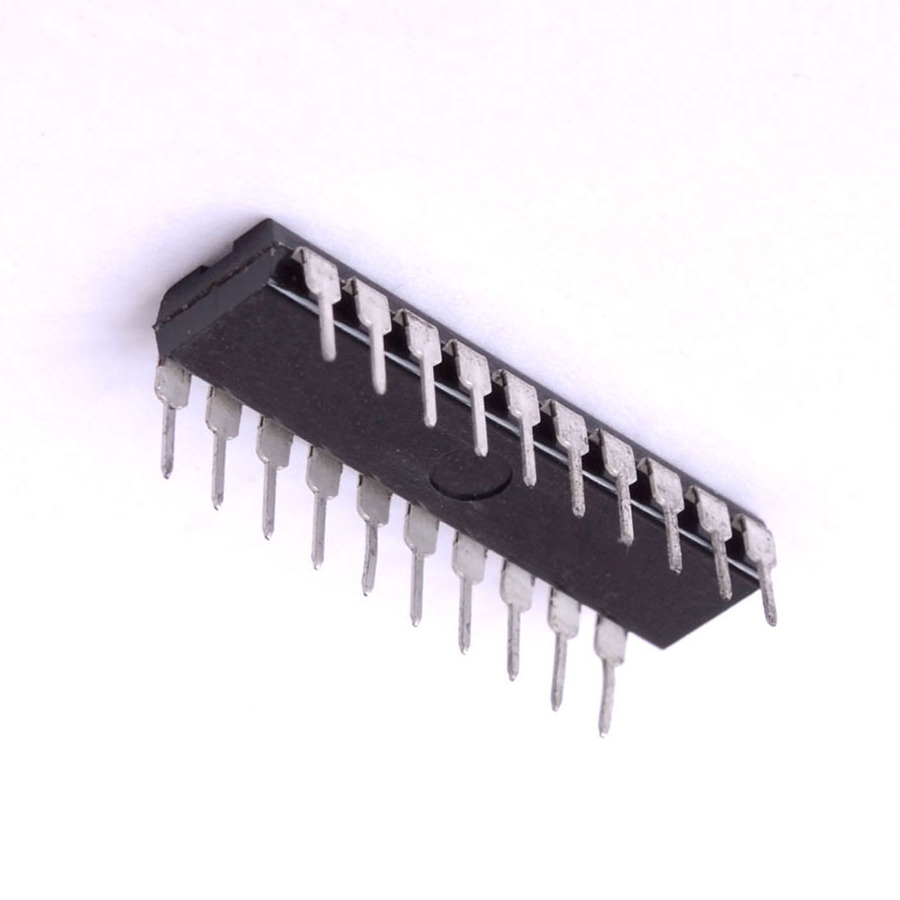

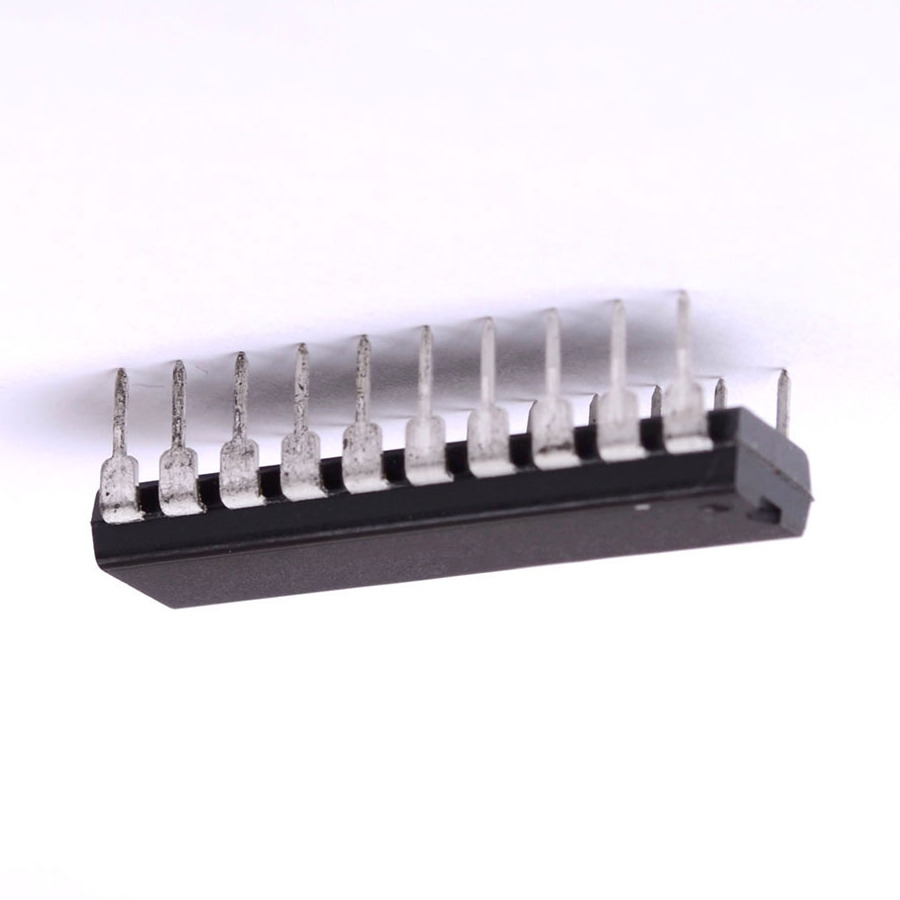

MC68HC04J2CP

SKU: MC68HC04J2CP
MC68HC04J2CP Integrated Circuit CASE: DIP20 MAKE: Motorola Semiconductor
Product specifications
Type Integrated Circuit
Case DIP20
Manufacturer Motorola Semiconductor
No.of Addr. Modes 9
No. of I/O Lines 12
I/O Line Types Multiplexd
Max. Inst. Len (bits) 24
Min Inst. Len (bits) 8
No. of Intrpt Lines 1
Intrpt Types Mask/Ext V
No. of Intrpt (mask) 1
fClk Max. (Hz) 5.5M
No. of I/O Ports 2
On-Chip ROM (bytes) 1k
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 30
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
Pinout Equivalence Number 20-148
Descript Memory Mapped I/O
No. of Pins 20
Surface Mounted Yes/No NO
SKU 1127736
