MC68HC05B4MP
View detailed images (12)

MC68HC05B4MP

SKU: MC68HC05B4MP

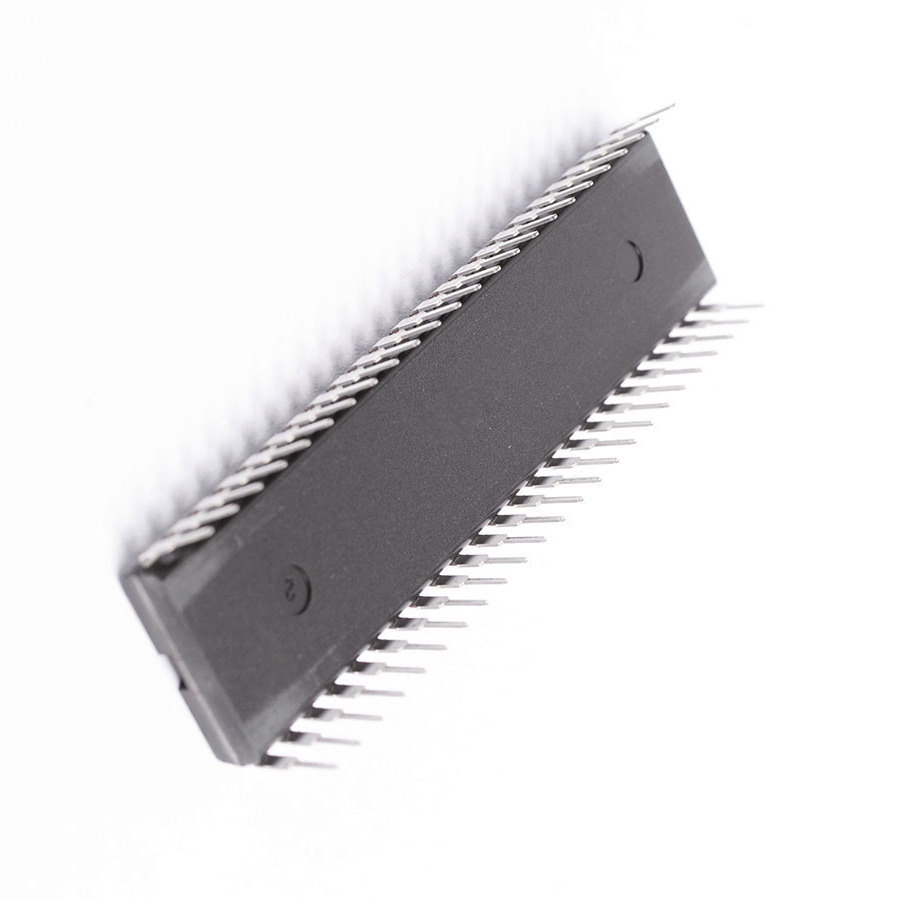

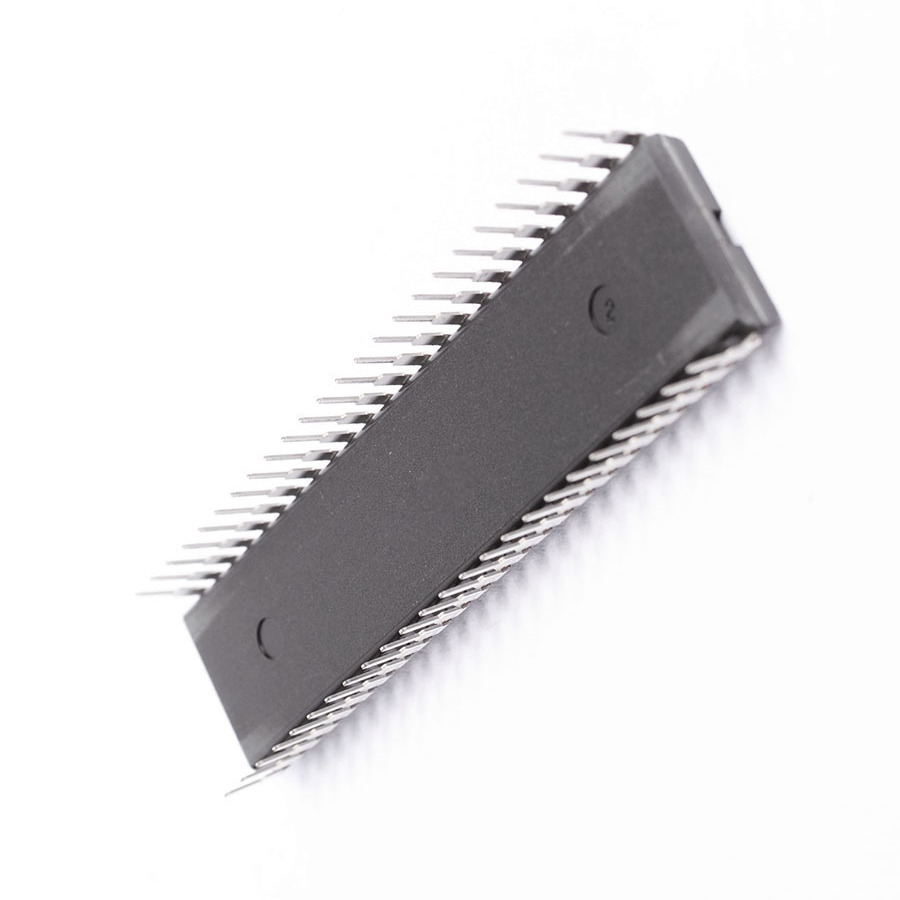

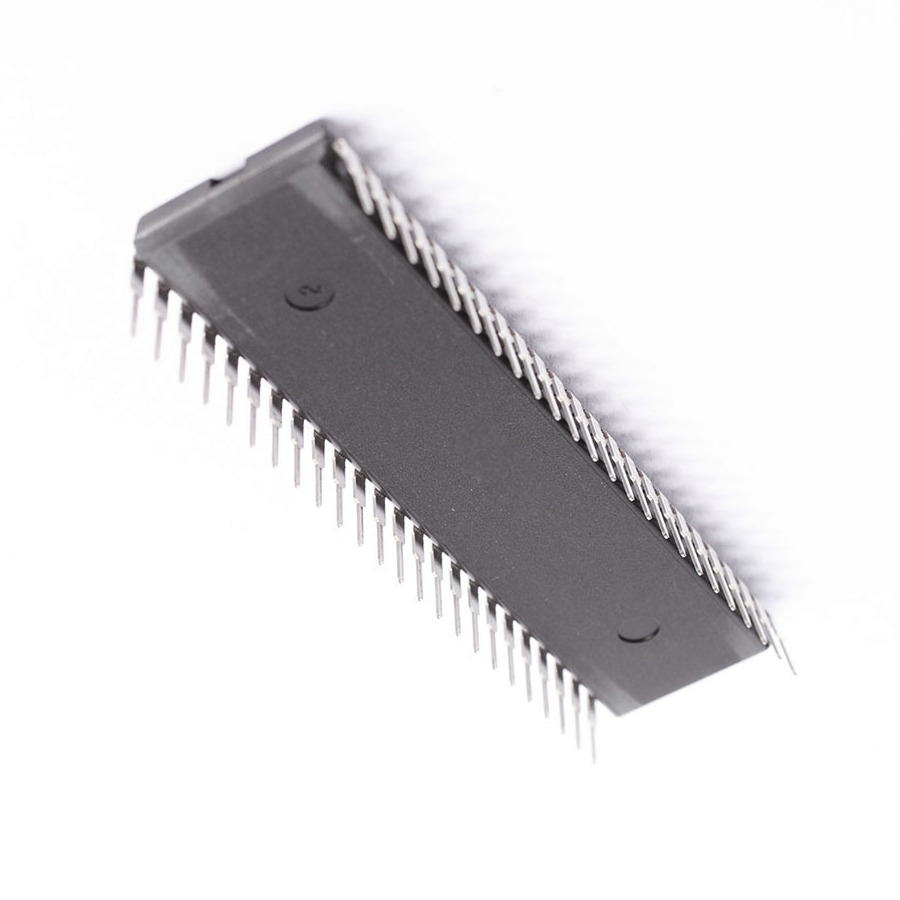

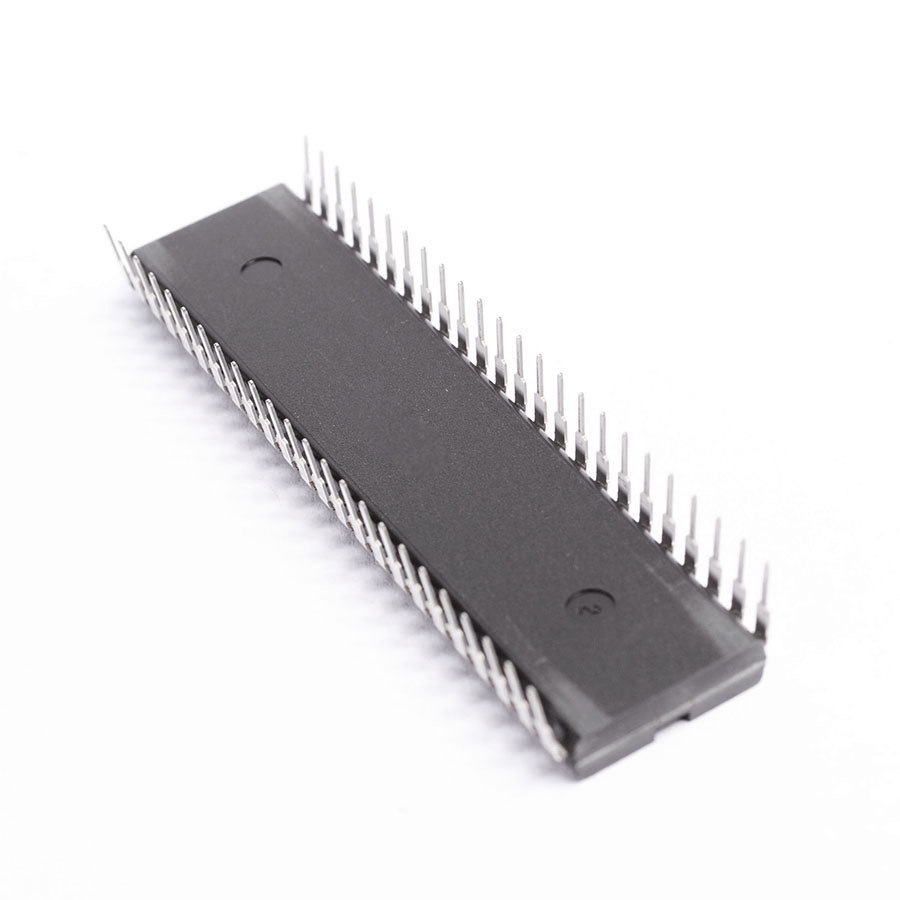

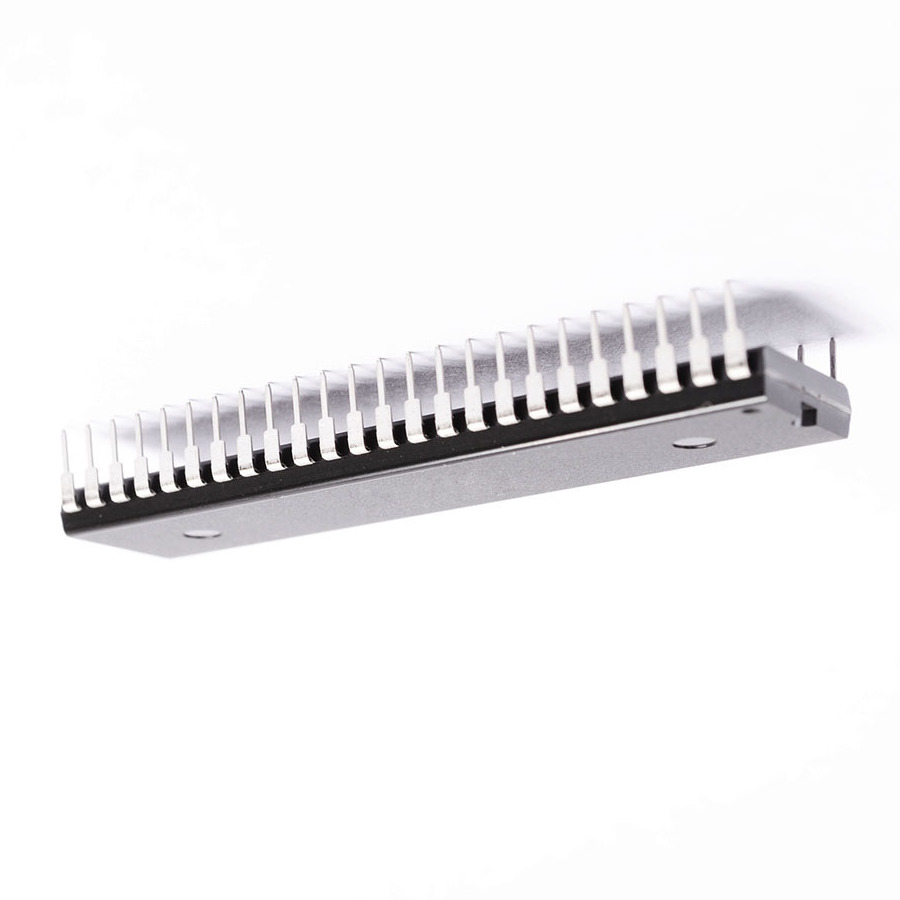

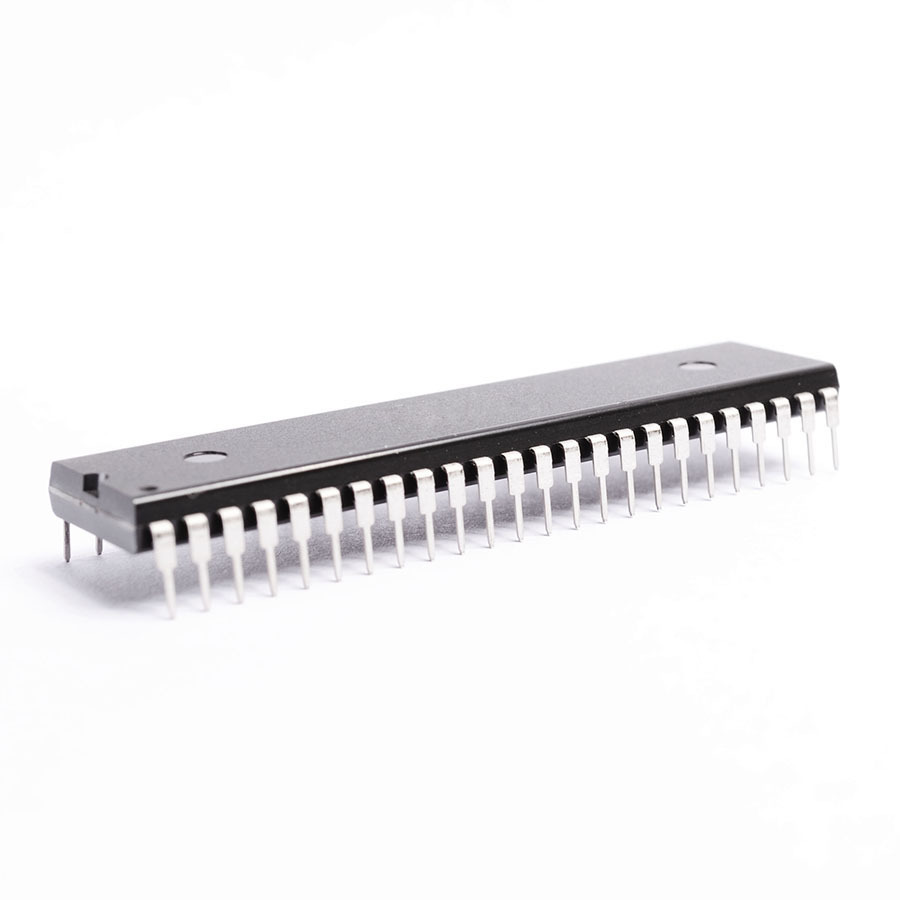

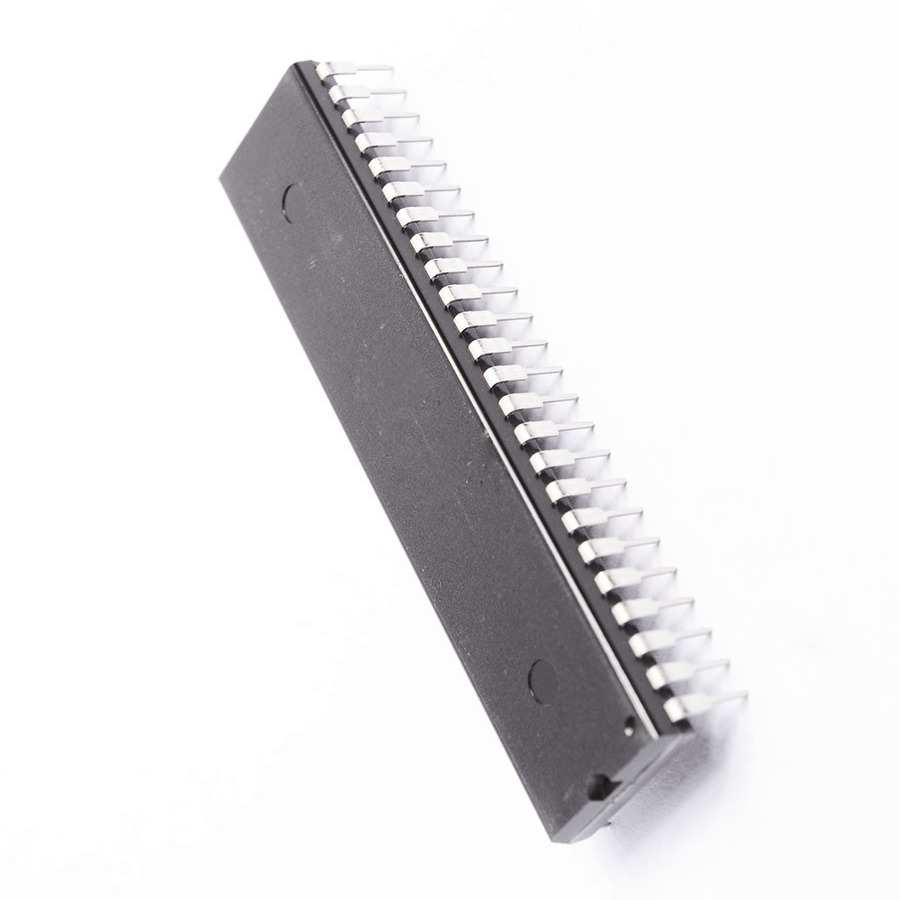

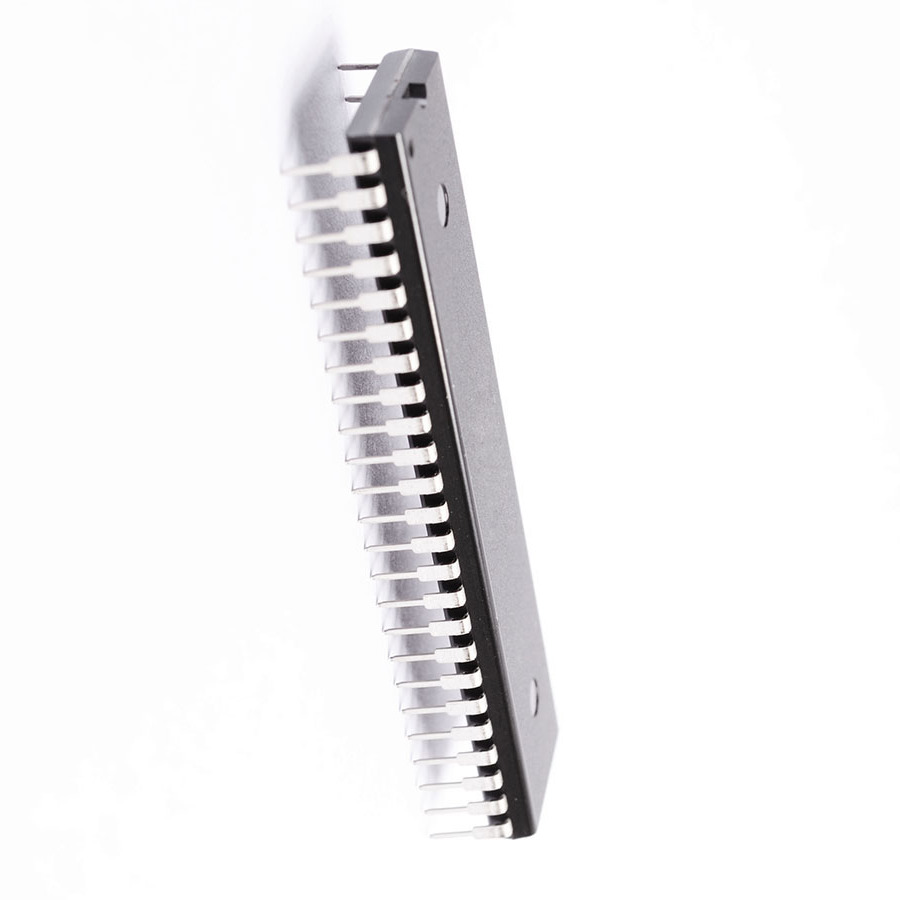

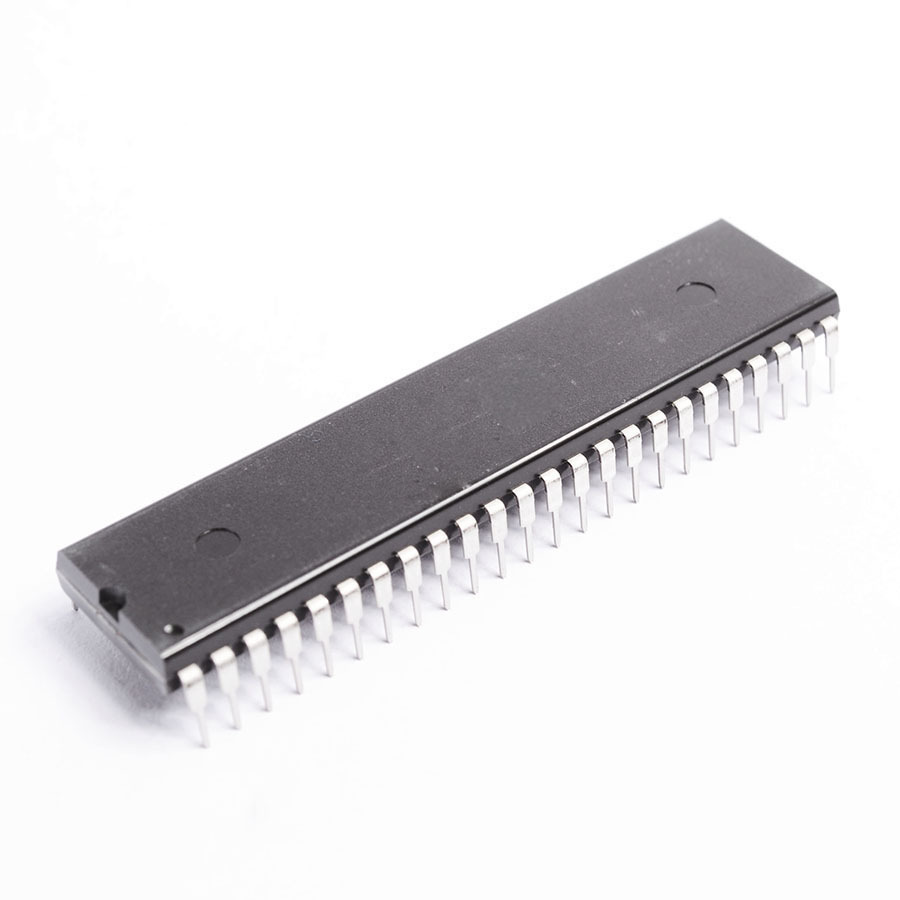

MC68HC05B4MP Integrated Circuit CASE: DIP48 MAKE: Motorola Semiconductor
Product specifications
Type Integrated Circuit
Case DIP48
Manufacturer Motorola Semiconductor
No.of Addr. Modes 10
No. of I/O Lines 28
I/O Line Types Byte/MUXed
Max. Inst. Len (bits) 24
Min Inst. Len (bits) 8
No. of Intrpt Lines 1
Intrpt Types Sftwr/Ex V
No. of Intrpt (mask) 1
fClk Max. (Hz) 2.1M
fClk Min (Hz) 1.0M
No. of I/O Ports 4
On-Chip ROM (bytes) 4k
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 176
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 125
Pinout Equivalence Number 48-122
Descript Memory mapped I/O; 24 I/O lines
No. of Pins 48
Surface Mounted Yes/No NO
SKU 1136287
