Home / Integrated Circuit / MC68HC11A8FN1
MC68HC11A8FN1

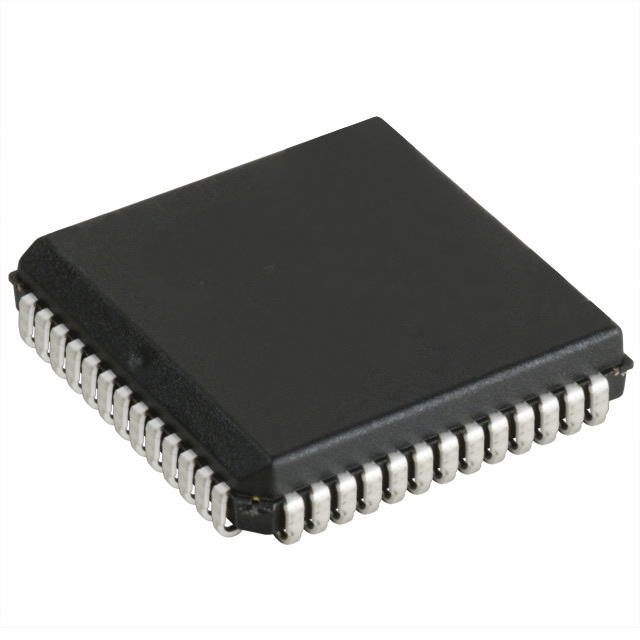

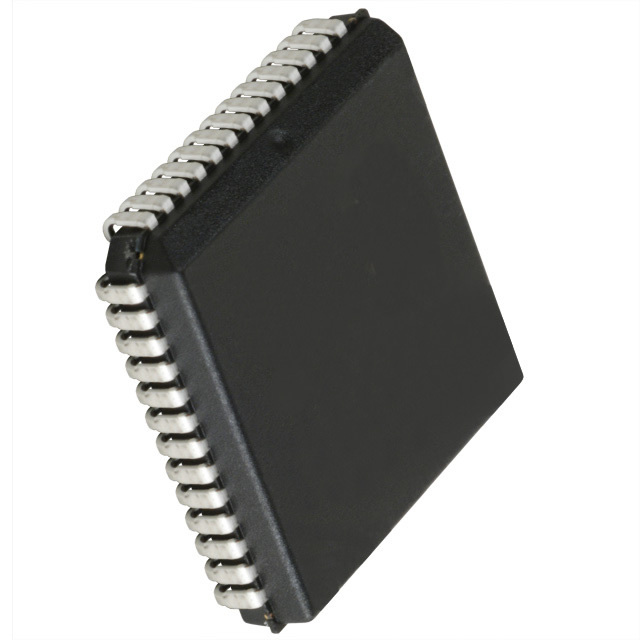

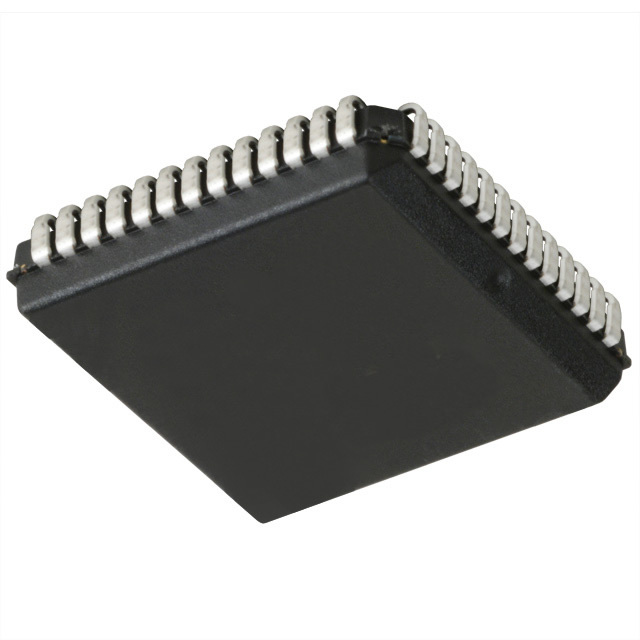

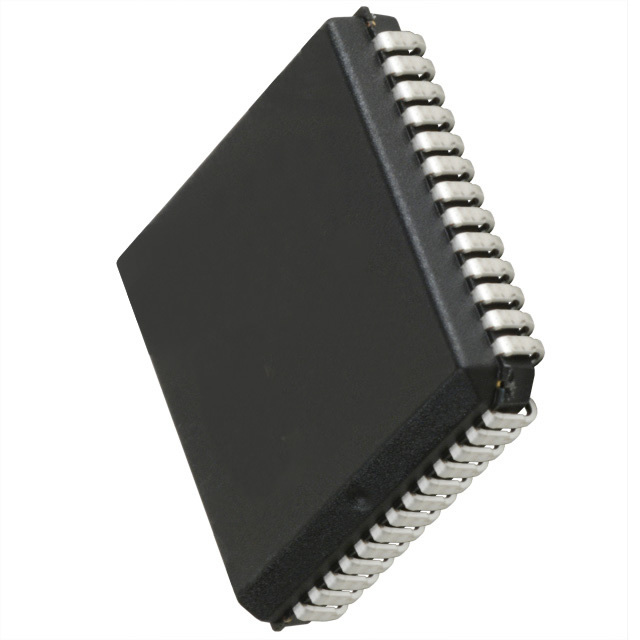

View detailed images (4)

MC68HC11A8FN1

SKU: MC68HC11A8FN1
MC68HC11A8FN1 Integrated Circuit CASE: PLCC52 MAKE: Motorola Semiconductor
Price:
£45.59 Inc. VAT (£37.99 Ex. VAT)
£45.59 Inc. VAT (£37.99 Ex. VAT)
Qty
  • 3 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Integrated Circuit
Case PLCC52
Manufacturer Motorola Semiconductor
Mem. Addr Rnge 64k
No.of Addr. Modes 6
No. of I/O Lines 15
I/O Line Types Byte/MUXed
Max. Inst. Len (bits) 24
Min Inst. Len (bits) 8
No. of Intrpt Lines 2
No. of Intrpt (NMI) 1
Intrpt Types Maskab/Non
No. of Intrpt (mask) 1
fClk Max. (Hz) 8.4M
fClk Min (Hz) 0.0
No. of I/O Ports 5
On-Chip ROM (bytes) 8k
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 256
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
Pinout Equivalence Number 52-65
No. of Pins 52
Surface Mounted Yes/No YES
SKU 1136709
