MC68HC705B5CP
View detailed images (13)

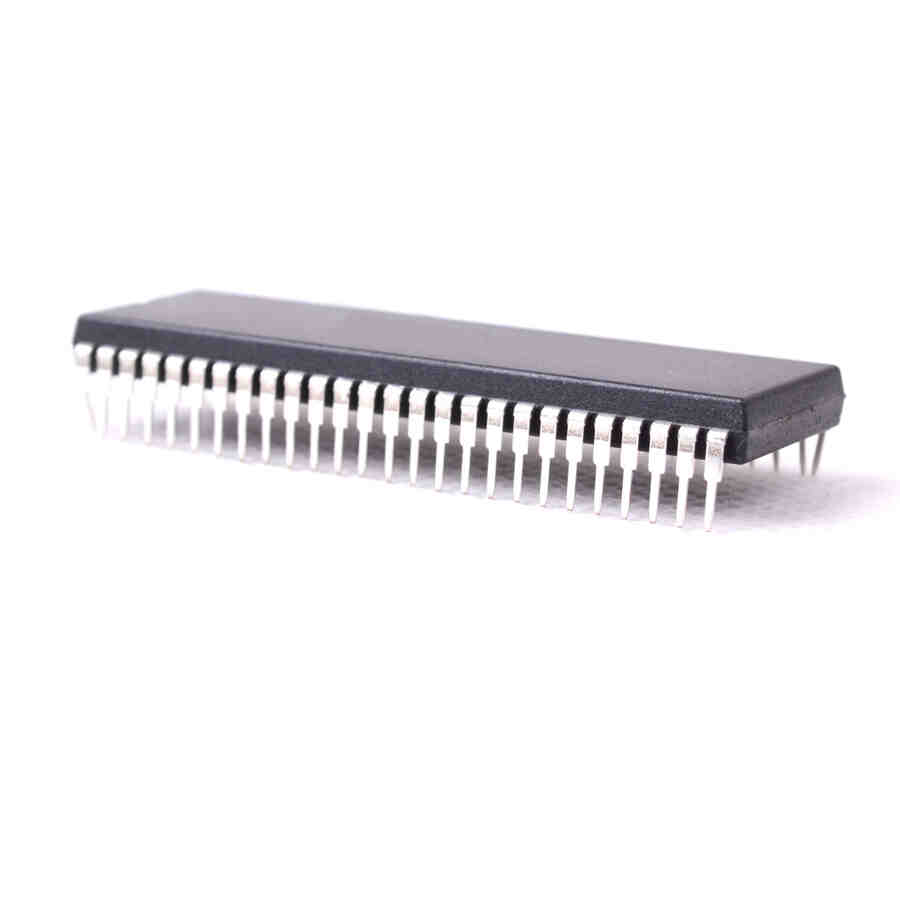

MC68HC705B5CP

SKU: MC68HC705B5CP

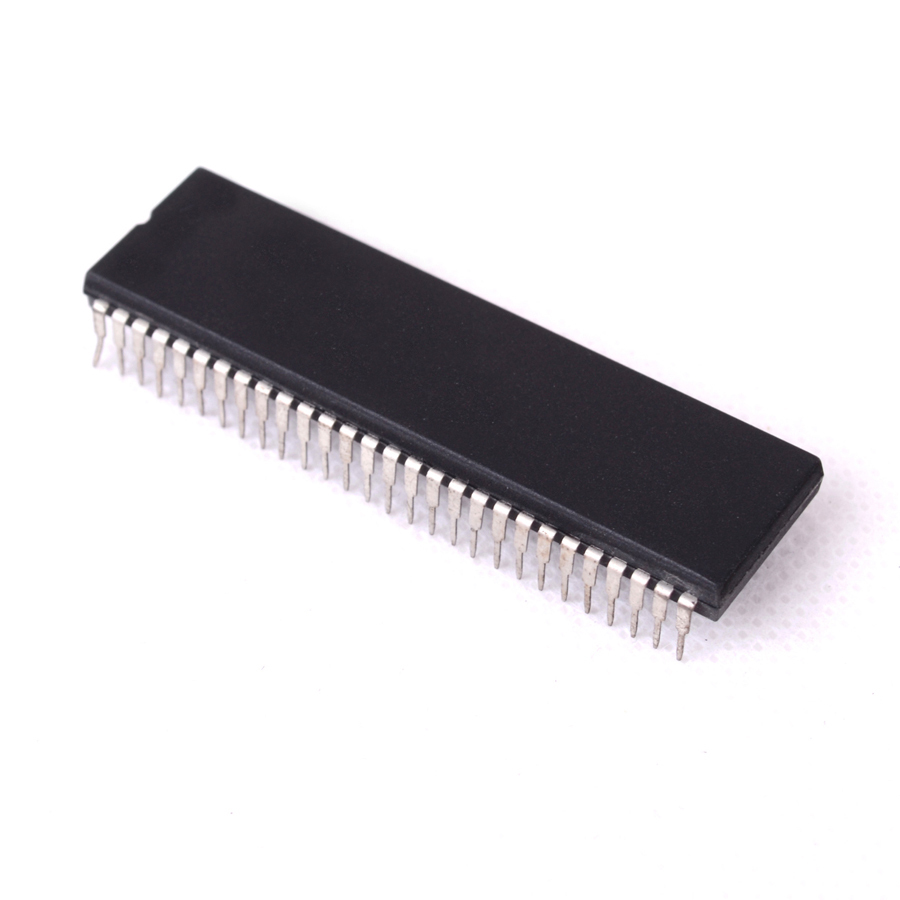

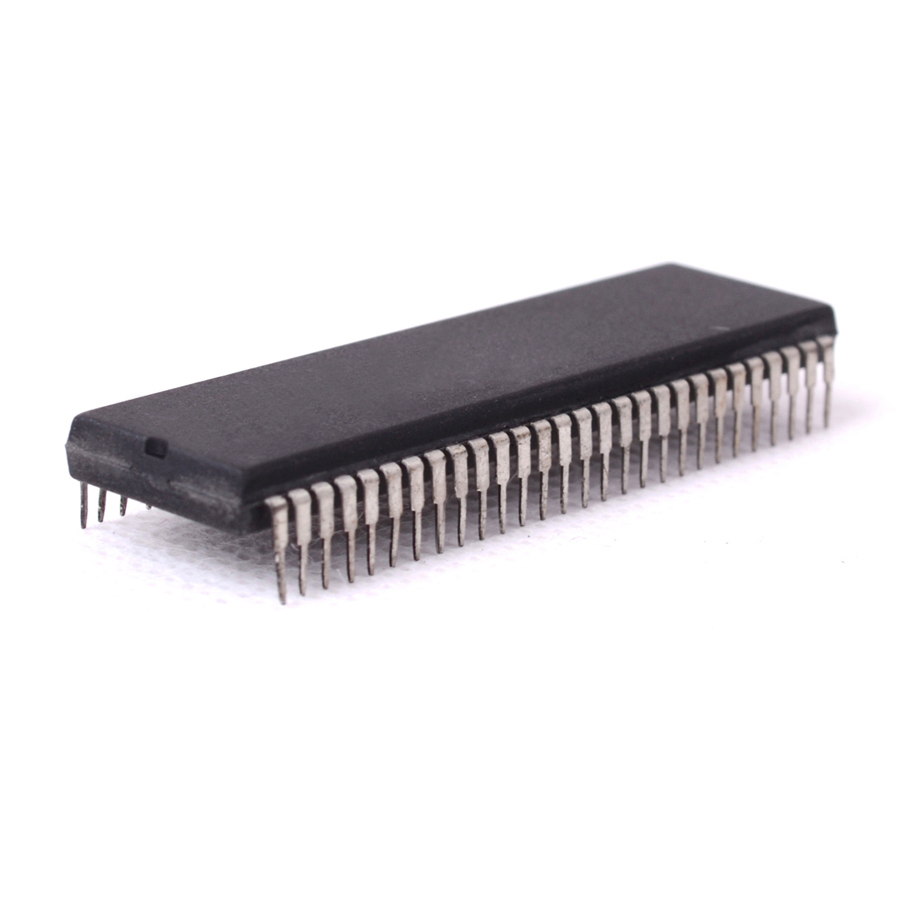

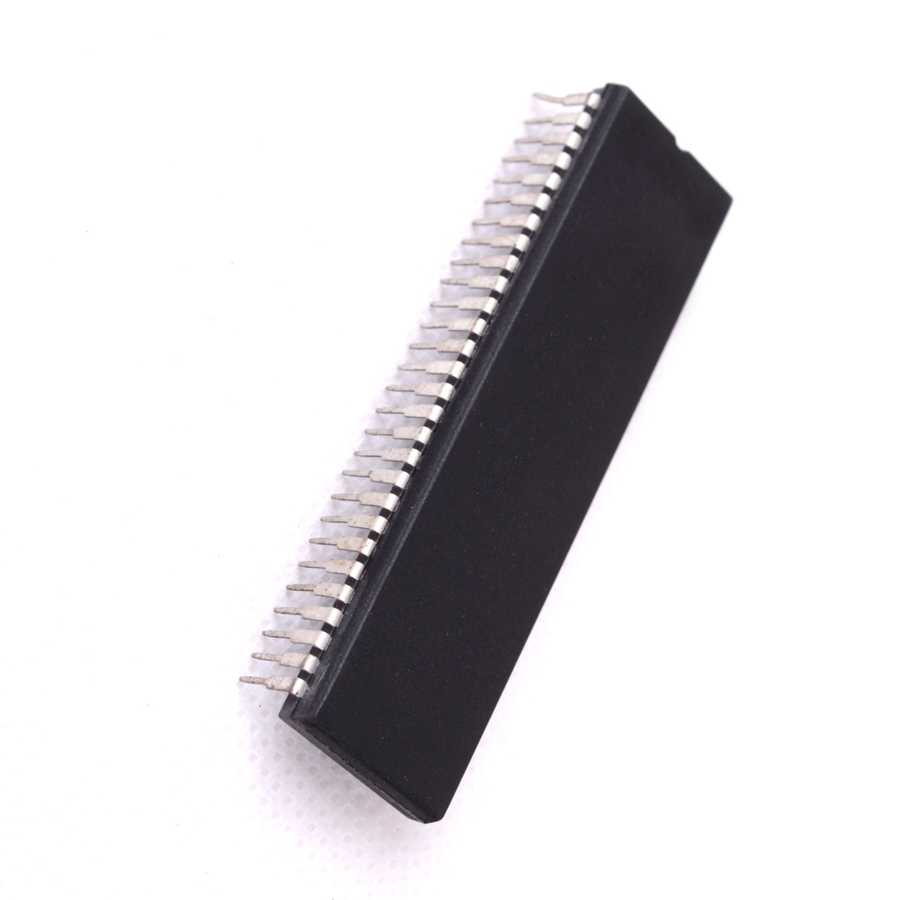

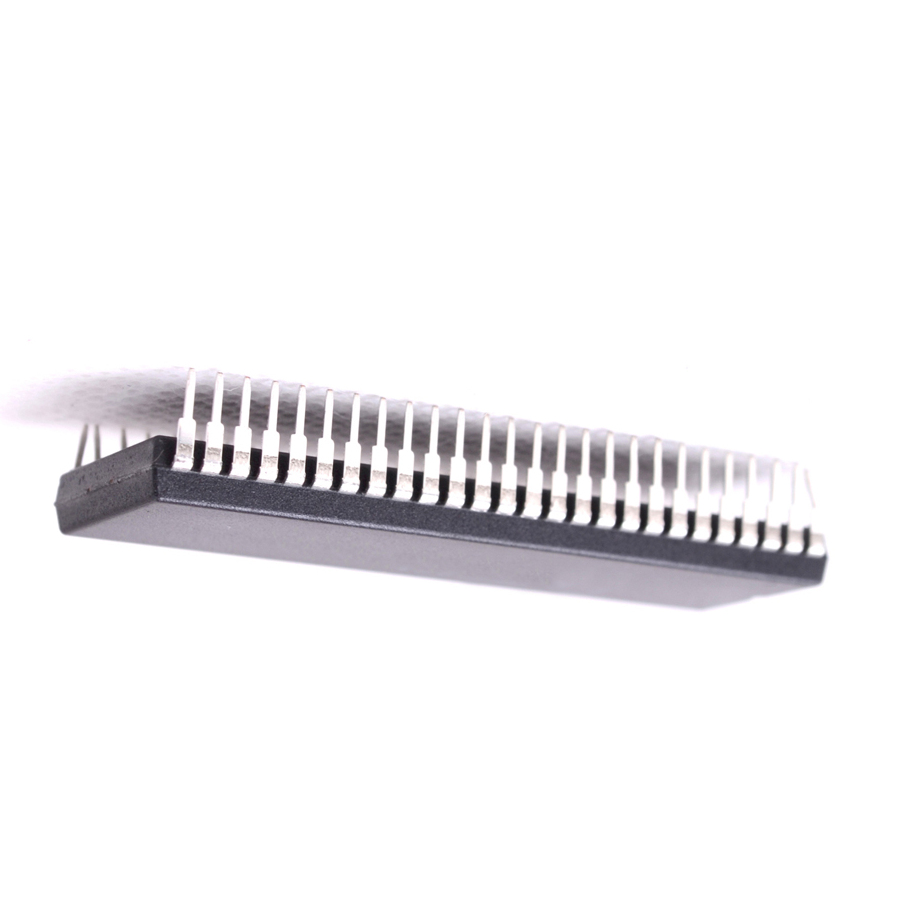

MC68HC705B5CP Integrated Circuit CASE: DIP56 MAKE: Motorola Semiconductor
Product specifications
Type Integrated Circuit
Case DIP56
Manufacturer Motorola Semiconductor
No.of Addr. Modes 10
No. of I/O Lines 32
I/O Line Types Byte/MUXed
Max. Inst. Len (bits) 24
Min Inst. Len (bits) 8
No. of Intrpt Lines 1
No. of Intrpt (NMI) 1
Intrpt Types Sftwr/Ex V
No. of Intrpt (mask) 3
fClk Max. (Hz) 2.1M
No. of I/O Ports 4
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 176
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
Pinout Equivalence Number 56-6
No. of Pins 56
Surface Mounted Yes/No NO
SKU 1136316
