MC68HC705B5FNF

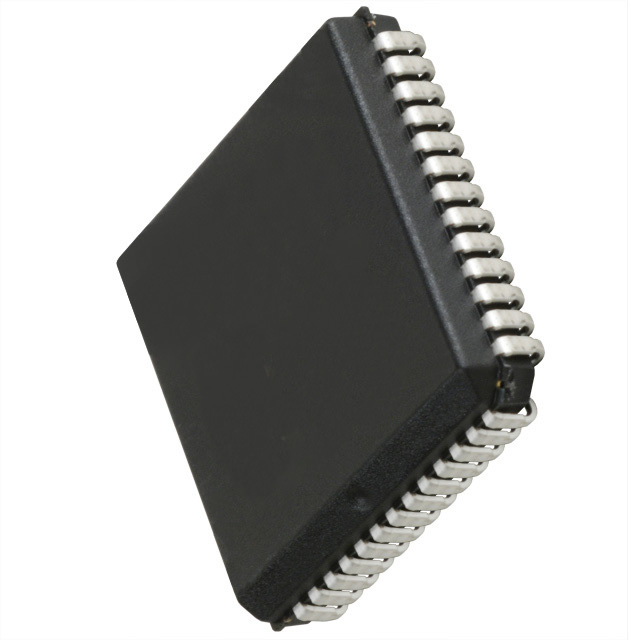

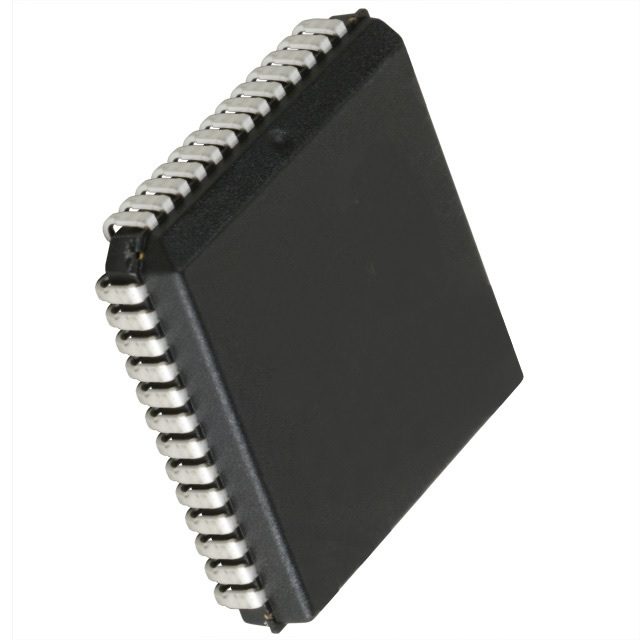

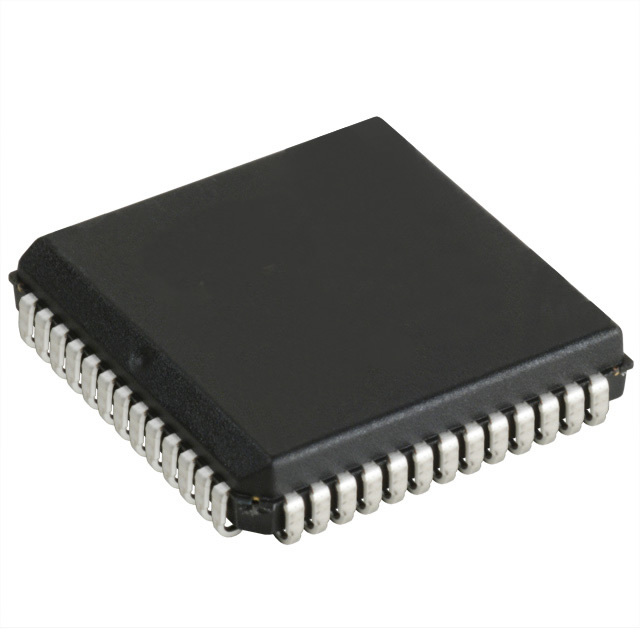

View detailed images (4)

MC68HC705B5FNF

SKU: MC68HC705B5FNF
MC68HC705B5FNF Integrated Circuit - Case: PLCC52 Make: Motorola Semiconductor
+ VAT 20% for UK purchases
Product specifications
Equivalent MC68HC705B5FN
Type Integrated Circuit
Case PLCC52
Manufacturer Motorola Semiconductor
No.of Addr. Modes 10
No. of I/O Lines 32
I/O Line Types Byte/MUXed
Max. Inst. Len (bits) 24
Min Inst. Len (bits) 8
No. of Intrpt Lines 1
No. of Intrpt (NMI) 1
Intrpt Types Sftwr/Ex V
No. of Intrpt (mask) 3
fClk Max. (Hz) 2.1M
No. of I/O Ports 4
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 176
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 52-64
No. of Pins 52
Surface Mounted Yes/No YES
SKU 249739
