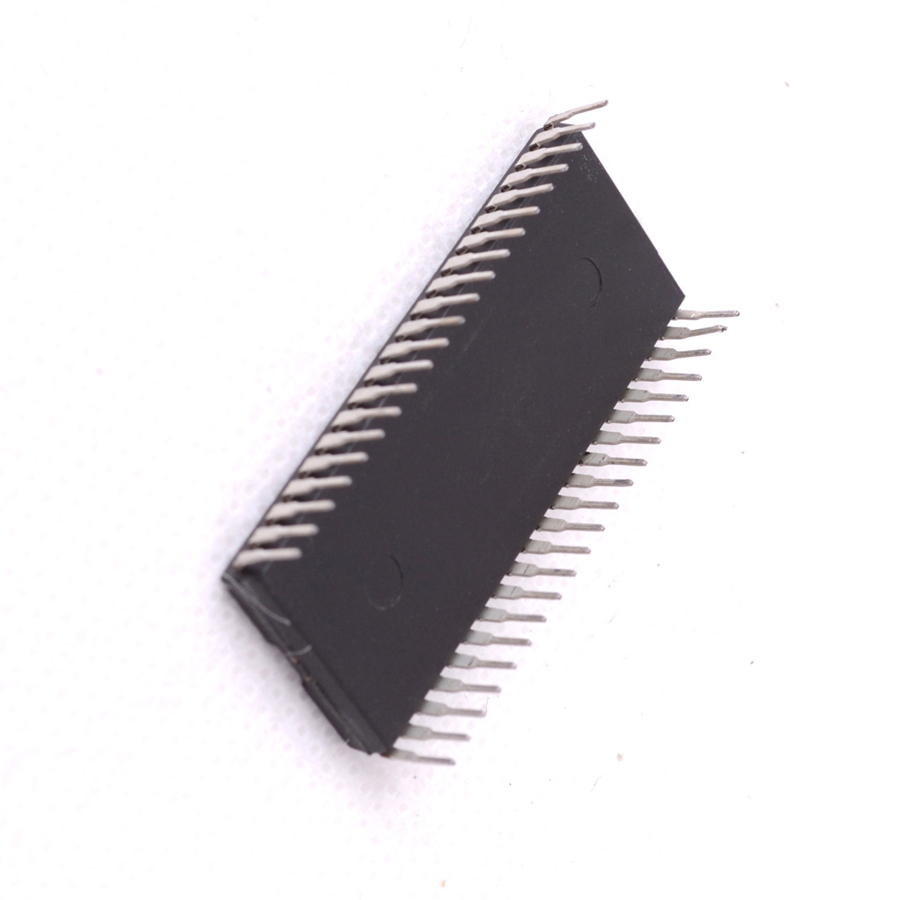

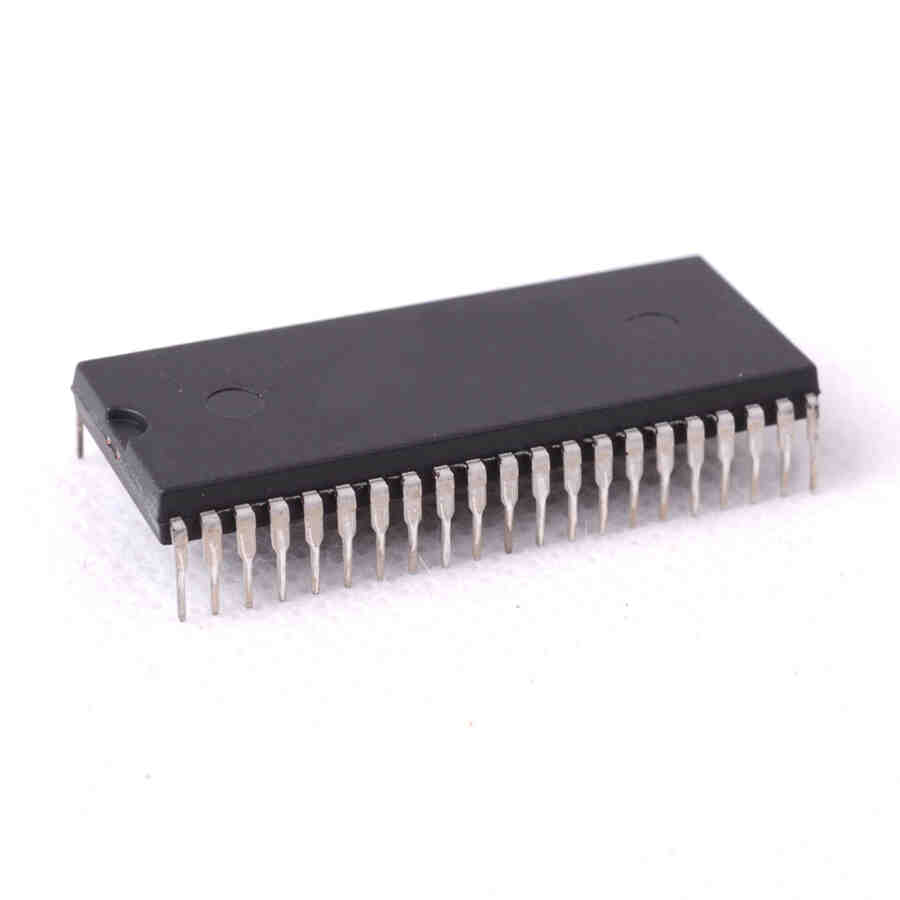

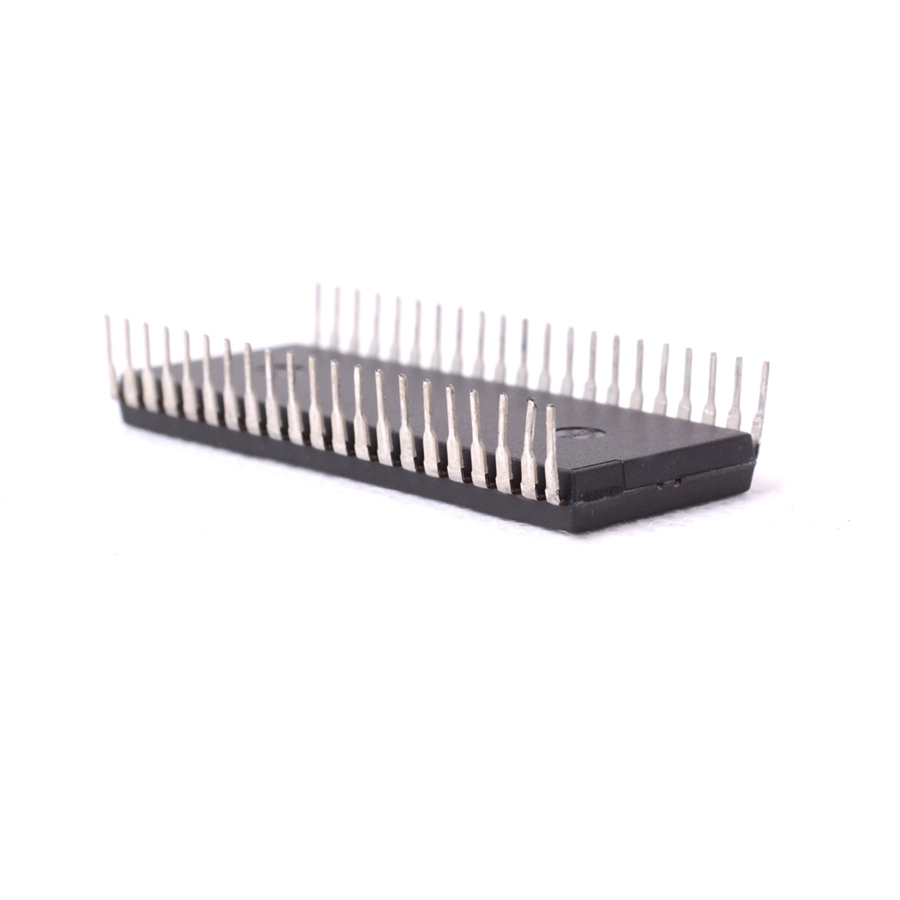

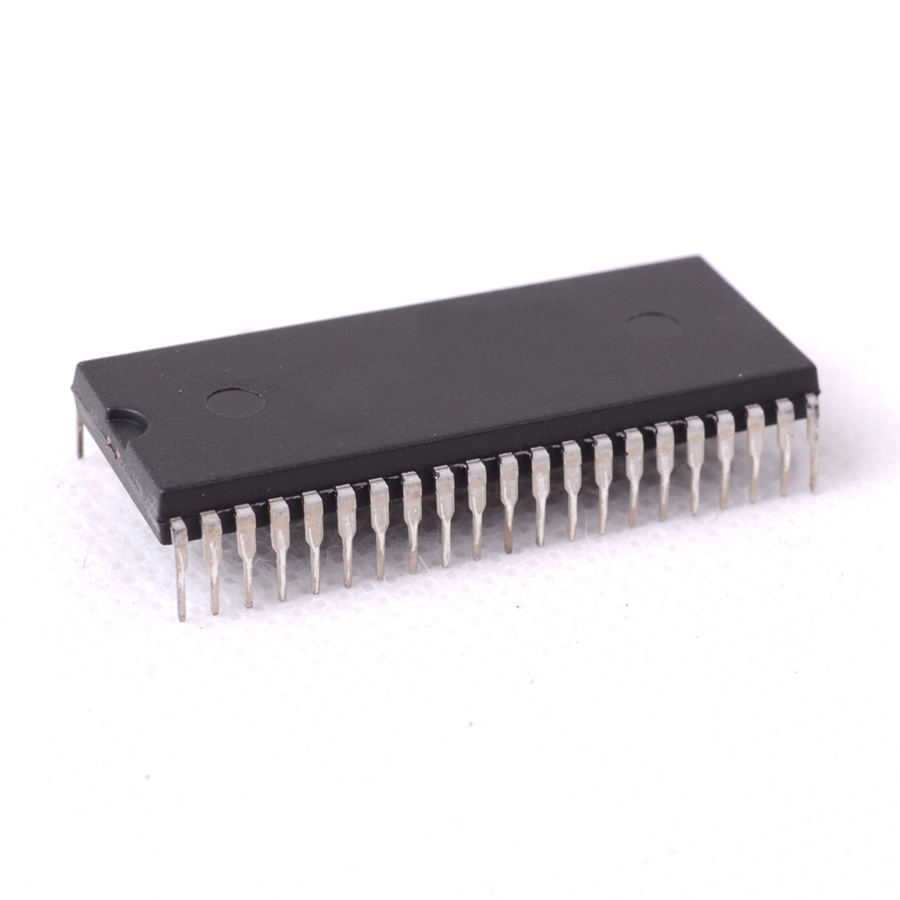

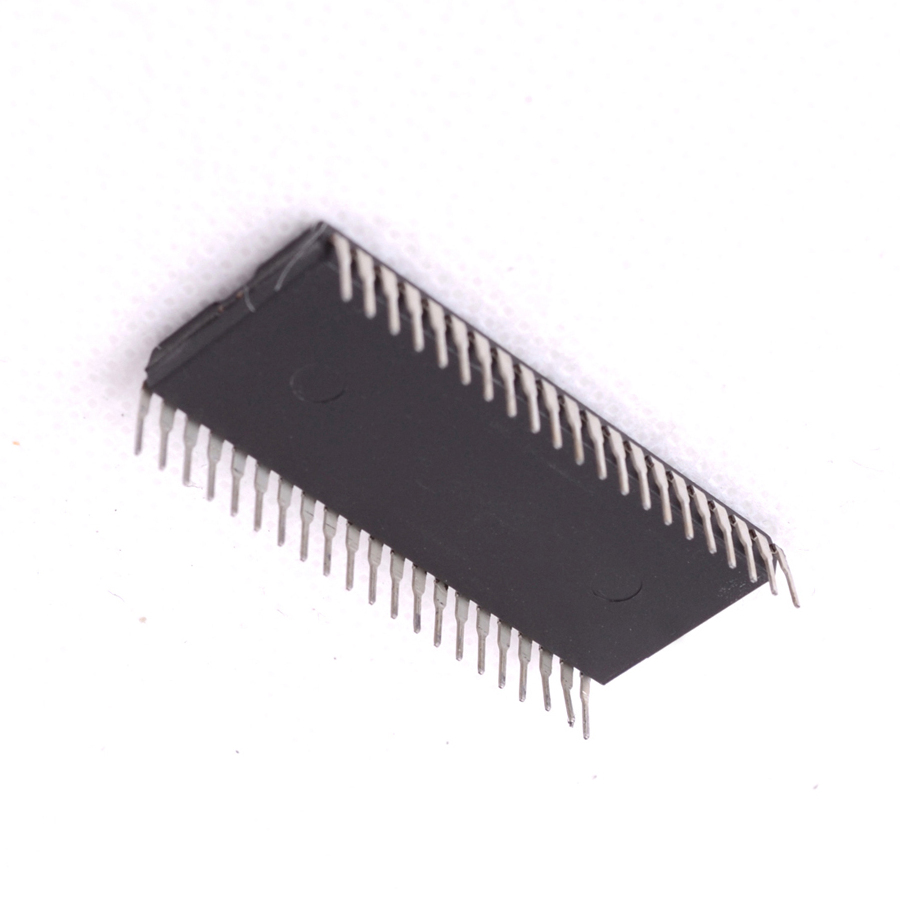

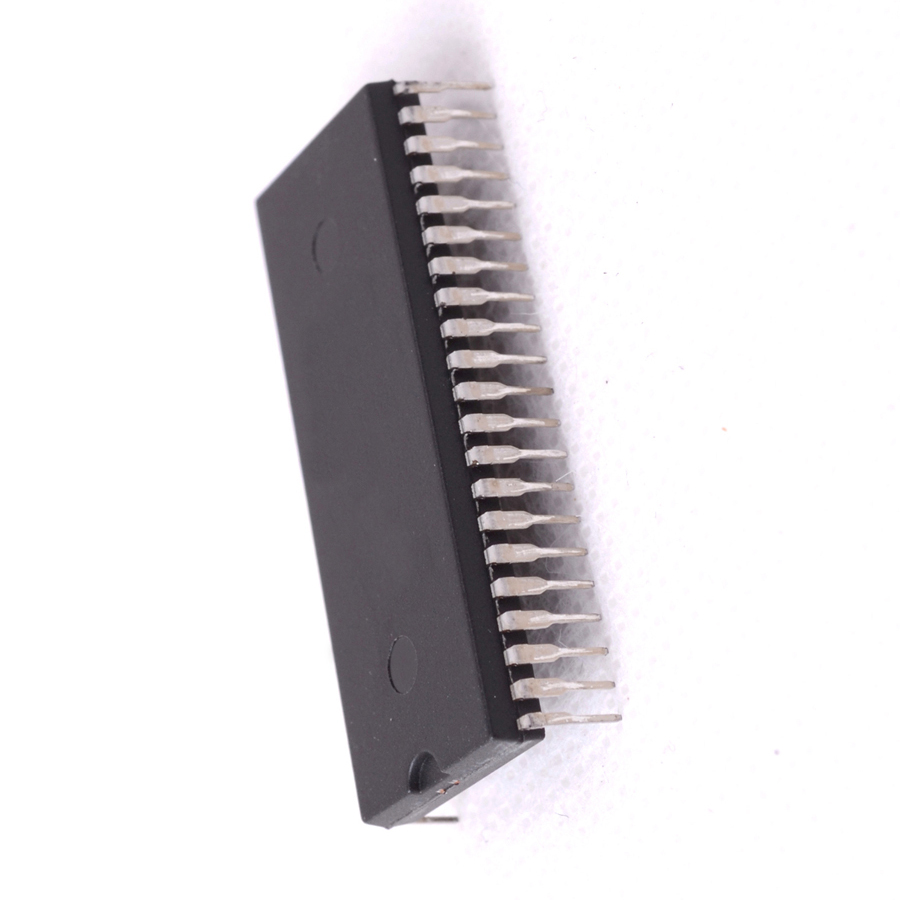

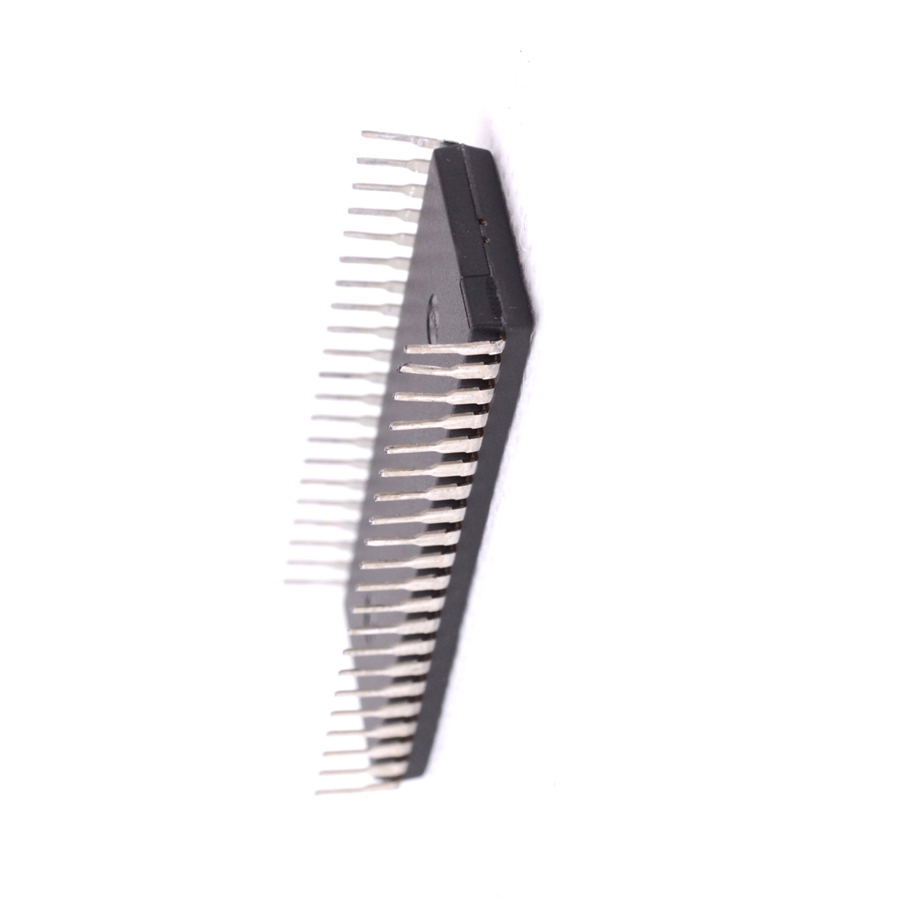

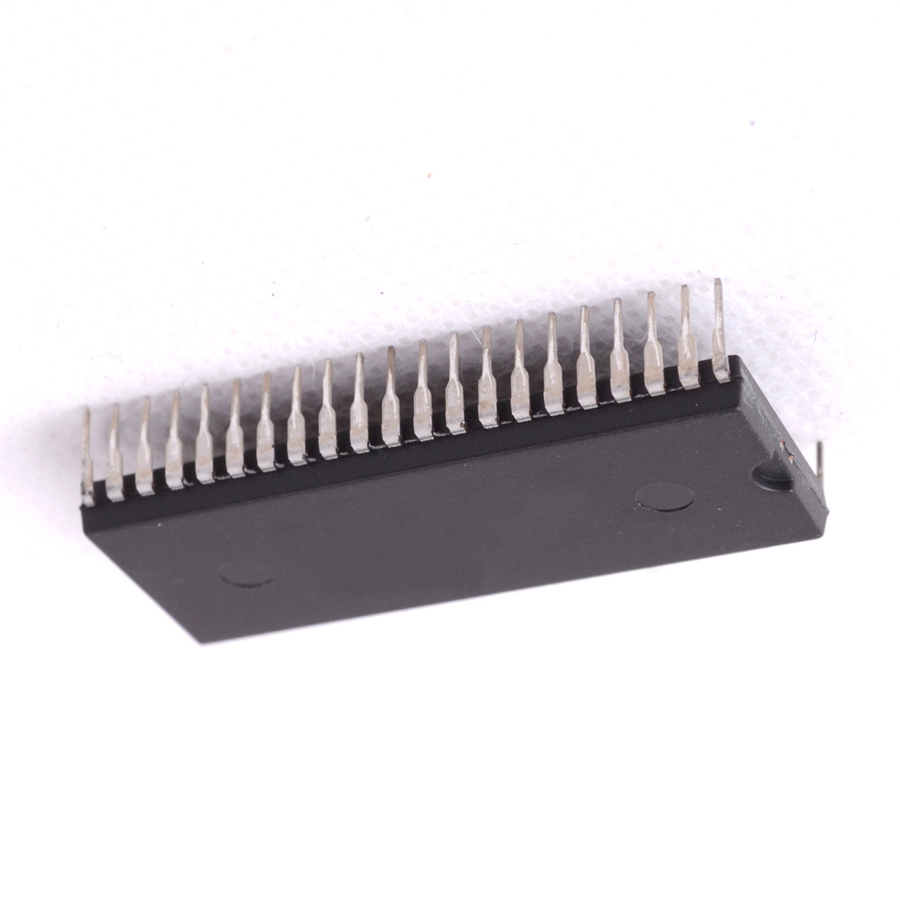

MC68HC705H2B

SKU: MC68HC705H2B
MC68HC705H2B Integrated Circuit CASE: DIP42 MAKE: Motorola Semiconductor
Product specifications
Type Integrated Circuit
Case DIP42
Manufacturer Motorola Semiconductor
No.of Addr. Modes 8
No. of I/O Lines 16
I/O Line Types ByteVarble
Max. Inst. Len (bits) 16
Min Inst. Len (bits) 8
No. of Intrpt Lines 1
No. of Intrpt (NMI) 1
Intrpt Types Sftwr/Ex V
No. of Intrpt (mask) 4
fClk Max. (Hz) 2.0M
No. of I/O Ports 2
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 128
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 42-94
No. of Pins 42
Surface Mounted Yes/No NO
SKU 1127051
