MC74ACT640DWG
View detailed images (4)

MC74ACT640DWG

SKU: MC74ACT640DWG

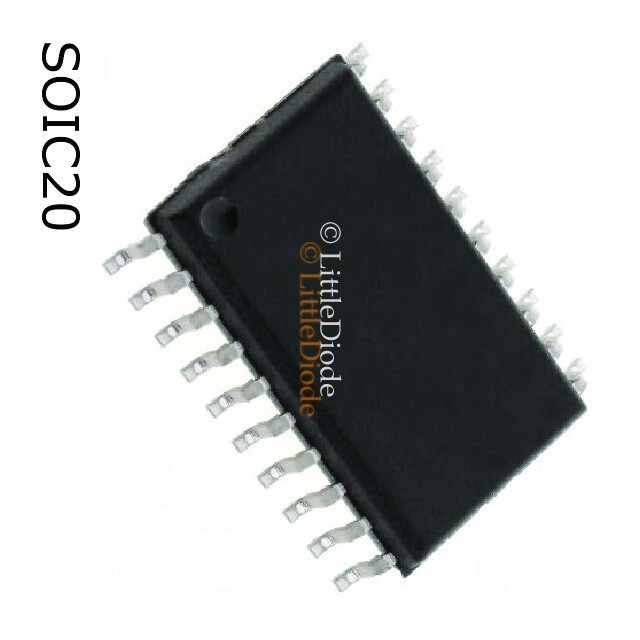

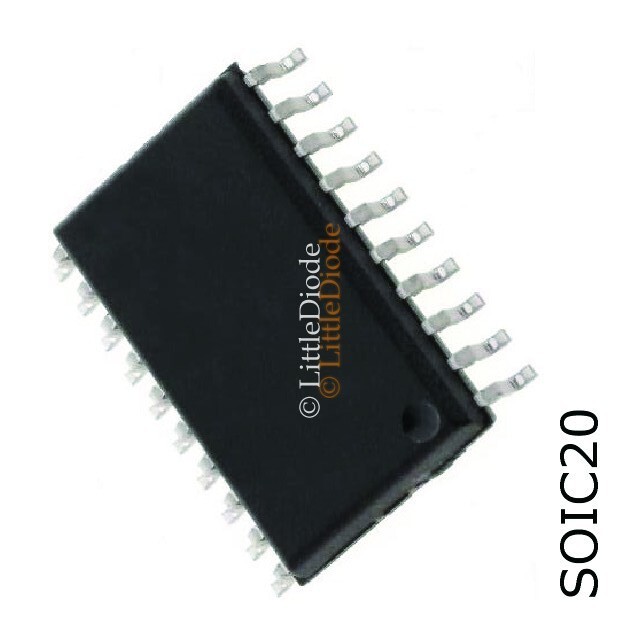

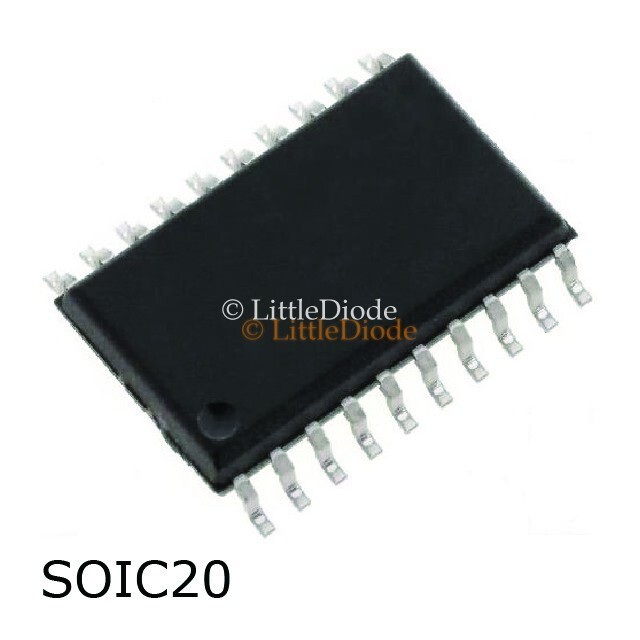

MC74ACT640DWG Integrated Circuit - Case: SOIC20 Make: Motorola Semiconductor
+ VAT 20% for UK purchases
Product specifications
Equivalent MC74ACT640DW
Type Logic IC
Case SOIC20
Manufacturer Motorola Semiconductor
Inp Thrshld Hi (V) 2.0
Inp Thrshld Lo (V) 0.8
Mode I/O D or S Single-End
tPD Max. (S) 11n
Nom. Neg Supp 0.0
Nom. Pos. Supp 4.5
Tech. CMOS Integrated Circuit
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
@IOL (A) 24m
VOL Max. (Drvr) 0.37
VOL Max. (Rcvr) 0.37
Pinout Equivalence Number 20-136
No. of Pins 20
Surface Mounted Yes/No YES
SKU 514967
