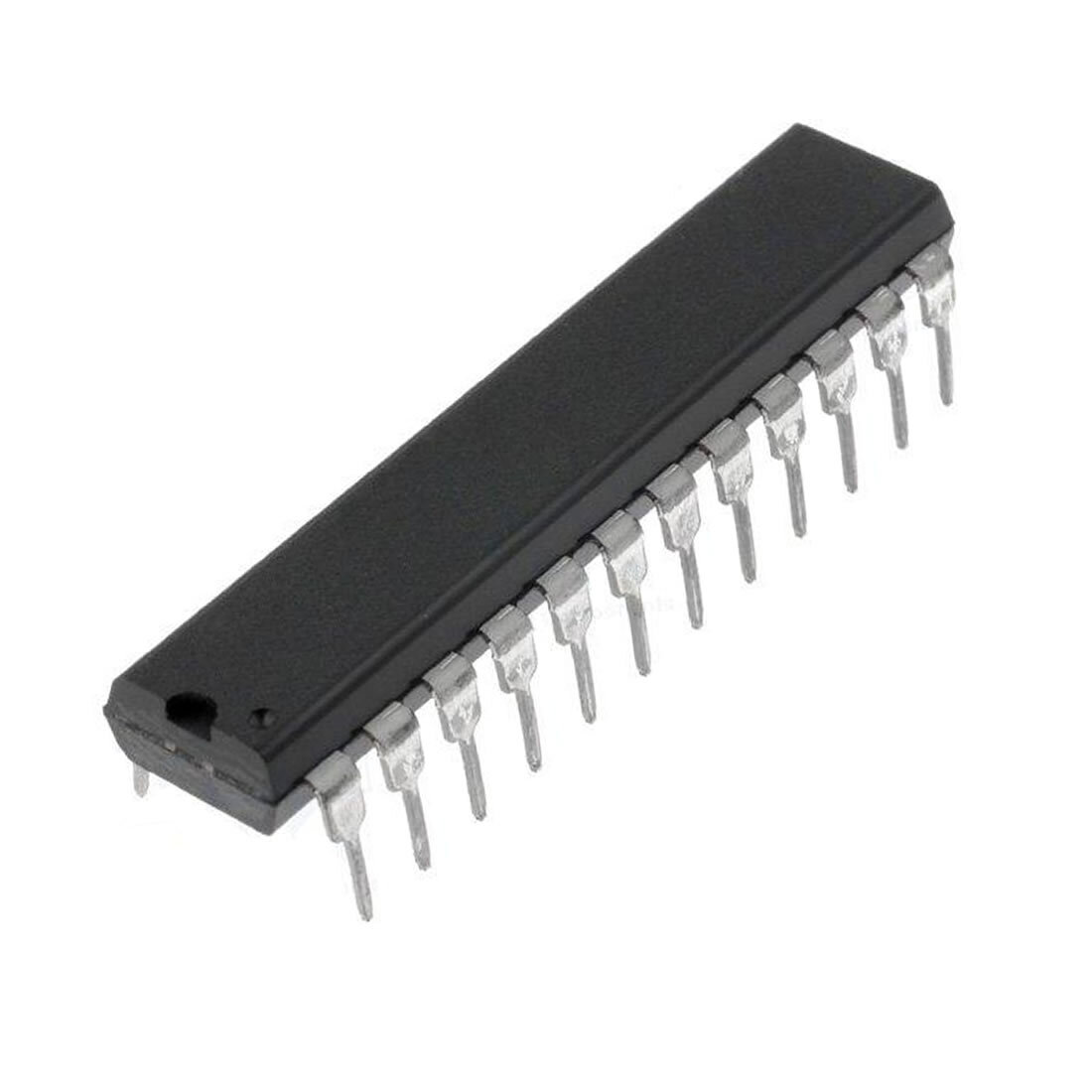

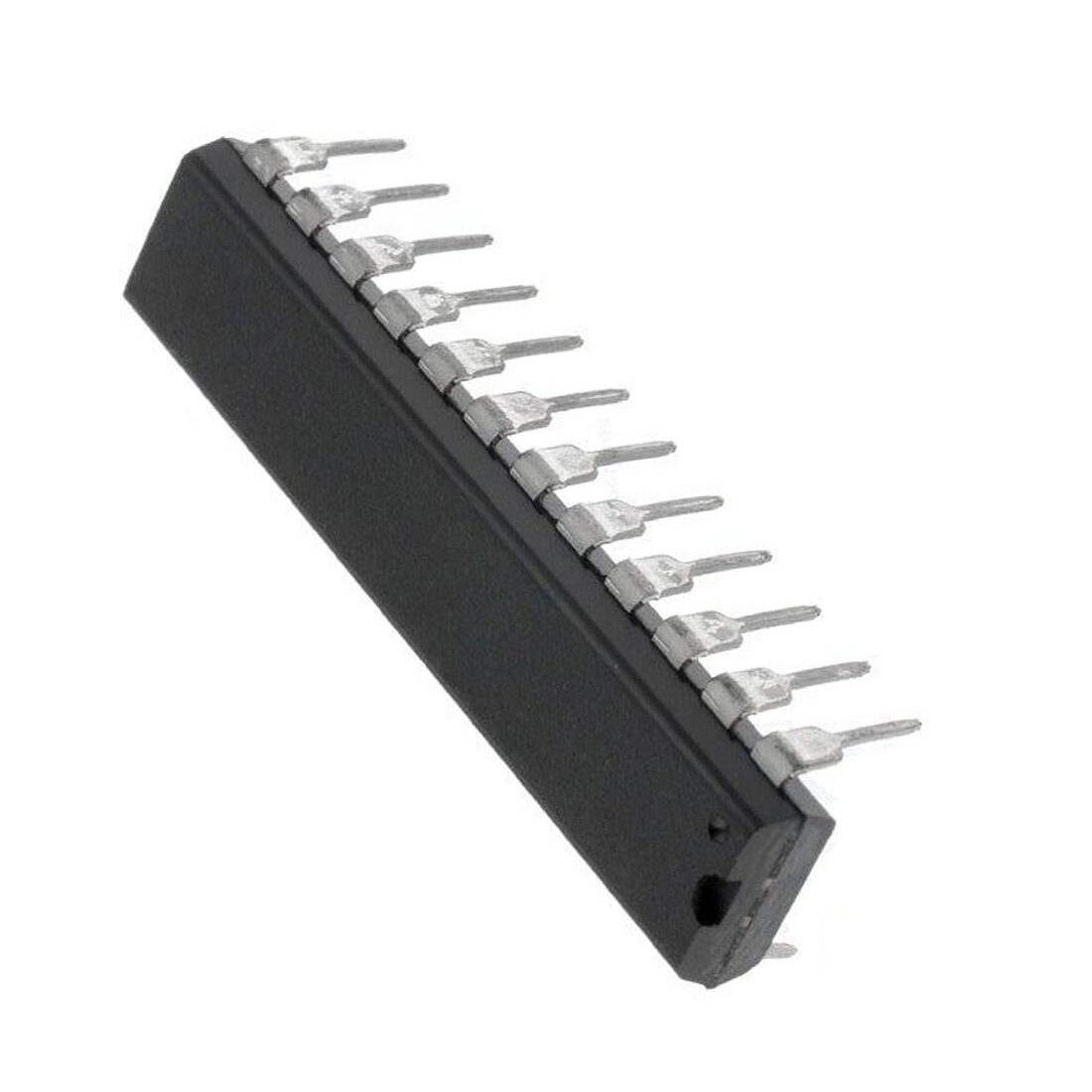

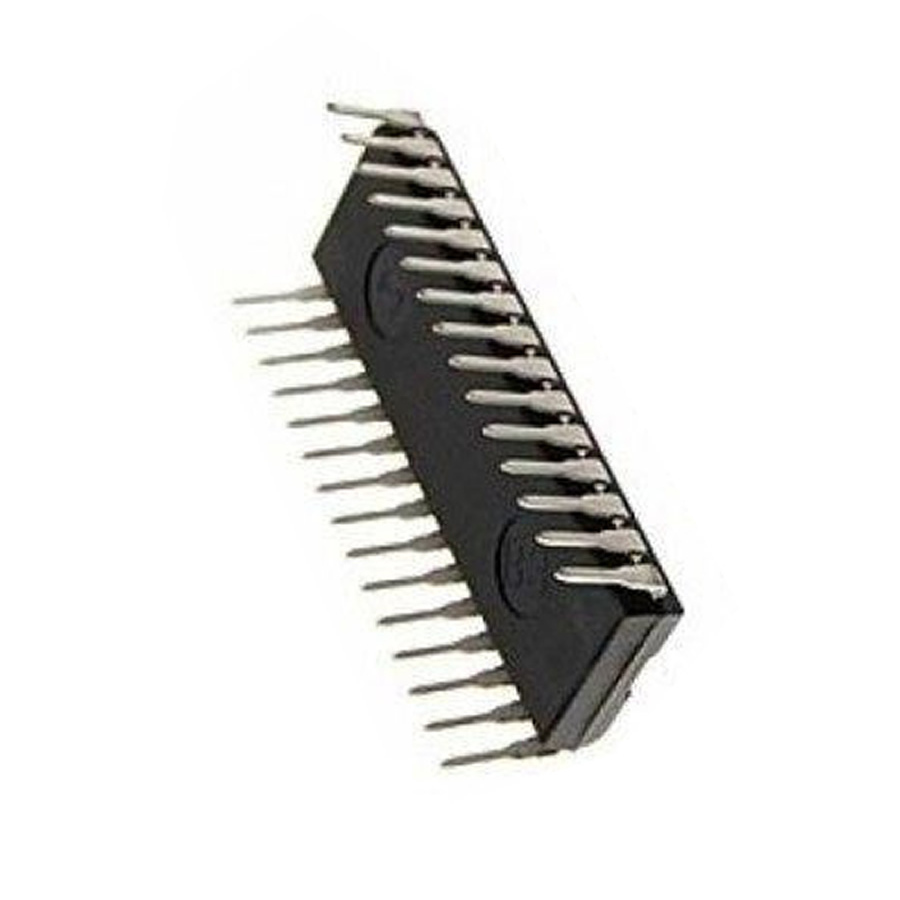

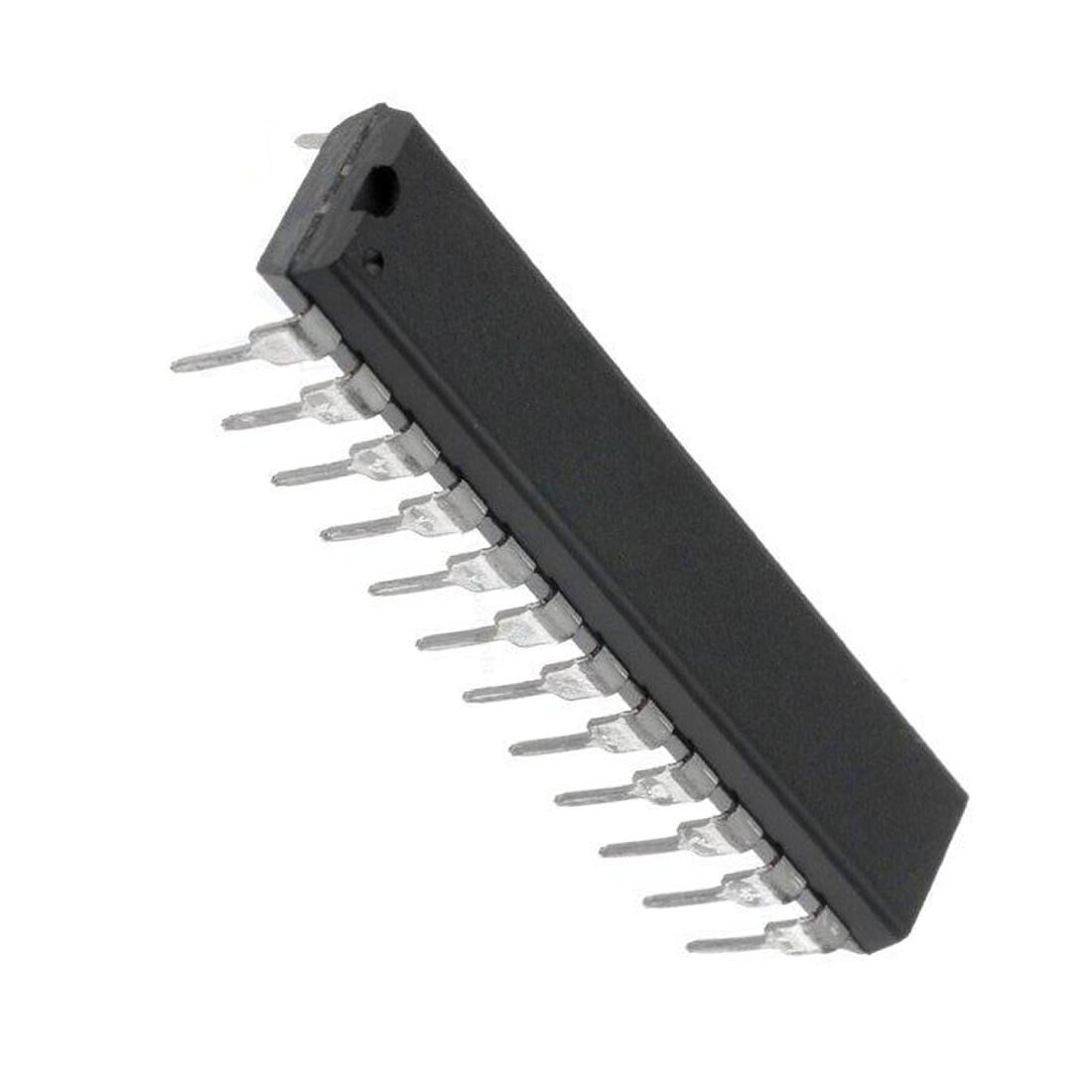

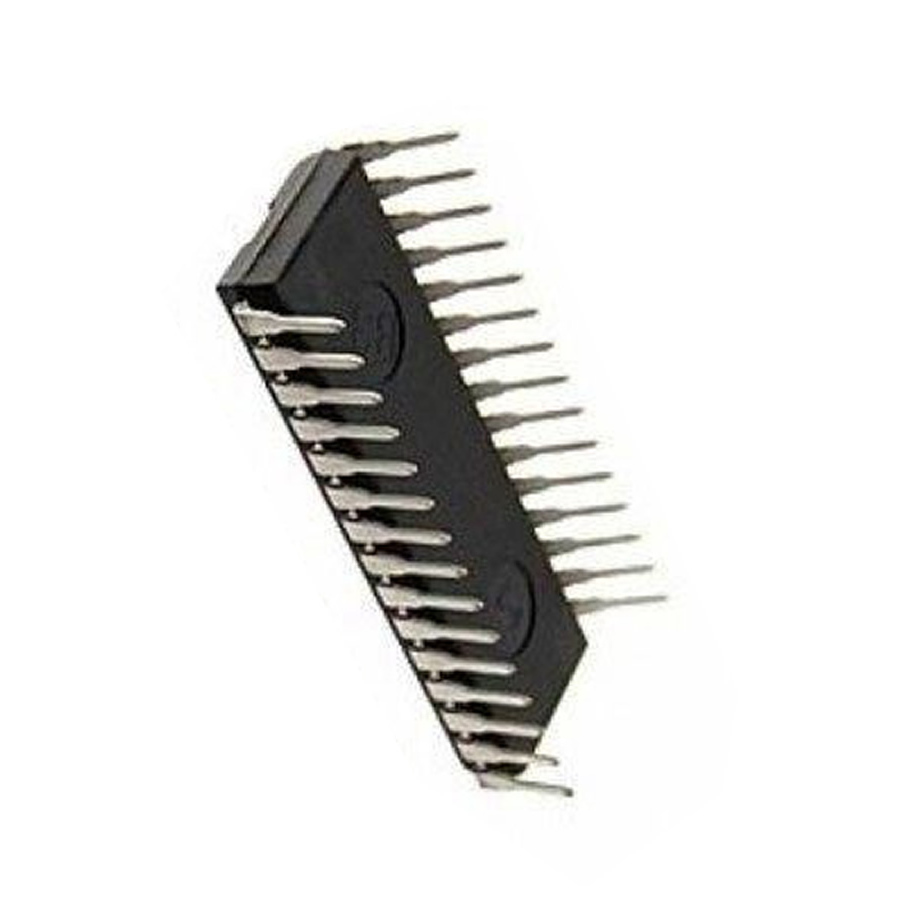

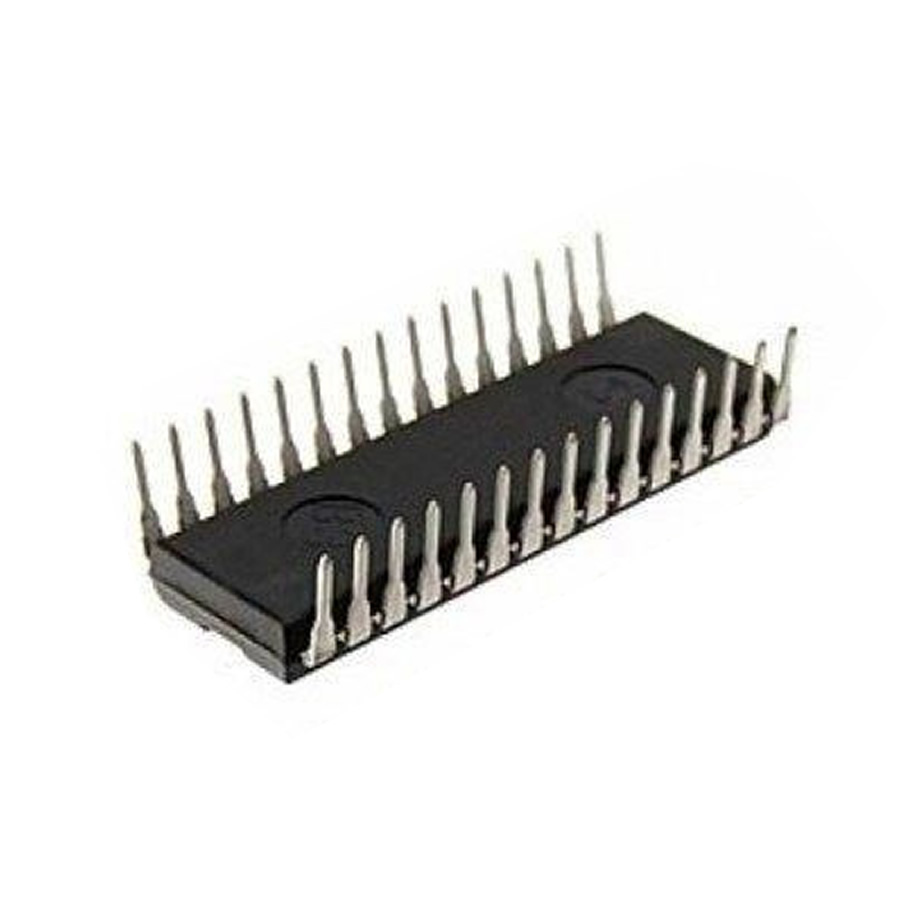

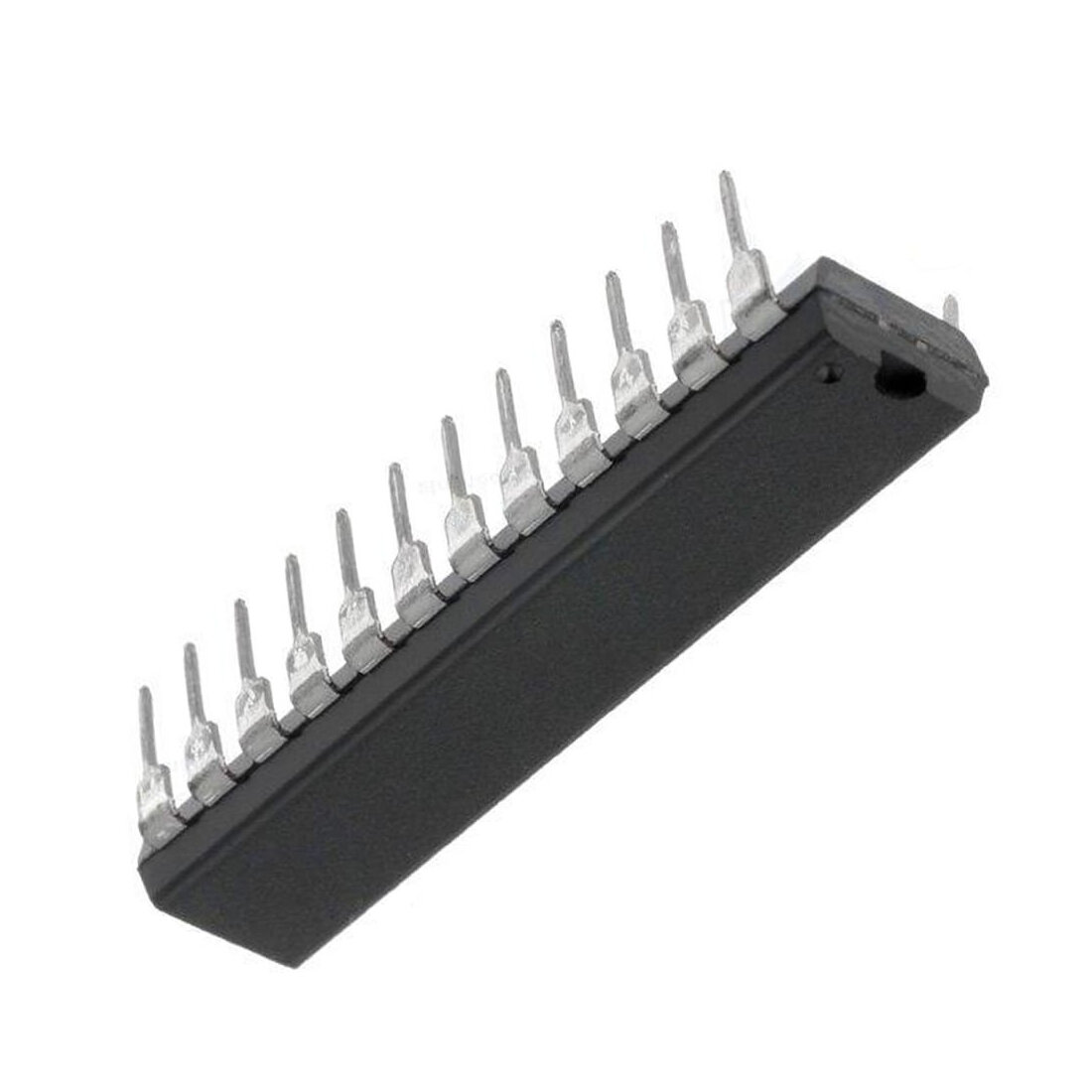

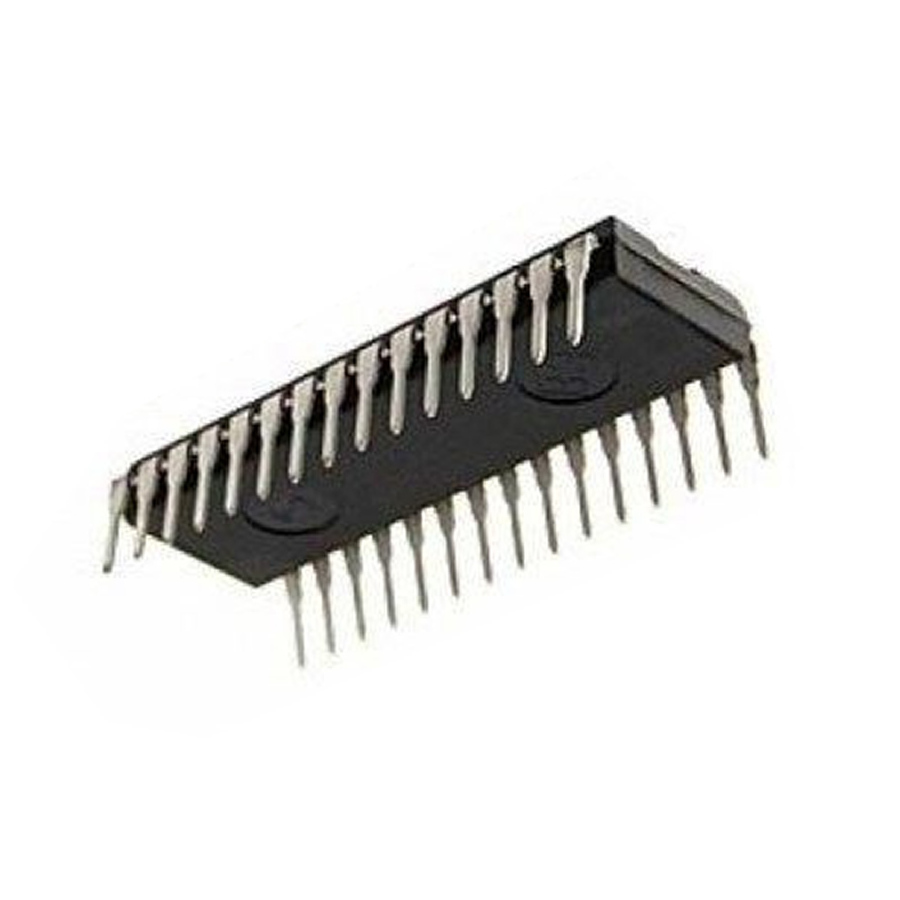

MC74F543N

MC74F543N

SKU: MC74F543N
MC74F543N Logic IC CASE: SDIP24 MAKE: Motorola Semiconductor
Product specifications
Equivalent MC74F543
Type Logic IC
Case SDIP24
Manufacturer Motorola Semiconductor
Mode I/O D or S Single-End
tPD Max. (S) 7.5n
Nom. Pos. Supp 5.0
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
@IOL (A) 24m
VOL Max. (Drvr) 0.5
VOL Max. (Rcvr) 0.55
VOH Min (Rcvr) 2.7
Pinout Equivalence Number 24-646
No. of Pins 24
Surface Mounted Yes/No NO
SKU 250215
