MC74HC4316N

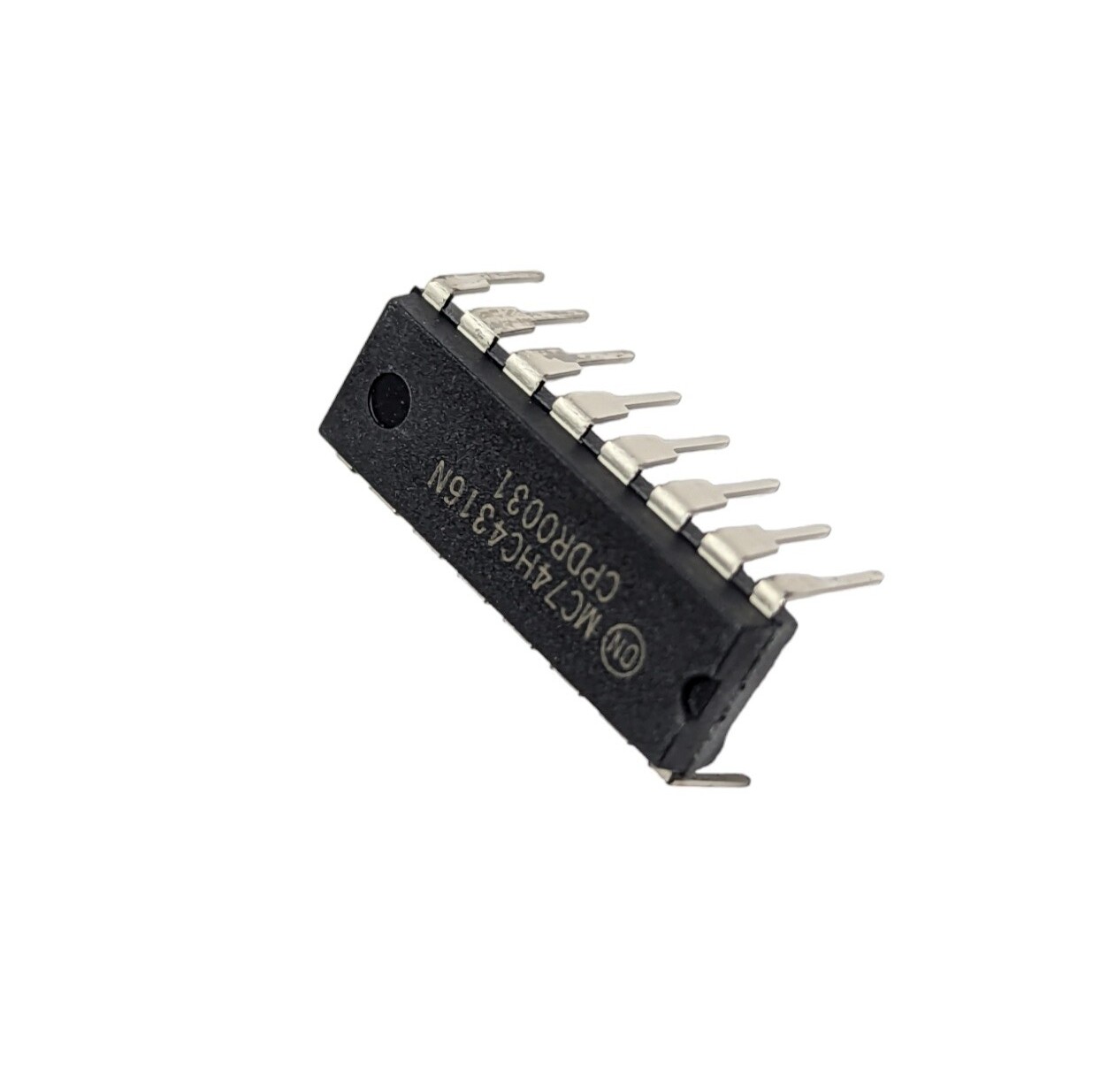

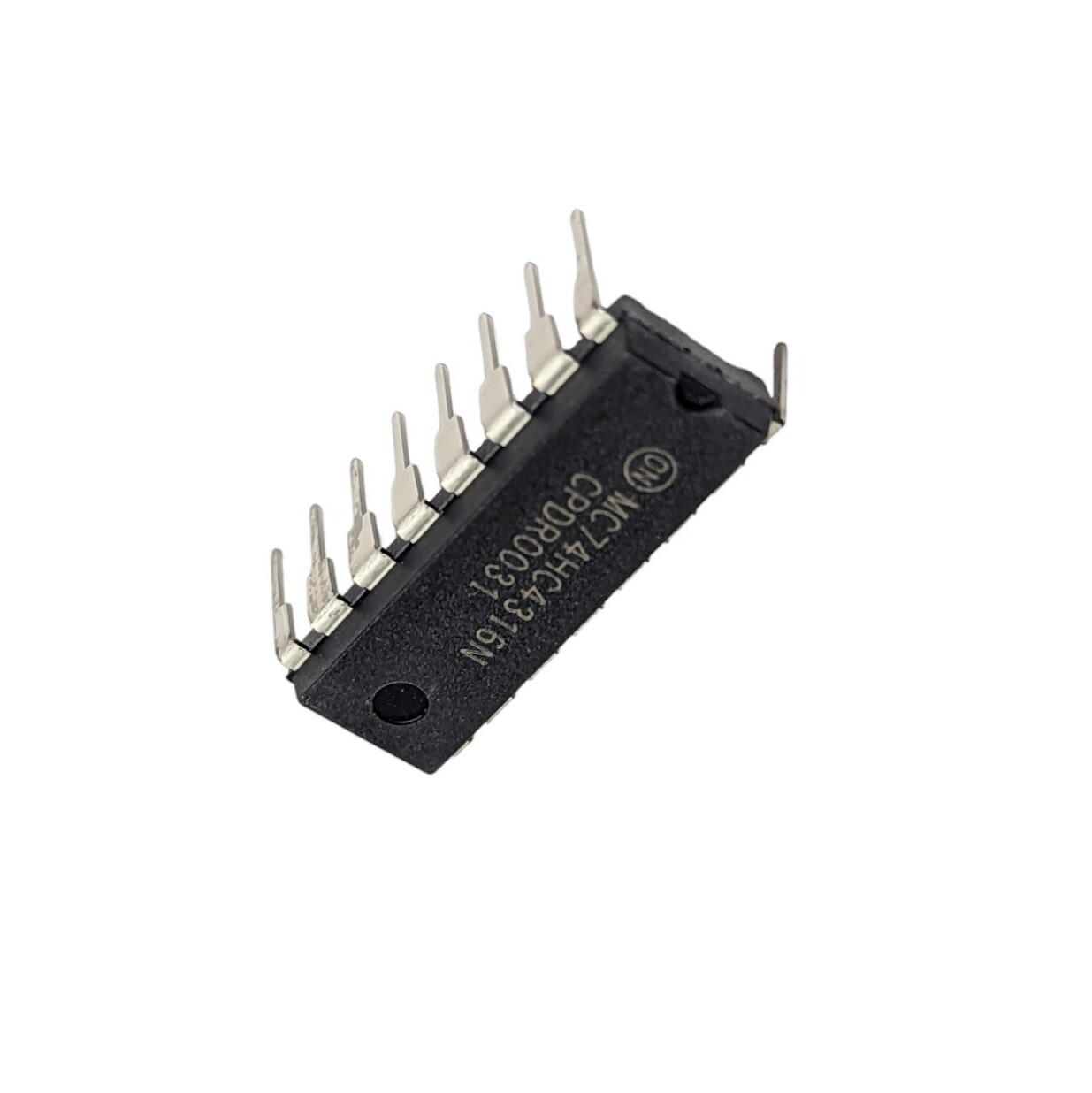

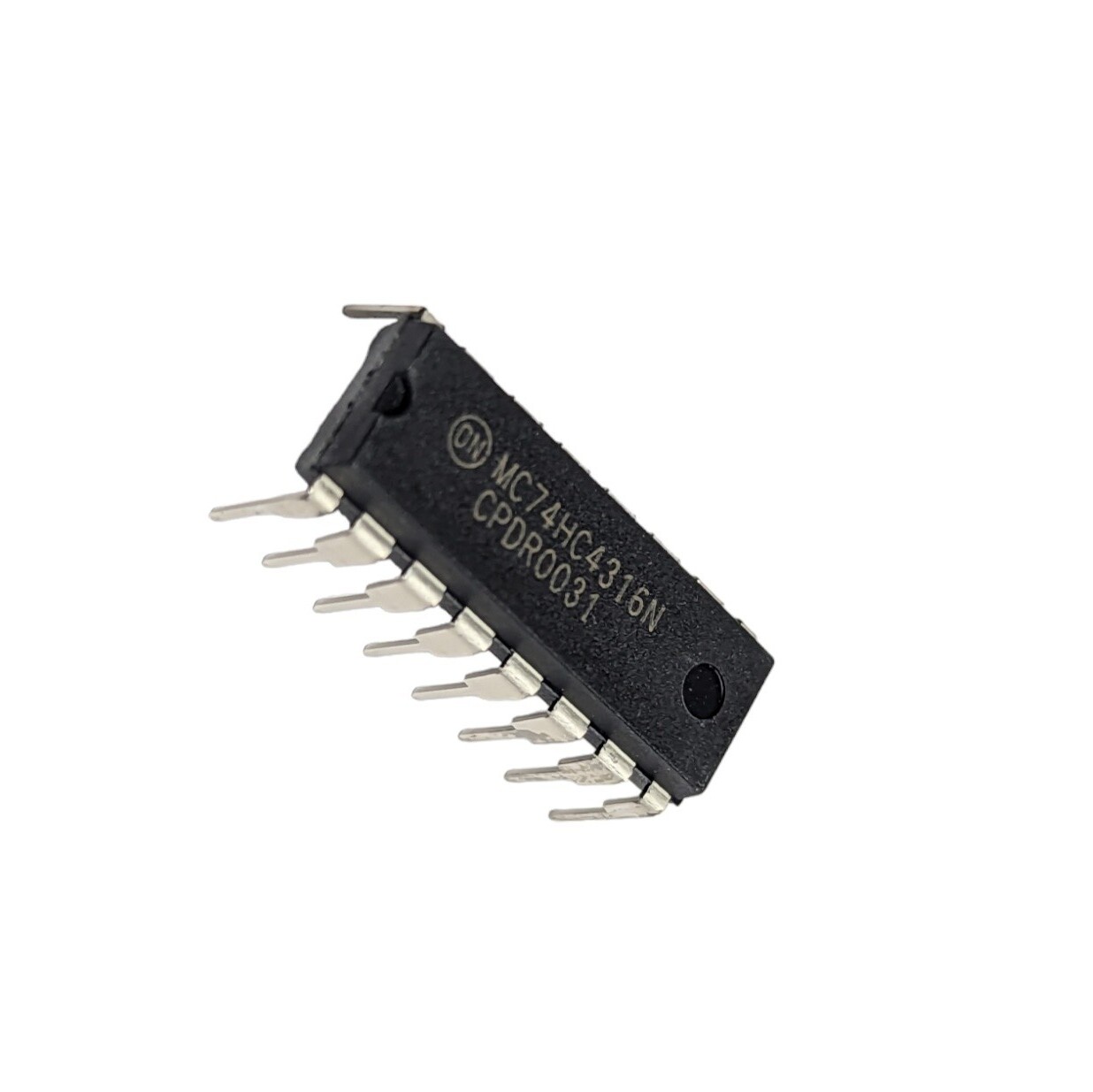

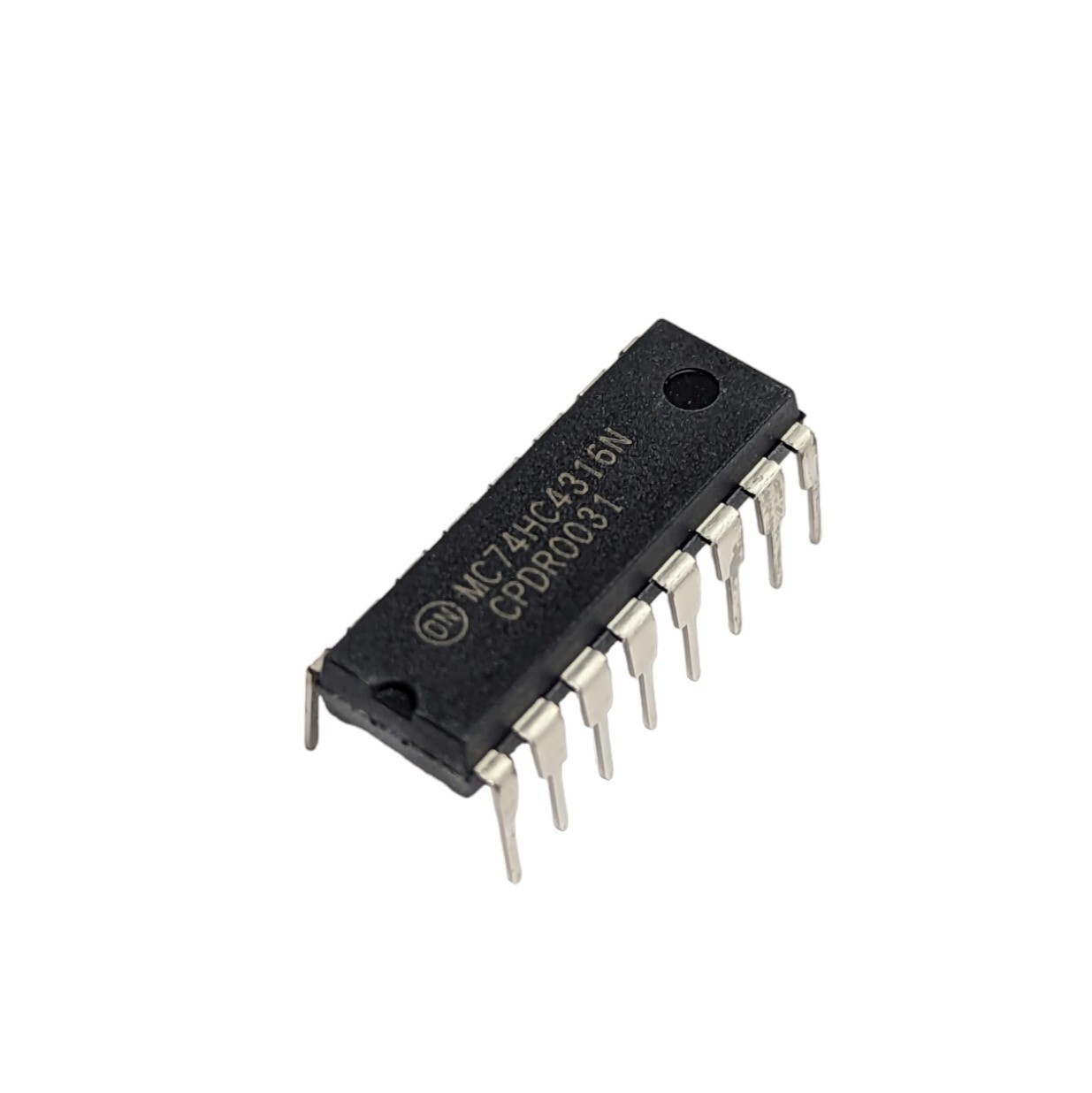

View detailed images (4)

MC74HC4316N

SKU: MC74HC4316N
MC74HC4316N Logic IC CASE: DIP16 MAKE: Motorola Semiconductor
Price:
£9.59 Inc. VAT (£7.99 Ex. VAT)
£9.59 Inc. VAT (£7.99 Ex. VAT)
Qty
  • 72 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Equivalent MC74HC4316ND
Type Logic IC
Case DIP16
Manufacturer Motorola Semiconductor
Ckts Per Dev. 4
Vcntl (Hi) (V) 3.15
Vcntl (Lo) (V) 0.9
Features Norm Open
@Is (test) (A) 2.0m
PD Max. (W) 750m
Nom. Pos. Supp 4.5
R(ds) On (Û) 255
Sw. Volt P-P Max.(V) 9.0
Tech. CMOS Integrated Circuit
t(on) Max. (S) 18n
@Vd (test) (V) 4.5
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125
Pinout Equivalence Number 16-330
Surface Mounted Yes/No NO
SKU 616638
