MD1129
View detailed images (12)

MD1129

SKU: MD1129

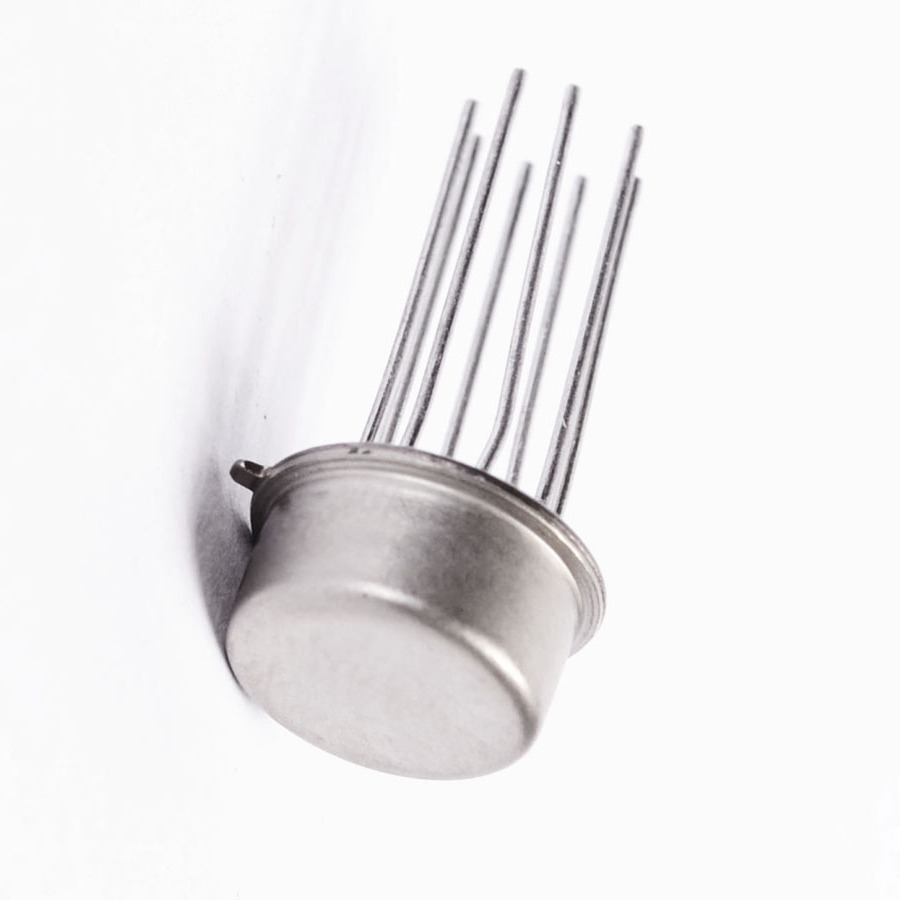

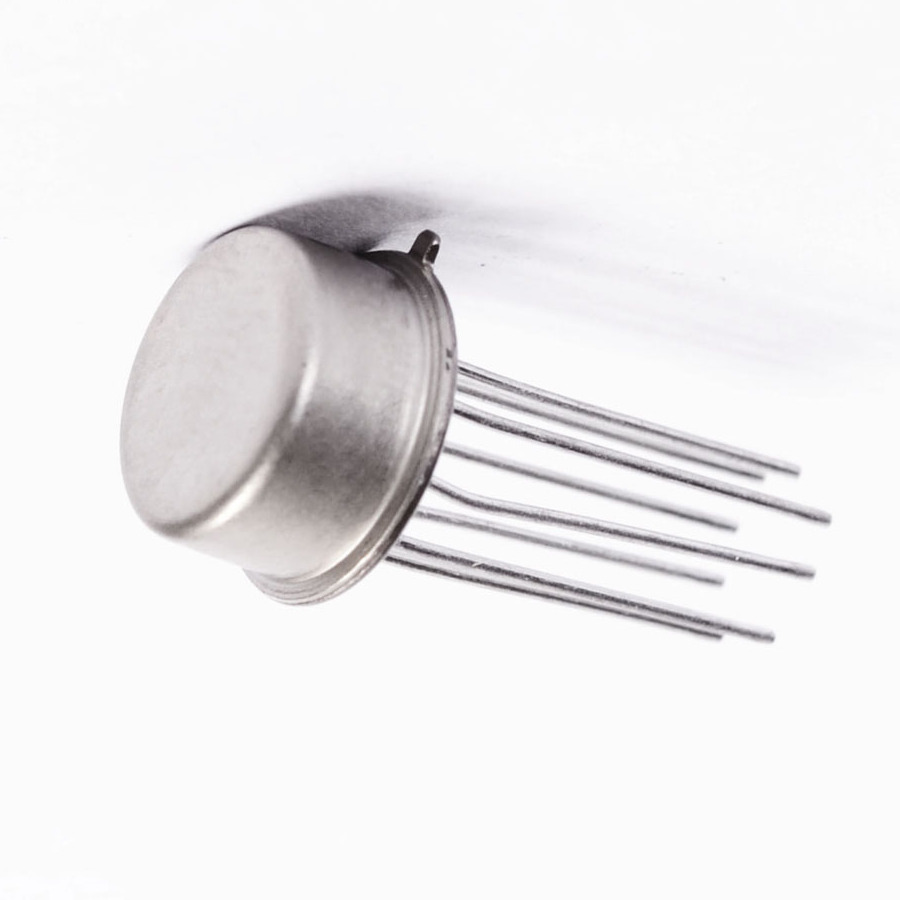

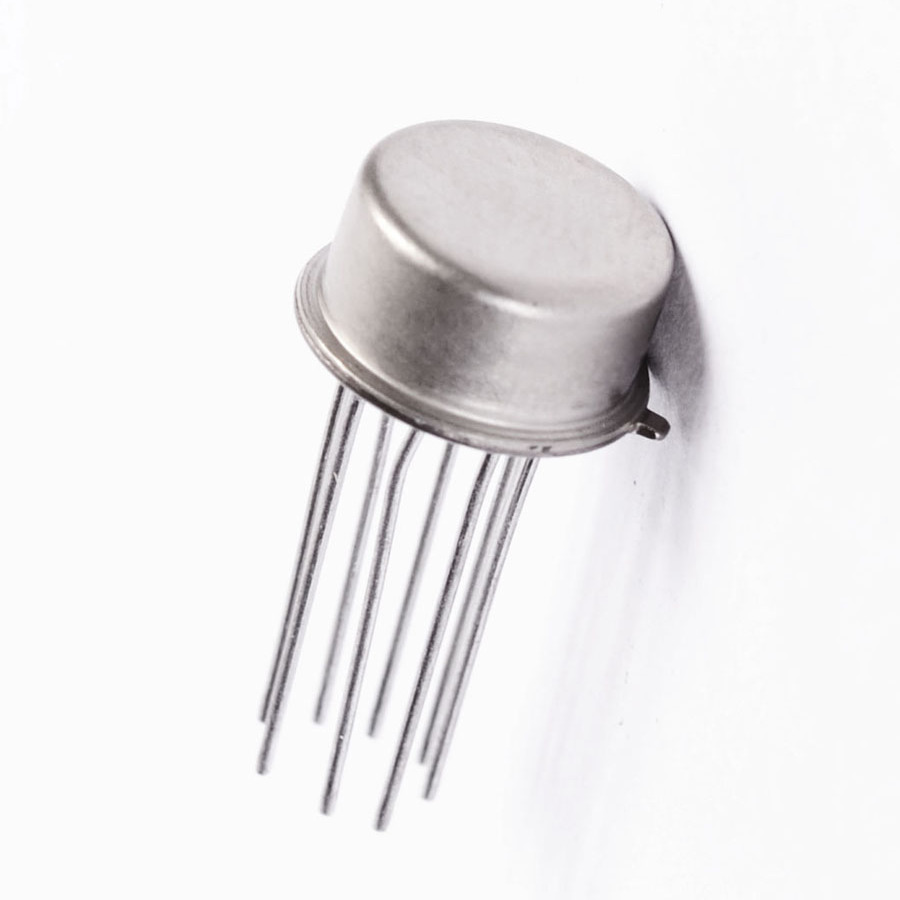

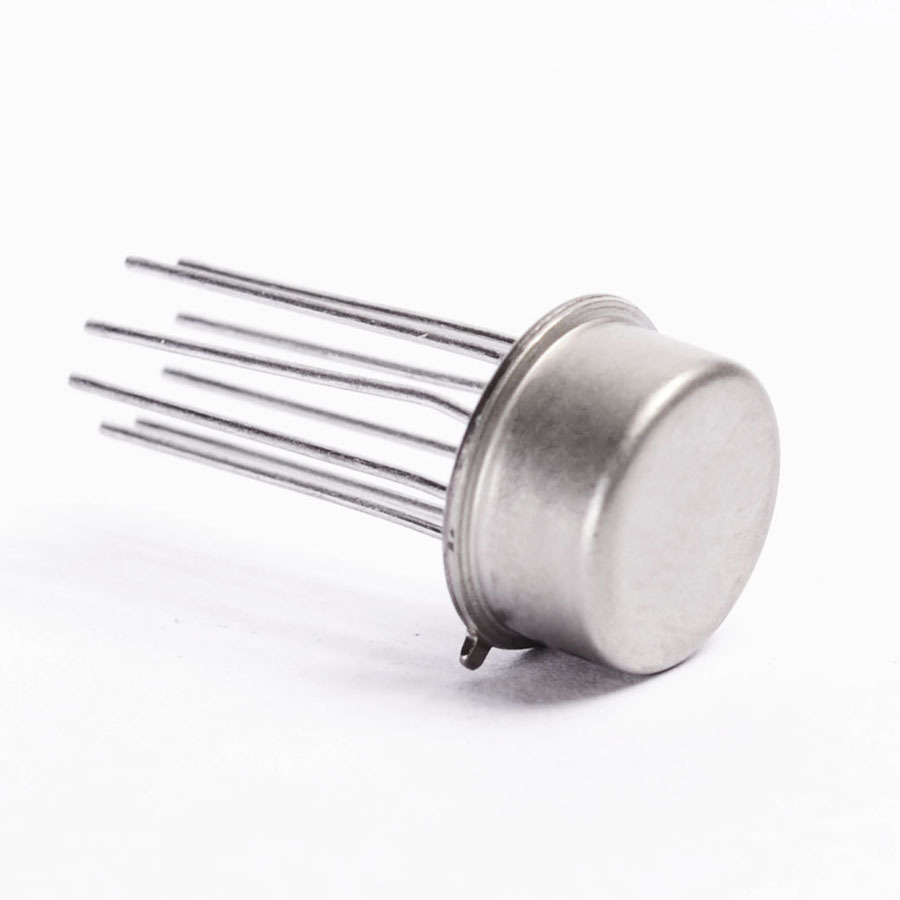

MD1129 SemiConductor - Case: TO99 Make: Motorola Semiconductor
+ VAT 20% for UK purchases
Product specifications
Type Transistor Silicon NPN
Case TO99
Manufacturer Motorola Semiconductor
fT Min (Hz) 200M
Min hFE 100
Mat. Silicon Logic
Polarity NPN
PD Max. (W) 625m
@VCE (test) (V) 10
@Ic (test) 100u
Ic Max. 500m
Vceo Max. 30
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.625 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 3.5 pF
Transition Frequency (ft): 125 MHz
Forward Current Transfer Ratio (hFE), MIN 100
