MD5000
View detailed images (12)

MD5000

SKU: MD5000

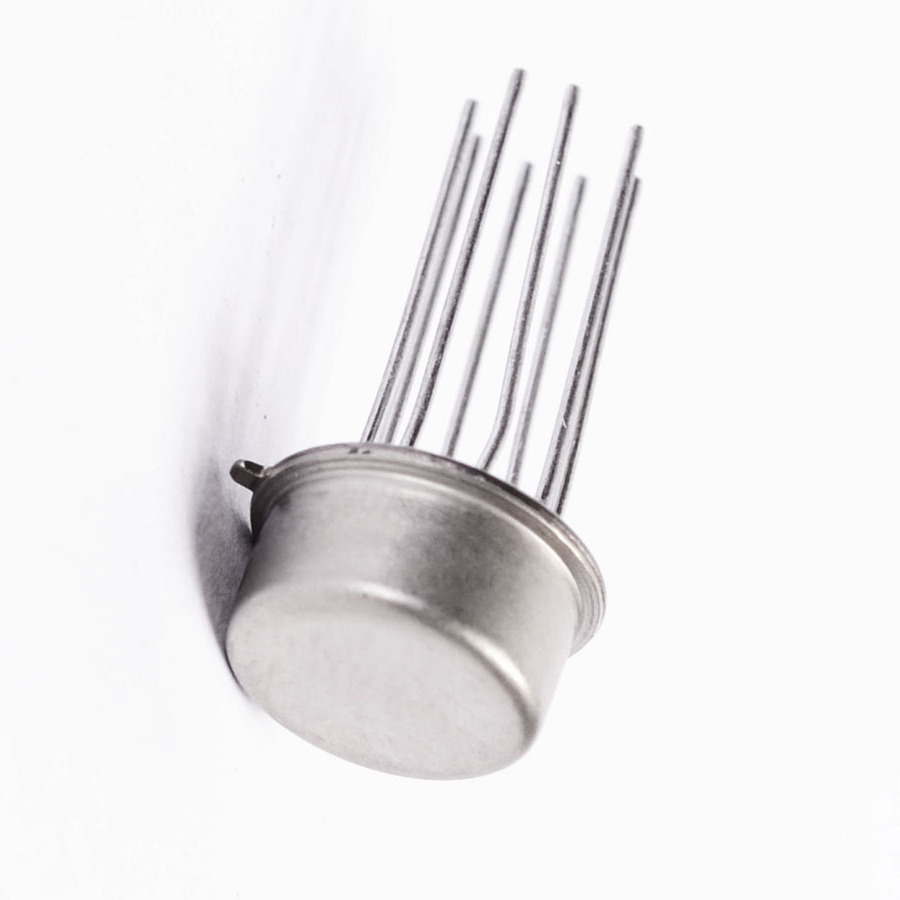

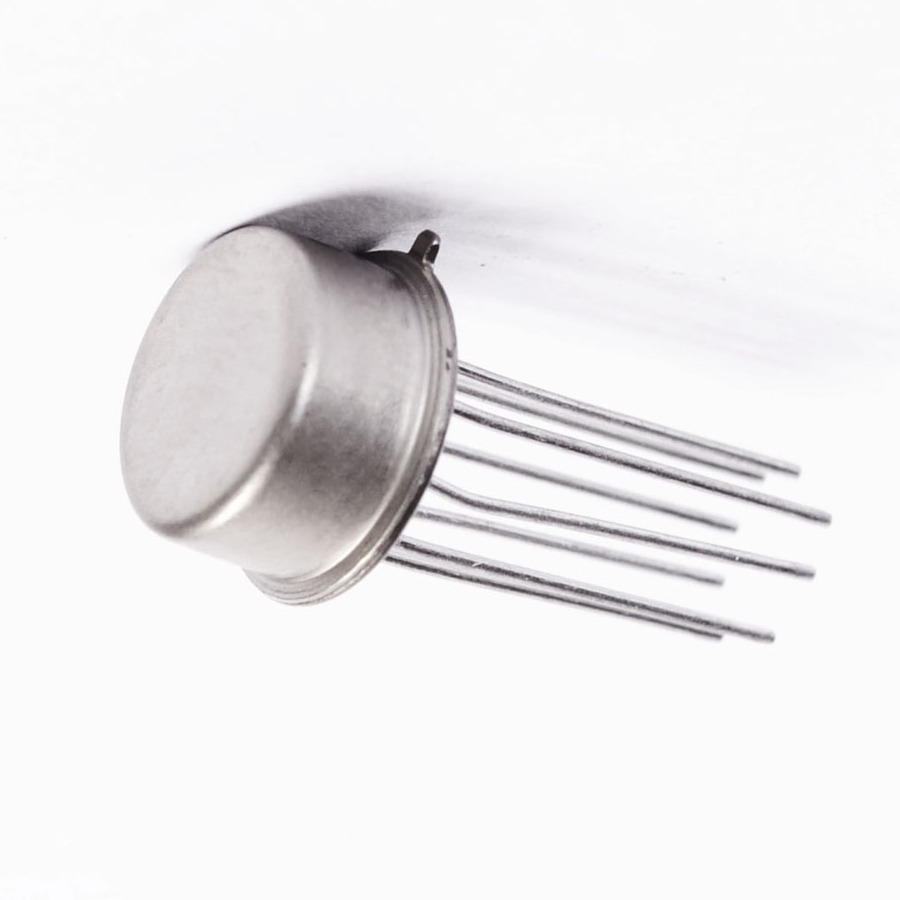

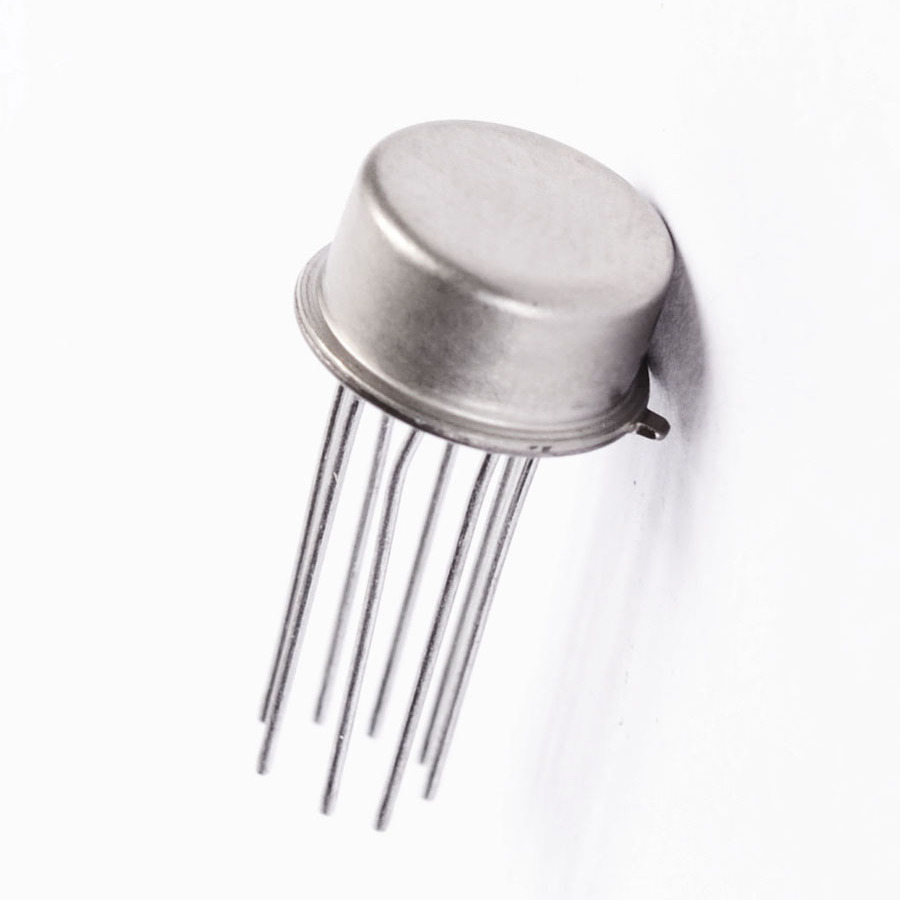

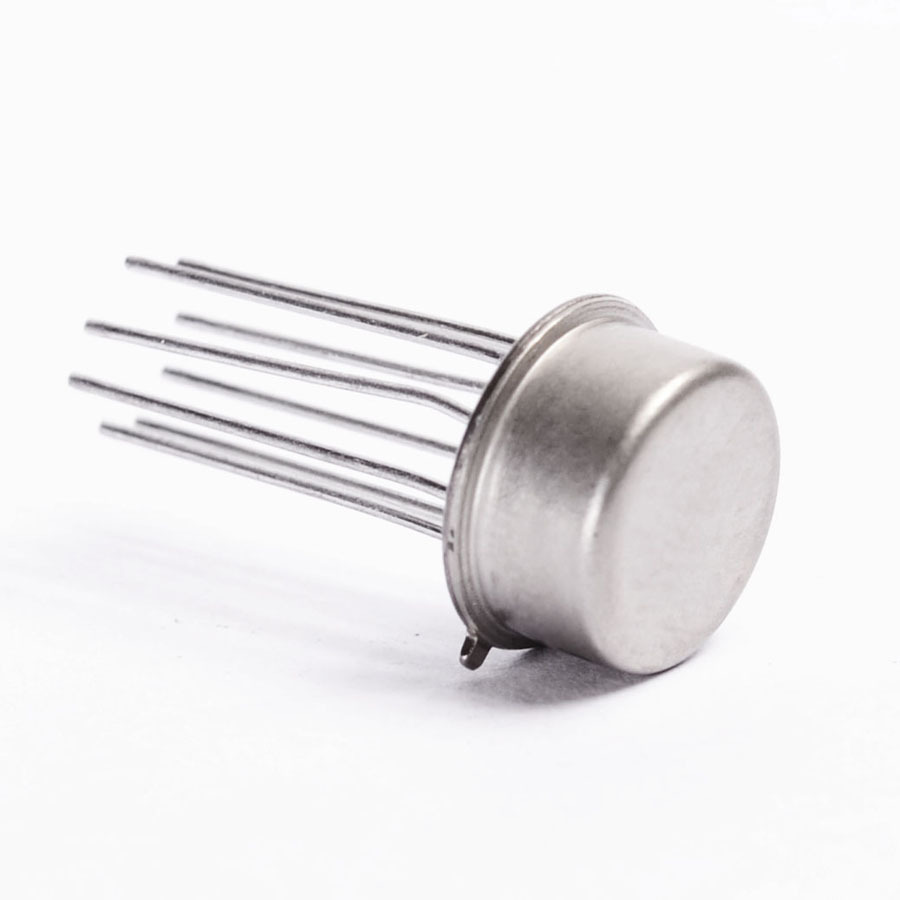

MD5000 Transistor Silicon PNP - Case: TO99 Make: Motorola Semiconductor
+ VAT 20% for UK purchases
Product specifications
Type Transistor Silicon PNP
Case TO99
Manufacturer Motorola Semiconductor
fT Min (Hz) 600M
Min hFE 20
Mat. Silicon Logic
Polarity PNP
PD Max. (W) 400m
@VCE (test) (V) 1.0
@Ic (test) 3.0m
Ic Max. 50m
Vceo Max. 15
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.4 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 1.7 pF
Transition Frequency (ft): 450 MHz
Forward Current Transfer Ratio (hFE), MIN 20
SKU 252151
