MD696
View detailed images (12)

MD696

SKU: MD696

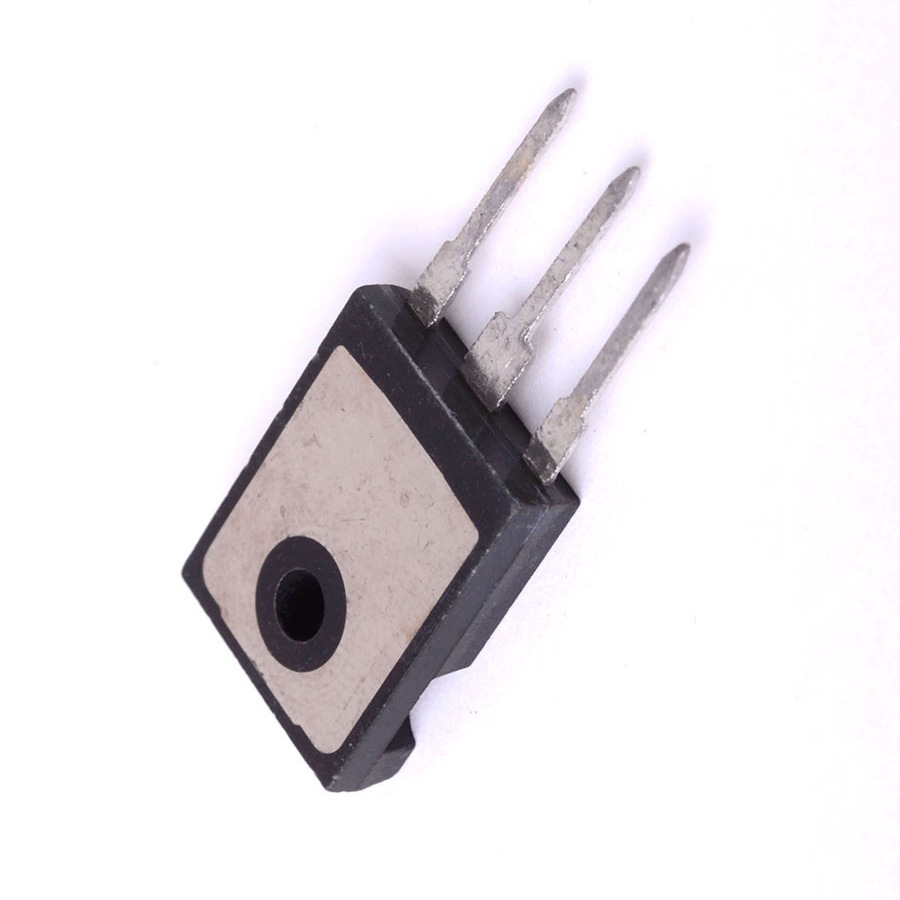

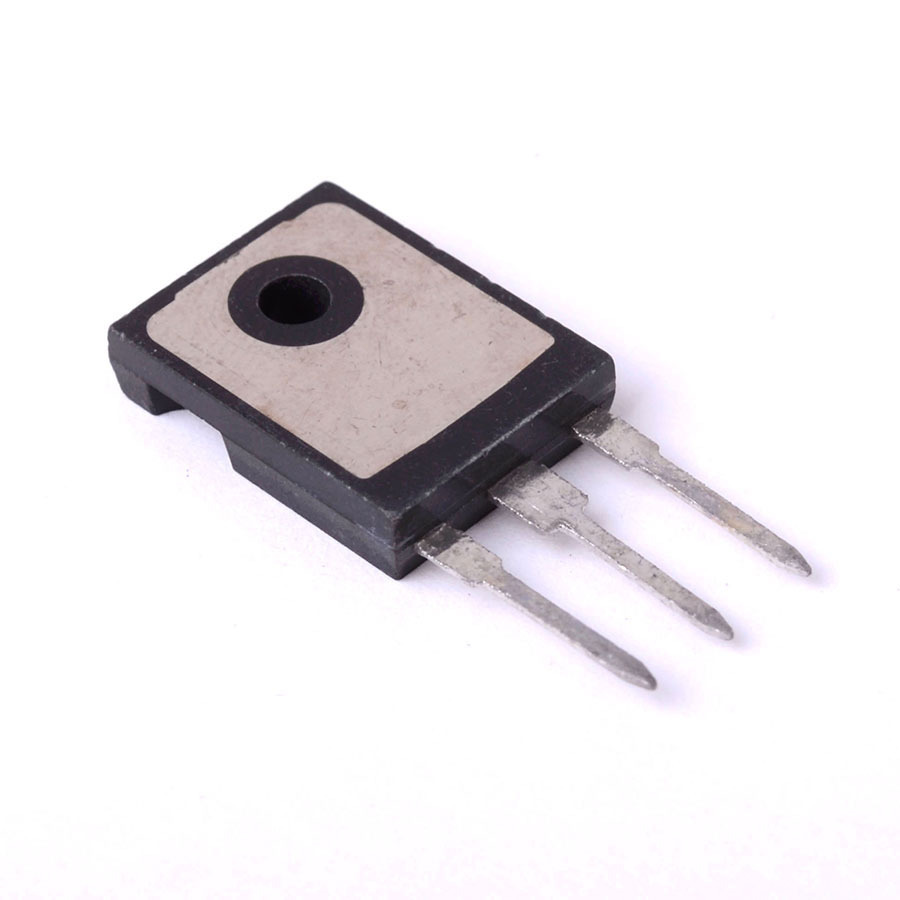

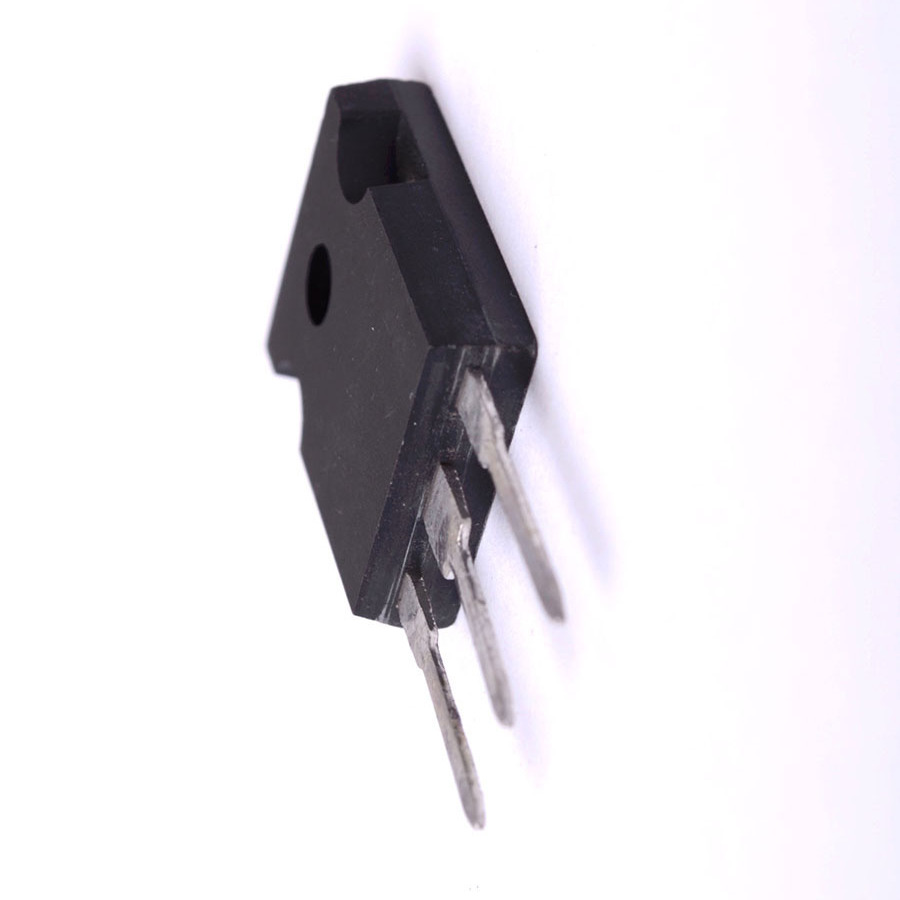

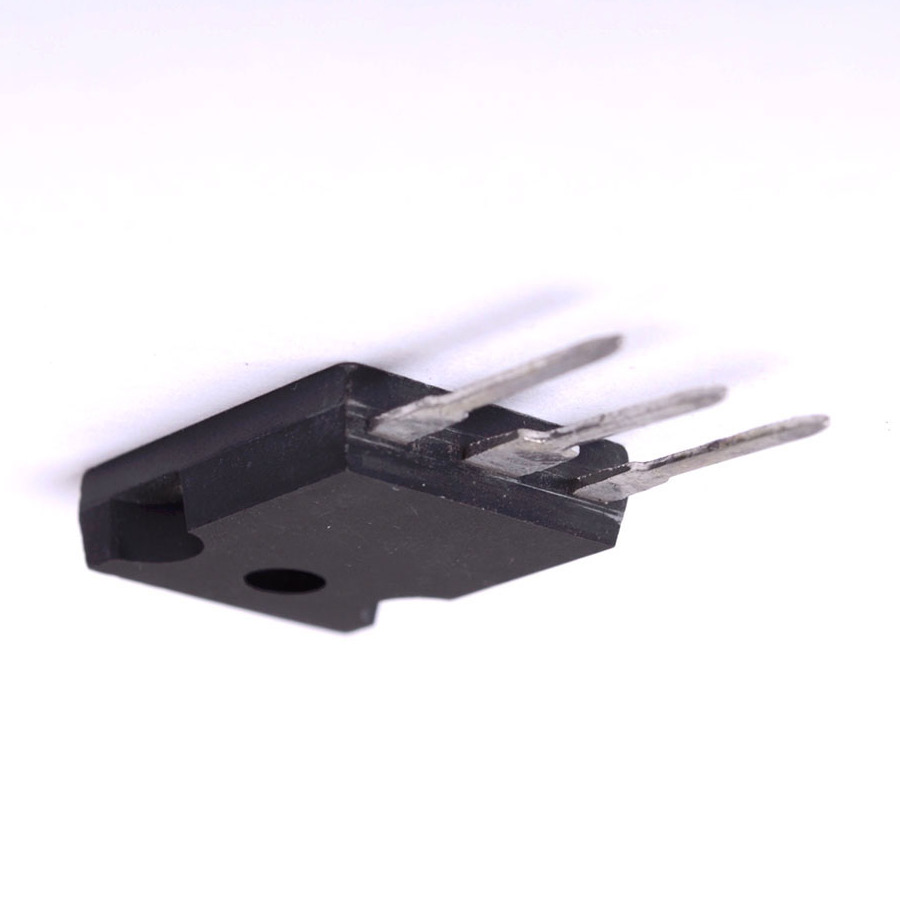

MD696 Transistor Silicon PNP CASE: SOT93 MAKE: Piher Semiconductors
Product specifications
Equivalent MD696A
Type Transistor Silicon PNP
Case SOT93
Manufacturer Piher Semiconductors
Vbr CEO 40
Max. PD (W) 70
Min hFE 750
Ic Max. (A) 8.0
@Ic (test) (A) 3.0
Icbo Max. @Vcb Max. (A) 200u
Mat. Silicon Logic
Polarity PNP
R(sat) (Û) 833m
Derate Above 25°C 560m
Trans. Freq (Hz) Min. 1.0M
@VCE (test) 3.0
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 70 W
Maximum Collector-Emitter Voltage |Vce| 40 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 8 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 1 MHz
Forward Current Transfer Ratio (hFE), MIN 750
SKU 564895
