MD8003
View detailed images (12)

MD8003

SKU: MD8003

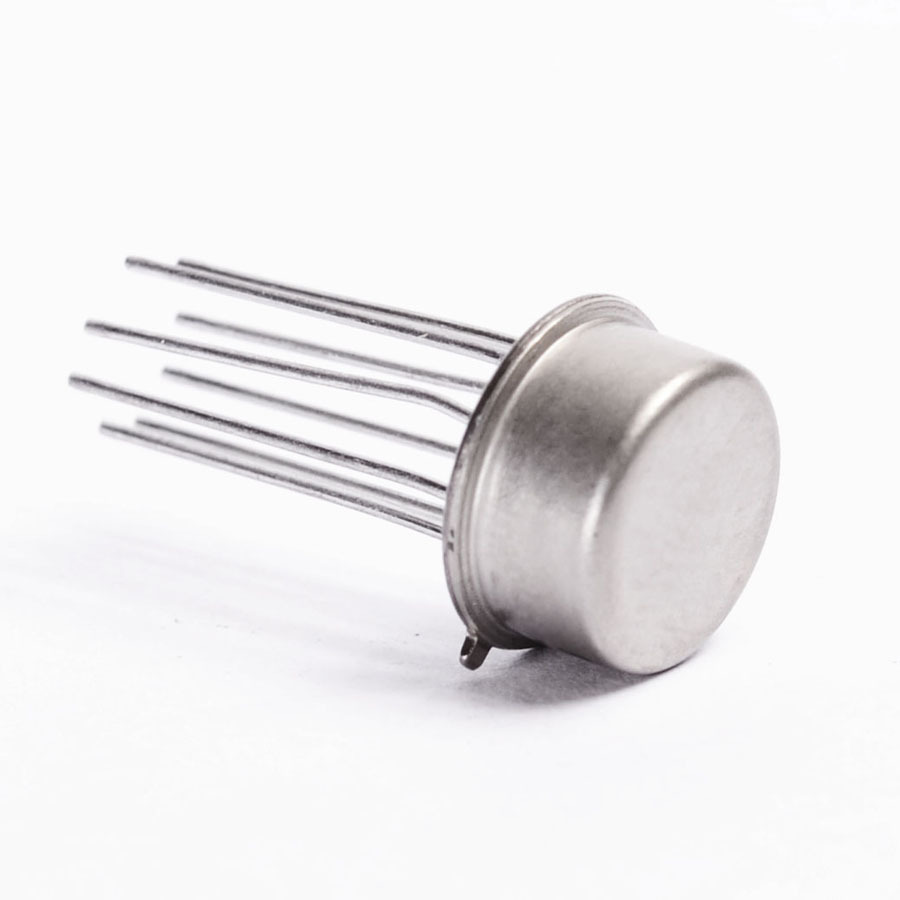

MD8003 Transistor Silicon NPN CASE: TO99 MAKE: Motorola Semiconductor
Price:
£16.79 Inc. VAT (£13.99 Ex. VAT)
£16.79 Inc. VAT (£13.99 Ex. VAT)
Qty
  • 6 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case TO99
Manufacturer Motorola Semiconductor
fT Min (Hz) 260M-
Min hFE 100
Mat. Silicon Logic
Polarity NPN
PD Max. (W) 625m
@VCE (test) (V) 10
@Ic (test) 1.0m
Ic Max. 30m
Vceo Max. 60
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.625 W
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Collector Current |Ic max| 0.03 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 2.6 pF
Transition Frequency (ft): 130 MHz
Forward Current Transfer Ratio (hFE), MIN 100
SKU 82833
