MDS76
View detailed images (5)

MDS76

SKU: MDS76

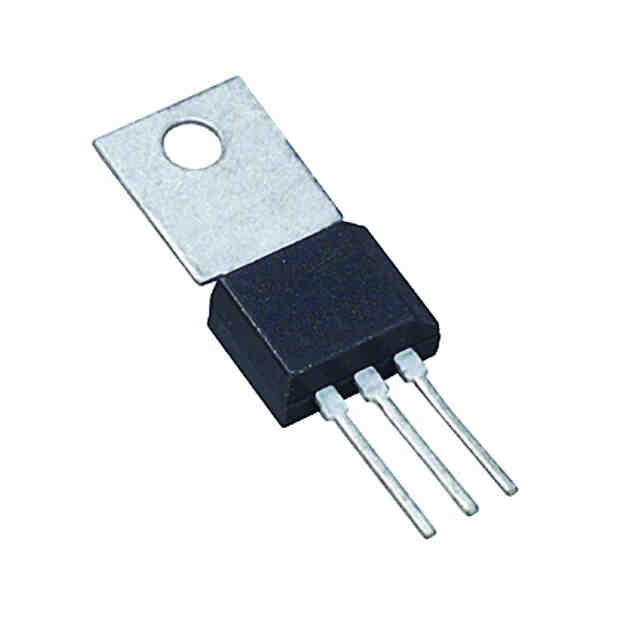

MDS76 SemiConductor - Case: SOT128 Make: Motorola Semiconductor
+ VAT 20% for UK purchases
Product specifications
Type Transistor Silicon PNP
Case SOT128
Manufacturer Motorola Semiconductor
Vbr CBO 60
Vbr CEO 40
Max. PD (W) 2.0
Derate (Amb) (W/°C) 16m
Max. hFE 200
Min hFE 40
Ic Max. (A) 3.0
@Ic (test) (A) 200m
Icbo Max. @Vcb Max. (A) 100n
Polarity PNP
R(sat) (Û) 1.5
Trans. Freq (Hz) Min. 50M
Oper. Temp (°C) Max. 140
@VCE (V) 1.0
Pinout Equivalence Number 4-33
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 10 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 40 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 3 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 552928
