Home / Semiconductors / MFC8020A

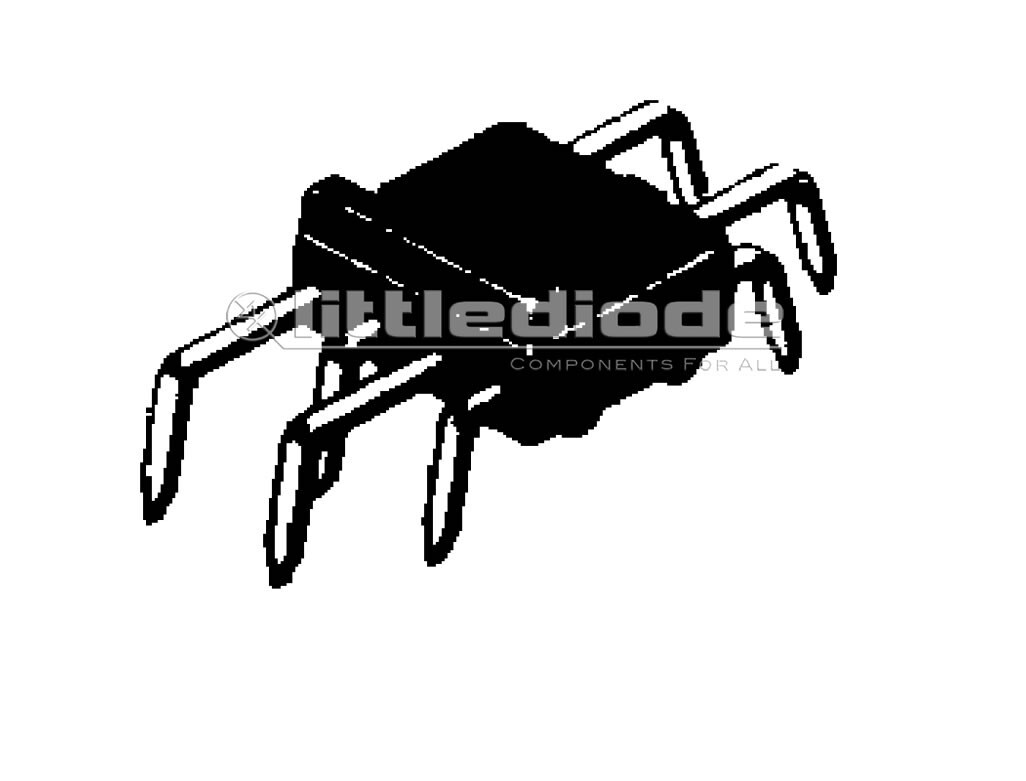

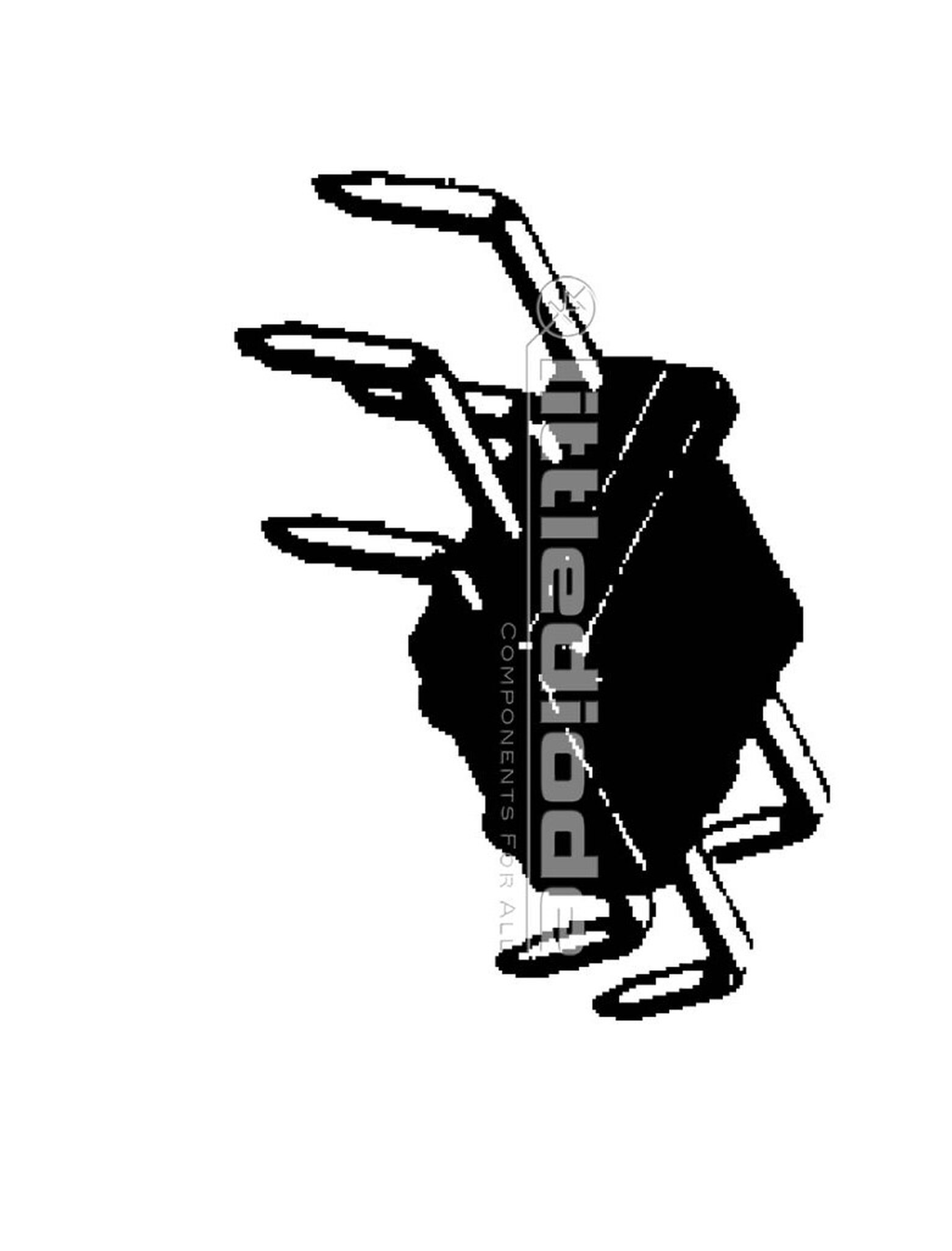

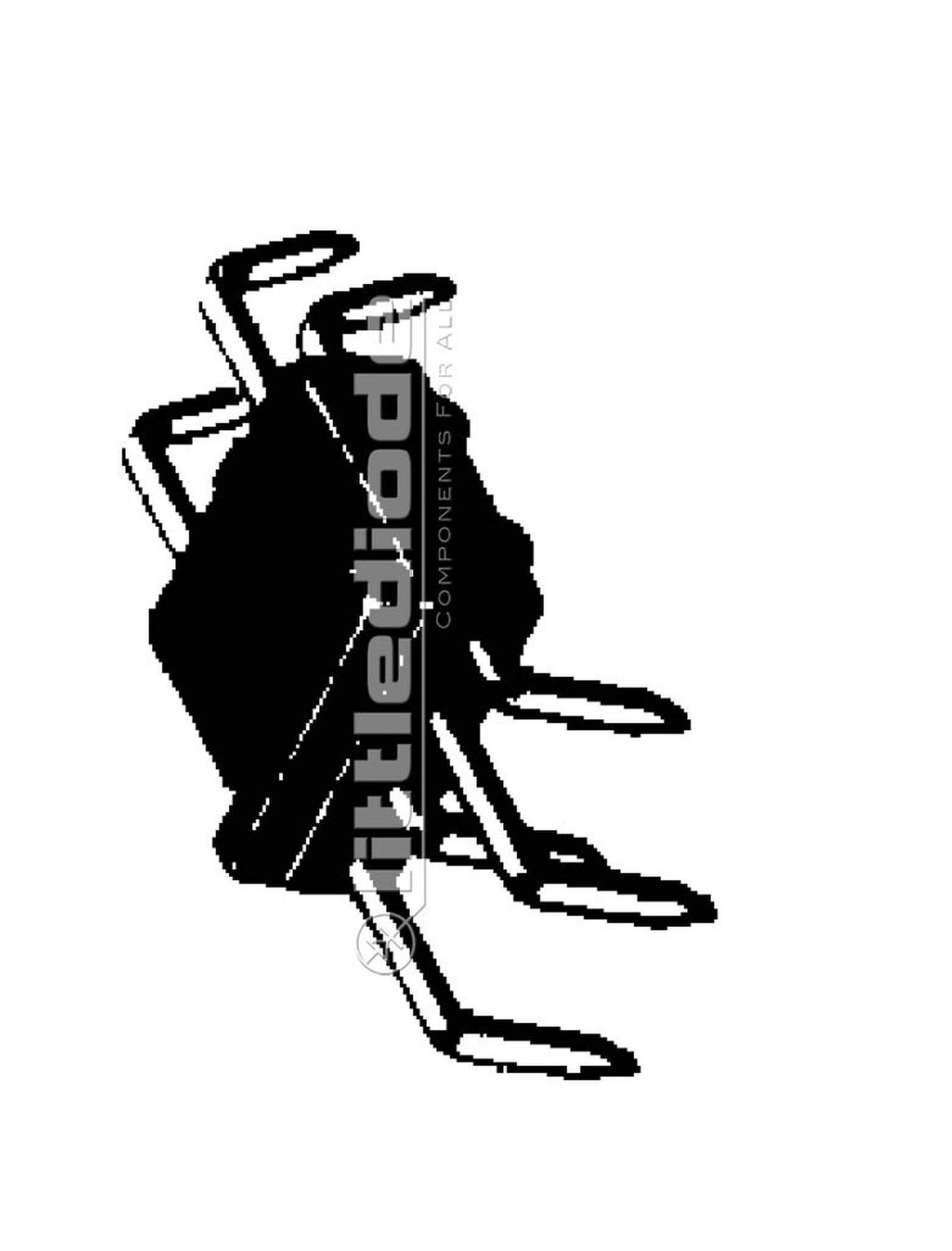

MFC8020A

MFC8020A

SKU: MFC8020A
MFC8020A Semiconductor CASE: QUIP8 MAKE: Motorola Semiconductor
Product specifications
Type Semiconductor
Case QUIP8
Manufacturer Motorola Semiconductor
Upper 3dB BW (Hz) 50k-
R(load) (Û) 3.2
Outp Pwr Min. 1.0-
Quies. Pwr (W) 900m
THD Max. (%) 5.0
AV (dB) Min. 89-
Oper. Temp (°C) Min -10
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 8-843
No. of Pins 8
Surface Mounted Yes/No NO
SKU 1110738
