MHQ3468HX
View detailed images (1)

MHQ3468HX

SKU: MHQ3468HX
MHQ3468HX Transistor Silicon PNP CASE: TO116 MAKE: Tesla
Product specifications
Type Transistor Silicon PNP

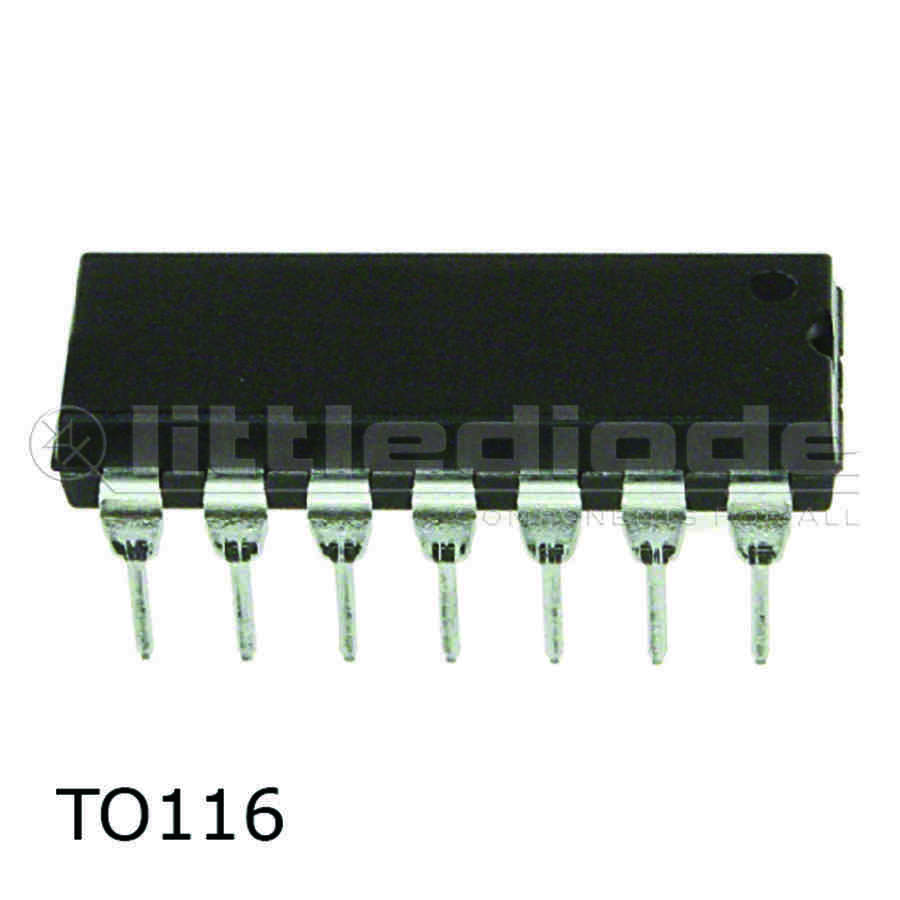

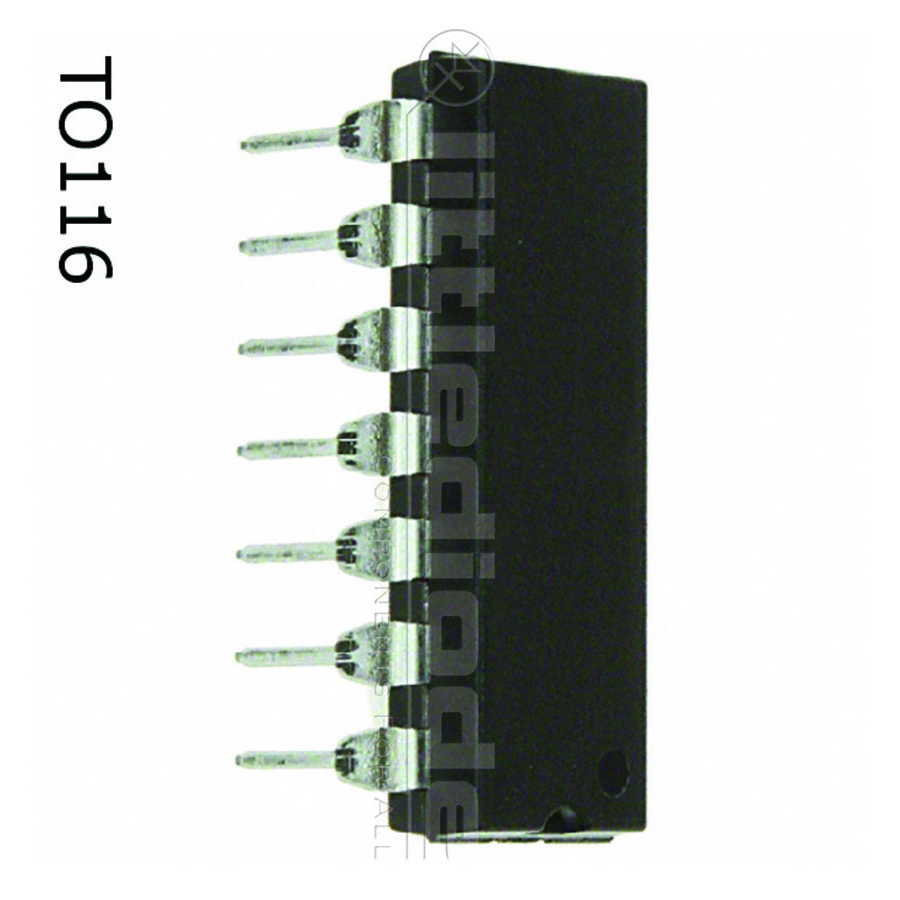

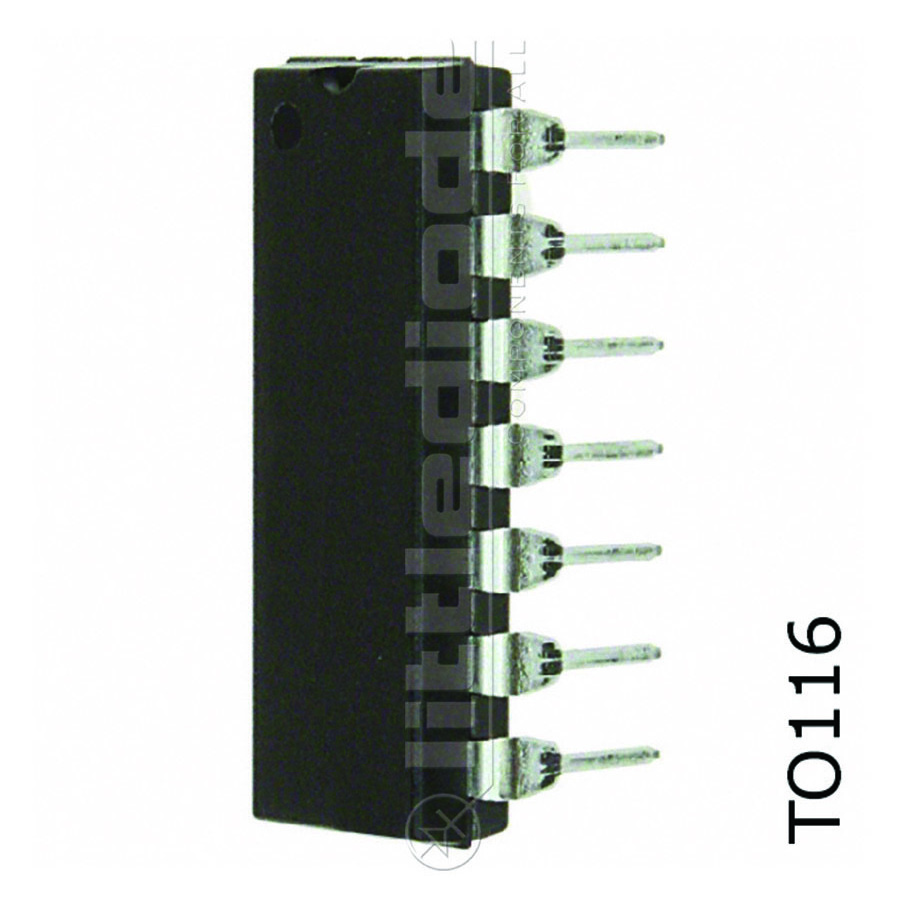

Case TO116
Manufacturer Tesla
Min hFE 25
Mat. Silicon Logic
Polarity PNP
PD Max. (W) 2.0m
@VCE (test) (V) 1.0
@Ic (test) 500m
Ic Max. 1.0
Vceo Max. 50
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 2 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 25 pF
Transition Frequency (ft): 150 MHz
Forward Current Transfer Ratio (hFE), MIN 25
SKU 1278380
