MJB5742T4G

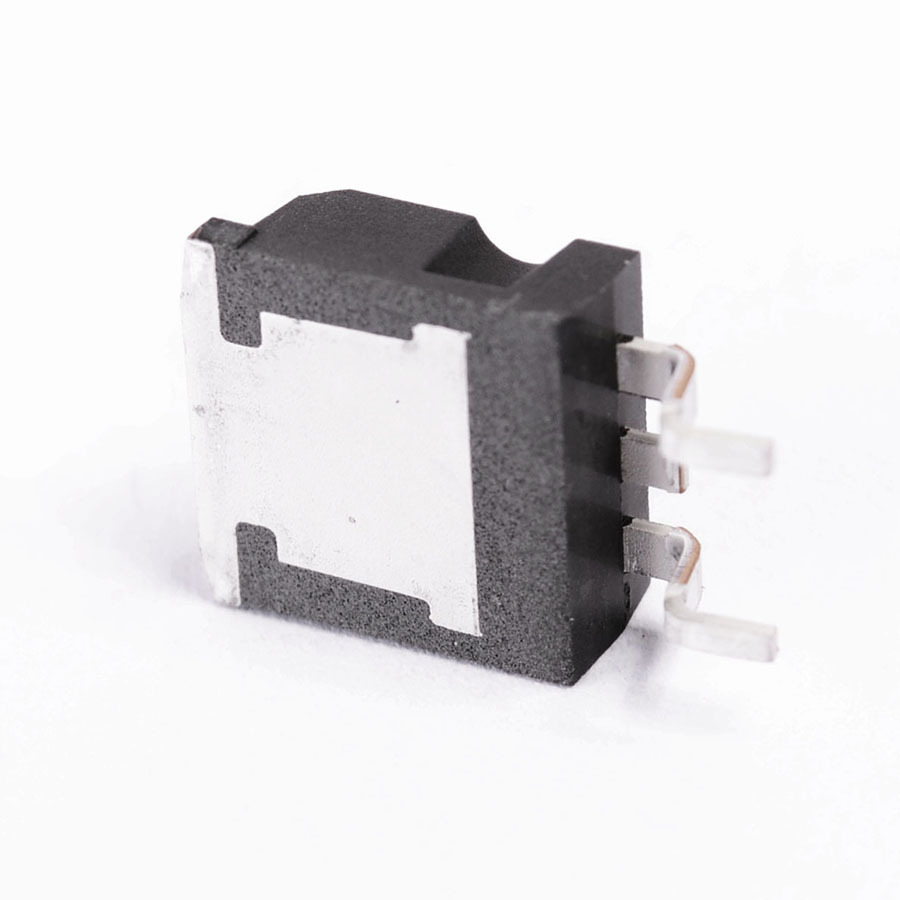

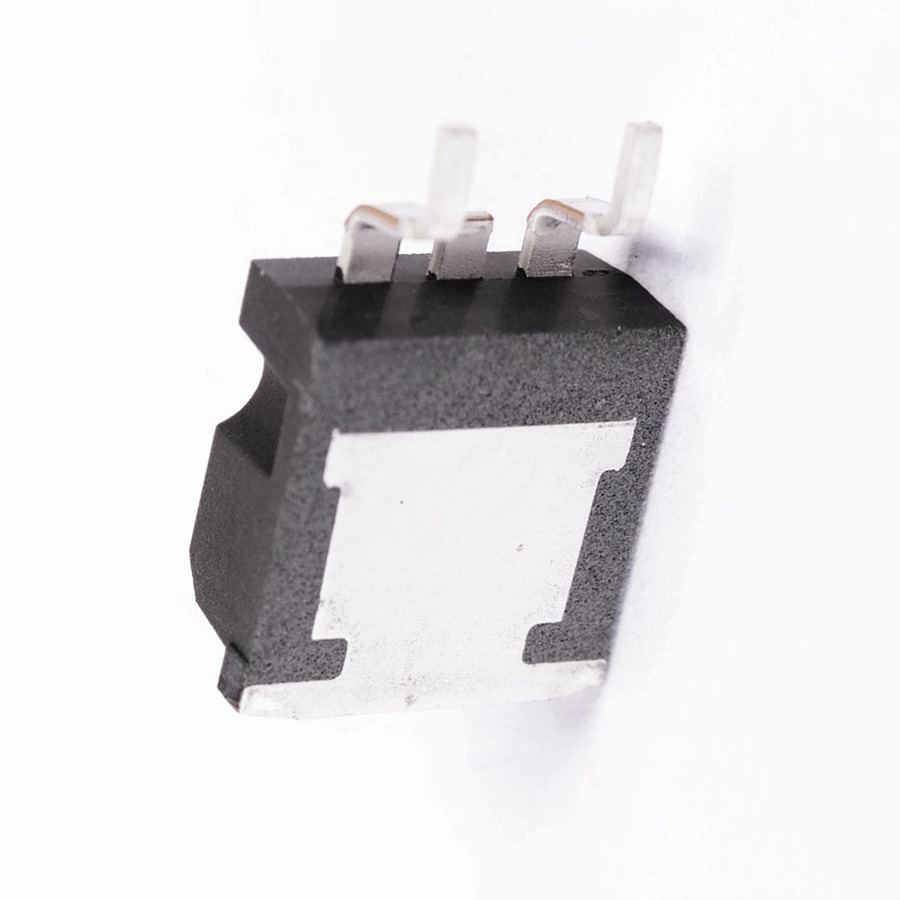

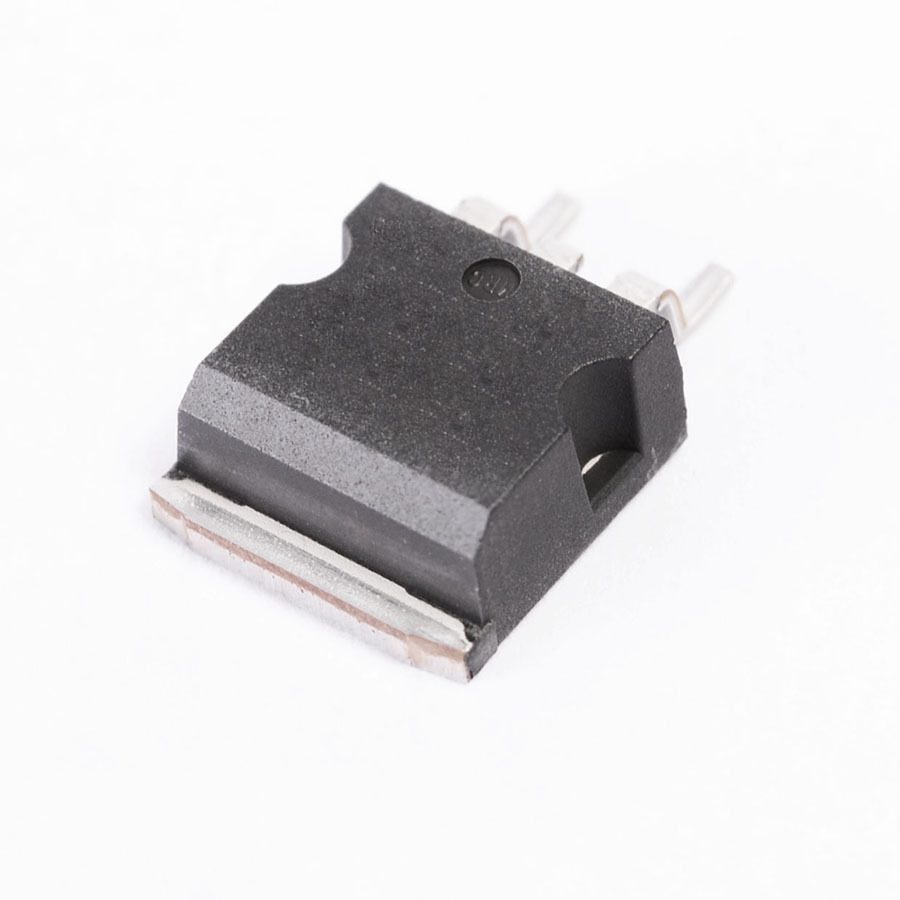

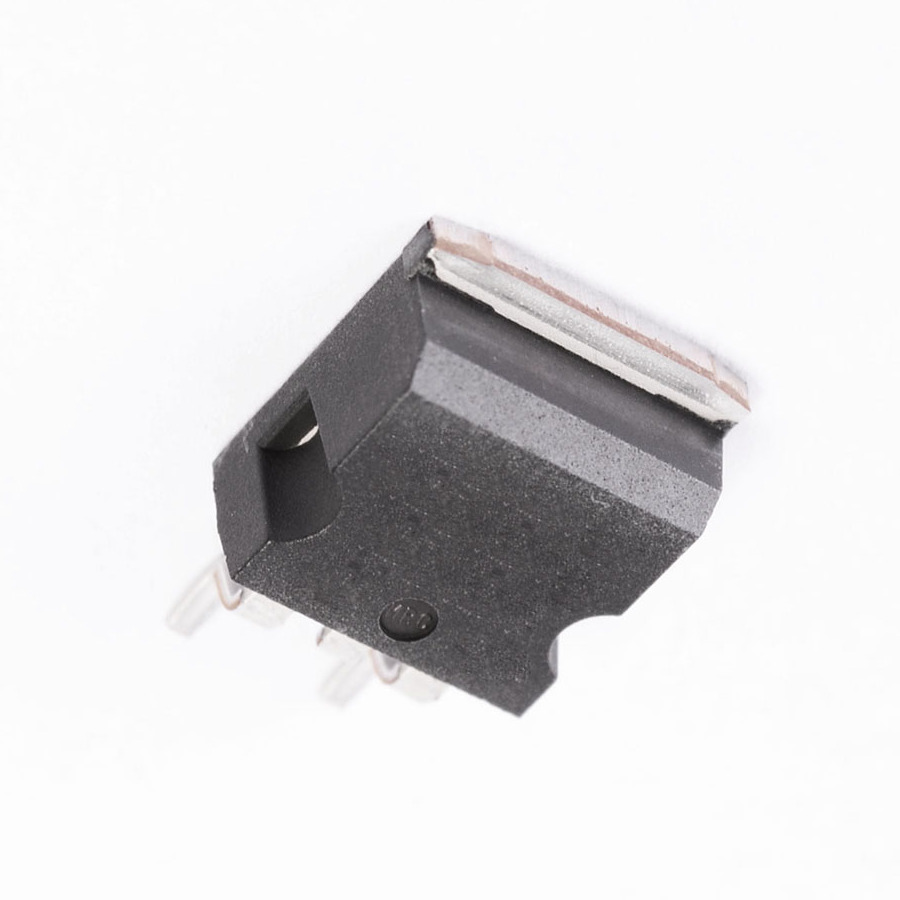

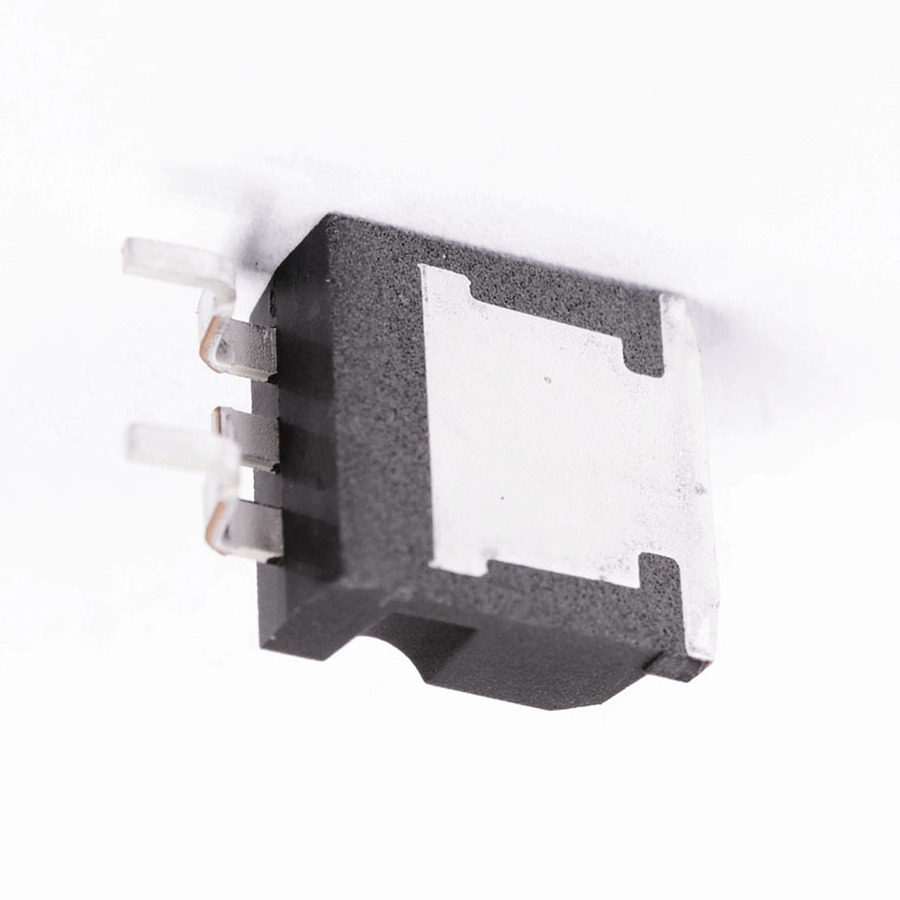

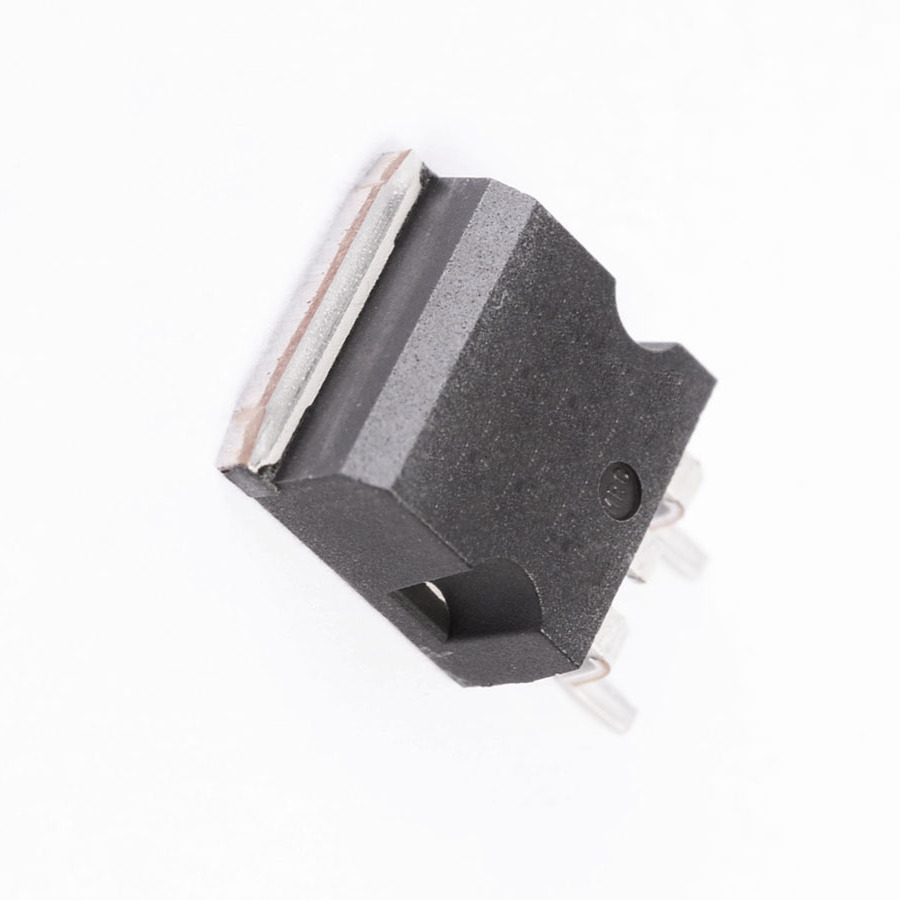

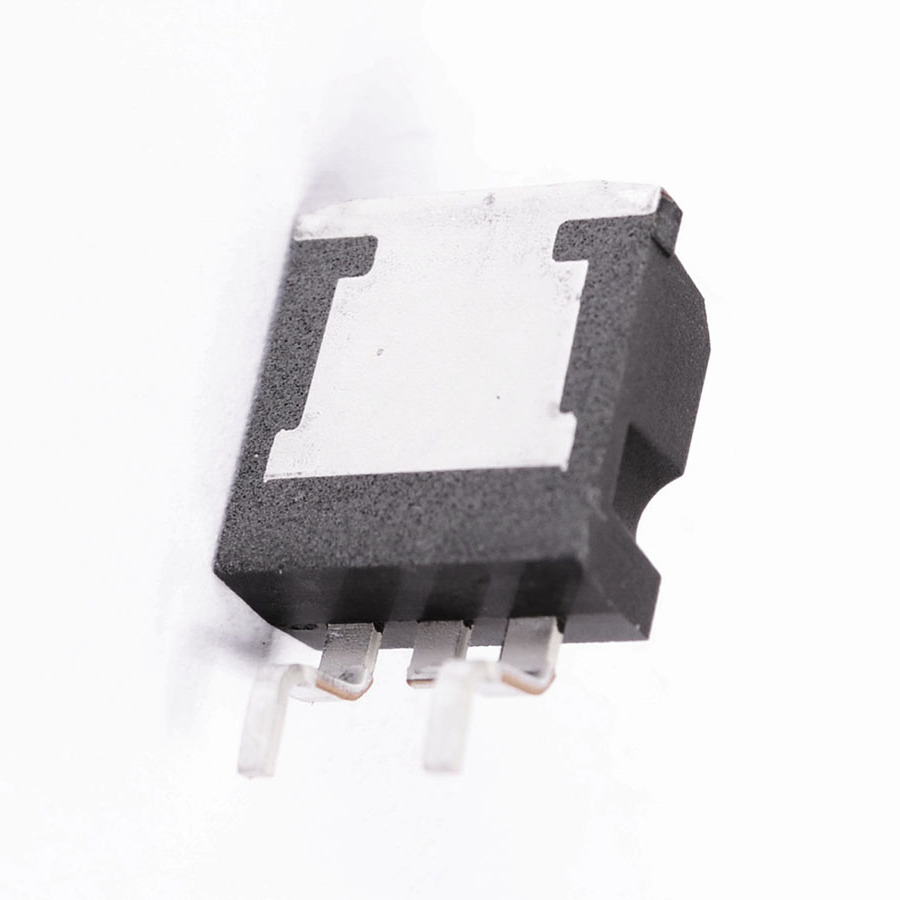

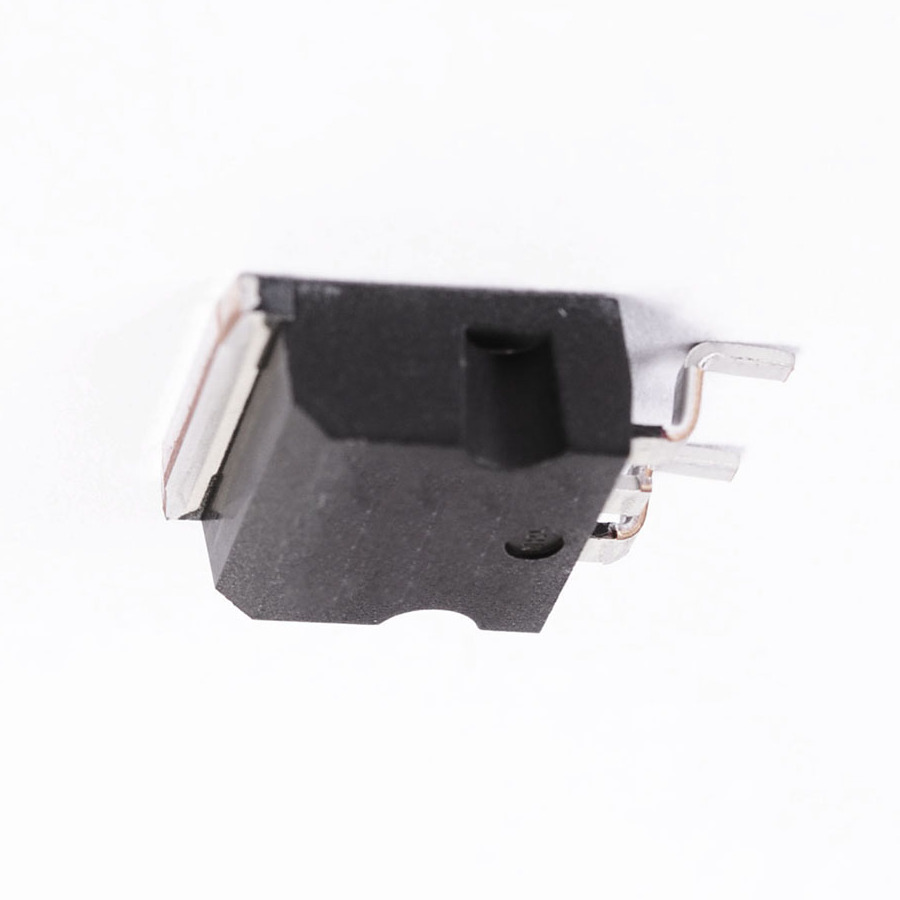

View detailed images (12)

MJB5742T4G

SKU: MJB5742T4G

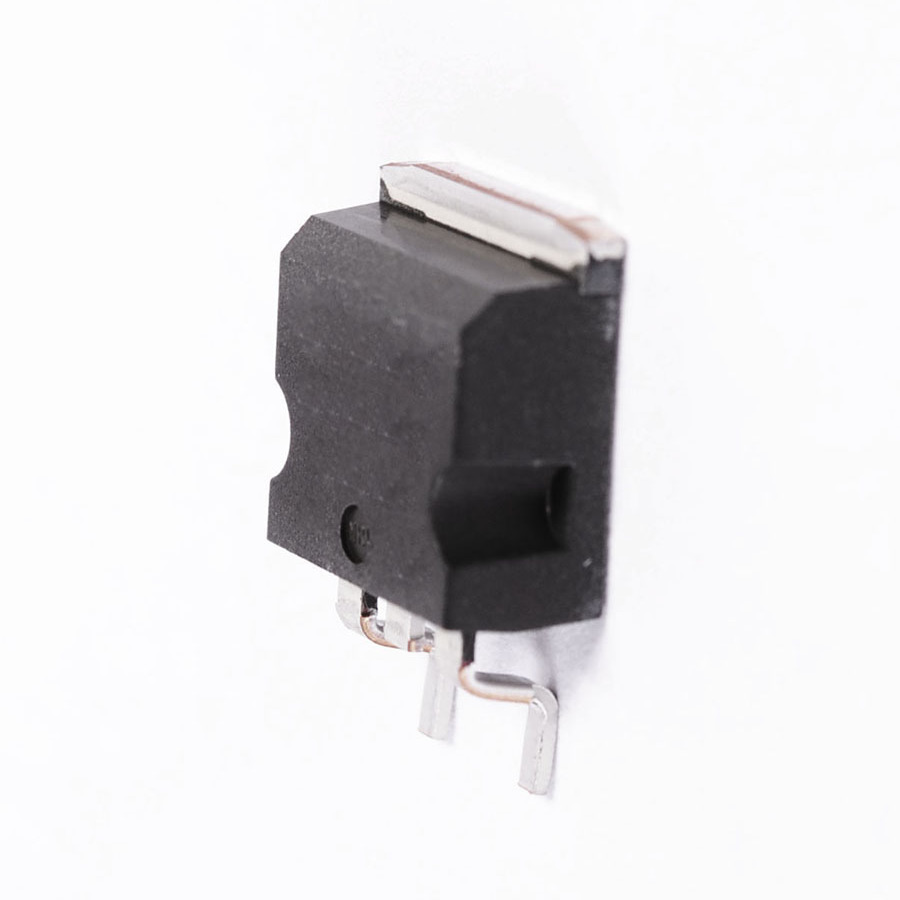

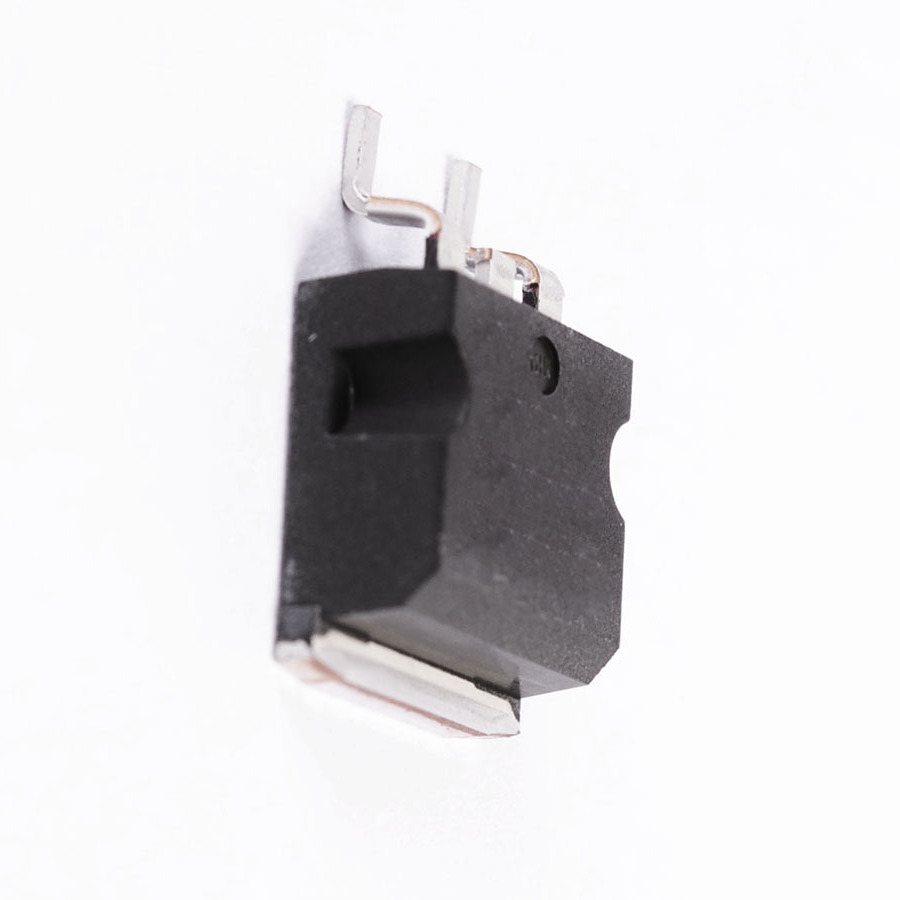

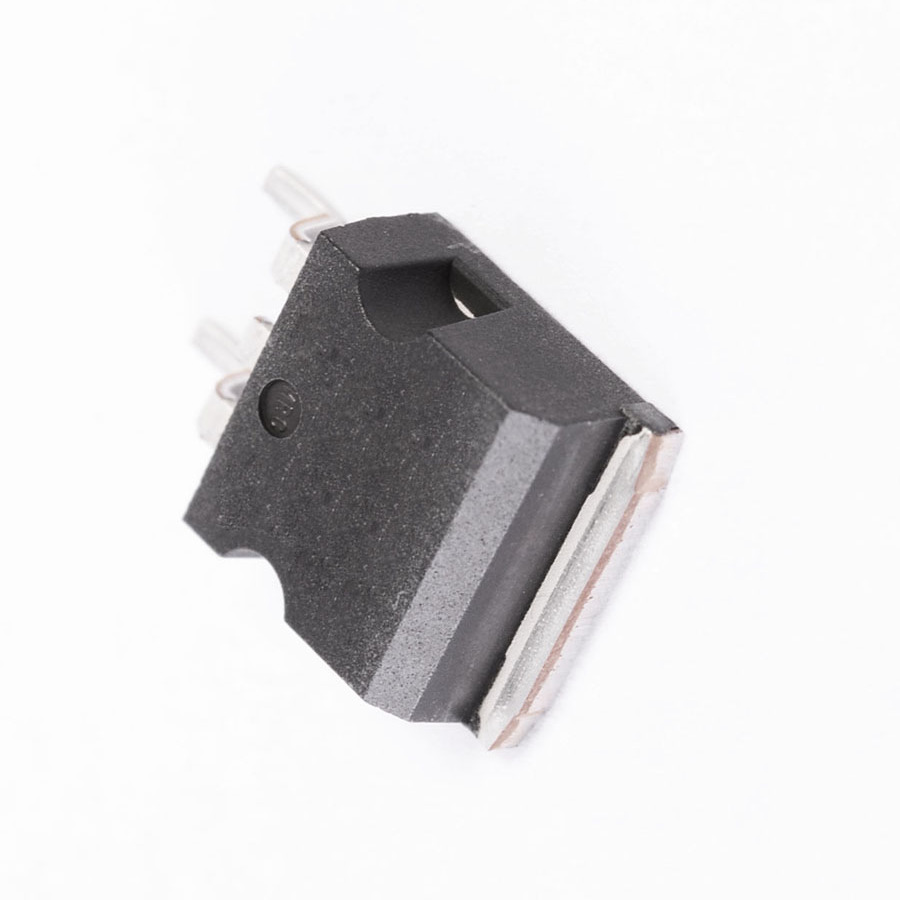

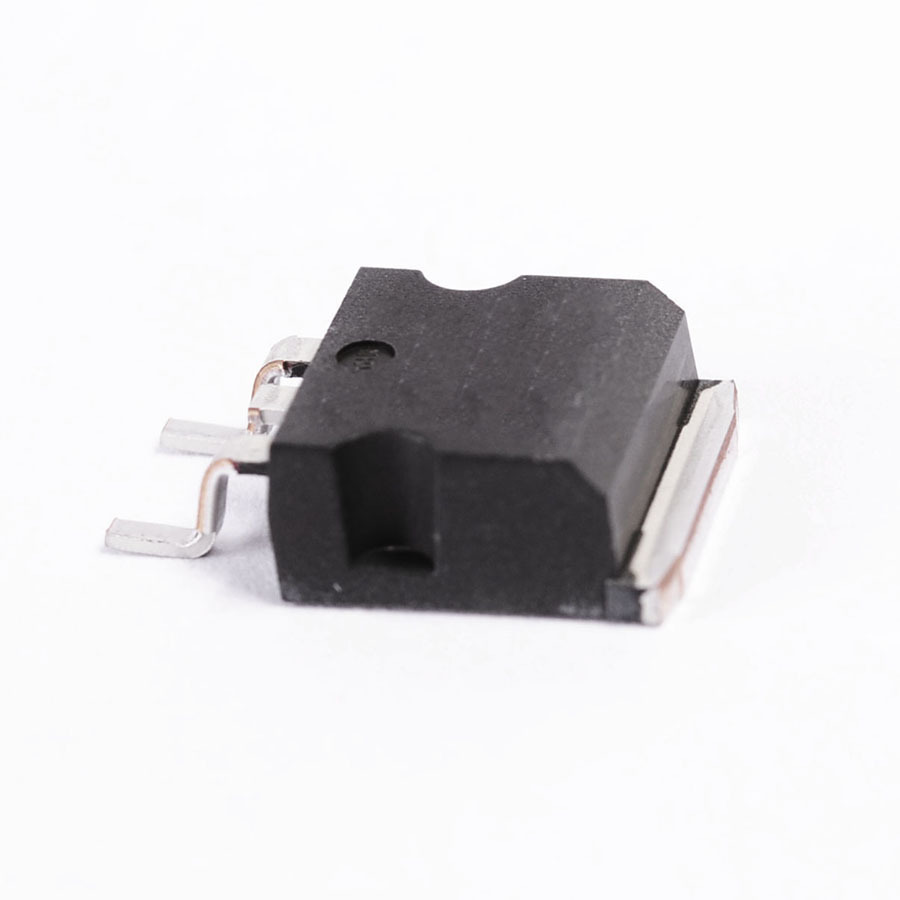

MJB5742T4G Transistor Silicon NPN CASE: TO263 MAKE: Generic
Product specifications
Type Transistor Silicon NPN
Case TO263
Manufacturer Generic
Polarity NPN
Maximum Collector Power Dissipation (Pc) 100 W
Maximum Collector-Emitter Voltage |Vce| 400 V
Maximum Emitter-Base Voltage |Veb| 8 V
Maximum Collector Current |Ic max| 8 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 50
SMD Transistor Code B5742
SKU 1436313
