MJD3055G
View detailed images (8)

MJD3055G

SKU: MJD3055G

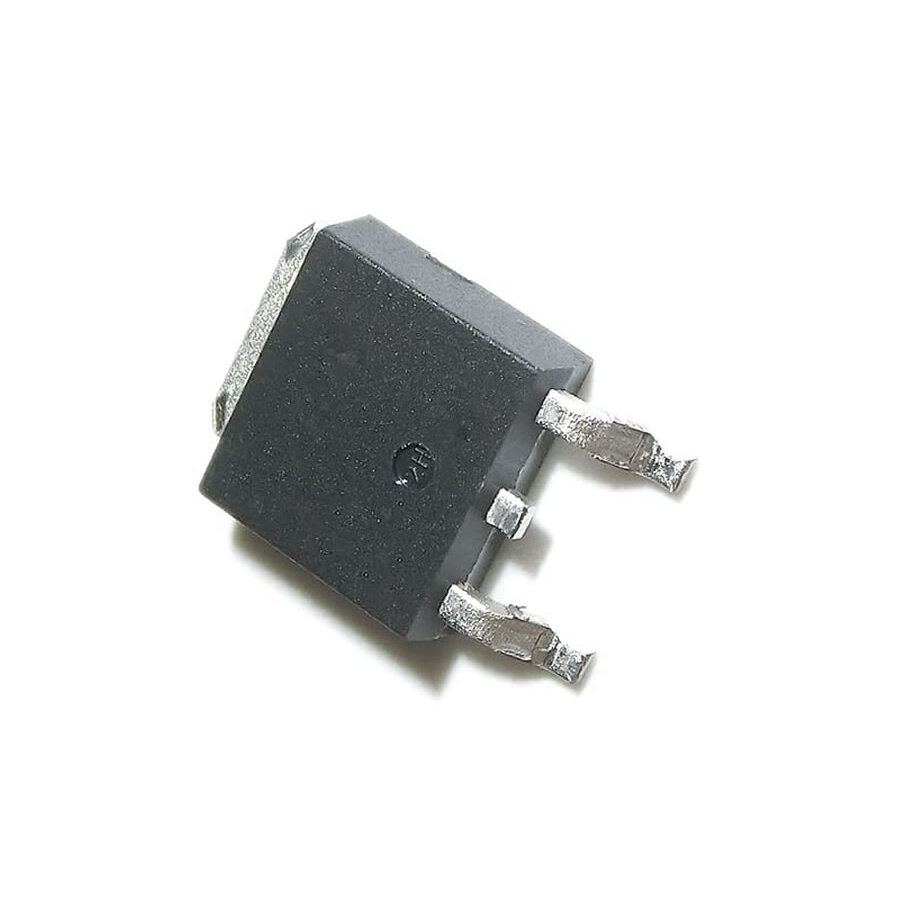

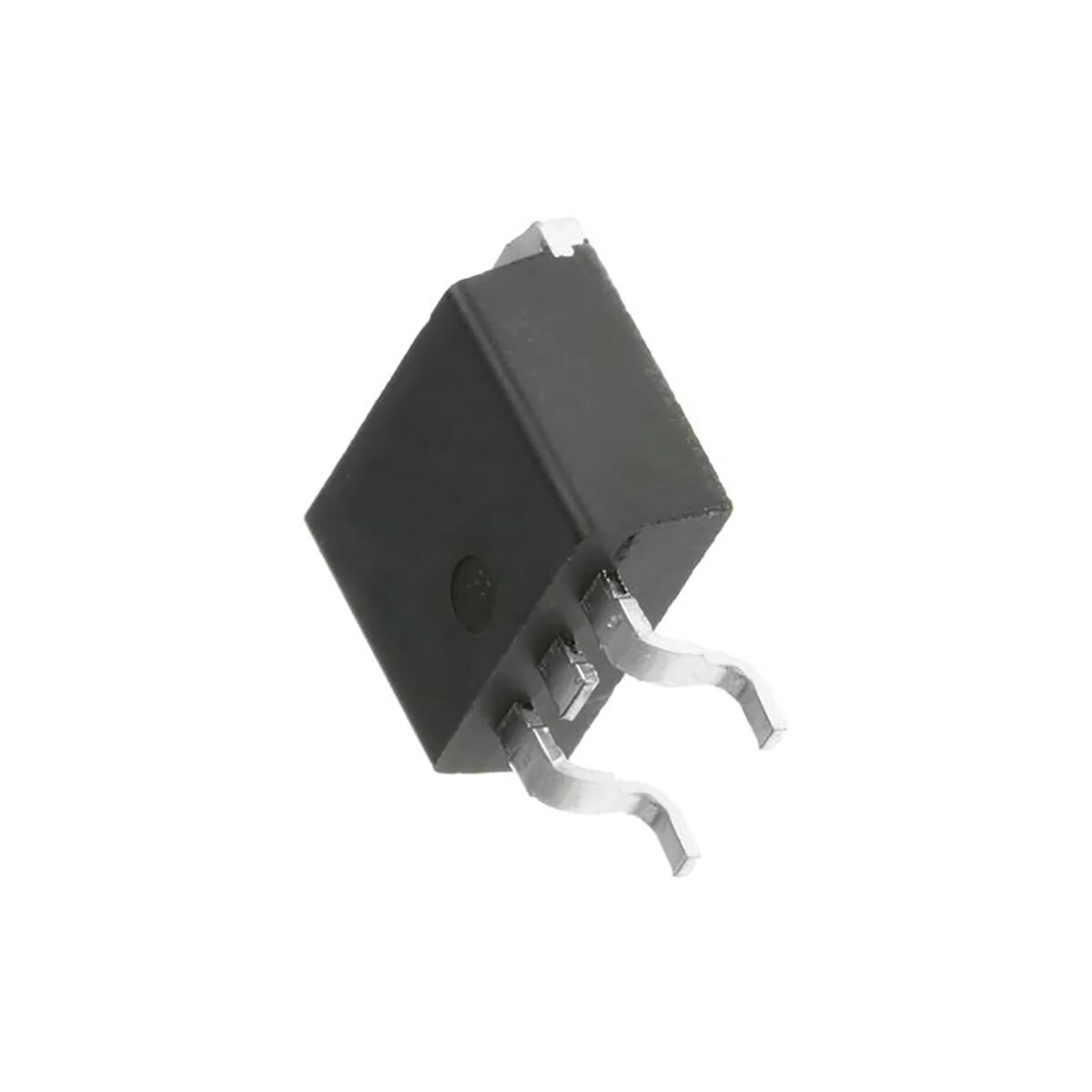

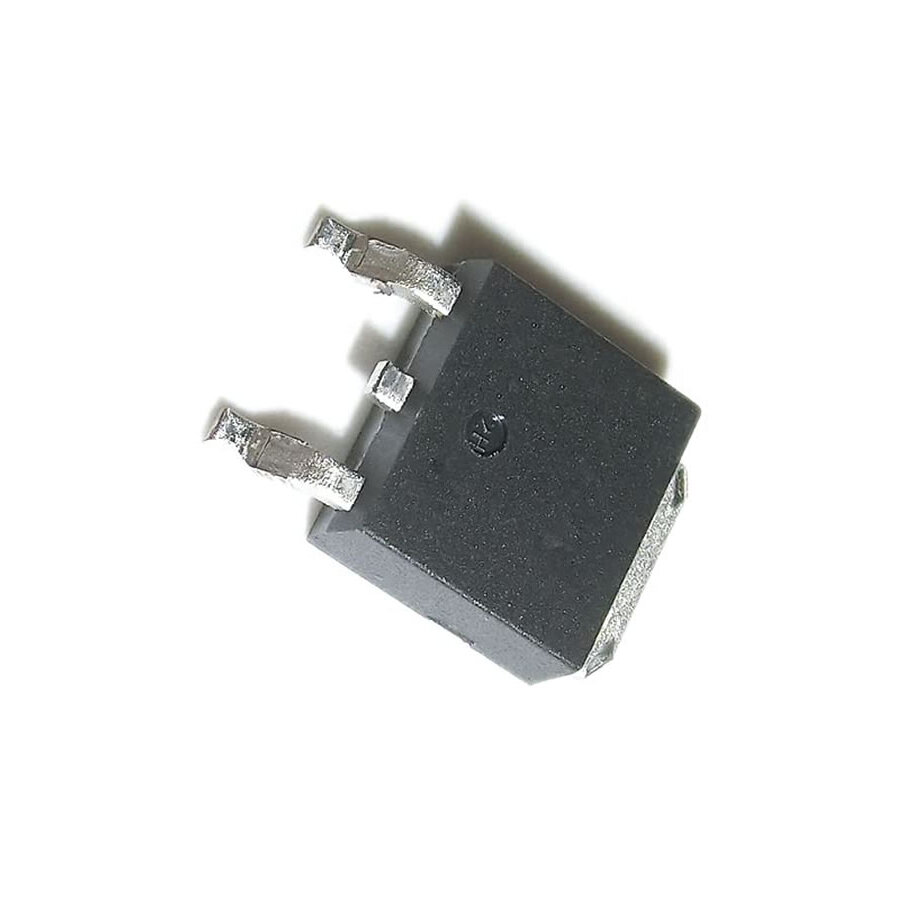

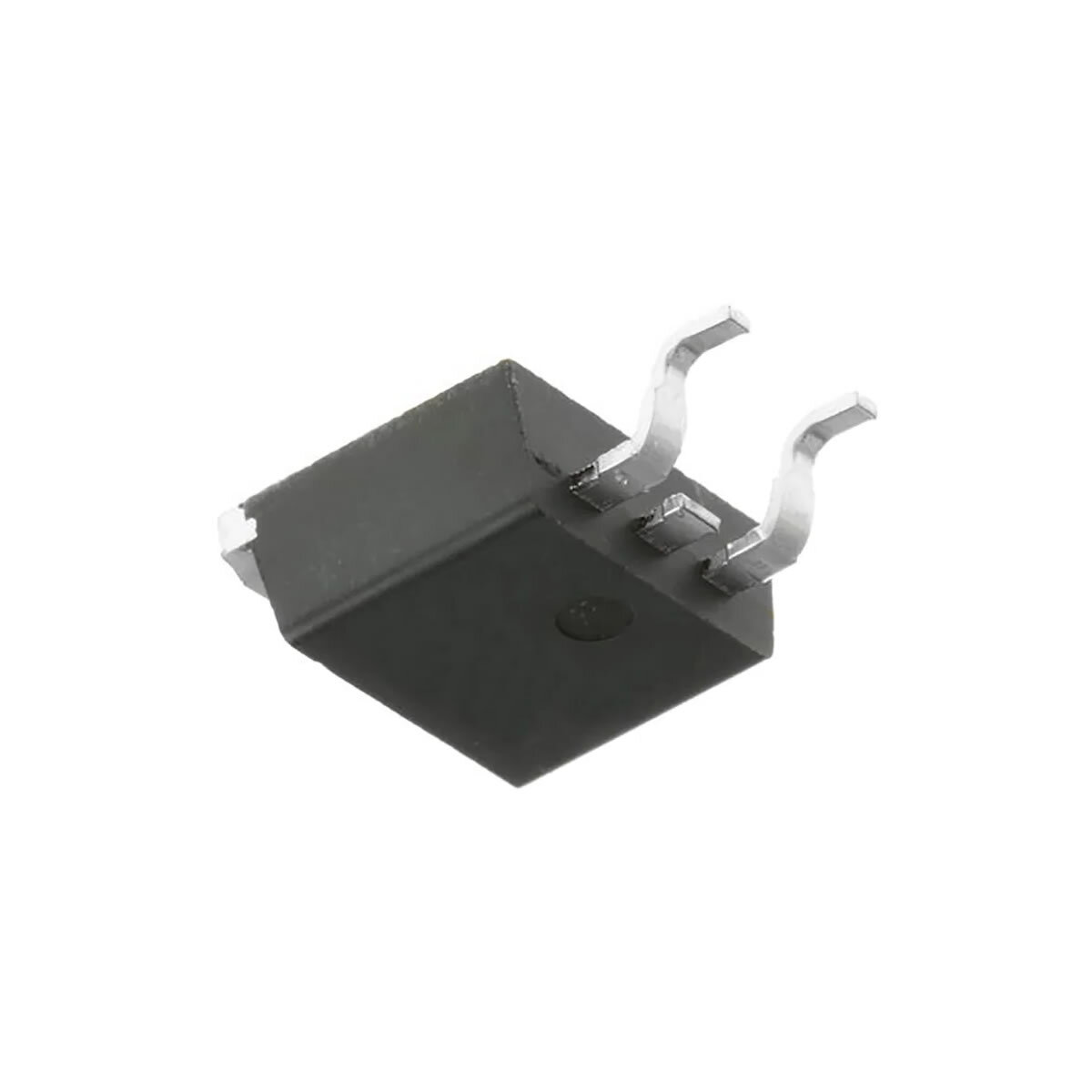

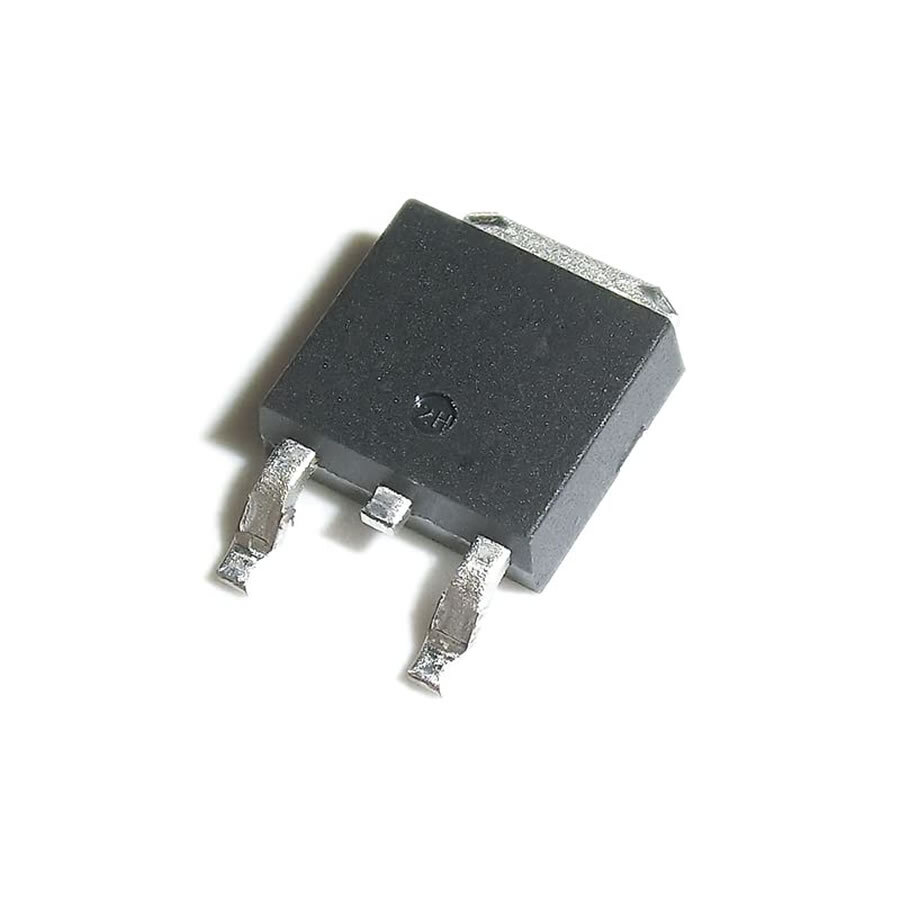

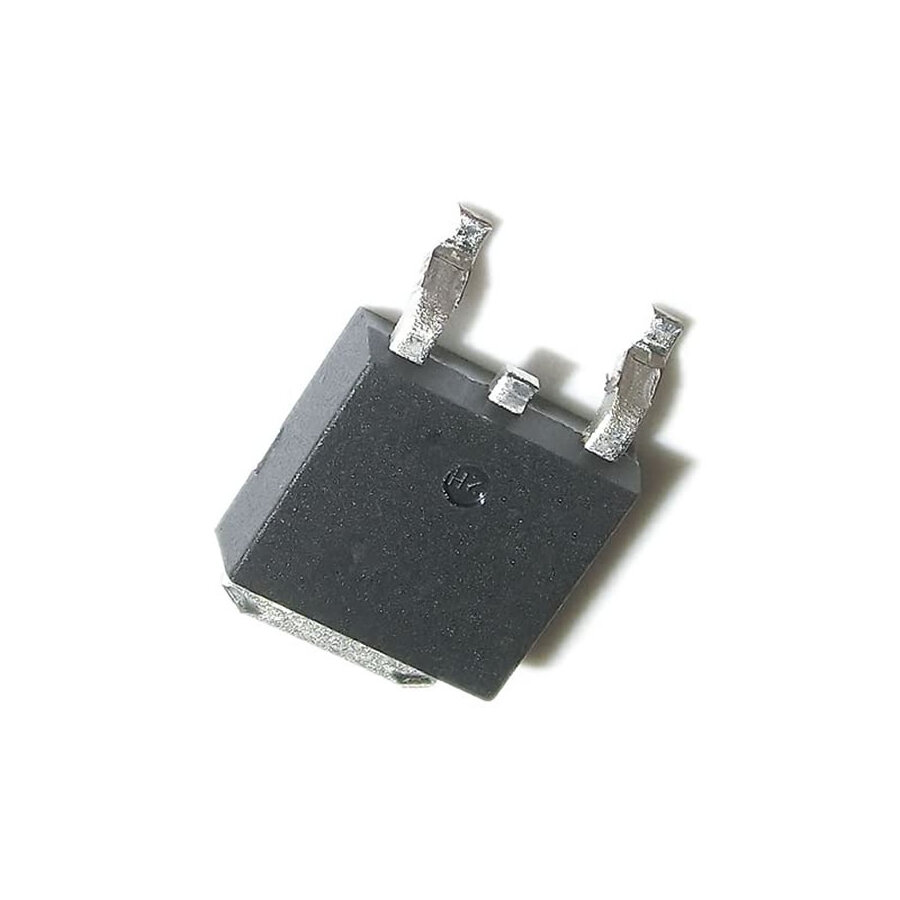

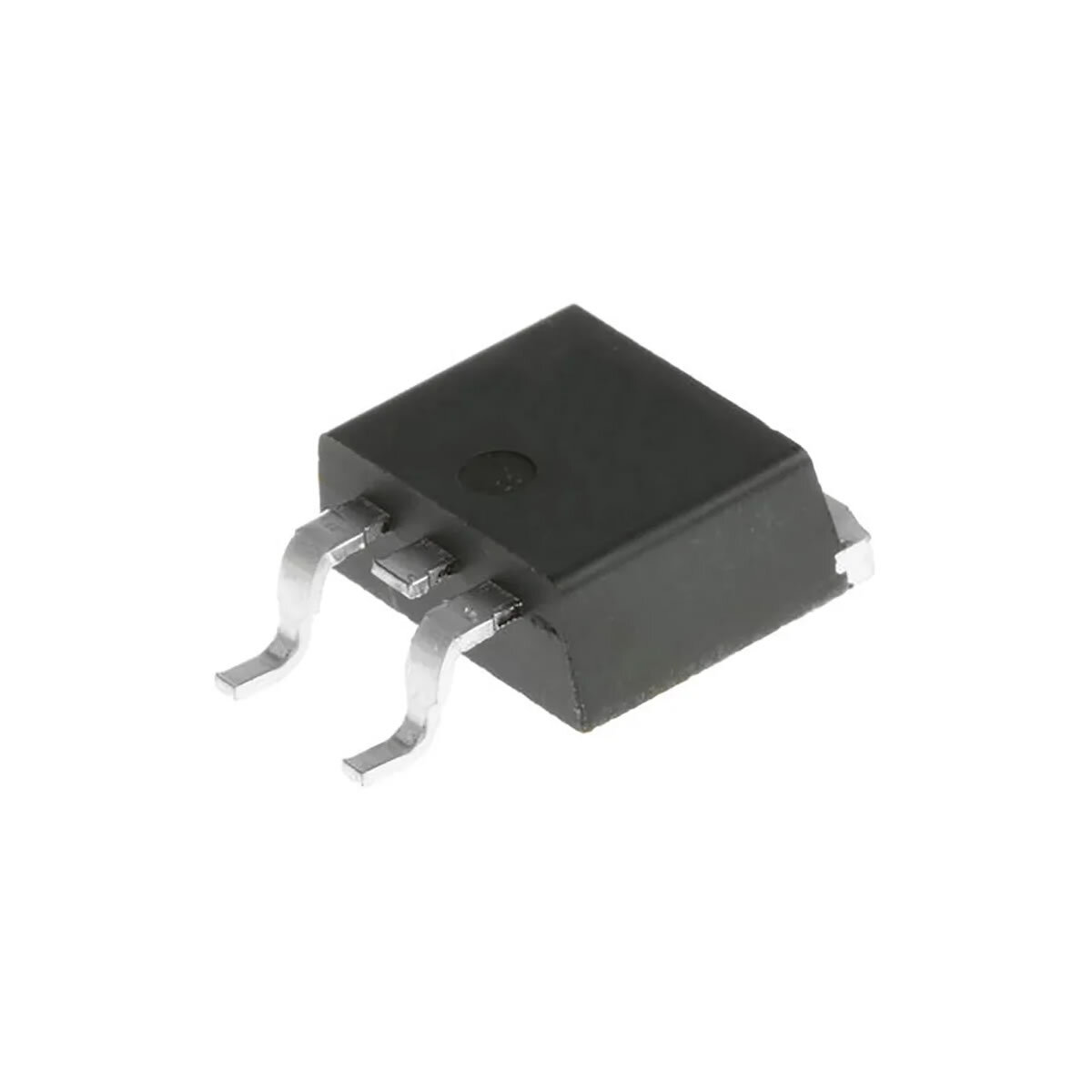

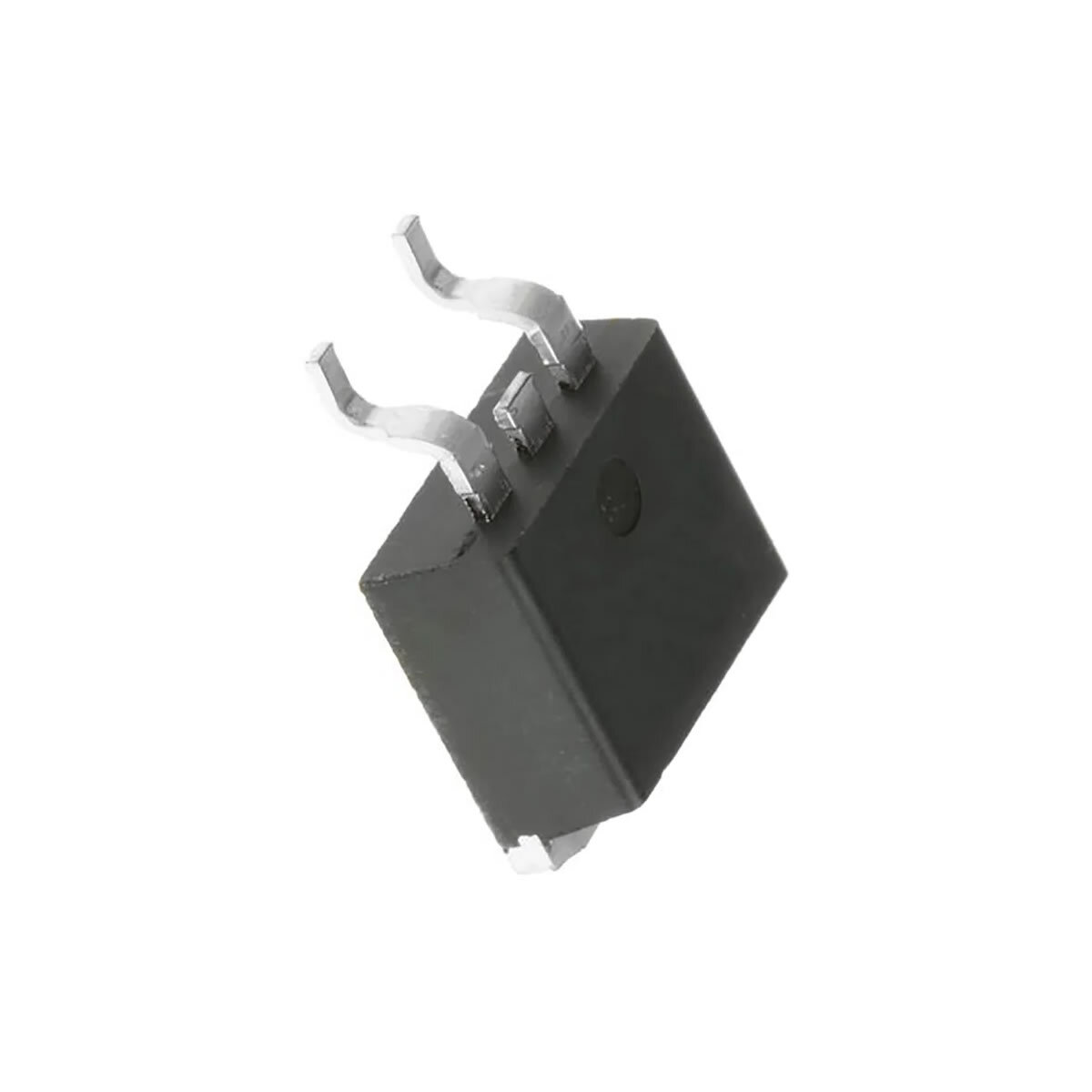

MJD3055G Transistor Silicon NPN CASE: TO252 MAKE: ON Semiconductor
Price:
£7.19 Inc. VAT (£5.99 Ex. VAT)
£7.19 Inc. VAT (£5.99 Ex. VAT)
Qty
Product specifications
Equivalent MJD3055
Type Transistor Silicon NPN
Case TO252
Manufacturer ON Semiconductor
Vbr CBO 70
Vbr CEO 60
Max. PD (W) 20
Max. hFE 100
Min hFE 20
Ic Max. (A) 10
@Ic (test) (A) 4.0
Icbo Max. @Vcb Max. (A) 2.0m
Polarity NPN
R(sat) (Û) 800m
Derate Above 25°C 160m
Trans. Freq (Hz) Min. 2.0M
Oper. Temp (°C) Max. 140
@VCE (V) 70i
Pinout Equivalence Number 4-104
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 20 W
Maximum Collector-Base Voltage |Vcb| 70 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 10 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 2 MHz
Forward Current Transfer Ratio (hFE), MIN 20
SMD Transistor Code J3055G
SKU 514542
