MJE101
View detailed images (12)

MJE101

SKU: MJE101

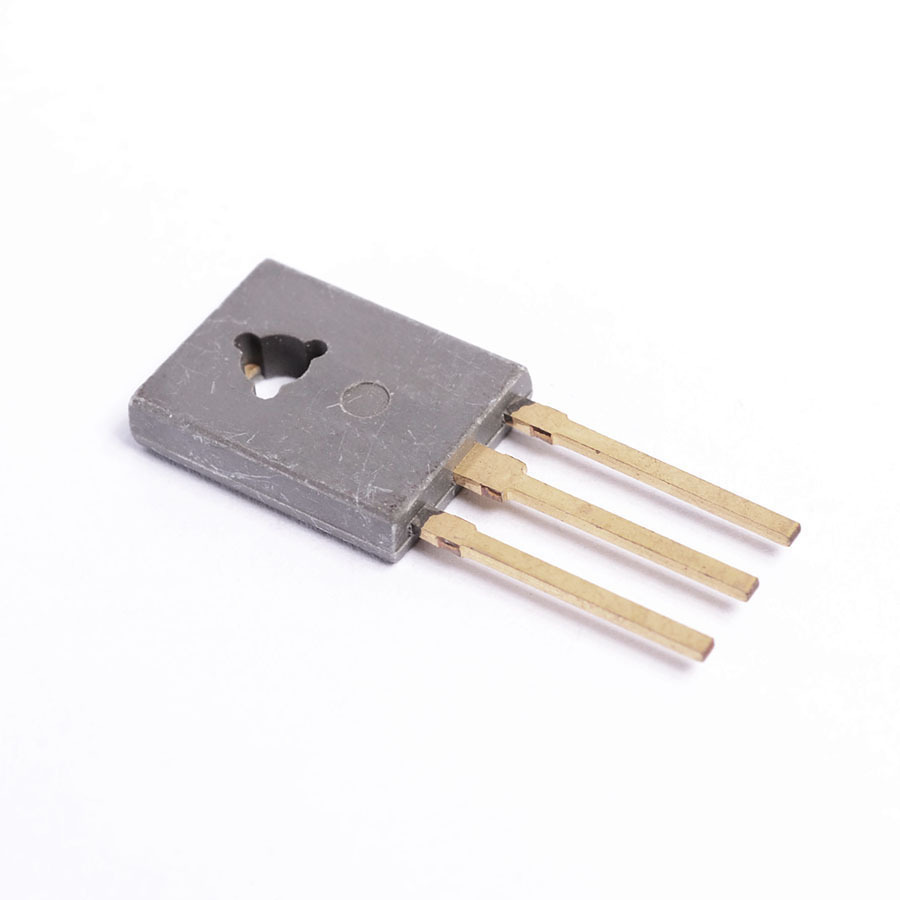

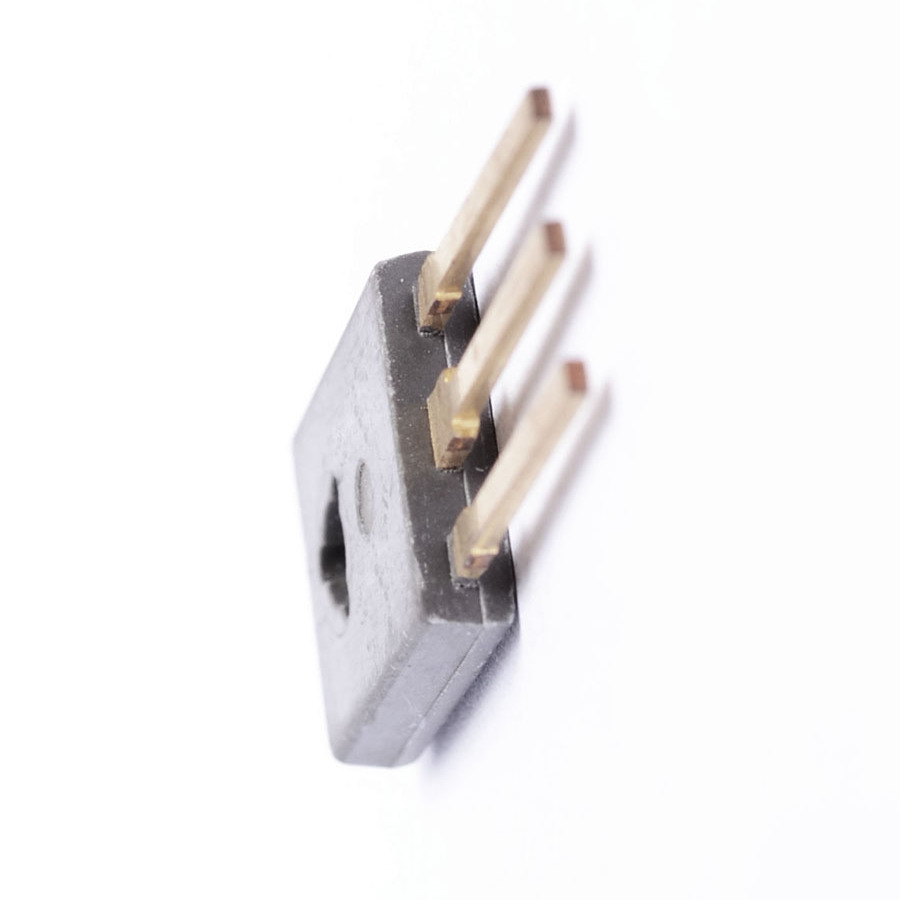

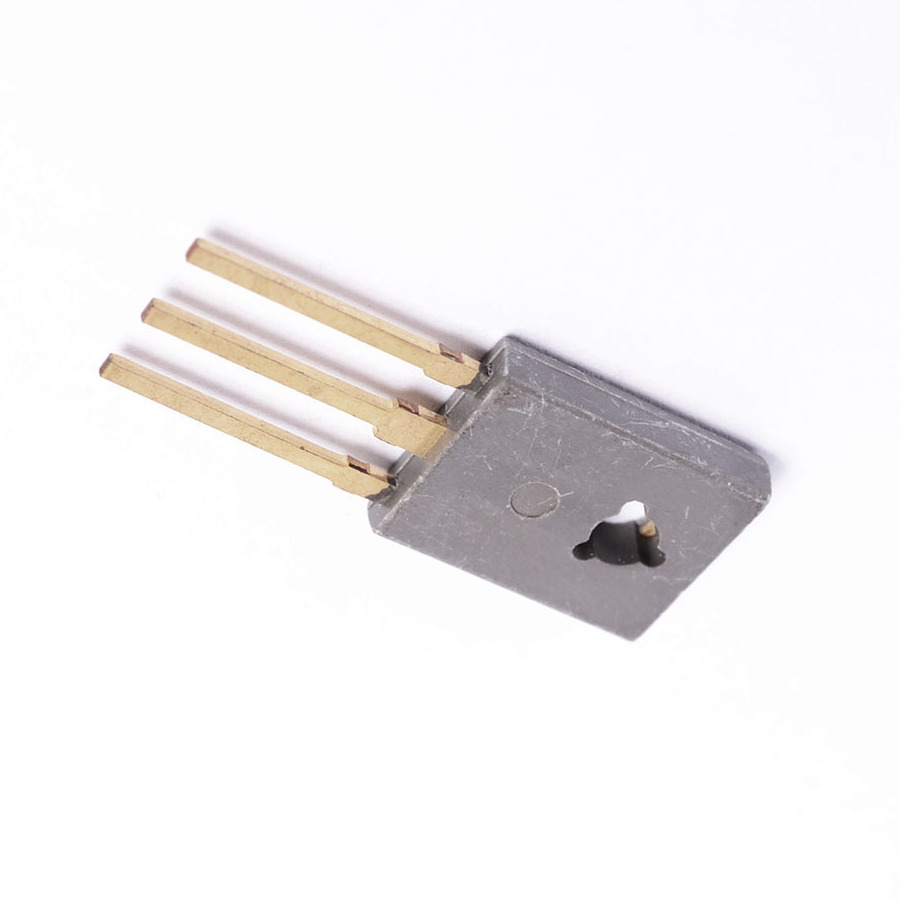

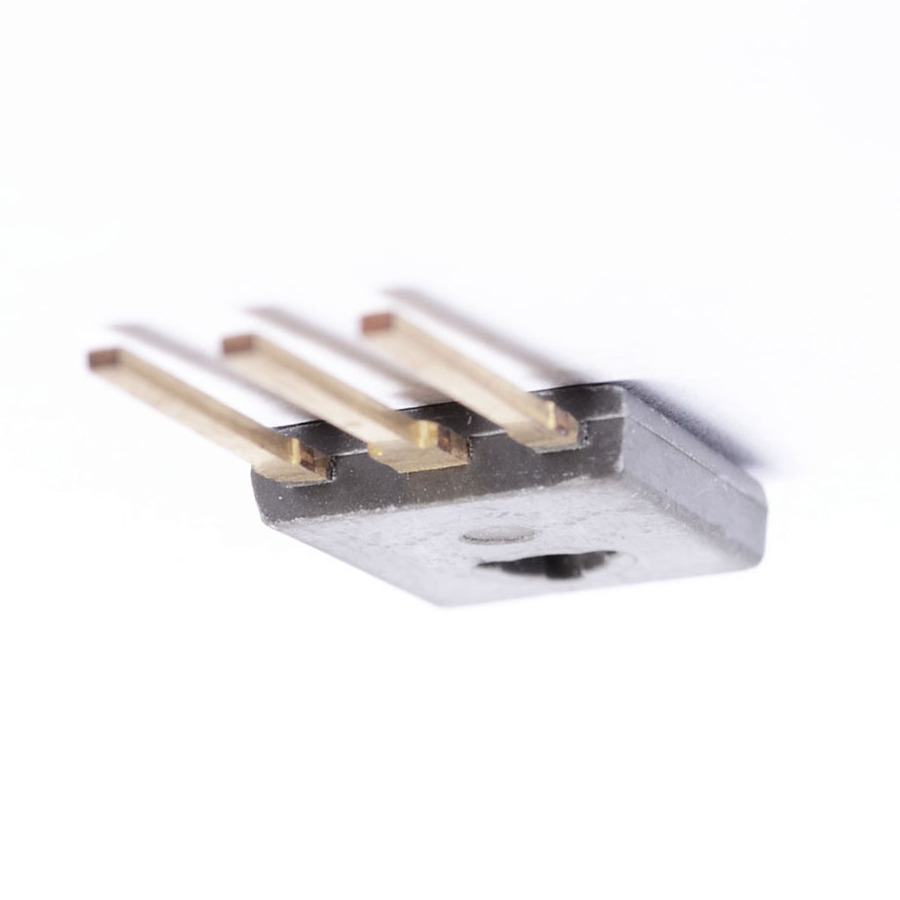

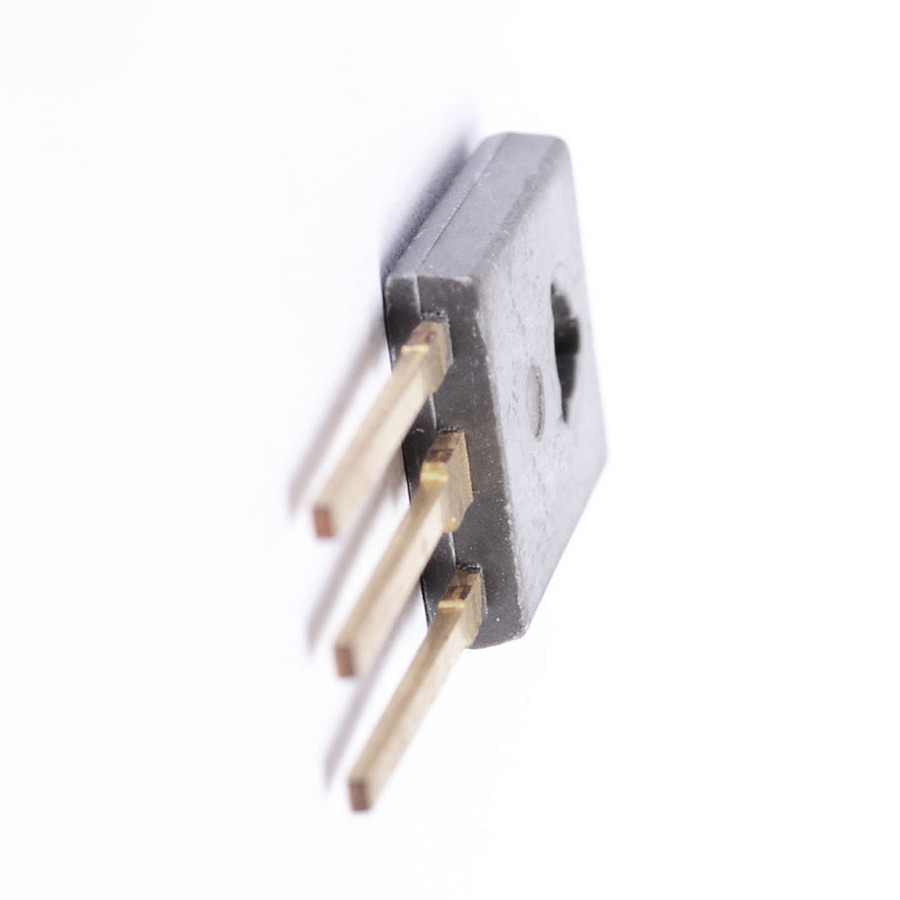

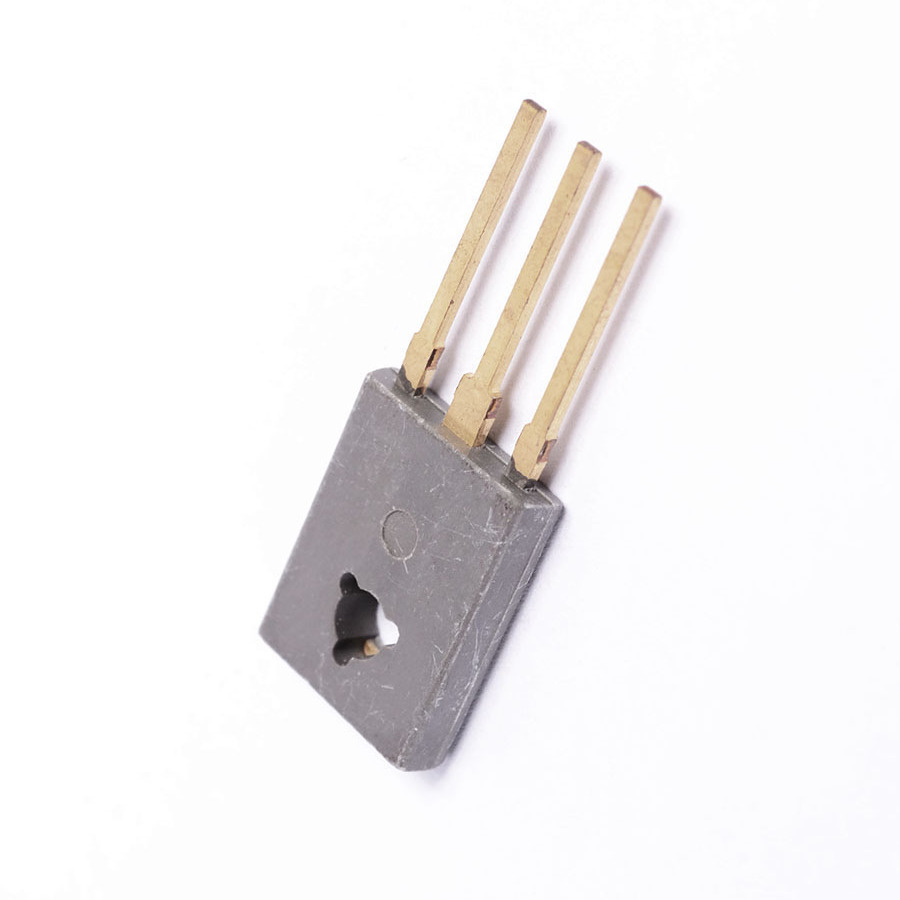

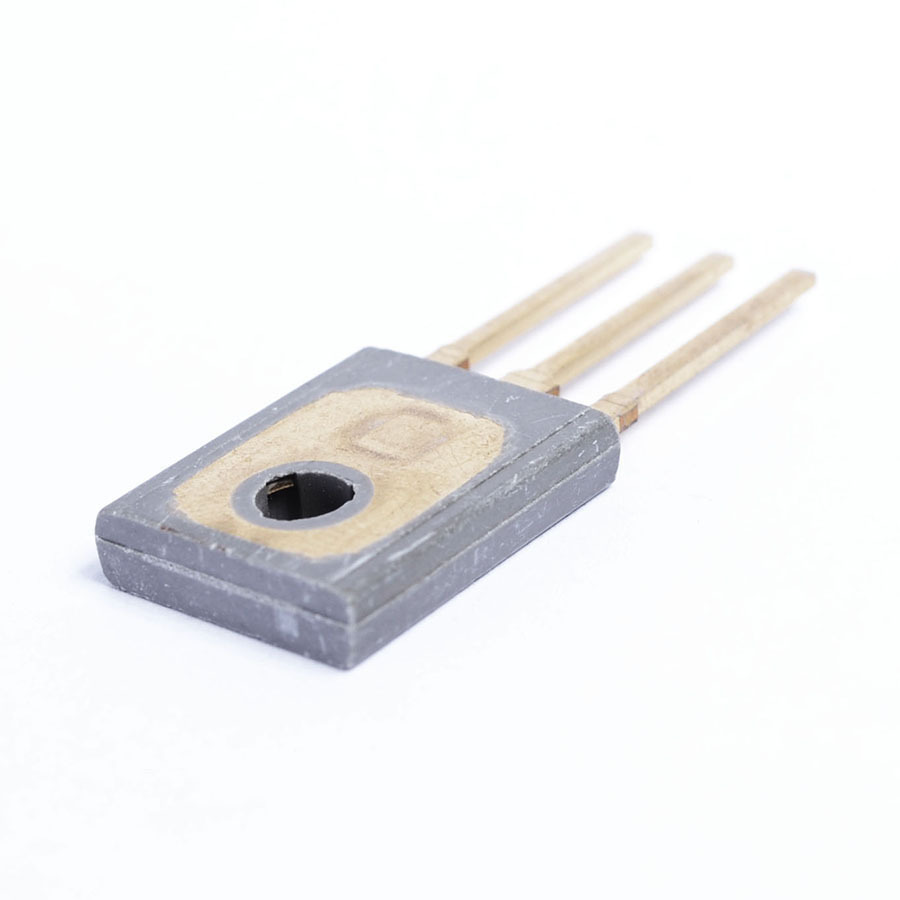

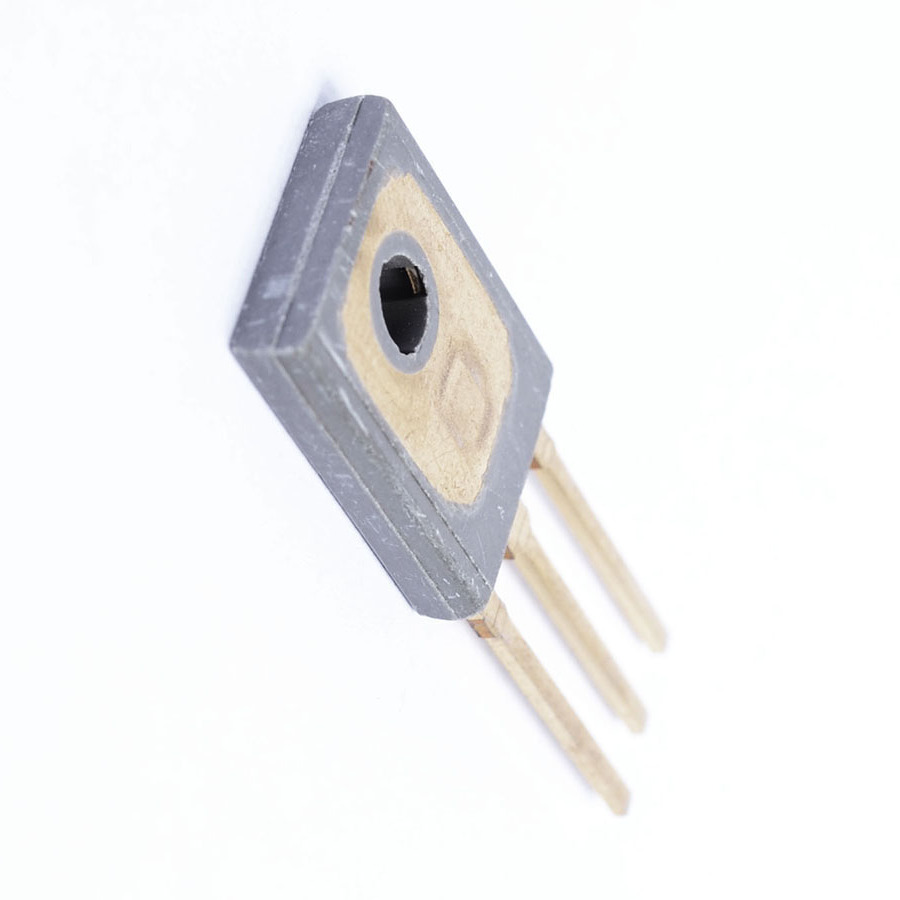

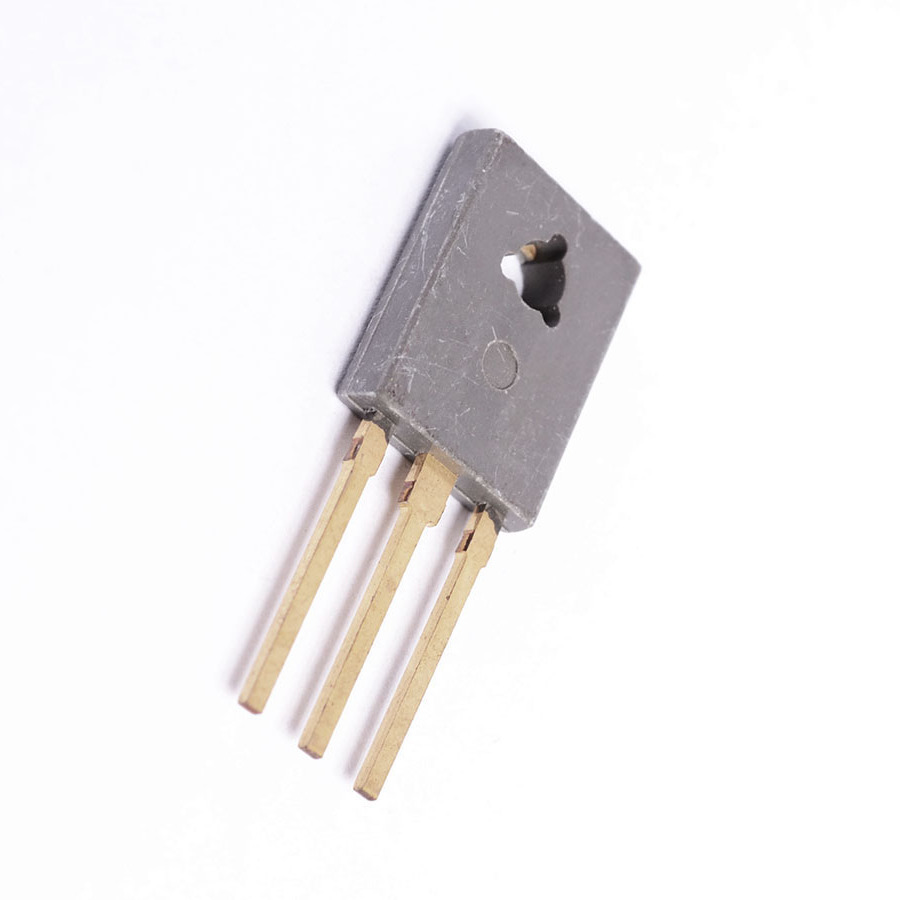

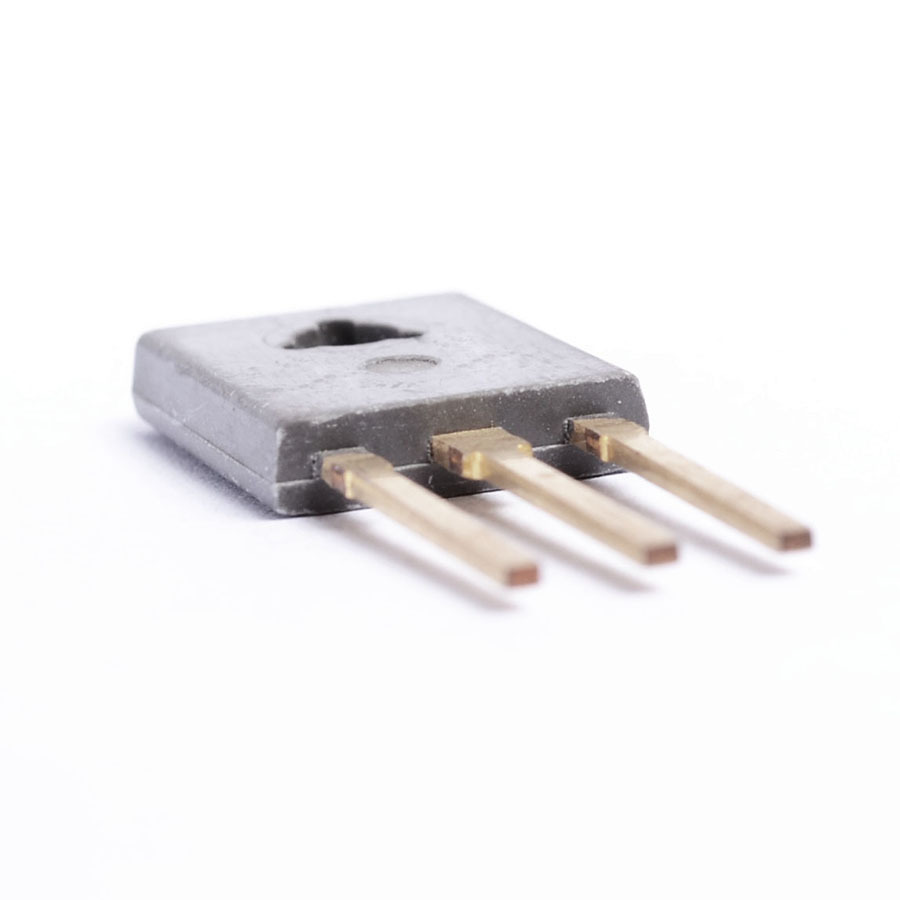

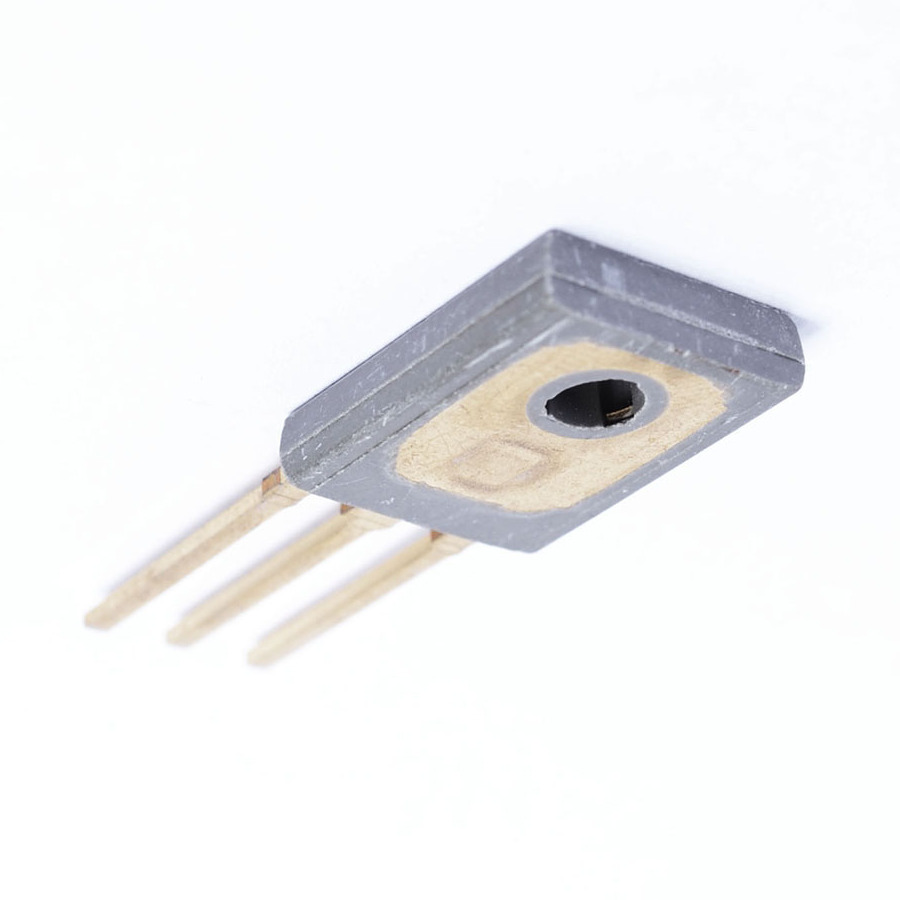

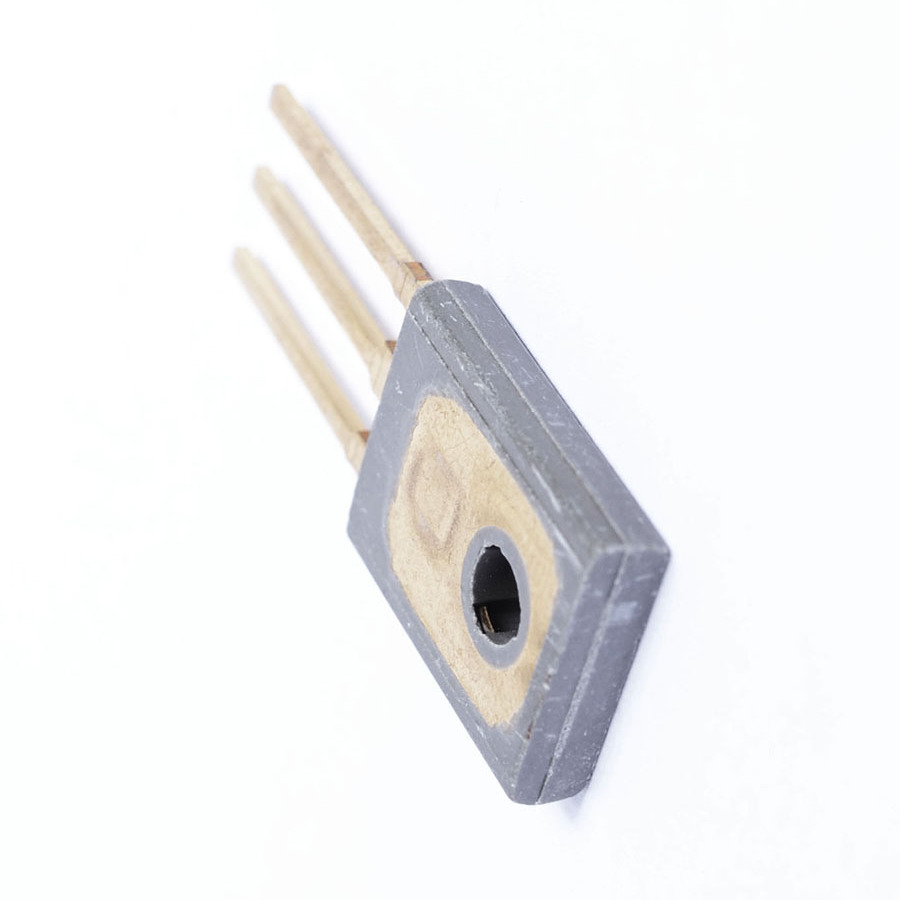

MJE101 Transistor Silicon PNP CASE: TO127 MAKE: Motorola Semiconductor
Product specifications
Type Transistor Silicon PNP
Case TO127
Manufacturer Motorola Semiconductor
Polarity PNP
Maximum Collector Power Dissipation (Pc) 75 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 40 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 25
SKU 254137
