MJE253G
View detailed images (4)

MJE253G

SKU: MJE253G

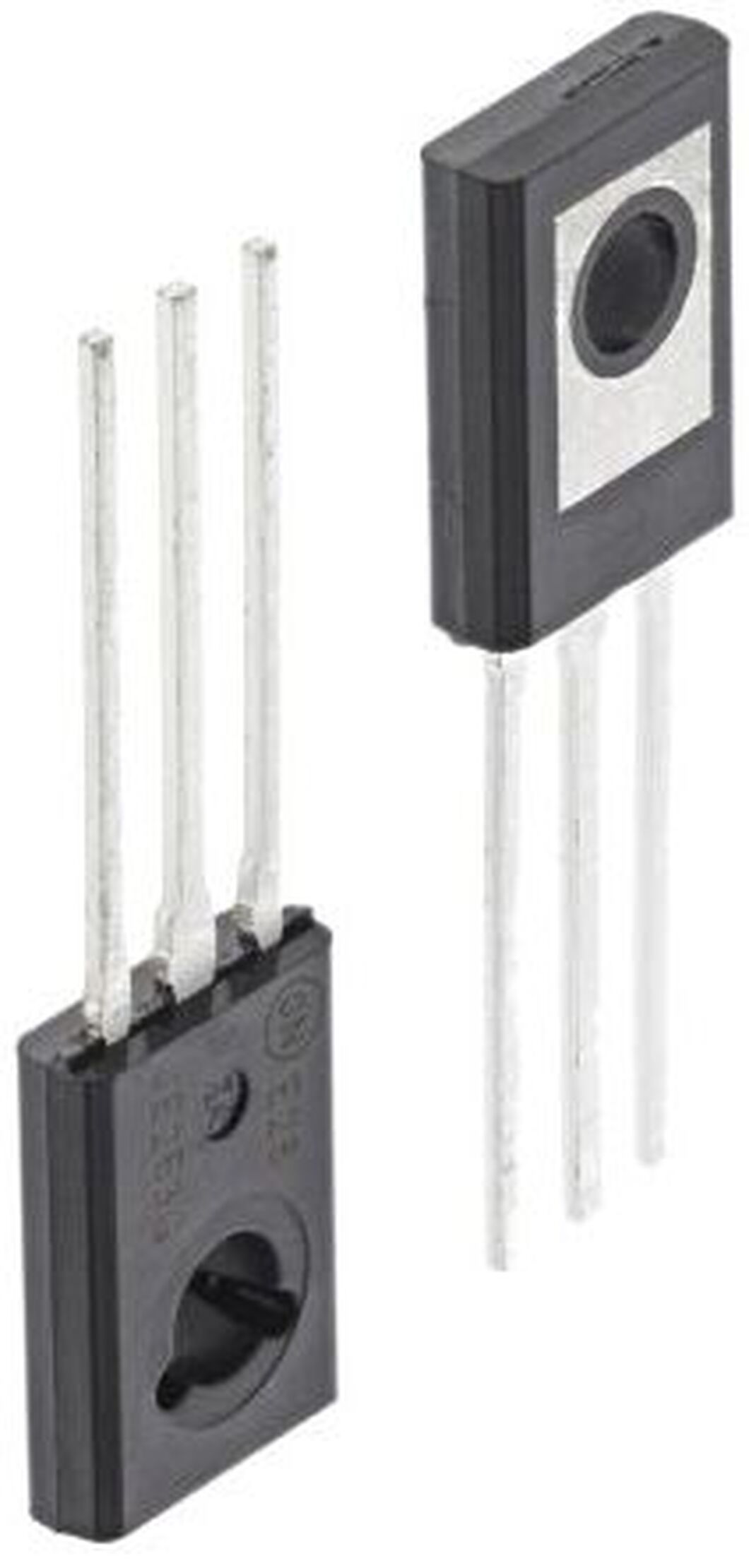

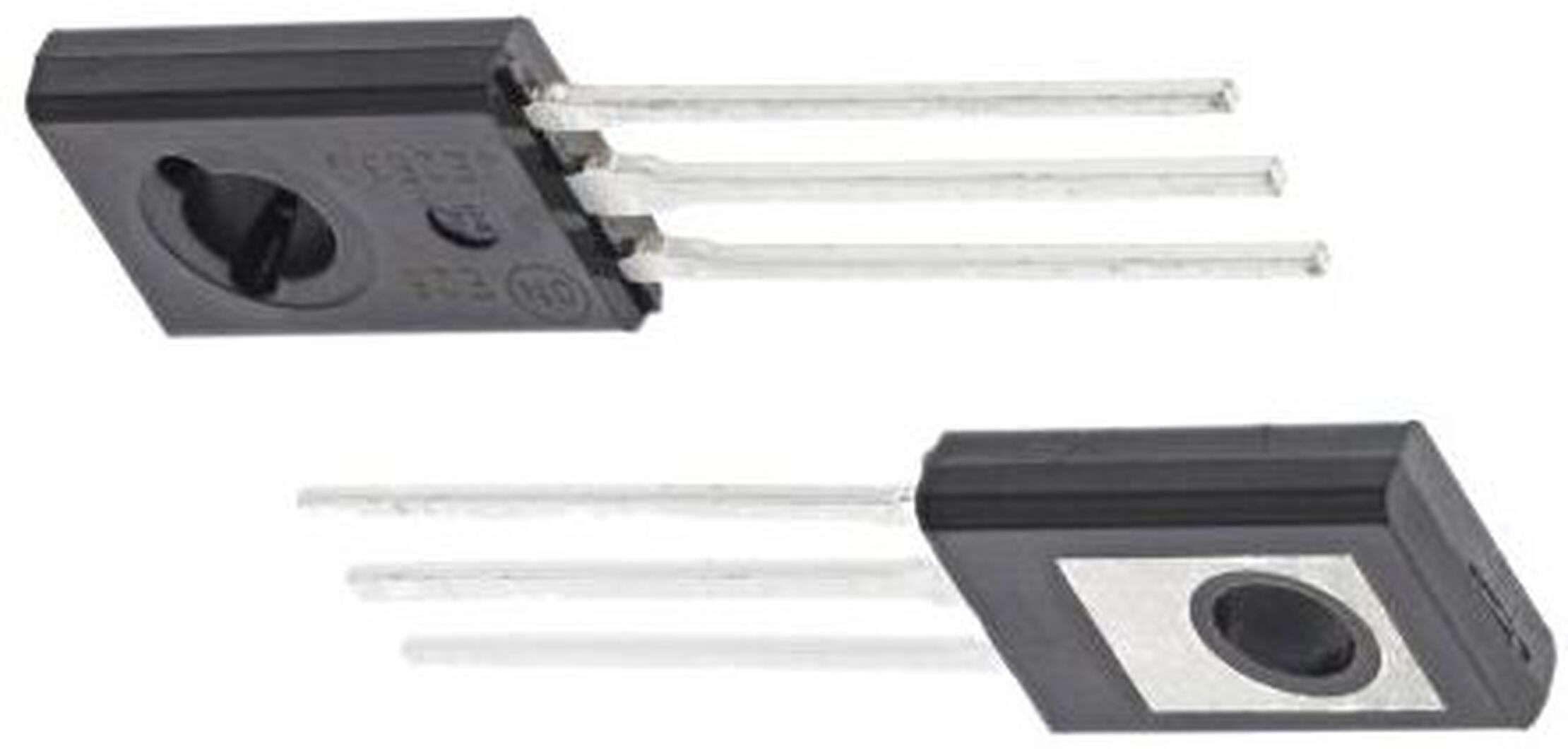

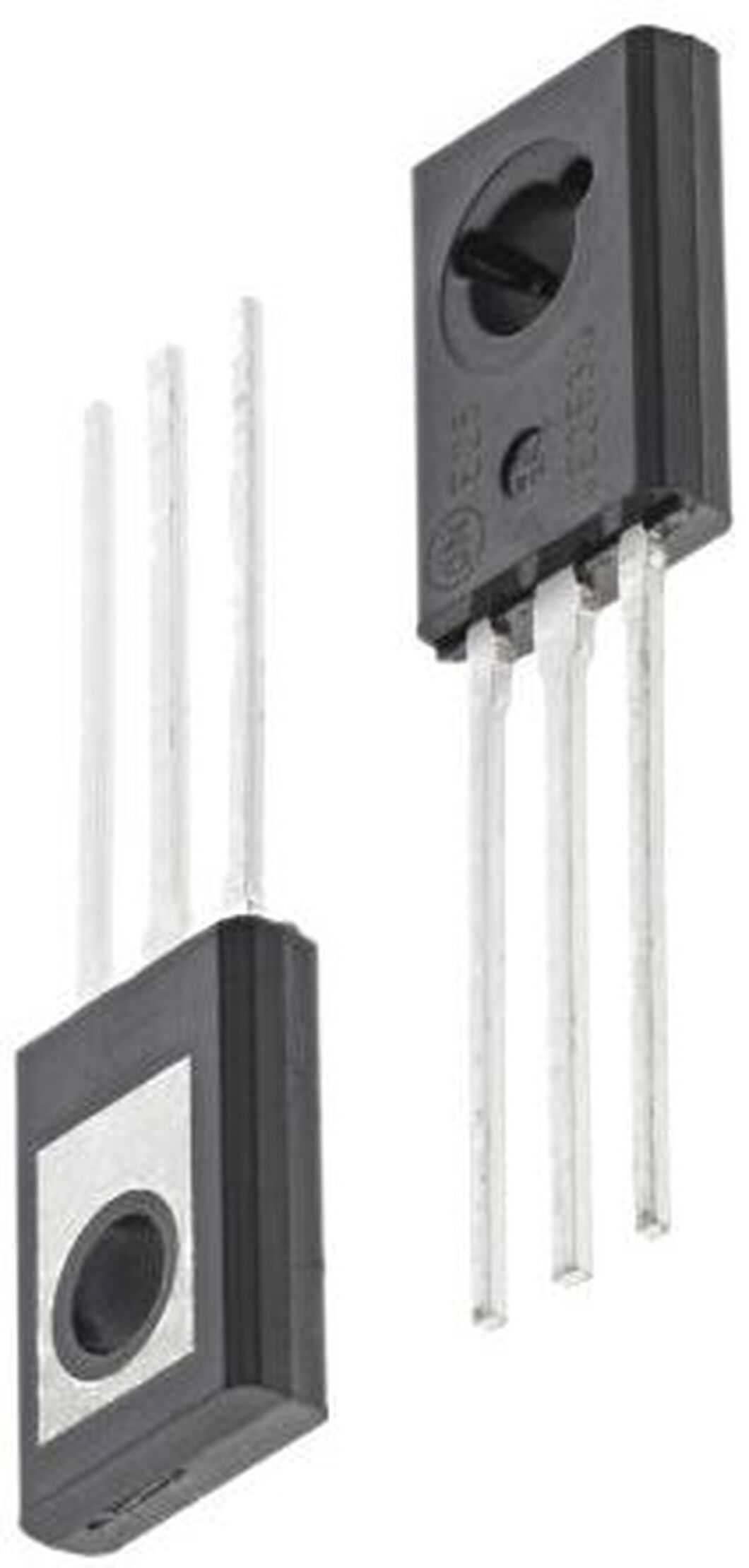

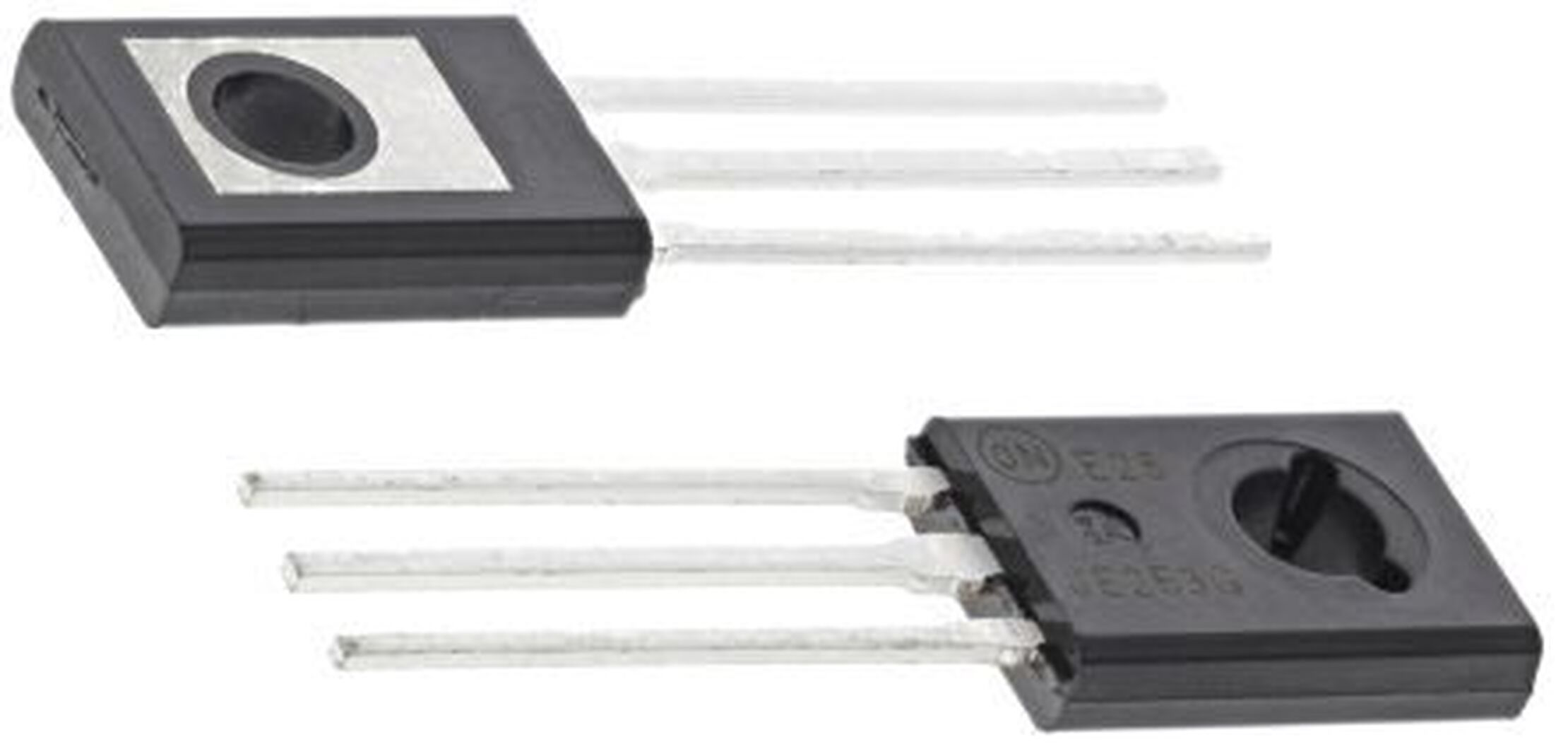

MJE253G Transistor Silicon PNP CASE: TO225 MAKE: ON Semiconductor
Price:
£4.79 Inc. VAT (£3.99 Ex. VAT)
£4.79 Inc. VAT (£3.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon PNP
Case TO225
Manufacturer ON Semiconductor
Polarity PNP
Maximum Collector Power Dissipation (Pc) 15 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector-Emitter Voltage |Vce| 100 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 4 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 50 pF
Transition Frequency (ft): 40 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SMD Transistor Code JE253
SKU 432870
