MJL1302AG
View detailed images (4)

MJL1302AG

SKU: MJL1302AG

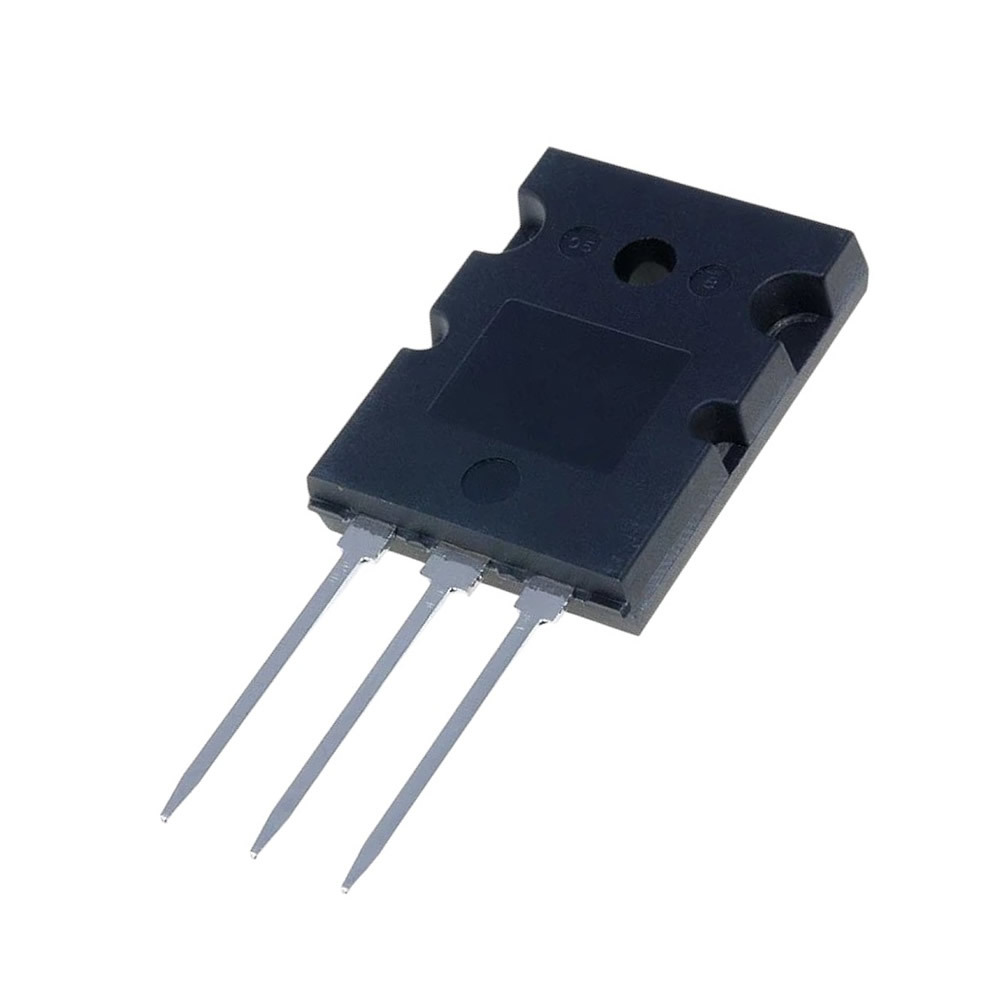

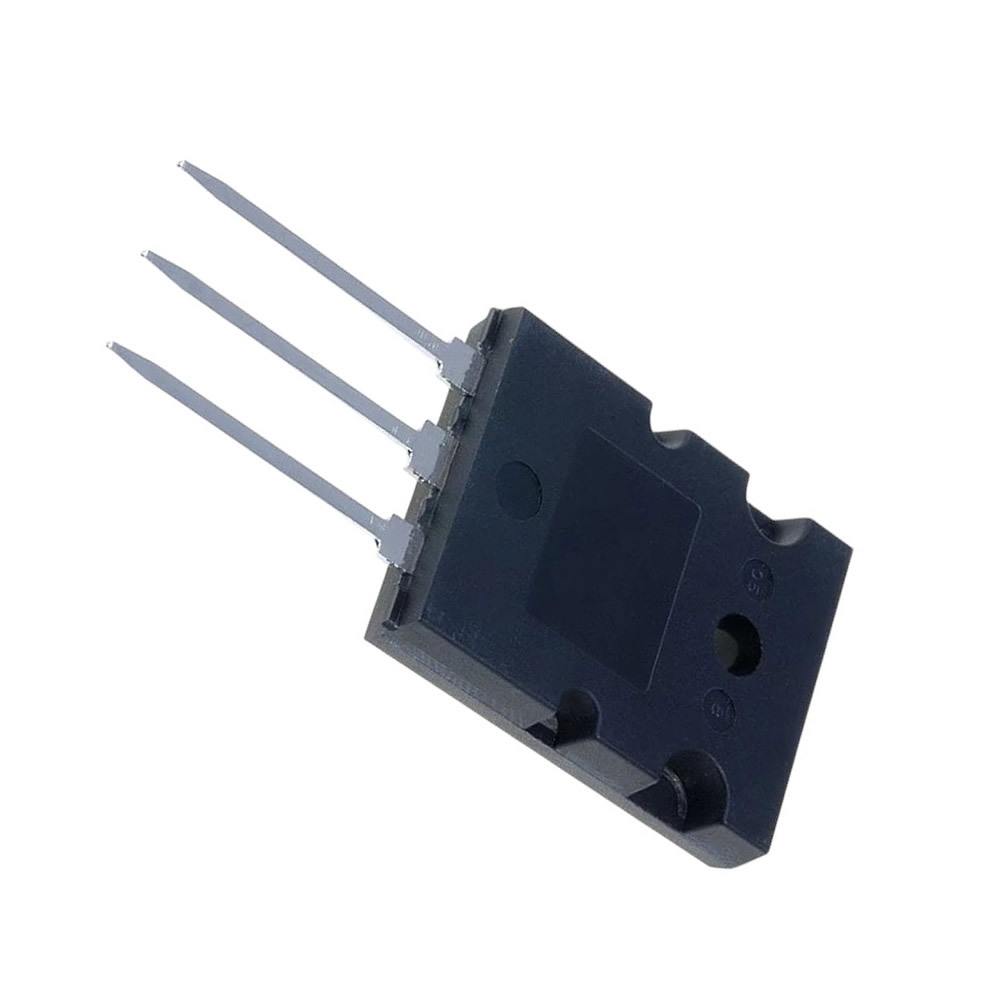

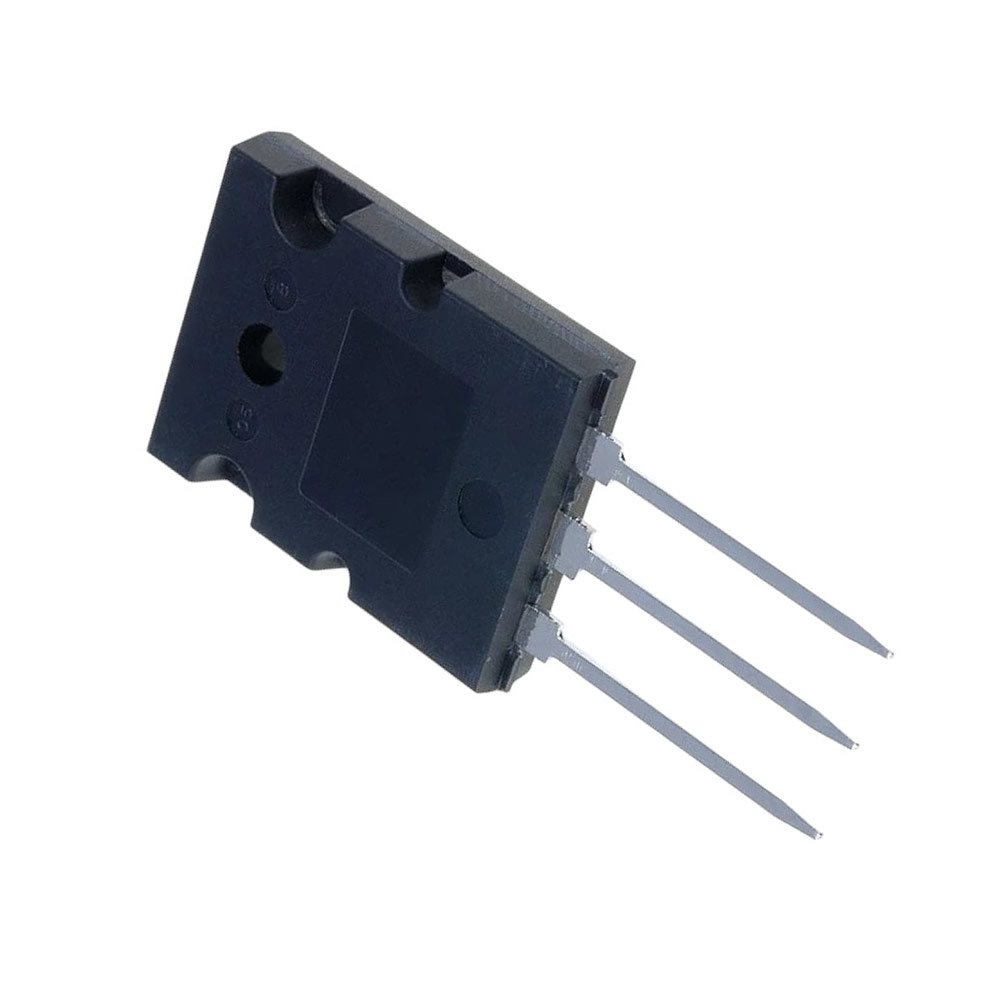

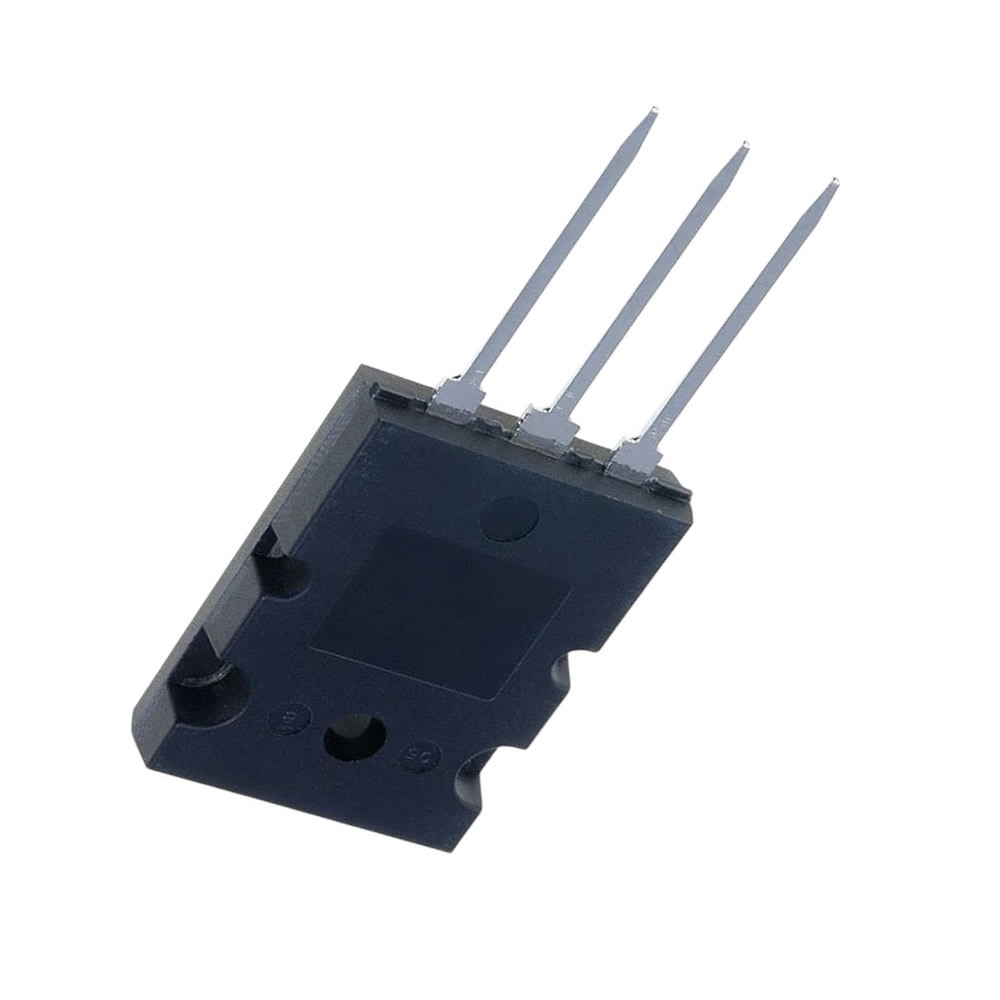

MJL1302AG Transistor - Case: TO264 Make: ON Semiconductor
Price: £11.99
+ VAT 20% for UK purchases
£11.99
Qty
+ VAT 20% for UK purchases
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon PNP
Case TO264
Manufacturer ON Semiconductor
Polarity PNP
Maximum Collector Power Dissipation (Pc) 200 W
Maximum Collector-Base Voltage |Vcb| 260 V
Maximum Collector-Emitter Voltage |Vce| 260 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 15 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 600 pF
Transition Frequency (ft): 30 MHz
Forward Current Transfer Ratio (hFE), MIN 45
SMD Transistor Code MJL1302A
SKU 432893
