MJL21193G
View detailed images (4)

MJL21193G

SKU: MJL21193G

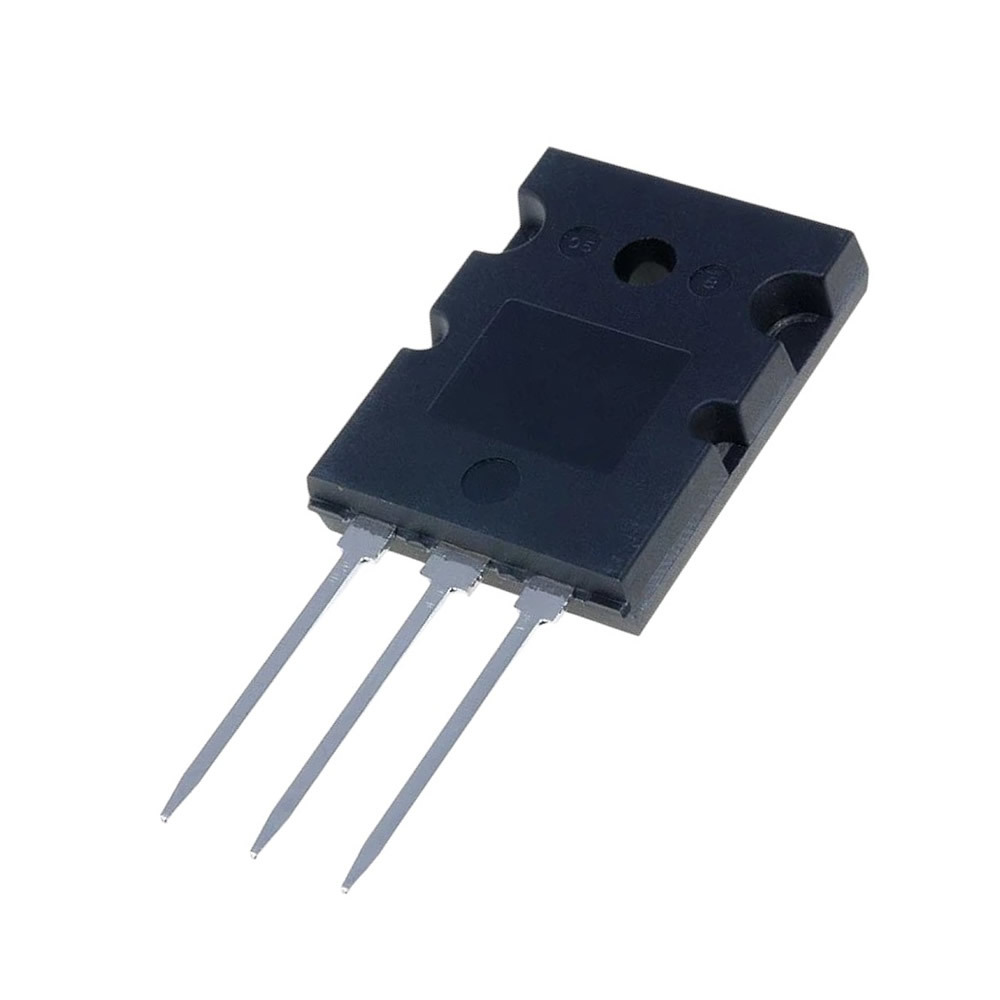

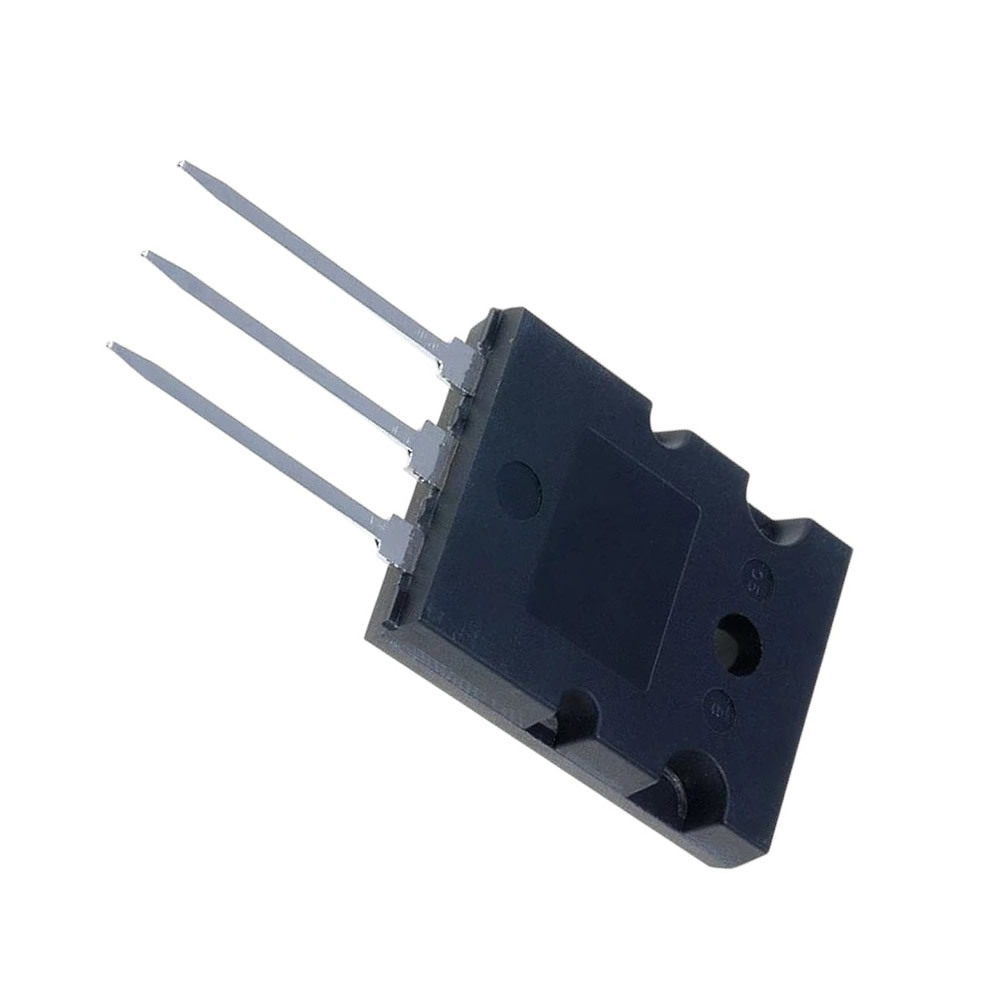

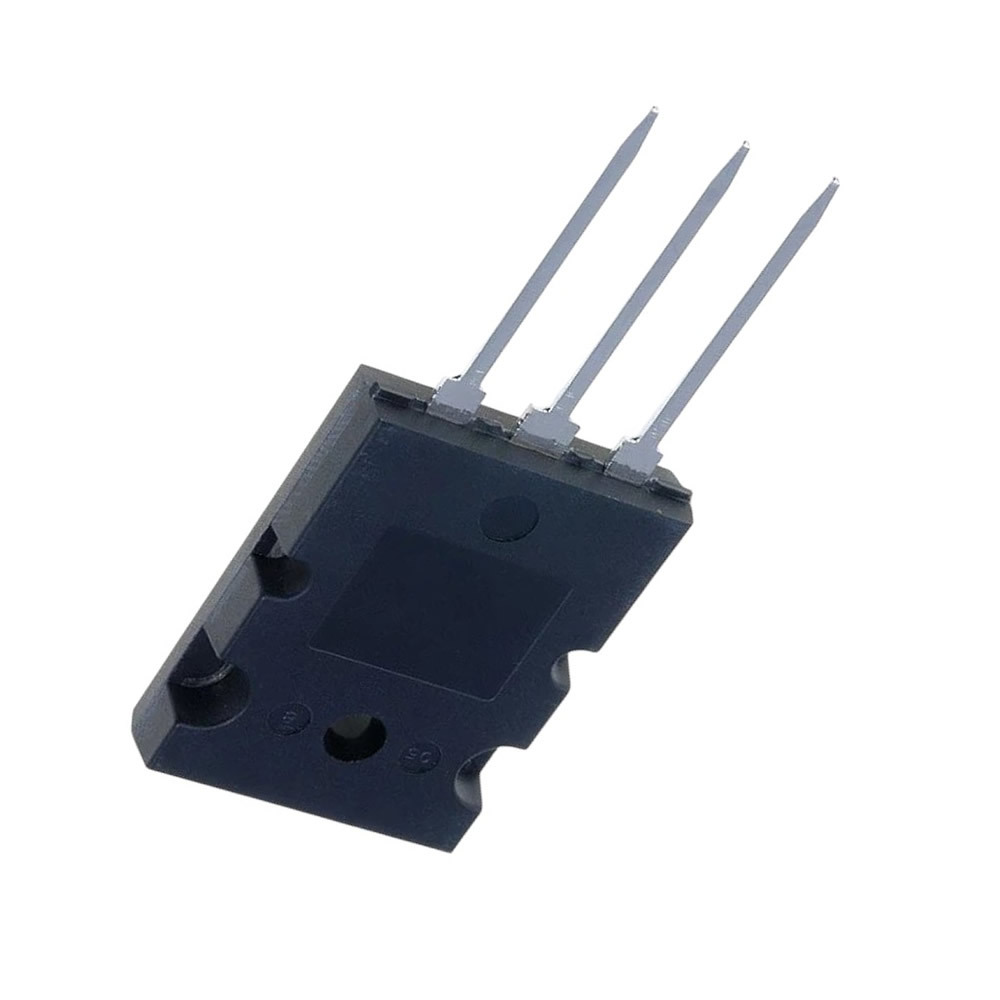

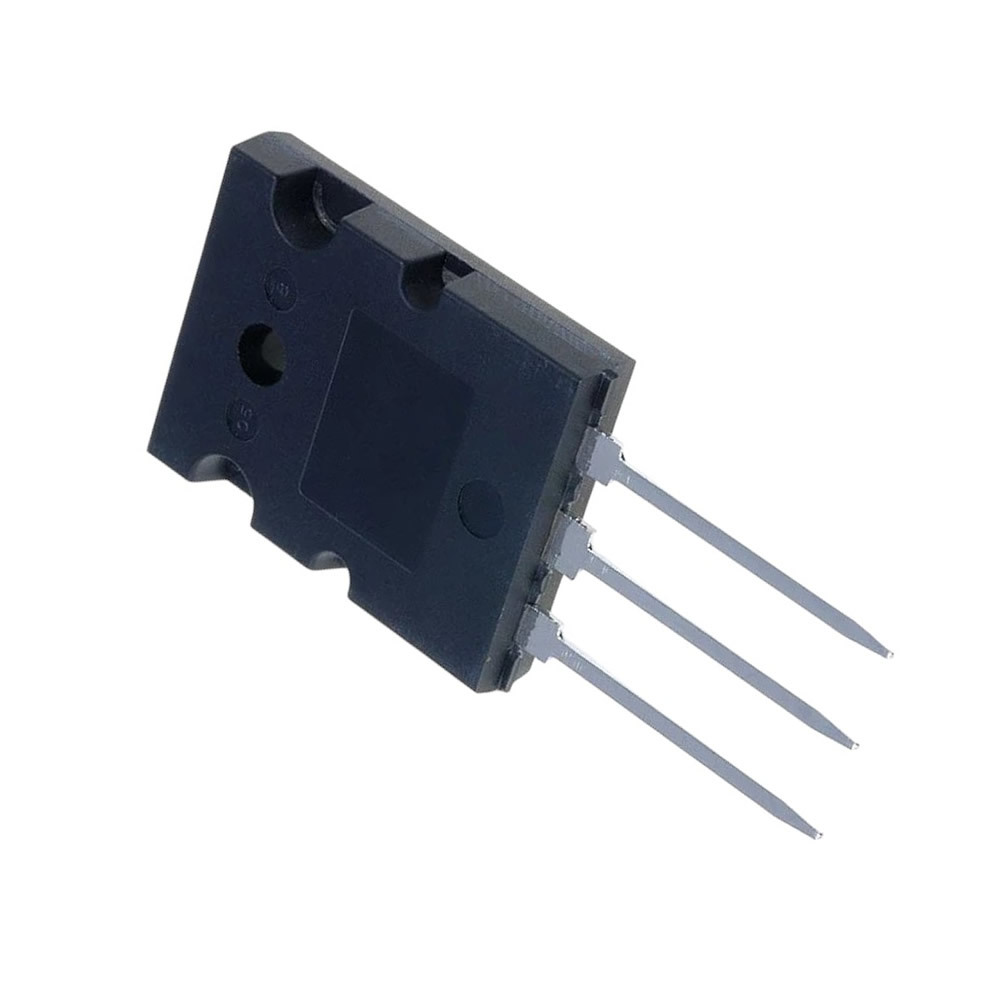

MJL21193G Transistor Silicon PNP CASE: TO264 MAKE: ON Semiconductor
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon PNP
Case TO264
Manufacturer ON Semiconductor
Polarity PNP
Maximum Collector Power Dissipation (Pc) 200 W
Maximum Collector-Base Voltage |Vcb| 400 V
Maximum Collector-Emitter Voltage |Vce| 250 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 16 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 500 pF
Transition Frequency (ft): 4 MHz
Forward Current Transfer Ratio (hFE), MIN 25
SMD Transistor Code MJL21193
SKU 592396
