MJL4281AG
View detailed images (4)

MJL4281AG

SKU: MJL4281AG

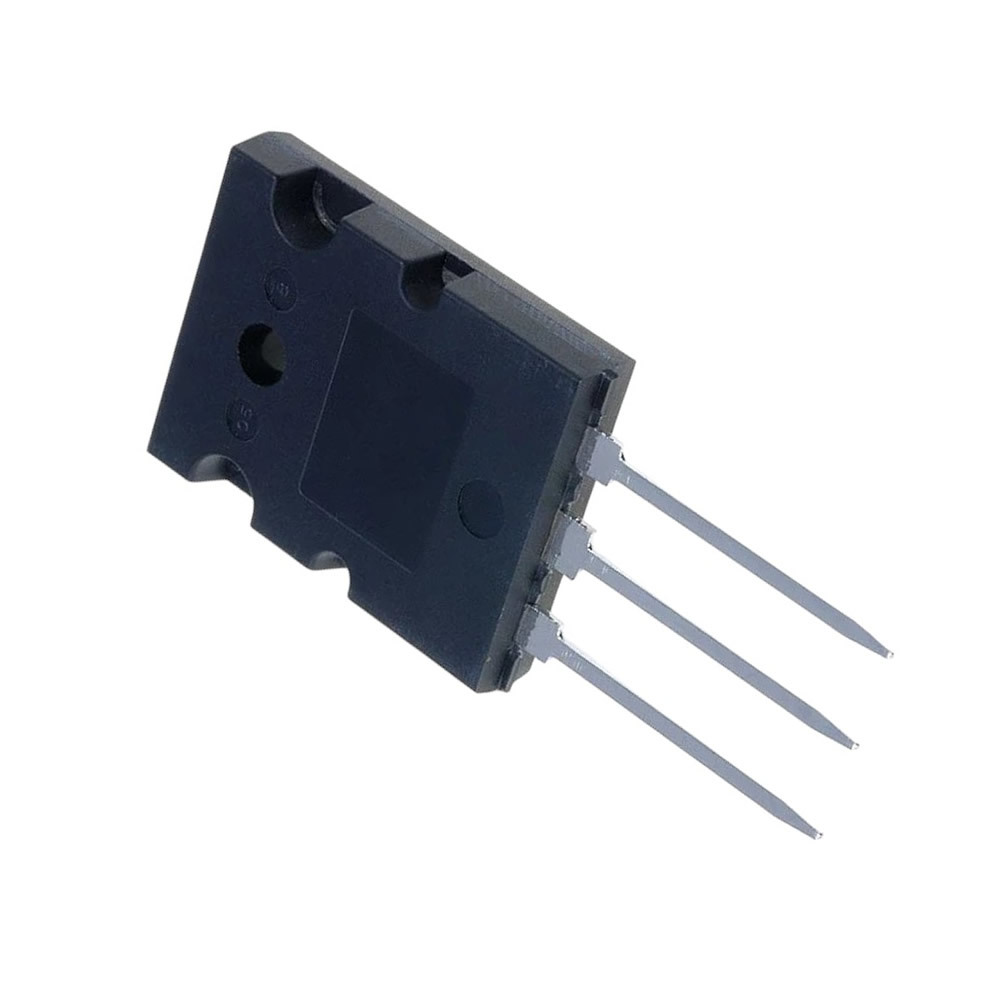

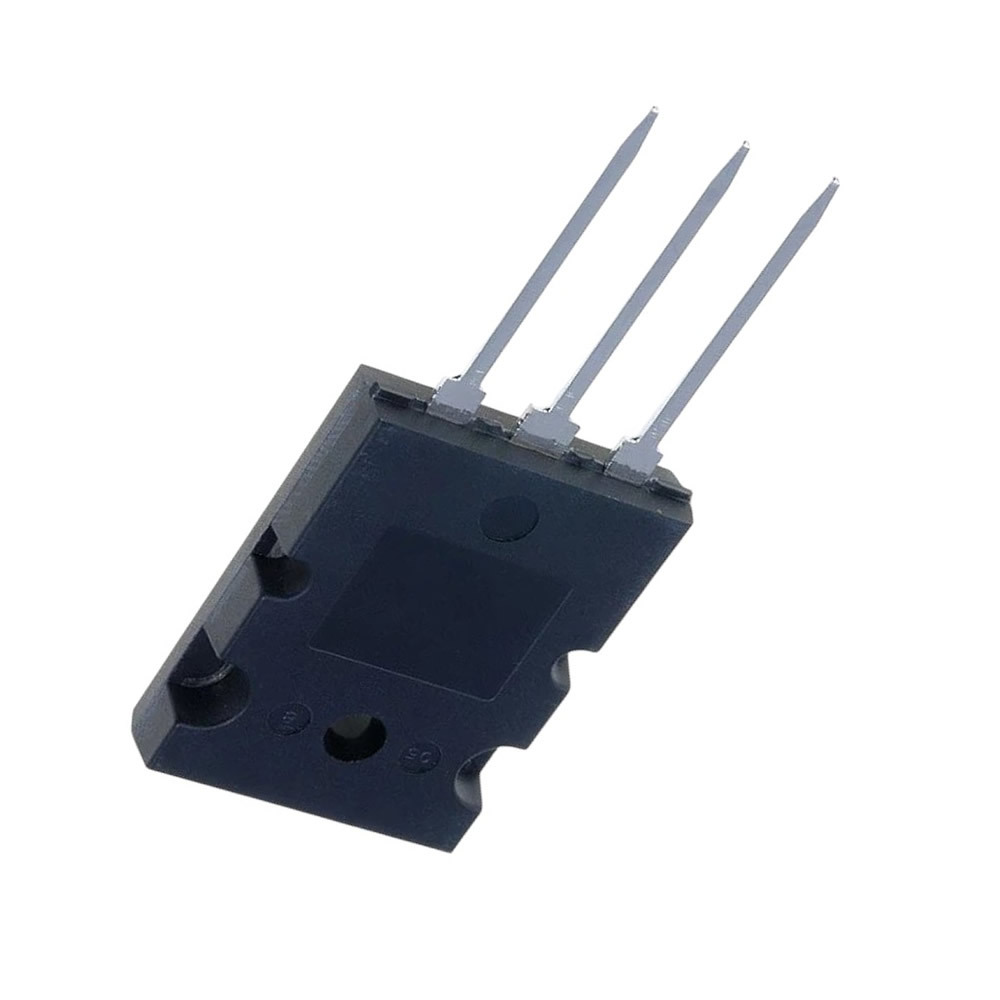

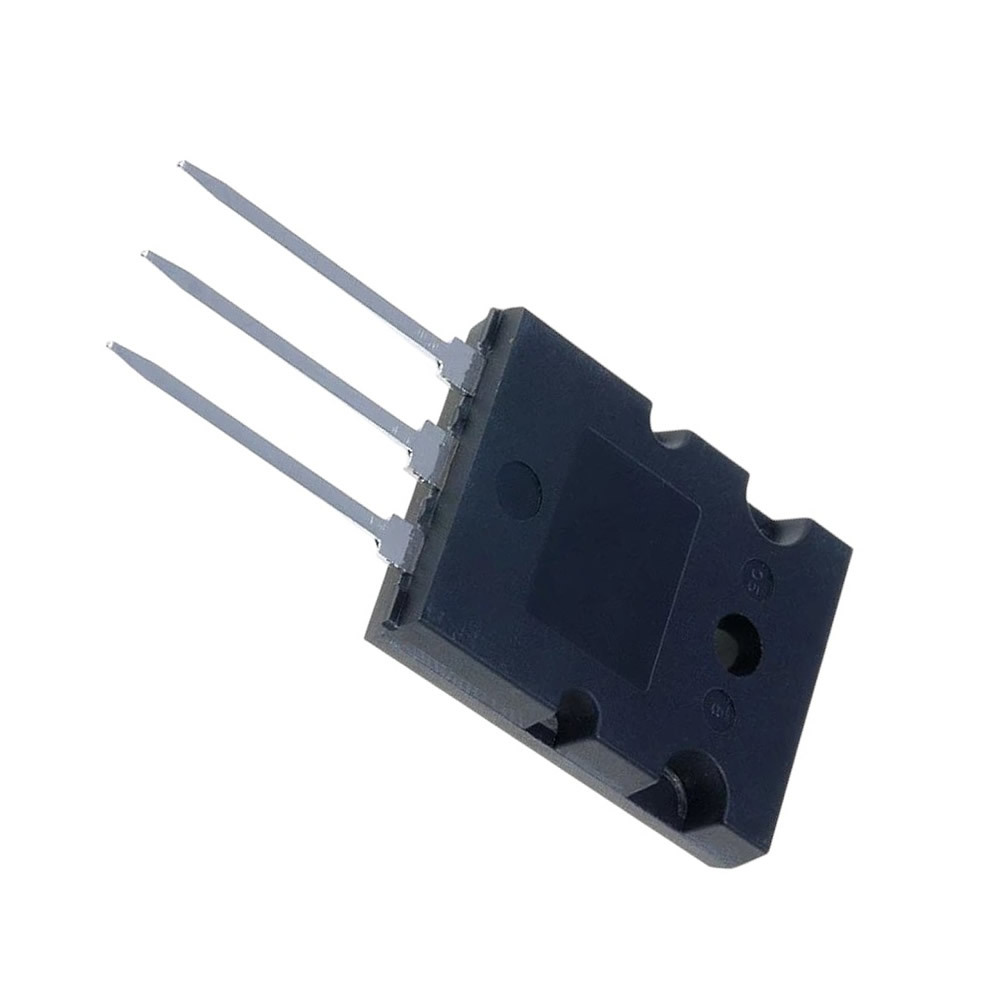

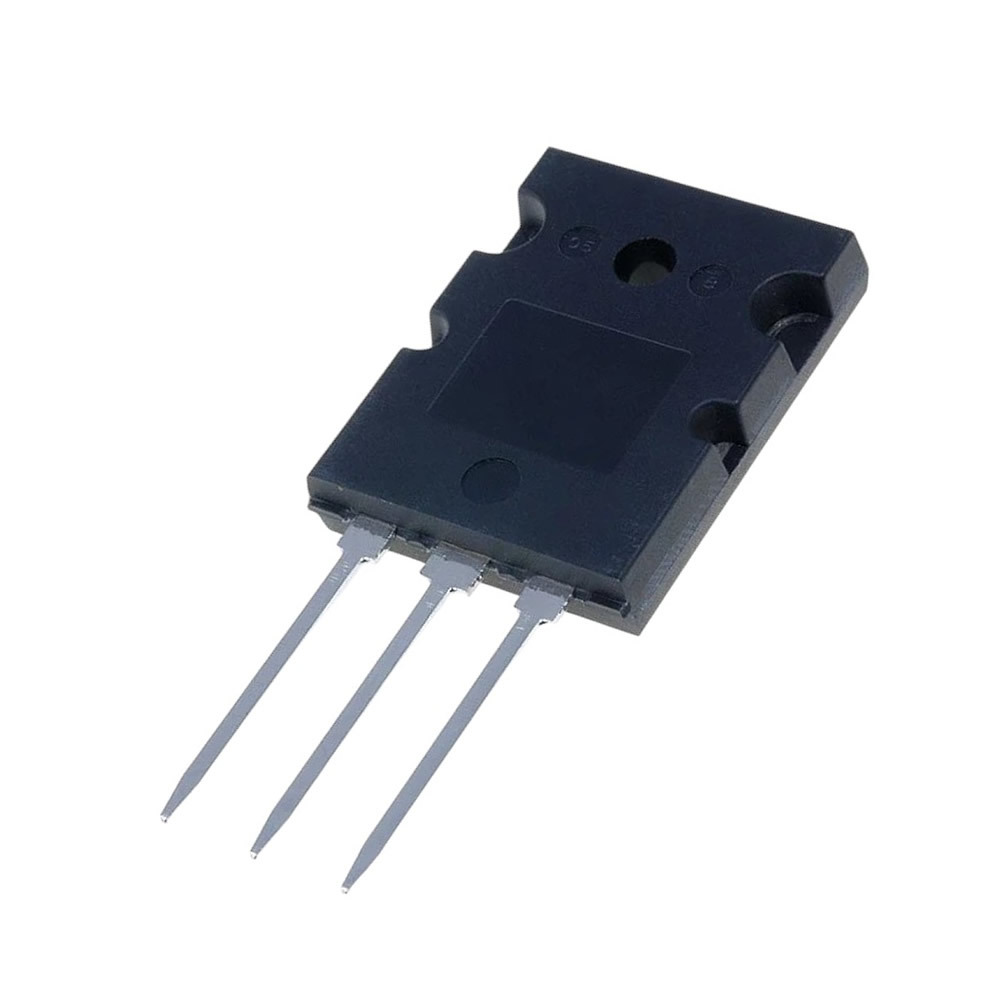

MJL4281AG Transistor Silicon NPN CASE: TO264 MAKE: Generic
Product specifications
Type Transistor Silicon NPN
Case TO264
Manufacturer Generic
Polarity NPN
Maximum Collector Power Dissipation (Pc) 230 W
Maximum Collector-Base Voltage |Vcb| 350 V
Maximum Collector-Emitter Voltage |Vce| 350 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 15 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 600 pF
Transition Frequency (ft): 35 MHz
Forward Current Transfer Ratio (hFE), MIN 80
SMD Transistor Code MJL4281A
SKU 602778
