MJL4302AG
View detailed images (4)

MJL4302AG

SKU: MJL4302AG

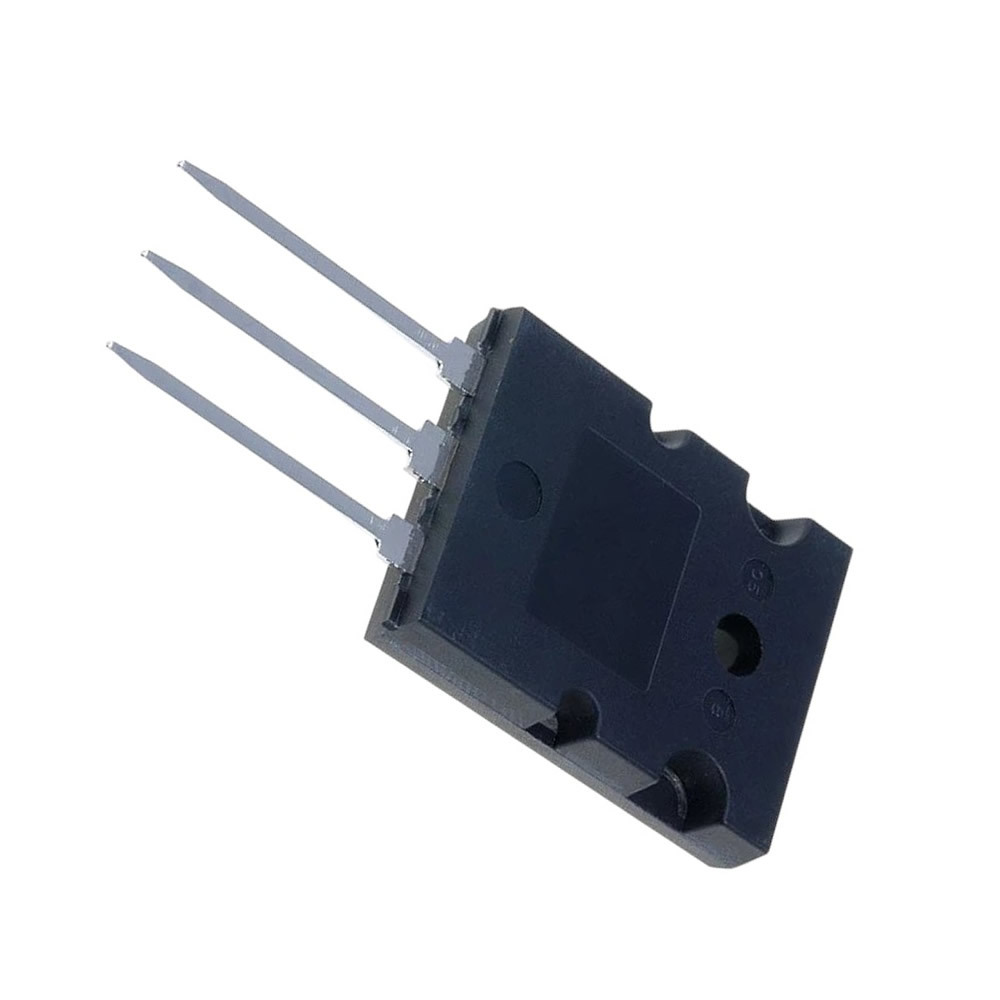

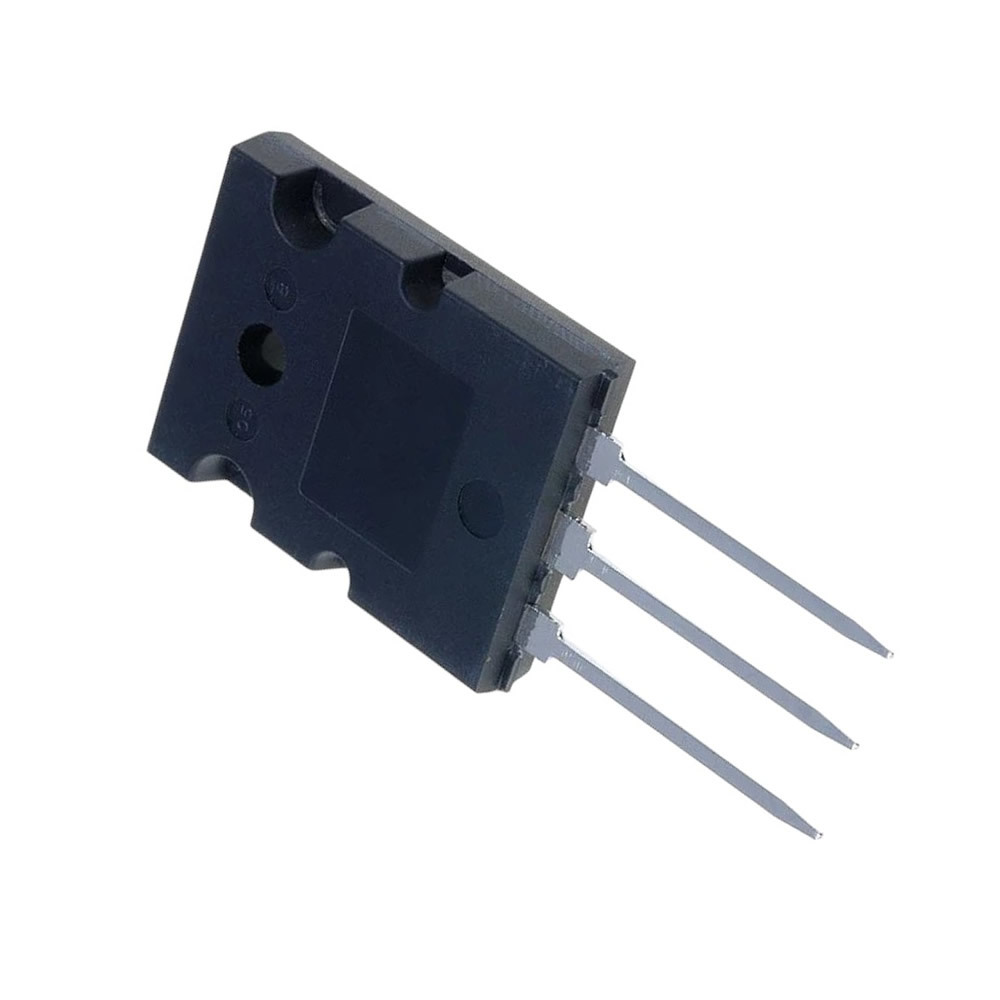

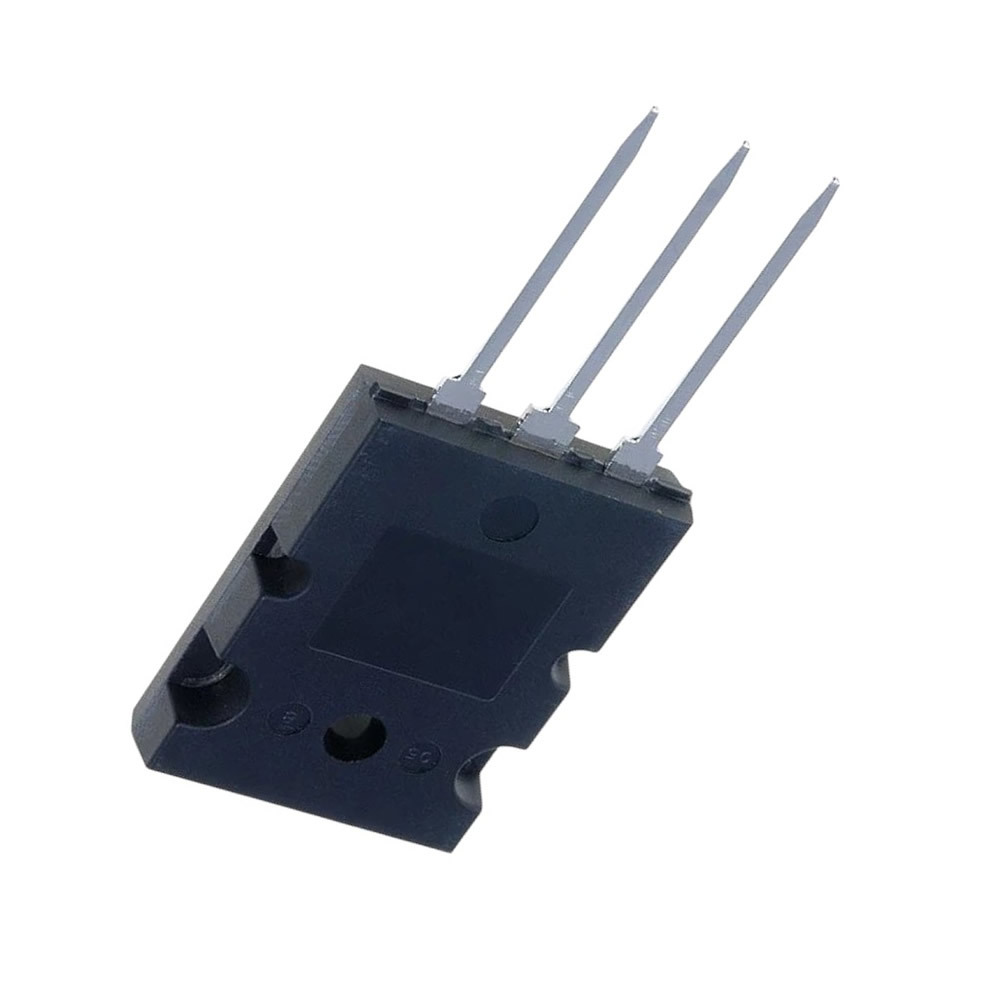

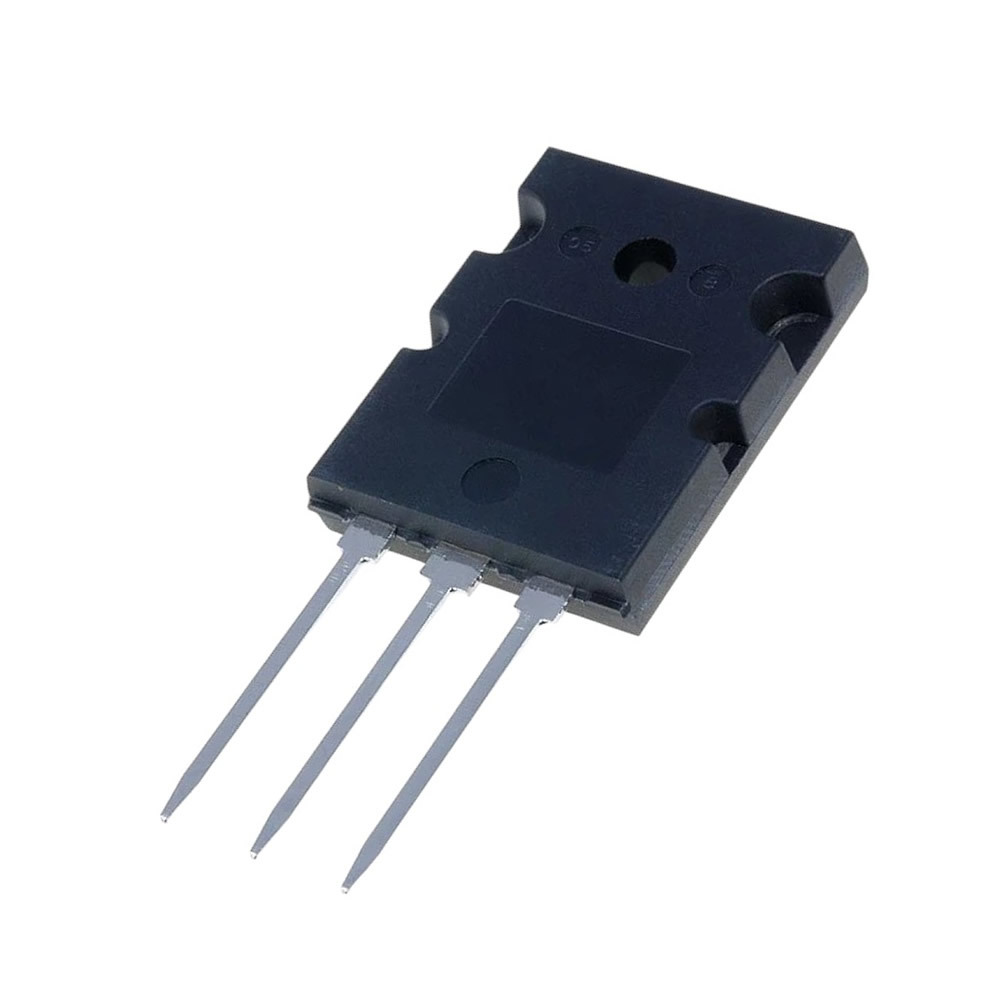

MJL4302AG Transistor Silicon PNP CASE: TO264 MAKE: Generic
Price:
£23.99 Inc. VAT (£19.99 Ex. VAT)
£23.99 Inc. VAT (£19.99 Ex. VAT)
Qty
  • 1 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon PNP
Case TO264
Manufacturer Generic
Polarity PNP
Maximum Collector Power Dissipation (Pc) 230 W
Maximum Collector-Base Voltage |Vcb| 350 V
Maximum Collector-Emitter Voltage |Vce| 350 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 15 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 600 pF
Transition Frequency (ft): 35 MHz
Forward Current Transfer Ratio (hFE), MIN 80
SMD Transistor Code MJL4302A
SKU 432894
