MM709
View detailed images (5)

MM709

SKU: MM709

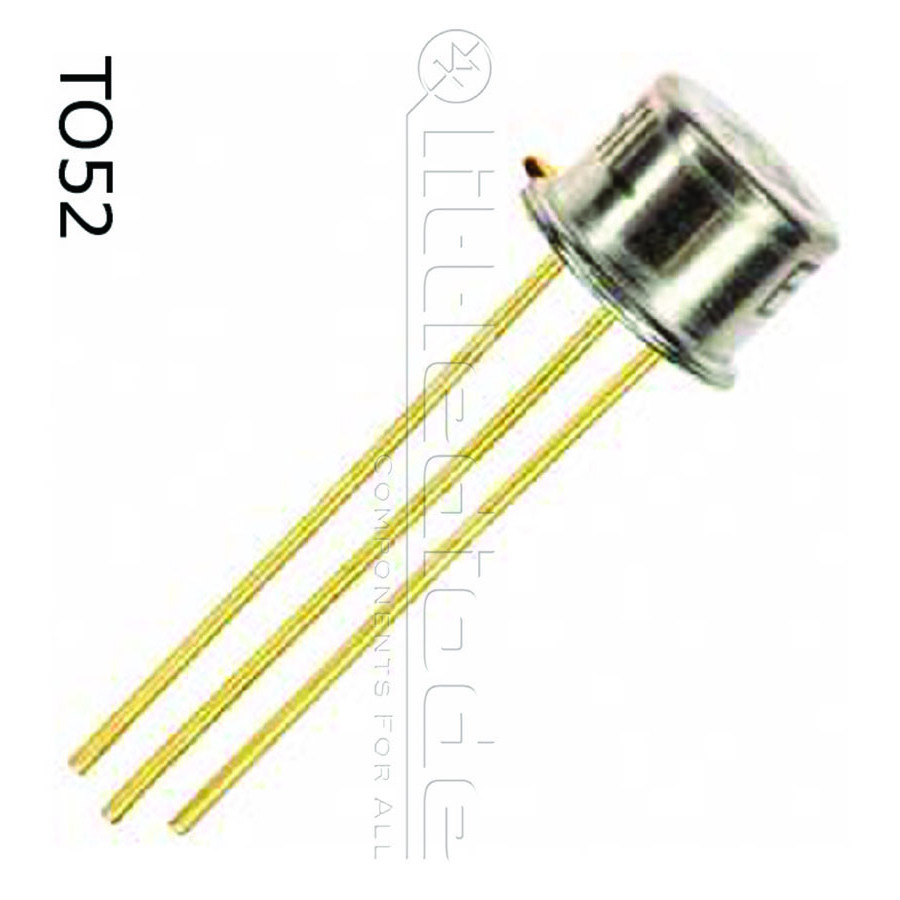

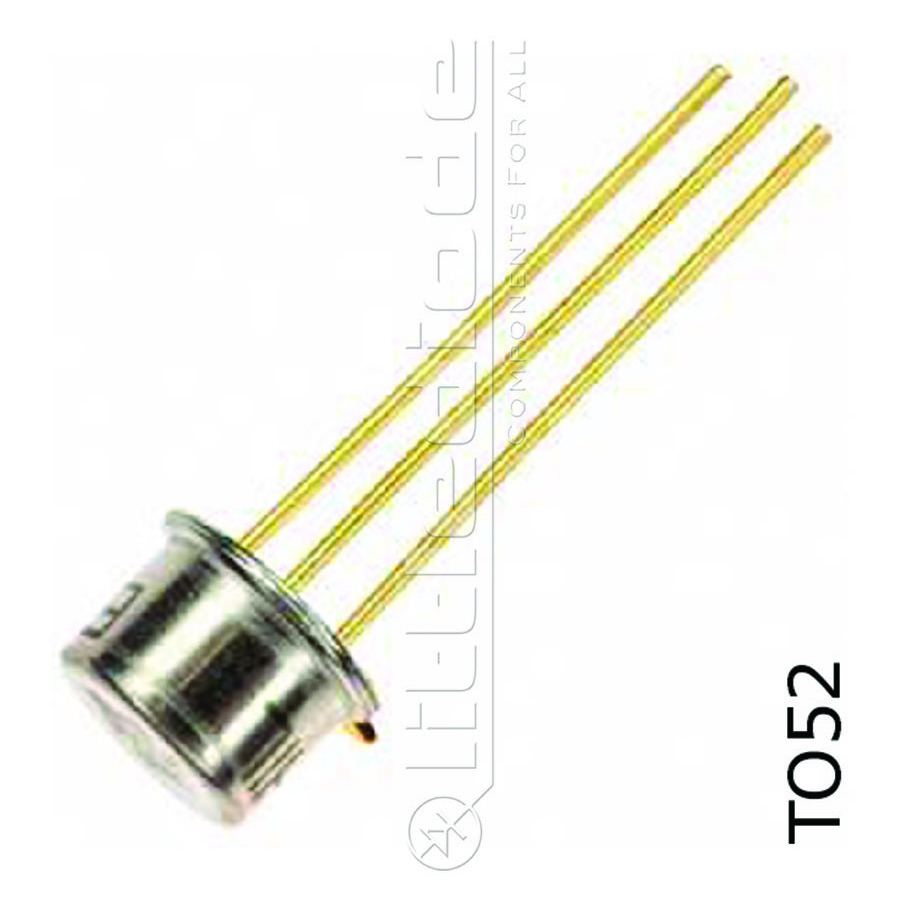

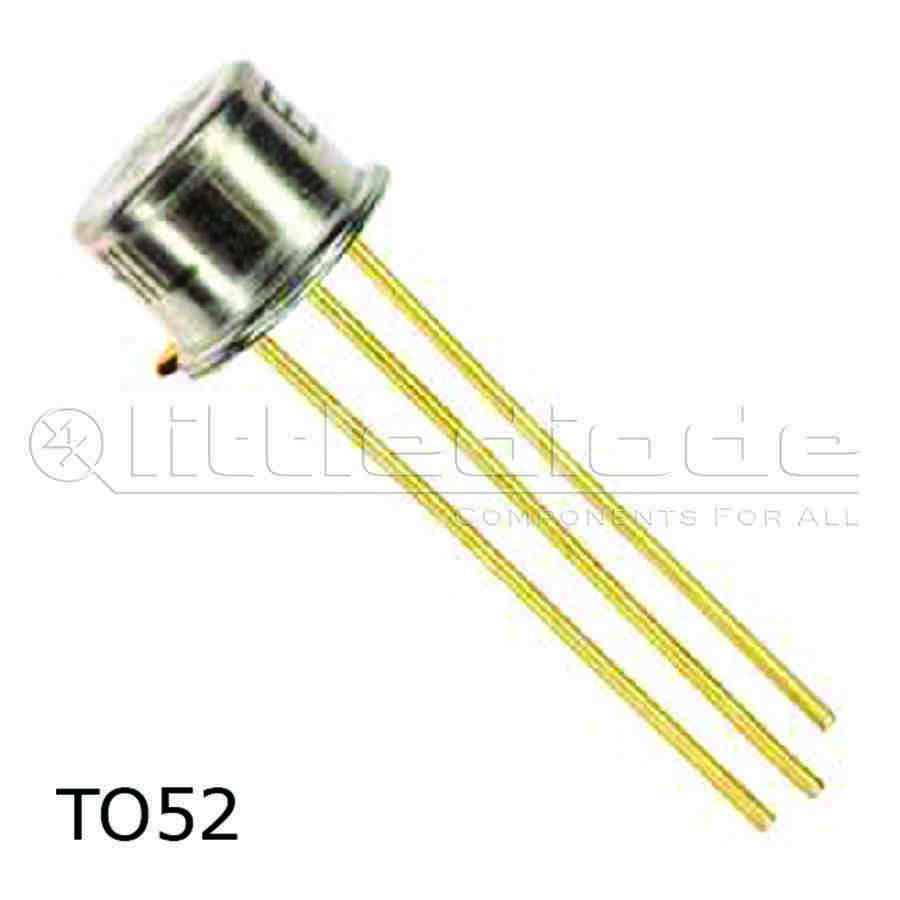

MM709 Transistor Silicon NPN CASE: TO52 MAKE: Motorola Semiconductor
Product specifications
Type Transistor Silicon NPN
Case TO52
Manufacturer Motorola Semiconductor
Vbr CBO 15
Vbr CEO 8.0
Max. PD (W) 400m
C(ob) (F) 3p
hfe 15
Polarity NPN
Trans. Freq (Hz) Min. 300M
@Ic (A) 10m
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.4 W
Maximum Collector-Base Voltage |Vcb| 15 V
Maximum Collector-Emitter Voltage |Vce| 8 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 3 pF
Transition Frequency (ft): 300 MHz
Forward Current Transfer Ratio (hFE), MIN 15
SKU 255882
