MM74HC540WM

MM74HC540WM

SKU: MM74HC540WM

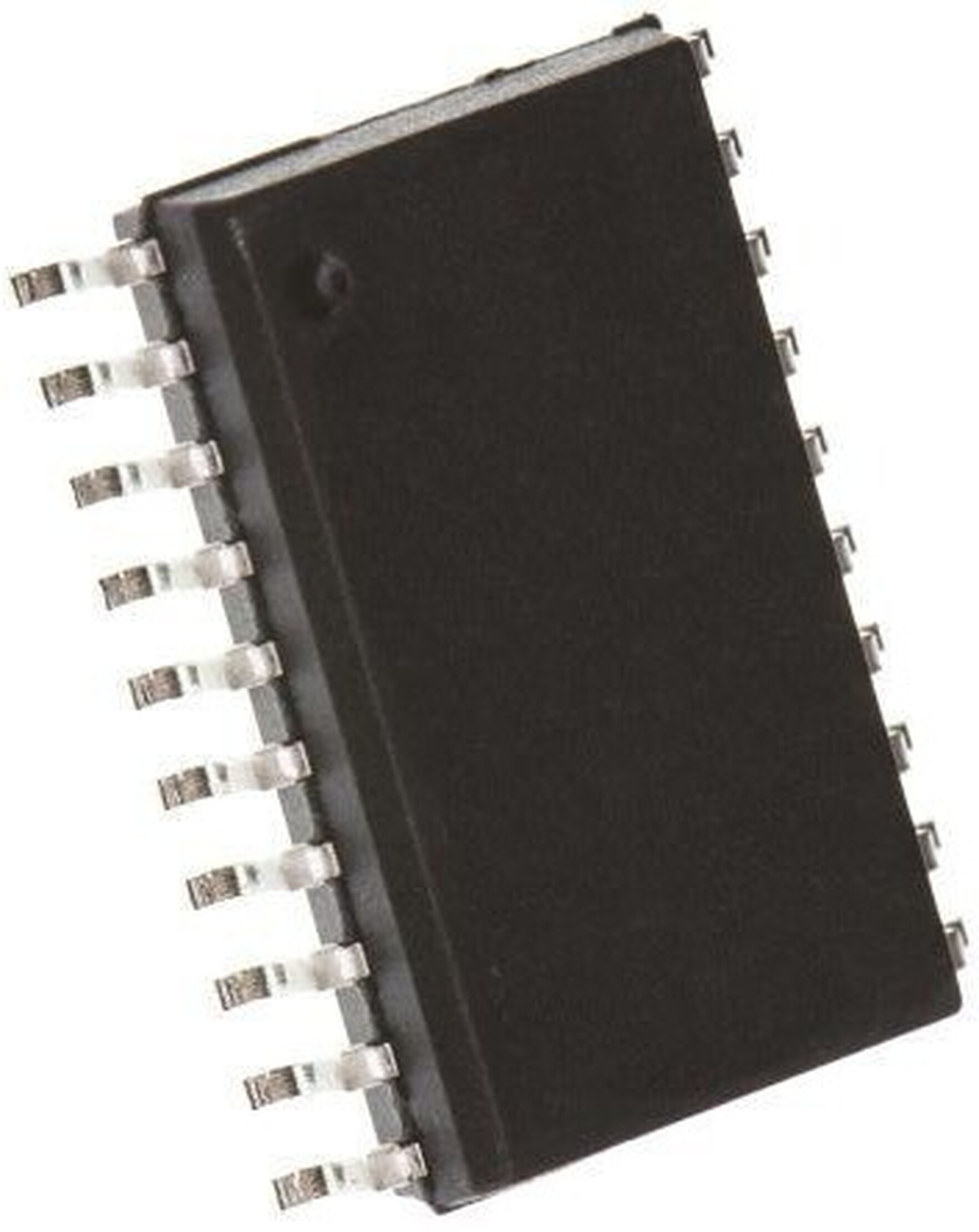

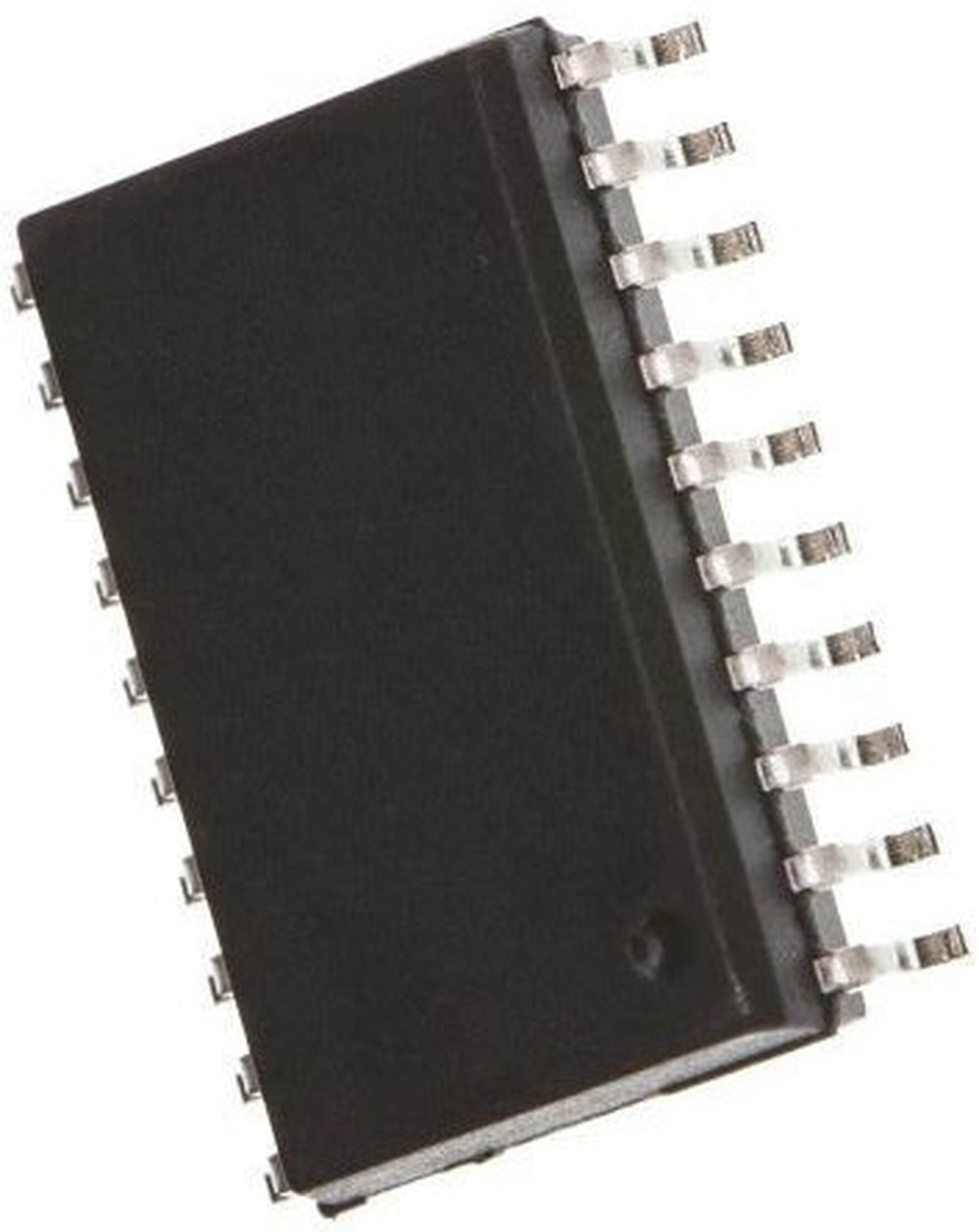

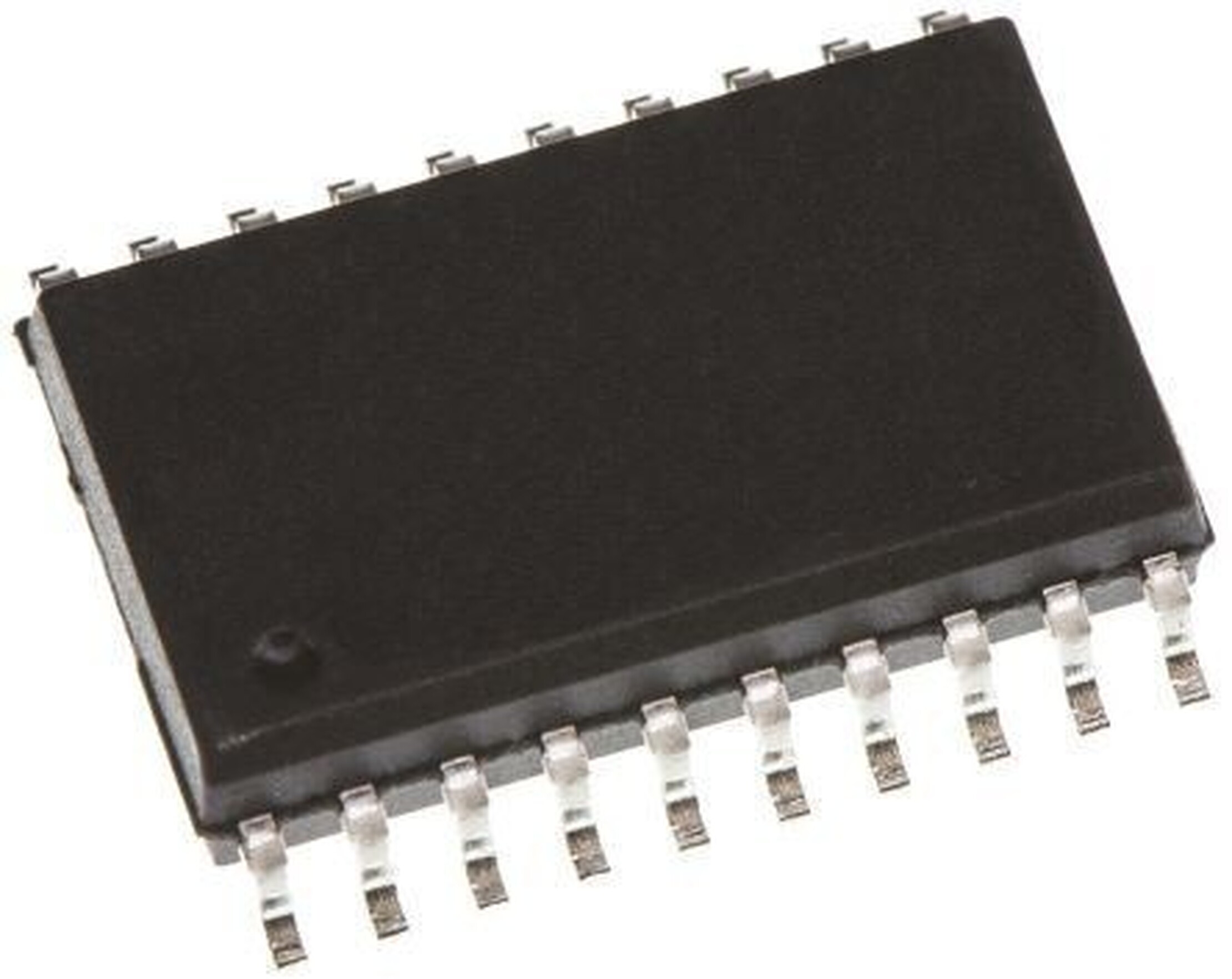

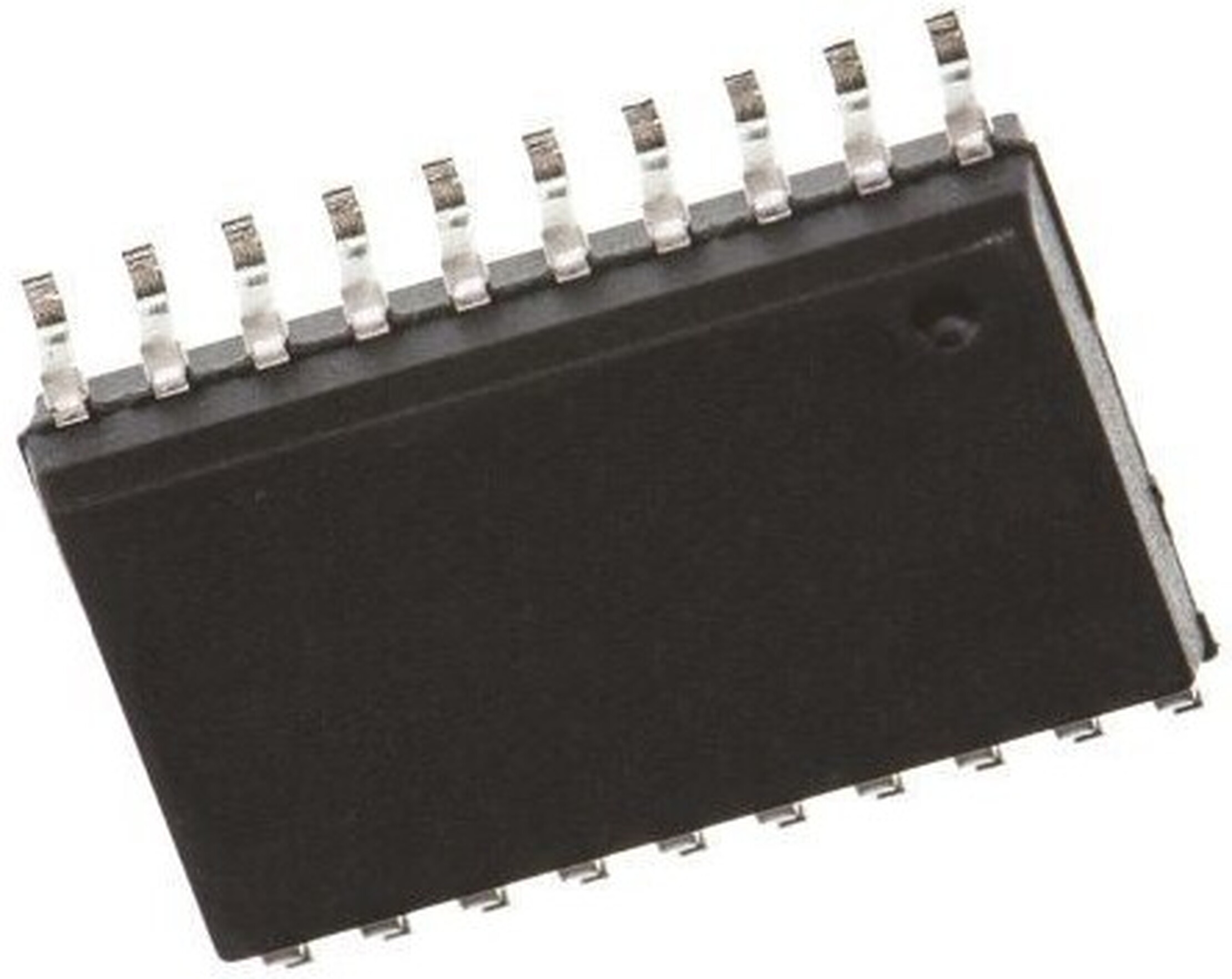

MM74HC540WM Logic IC CASE: SO MAKE: National Semiconductor - NSC
Product specifications
Type Logic IC
Case SO
Manufacturer National Semiconductor - NSC
Ckts Per Dev. 8
Vih Min (V) 3.5
Vil Max. (V) 1.5
Inp Per Ckt 1
Output Config 3-State
VOL Max. 0.4
tPD Max. (S) 38n
Nom. Supp (V) 5.0
Tech. CMOS Integrated Circuit
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
@Iol (A) 6m
Pinout Equivalence Number 20-134
No. of Pins 20
Surface Mounted Yes/No YES
SKU 256012
